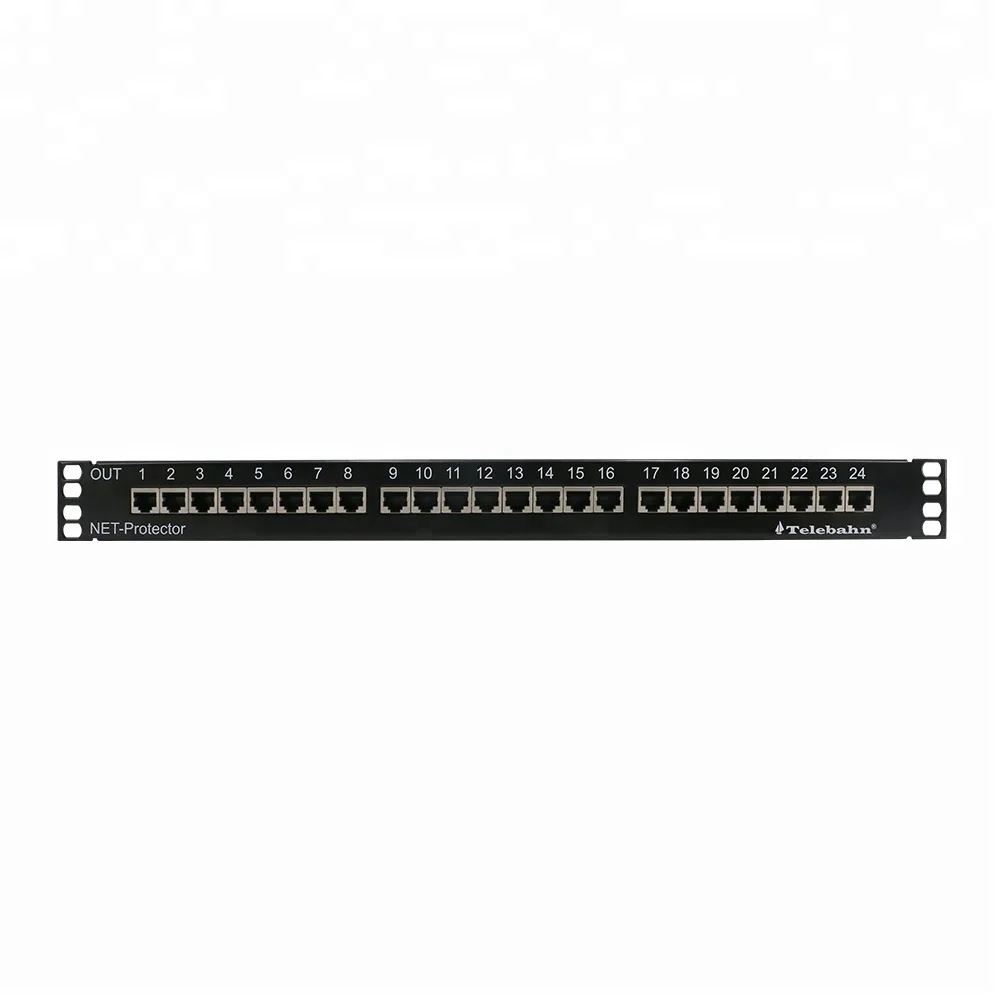

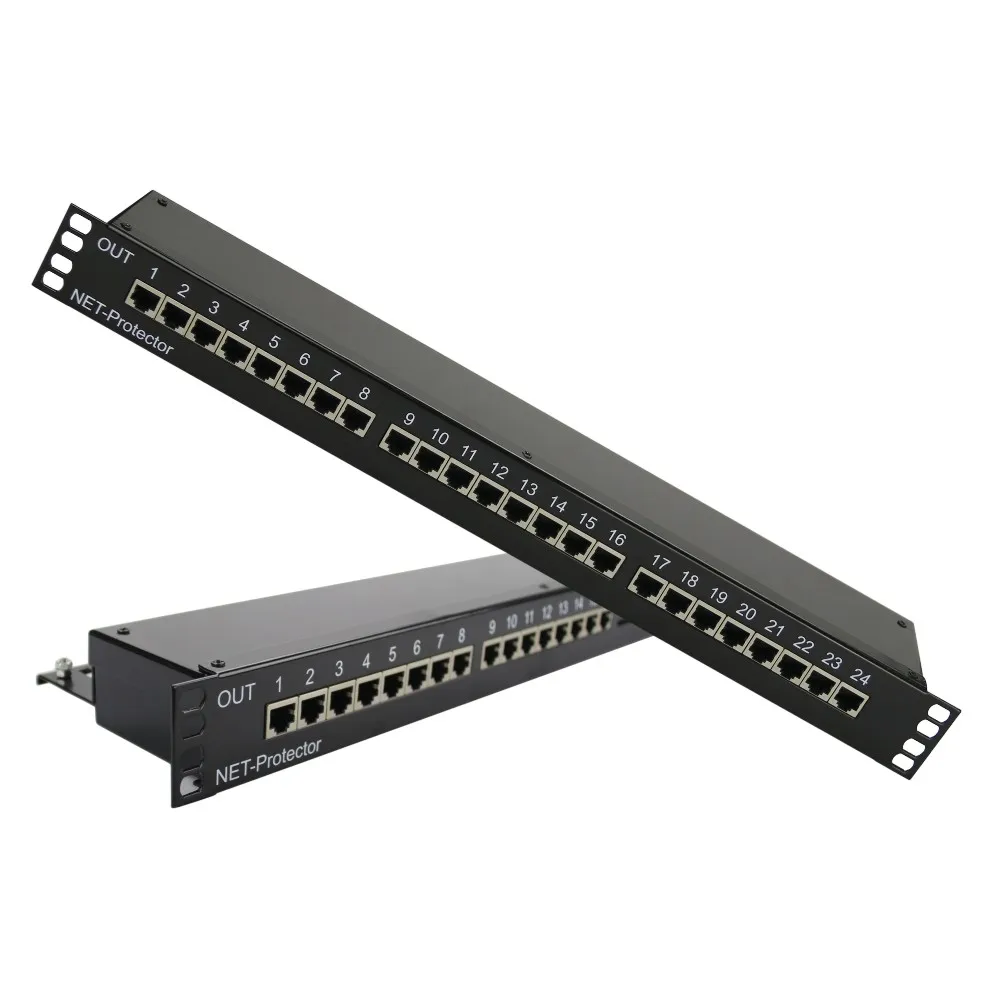

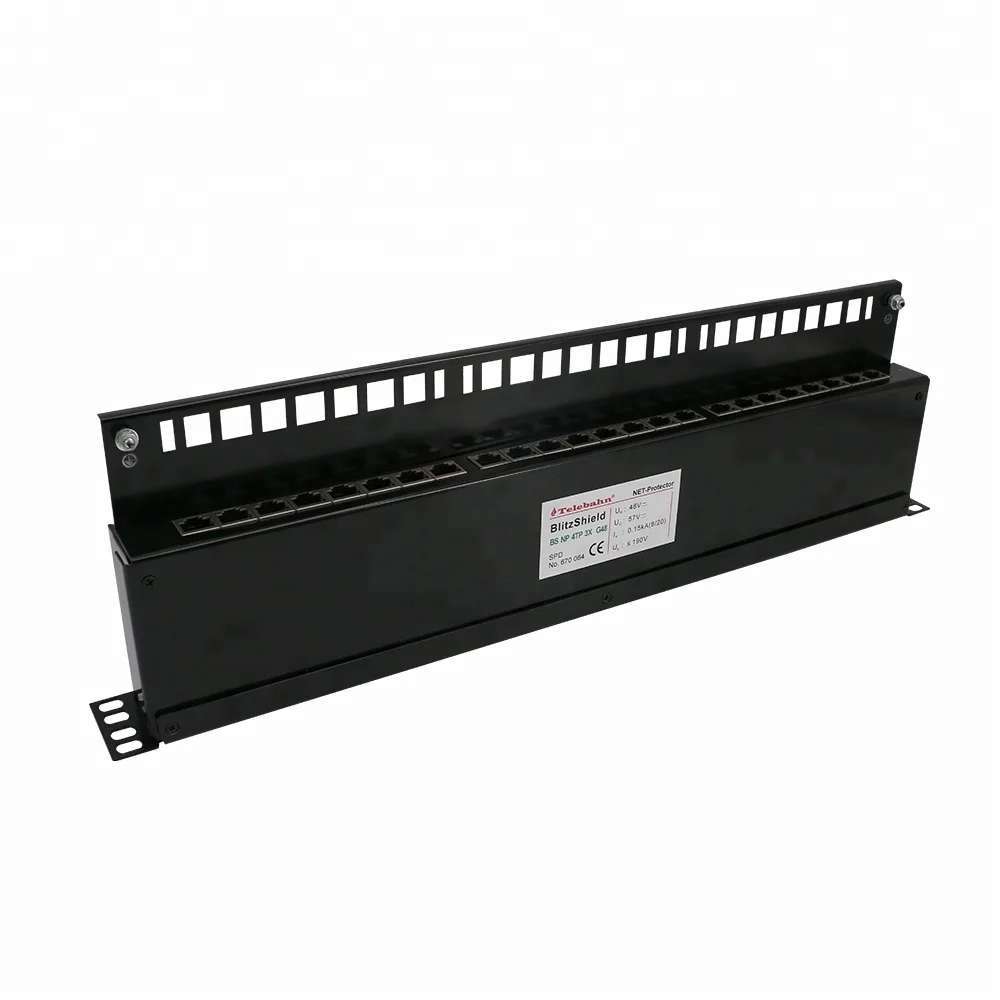

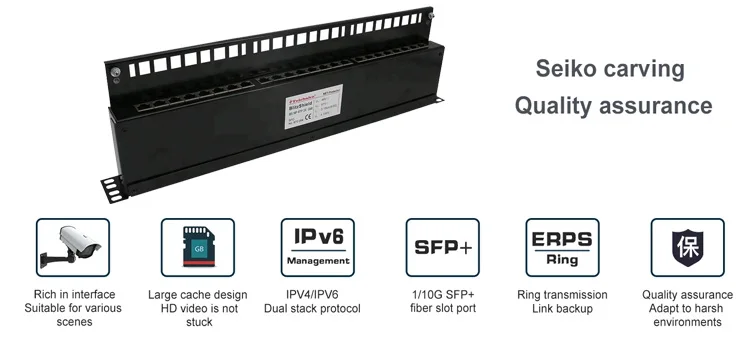

24 ports 1000Mbit/s 1GBit poe network 48V rj45 erthign grounding Surge protector Device Surge Protecgtor Devices Surge arrester
- Category: >>>
- Supplier: Zhuhai Telehof Electrics Company Limited
Share on (62489609051):
Product Overview
Description
Product Description
1000Mbit/s 1GBit CAT 6 24 ports signal telecommunication poe network 48V rj45 ethernet surge arrester, 24 ports RJ45 lightning protector for protecting network, surge arrester, lightning arrester, lighting surge protection.
Summary

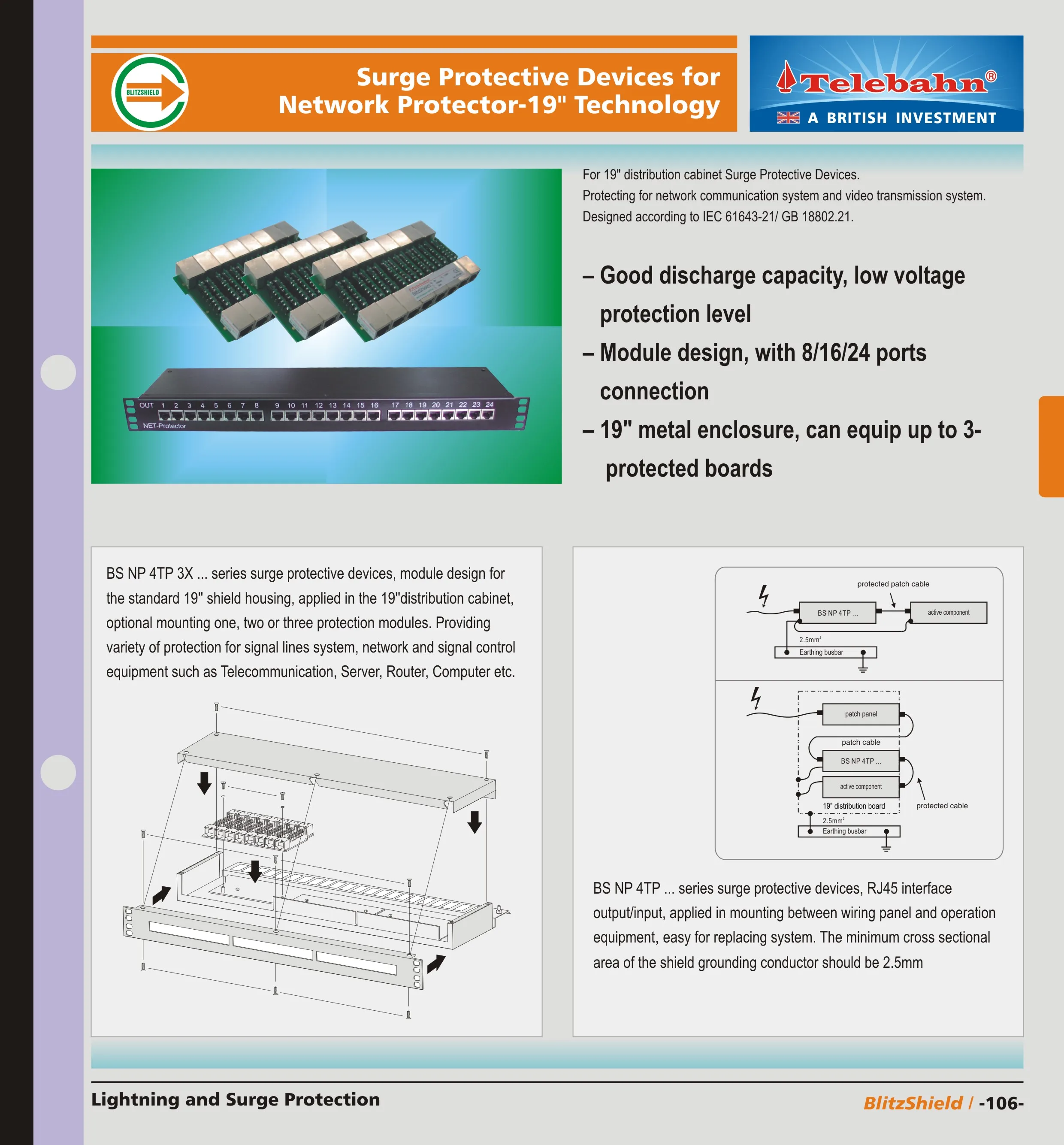

According to IEC 61643-21/GB 18802.21, this surge protective module uses RJ45 interface, protected by four pair's lines. Applied for the signal system such as: Ethernet 1000BaseT/TX/T4, ATM155MBit/s, 100VG-Any-LAN, CDDI, 10Base T (IEEE 802.3), Token Ring (IEEE 802.5) etc. (e.g. Telecommunication, server, router, computer, and so on).
Features
1. Low voltage protection level
2. Quick response, high transmission speed
3. Low insertion loss
4. Module design for standard 19'' distribution cabinet
5. Available with 24 ports RJ45 connection

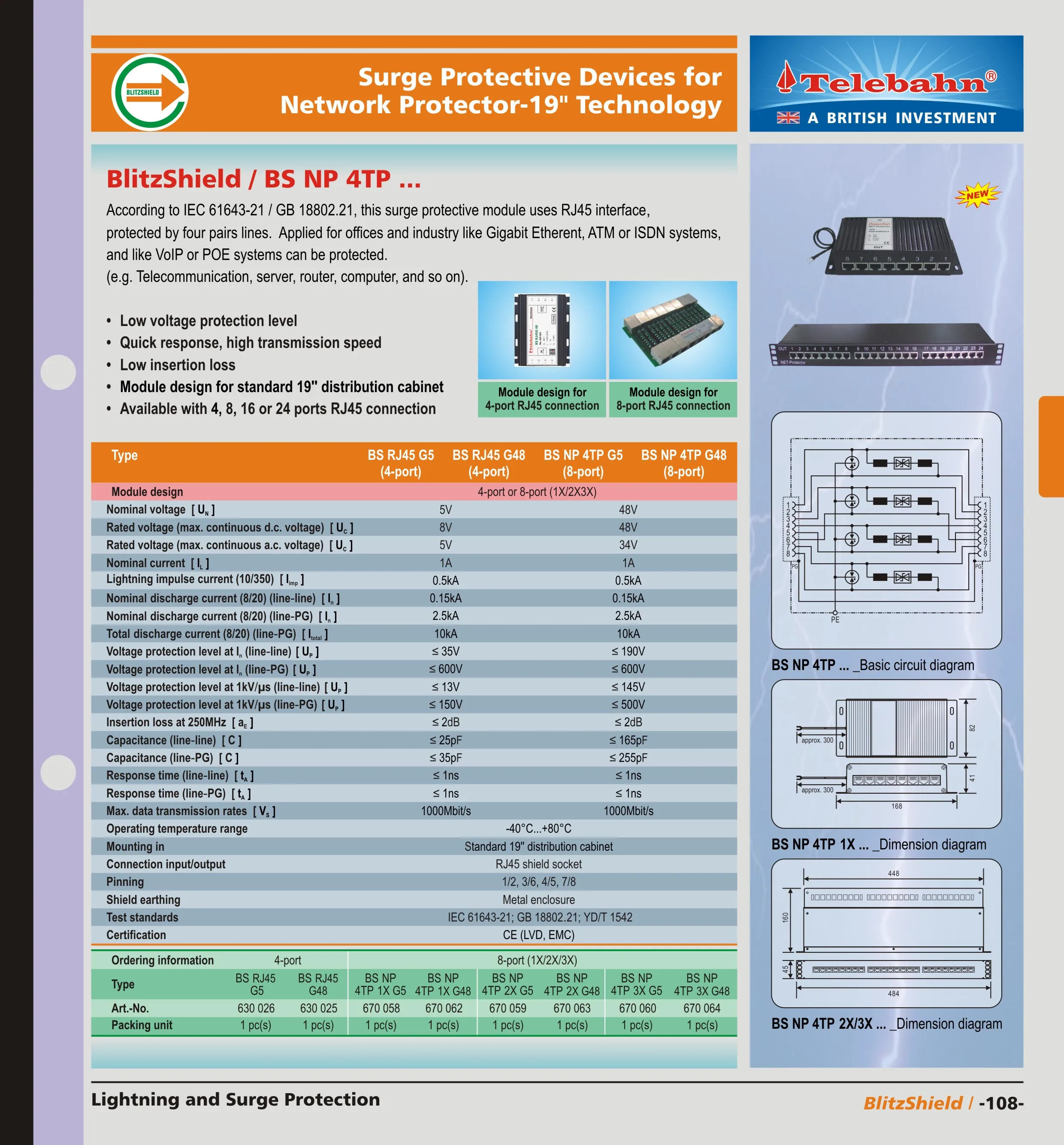

Parameters
| Type |
| BS NP 4TP 3X 48G |
| Art.-No. | 670 064 | |
| Number of connection ports | 24 | |
| Norminal voltage | UN | 48V |
| Rated voltage (max. continuous voltage) | Uc | 48V-, 34V~ |
| Max. continuous voltage (POE) | Uc | 57V~ |
| Nominal current | IL | 1A |
| Nominal discharge current (8/20) | In | 0.15kA (Line-line), 2.5kA (Line-PG) |
| Total nominal discharge current (8/20) | In | 10KA |
| Lightning impulse current (10/350) | Iimp | 0.5kA (Line-PG) |
| Nominal discharge current (8/20) (POE) | In | 0.15KA (pair-pair) |
| Voltage protection level at In | Up | ≤190V (Line-line), ≤600V (line-PG) |
| Voltage protection level at In (POE) | Up | ≤600V (Line-line) |
| Bandwidth | fG | 500MHz (Line-line) |
| Data trasmission rates | Vs | 1000Mbit/s |
| Capacitance | C | ≤165pF (Line-line), ≤255pF (Line-PG) |
| Response time | tA | ≤1ns (line-line), ≤1ns (line-PG) |
| Operating temperature range | -40℃-+80℃ | |

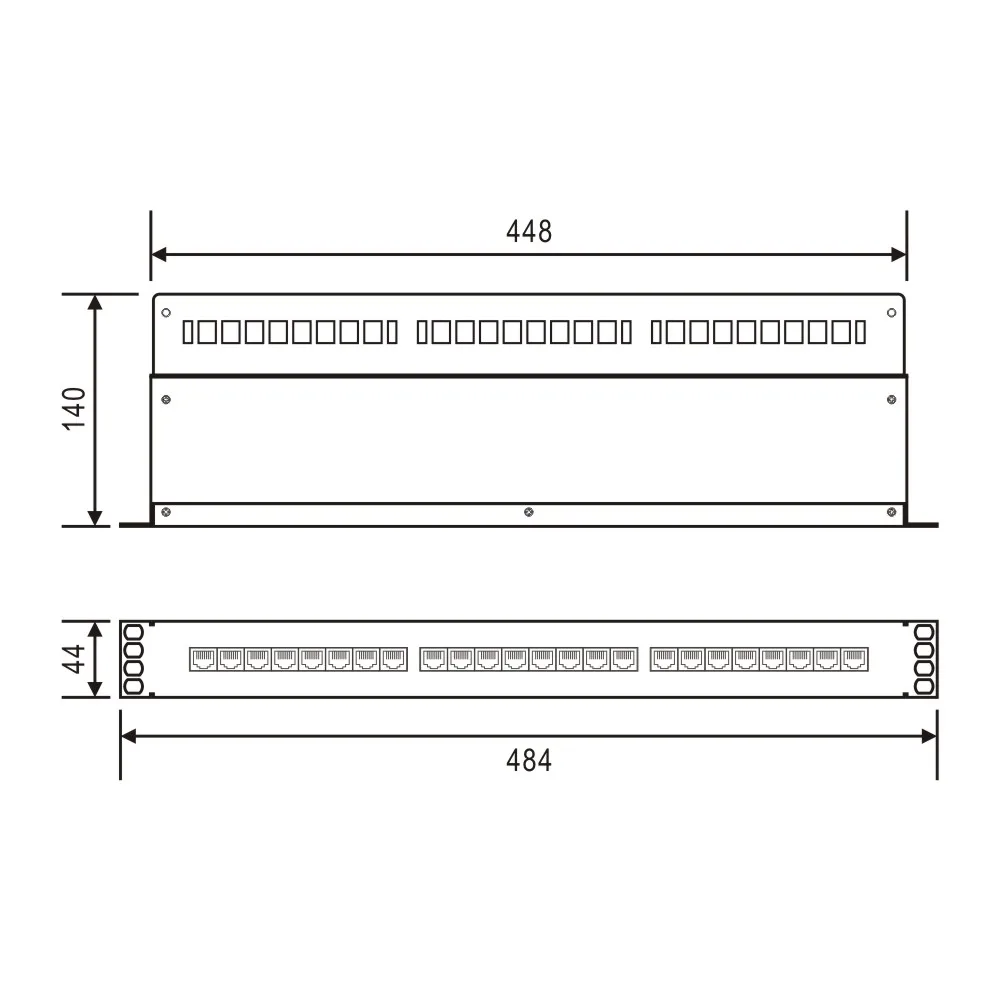

| Mounting in | Standard 19" distribution cabinet | |
| Connection input/output | RJ45 shield socket | |
| Pinning | 1/2, 3/6, 4/5, 7/8 | |
| Shield earthing | Metal enclosure | |
| Test standards | YD/T 1542; GB 18802.21; IEC 61643-21 | |
| Certification | CE (LVD, EMC) |
