Шэньчжэнь OEM, производитель электроники, печатная плата и услуги компоновки, другие печатные платы
- Category: Rigid PCB >>>
- Supplier: Shenzhen Sandeying Electronic Co. Ltd.
Share on (62489623222):
Product Overview
Description
Products Description

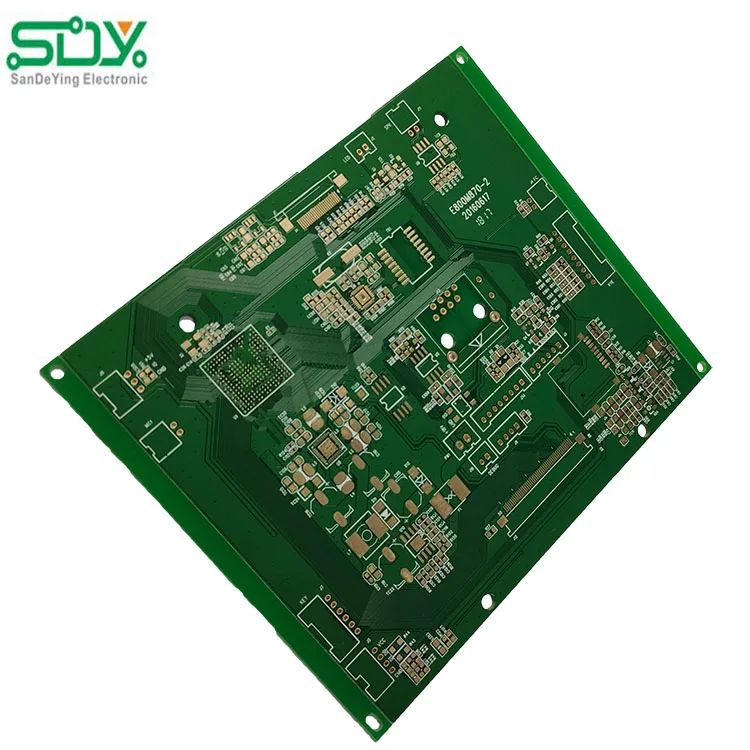

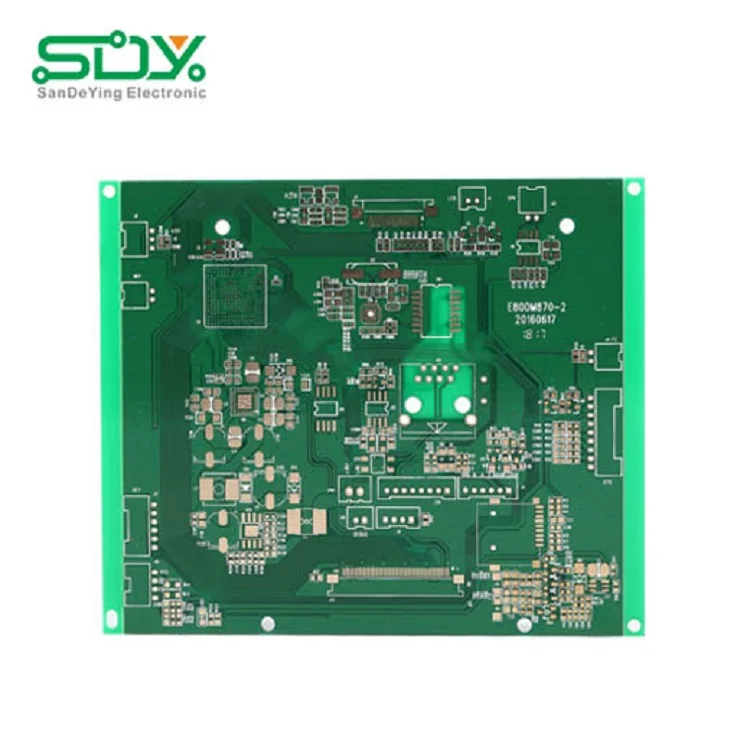

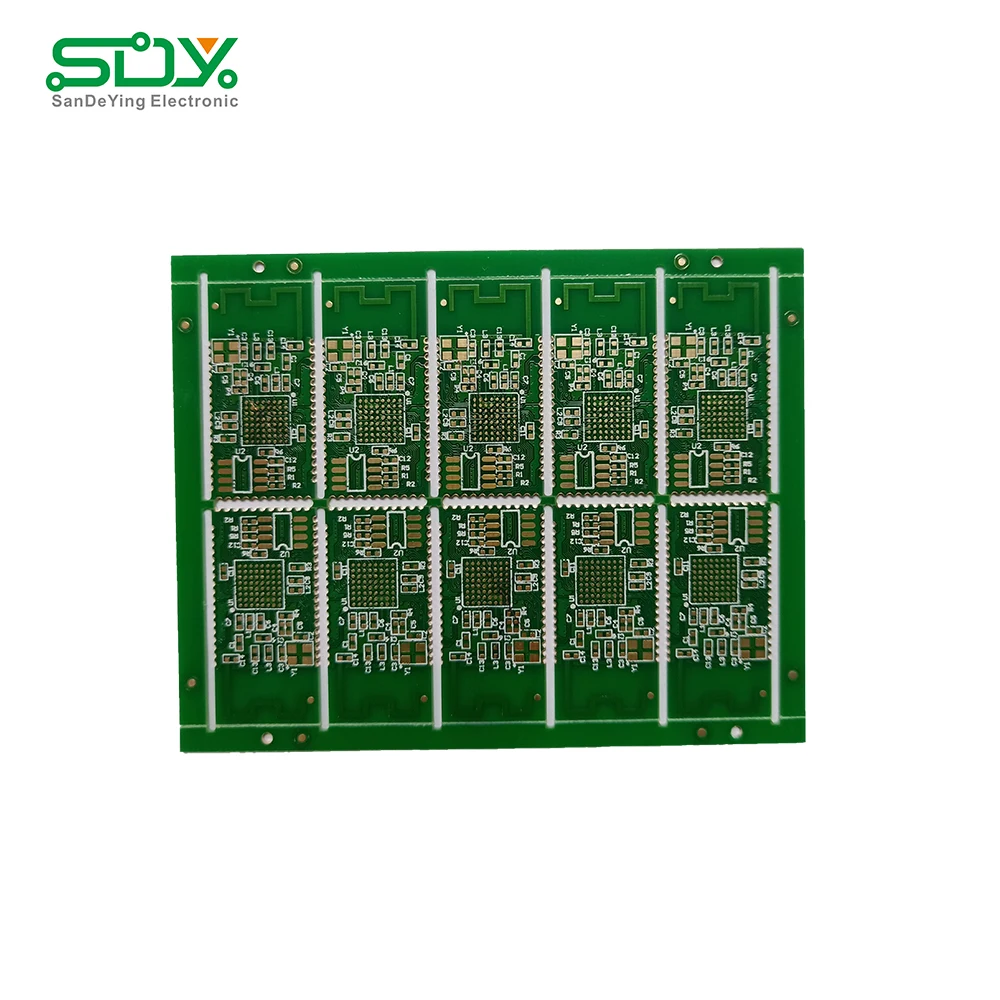

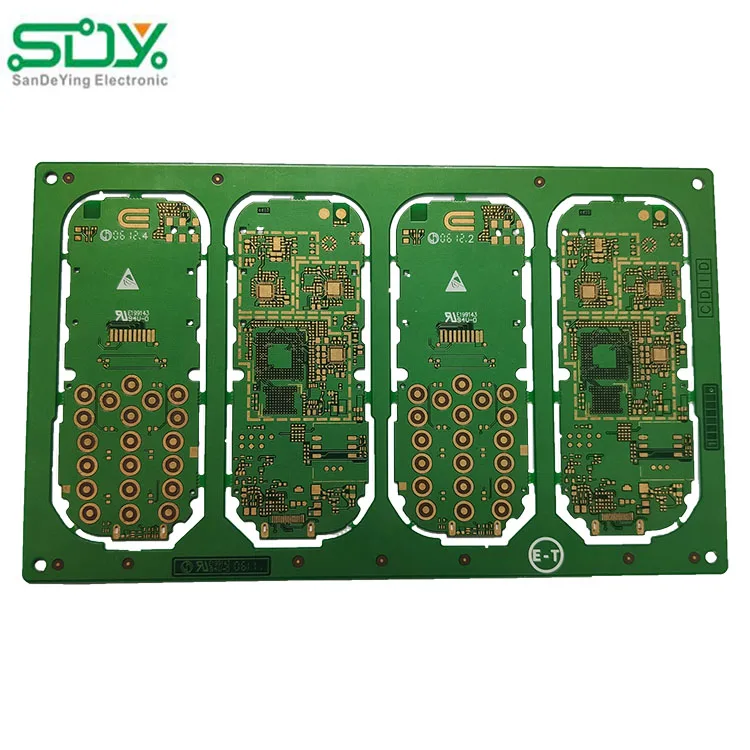

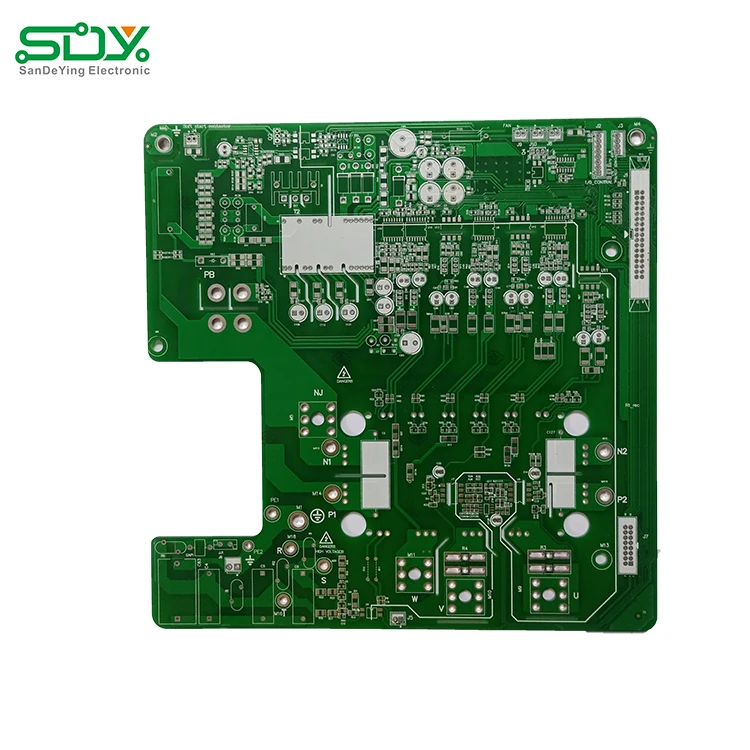

Shenzhen OEM electronic manufacturer pcb board and layout services other pcb
SDY manufactures various kinds of PCBs, including single-layer PCBs, double layer PCBs, multilayer PCBs, high TG FR-4 PCBs, heavycopper PCBs, impedance controlled PCBs, gold finger PCBs, plating gold PCBs, and some other PCBs according to customers’requirements.
UL TS16949 ISO certificate; IPC standard compliant
Click here to get more surprises→https://sdypcb.en.alibaba.com/
Item | Capabilities |
Monthly capability | 25000sqm/month |
Layer | 1-14 Layers |
Board material | FR-4 Tg130 / FR-4 tg140 / FR-4 Tg150 / FR-4 Tg170 / FR-4 Tg180 |
/FR-4 CTI175 / FR-4 CTI300 | |
Surface treatment | HASL / RoHS-HASL / Immersion gold / Plating gold / Gold fingers / OSP |
Solder mask colour | Green / Blue / Red / Black / Yellow / White |
Silk screen colour | White, Black, Yellow |
Tolerance | Board thickness tolerance / Board thickness≤1.0mm: +/-0.1mm / |
Board thickness 1.0-2.0mm: +/-10% / Board thickness >2.0mm: +/-8% | |
PTH diameter tolerance: +/-0.075mm / NPTH diameter tolerance: +/-0.05mm | |
/ Hole location tolerance: +/-0.075mm | |
Outline tolerance / Length≤100mm: +/-0.1mm / Length 100-300mm: + | |
/-0.15mm / Length >300mm: +/-0.2mm | |
V-cut dept tolerance: +/-0.1mm | |
Technical Specification | Min line width/space: 0.075/0.075mm |
Min PTH copper thickness: 20um | |
Min hole diameter: 0.2mm | |
Min pad ring: 0.1mm | |
UL certified max copper thickness: 6oz(including Multilayer, double layers | |
and single layer boards) | |
Max board size: 560*410mm | |
Board thickness / Double-sided board: 0.2-7.0mm / Multilayer board: 0.4-7.0mm | |
Solder mask bridge: ≥0.08mm | |
Aspect ratio: 8:1 | |
Via plugging capacity: 0.2-0.6mm | |
Board bow and twist: ≤0.75% | |
Au, Ni, HASL thickness: 1, Immersion gold: Au 1-4u” / 2, Gold fingers: Au 1-50u” | |
/ 3, Plating gold: Au 1-5u” / 4, Ni thickness: 100-200u” / 5, HASL thickness: | |
1-50um / 6, OSP thickness: 0.3-0.5um |
Company Profile
SanDeYing Electronic is a one-stop PCB supplier, founded in 2006, located in Shenzhen, a city famous for its electronics industry.It has ISO and UL certificate and honored as HI-TECH enterprise by Shenzhen government. Customers can work with SDY to meet different requirements instead of working with several suppliers, which will simplify the purchasing process, get quality PCBs, get on-time delivery, and saves cost in all.
Social Responsibility
The sustainable long term development
Environmental friendly development
Environmental friendly development
Employee friendly development
Mutual beneficial development
Social friendly development
Mutual beneficial development
Social friendly development

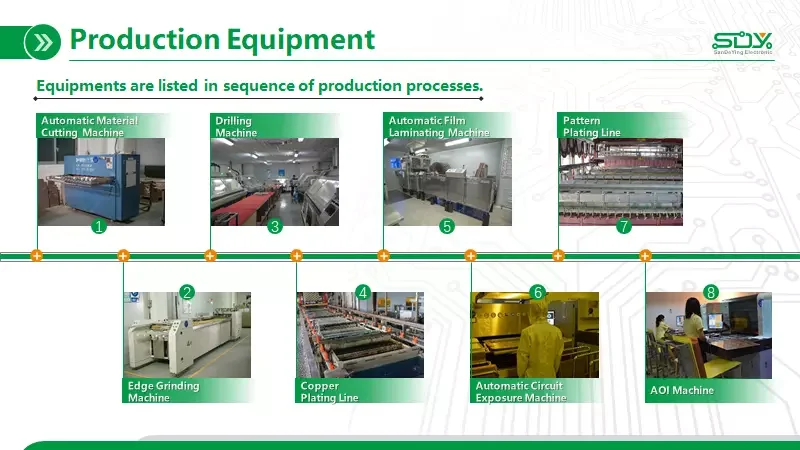

Production Equipment
SanDeYing Electronic is an international leader in printed circuit boards, we strive to provide our customers with expanded manufacturing capabilities in order to fit the wide variety of quality PCBs they require.
Below you will find a listing of Sandeying Electronic’s standard manufacturing capabilities. If you require something that is not listed, please contact SDY to give us the opportunity to accommodate your individual need.
Why Choose Us

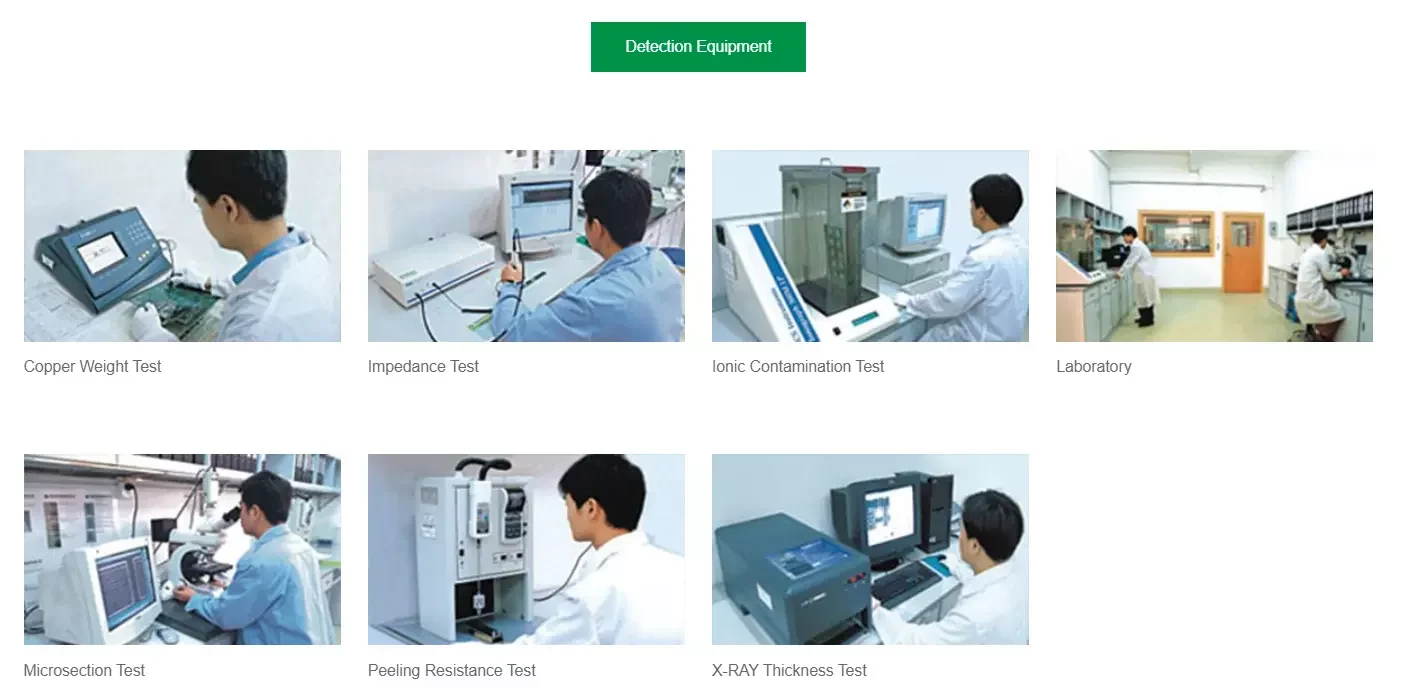

Quality
UL TS16949 ISO certificate; IPC standard compliant.
Zero defect on product quality; the Precision instrument is being used in SanDeYing.
Zero defect on product quality; the Precision instrument is being used in SanDeYing.
All PCBs are 100% electrical tested. They can pick and send PCBs to E-fixture test machines automatically, and place the PCBs at appointed places after testing, according to the test result;
All PCBs are 100% visually inspected. All tests and inspect results are recorded in the inspection report and shipped together with the PCBs.
All PCBs are 100% visually inspected. All tests and inspect results are recorded in the inspection report and shipped together with the PCBs.
Experience
More than 14 years of experiences in the production of PCB.Professional Engineer and oversea sales team in the PCB industry fully involved in the whole business procedures. You are working with a team of experienced engineers, not only one or two salespeople if you are working with SanDeYing Electronic.
Equipment
Automated production equipment greatly improves the production efficiency and product quality Complete PCB production Line On-Site. Saving Transportation Time in Different procedures and Increasing Yield Rate.

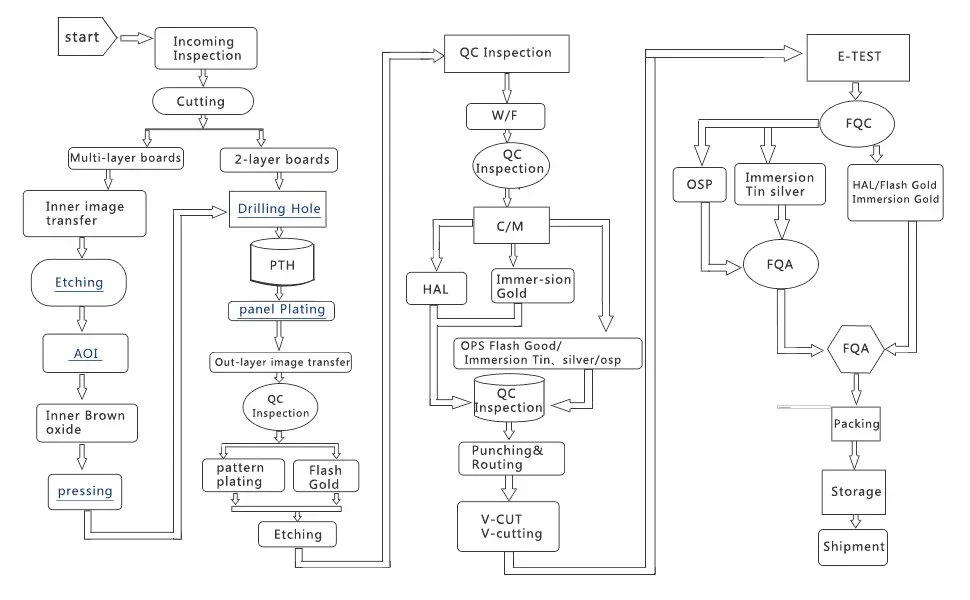

More than 80% are automated production equipment, and a variety of famous brand equipment is used in all processes, including Drilling, Electroless Plating, Electroplating, Etching, Solder Mask, Silk Screen, Chemical Gold, Electrolytic Gold, CNC Profiling,Electrical Testing, and Packing.
Service
Comprehensive technical support from design to manufacture,on-time delivery, quick response for inquiries. We provide 24 hours on-line professional Pre-sale, Selling, and After-Sale service to solve any question about the order.Price
We have a complete supply chain management system to control costs from the source of production, manufacturing, and procurement. Will give you the cheapest purchase price. compare other factories or manufacturers.Click here!!! Get the discount and enjoy VIP service!!!→https://bit.ly/3ketVTn
Our Business Partners
We have maintained good cooperation with many well-known companies and look forward to working with you!
Certificate
* UL: 94v0 highest fire rating, safe and worry-free
* ISO: quality system standards to ensure product quality
* TS16949: perfect system management to ensure your good buying experience.
* ISO: quality system standards to ensure product quality
* TS16949: perfect system management to ensure your good buying experience.

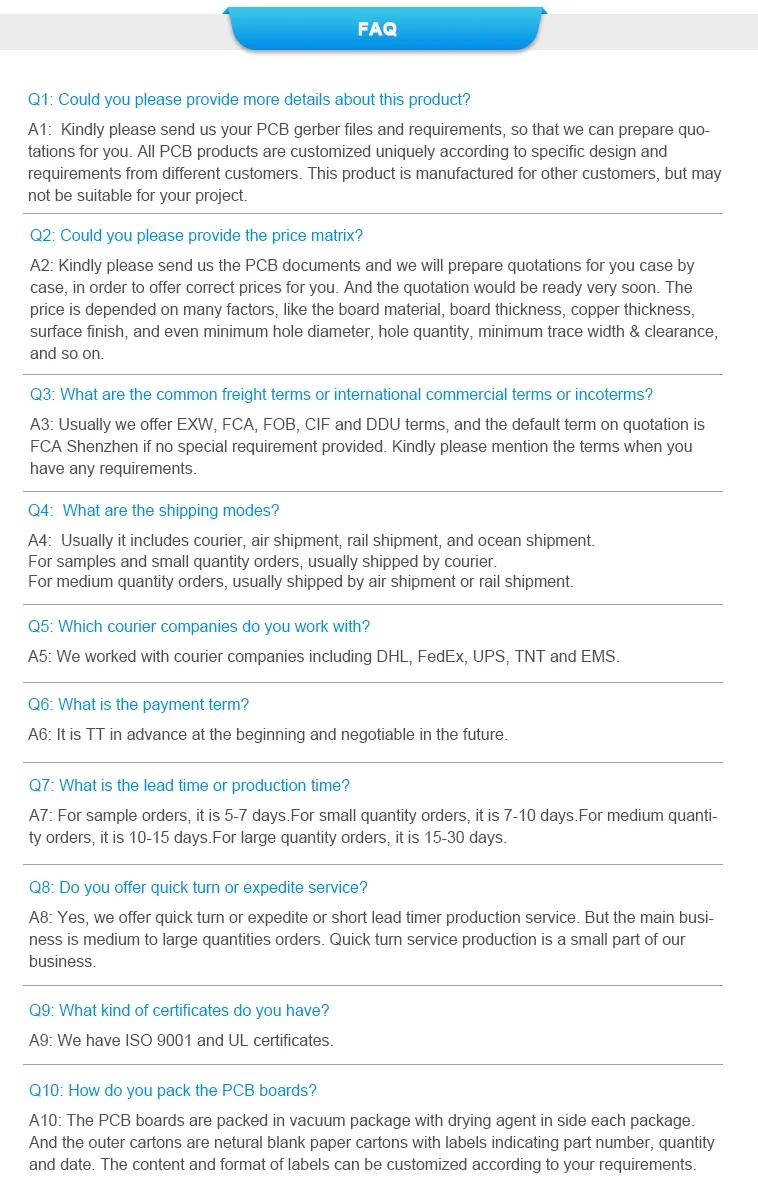

FAQ
