ATA wholesale low price fpm lined chemical industry use pvc u wafer hand wheel gear butterfly valve (62489652187)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description




Product Name
ATA factory wholesale fpm lined chemical industry use upvc wafer handwheel gear butterfly valves
Brand
ATA brand, TIANJIN DAYU, valves manufacturer, since 2009
Type of Connecting
double flange lug wafer, Handle or Gearbox operator
Specifications
Handle butterfly valve size from 2" to 8";
Gearbox butterfly valve size from 2" to 20"
Materials of Body & Disc
UPVC/PVC; FRPP; PPH; ABS
Disc Material
Can be FRPP  or PPH
Handle Color
Red  Yellow   Orange  Blue  Green or Customized
Handle Material
ABS handle,  Stainless steel 304 Spring
Gearbox Meterial
SS Stainless steel;  or Cast Iron; or Aluminium Alloy
Body Color
gray body and disc and positioning plate
Nominal Pressure
PN10   150PSI  125Class
Working Temperature
below zero 10 to  above freezing 60 degree.
Mounting Platform
ISO5211  F05/ F07 /F10
Driven by
bare shaft, available to install actuator, could be handle operated, gear operated , pneumatic and motor actuator
Disc type
reinforced keel disc,  and stem with EPDM double o-ring sealing
Seat Material
 NR (natural rubber for pure water system); EPDM( better for sea water); FPM ( good for Chemical industry, acid & alkali resistant)
Shaft (Stem) Material
45# Carbon steel, SS304, SS316
Quality guarantee
24 months
Standard
DIN  ANSI  ASTM  JIS  BS  CNS, direct buy factory
Free sample & logo
free sample; free logo. Laser marking machine can print any logo you want to.
Equipment
plastic injection machine; pressure testing machine, processing machine. Laser marking machine
Certificate
Certificate of Origin, like China-Pakistan FTA, China-Korea FTA, Asean-China Free Trade Area FORM E, China-Chile FTA FORM F
Application
• Water & Waste water Treatment Plant
• Chemical Processing
• Food & Beverage
• Swimming Pools & Water Parks
• Agriculture irrigation system
• Aquarium & Zoo Service
• Pharmaceutical
• Pulp & Paper
• Landfill Service
• Marine & Corrosive Environments





Related Products


UPVC Butterfly Valve FRPP Disc EPDM seat Gearbox operated
Size: 2" to 16"
PPH Disc is also available
UPVC Butterfly Valve FRPP Disc FPM seat Manual Lever operated
Size: 2" to 8"
PPH Disc also Available

UPVC Butterfly Valve PPH Disc, with bare square shaft, mounting pad ISO5211, ready for Pneumatic/ Electric actuator use.
Size: 2" to 16"


UPVC Single Union Ball Valve
EPDM or PTFE seat
Size: 1/2" to 4"
UPVC Double True Union Ball Valve
EPDM or PTFE seat
Size: 1/2" to 4"
UPVC Compact Ball Valve
UPVC Octagonal Ball Valve
Size: 1/2" to 4"


UPVC Double Union Manual Ball Valve
UPVC Double Union Ball Valve with Bare Shaft, mounting pad ISO5211, ready for Pneumatic Motorized use
Size: 1/2" to 4"
PPH matetial ball valve Available
UPVC Butterfly Valve Handle type
UPVC Butterfly Valve with Bare Shaft, Mounting pad ISO5211, for actuator use, Pneumatic and Motorised
Size: 2" to 16"
FRPP, PPH, ABS butterfly valve, have it
UPVC non return Swing Check Valve
Prevent water
Size: 3/4" to 6"
Body color: Grey or White
Connection: Slip Socket or Thread
Standard: DIN BS JIS ASTM


Detailed Images

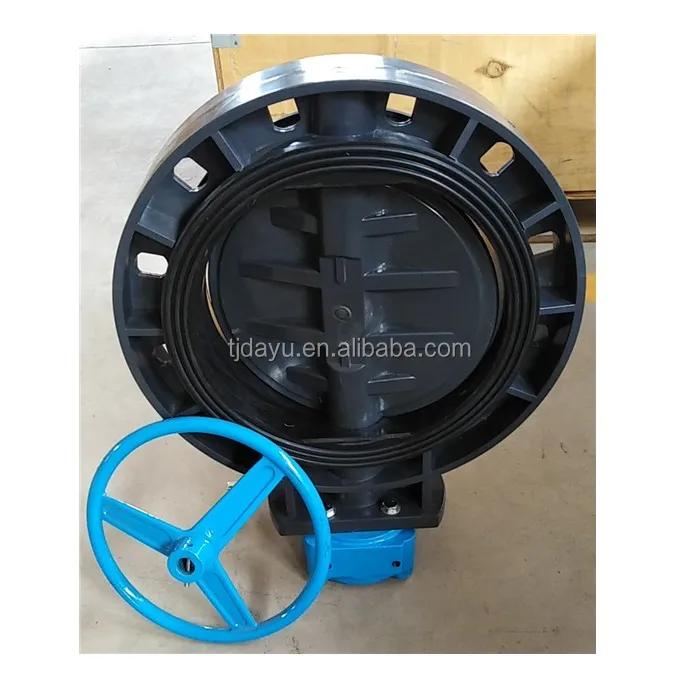

Worm gearbox type plastic wafer butterfly water valves have Reinforced keel disc strong enough for any water pressure; with mounting pad ISO5211 F05 F07 F10, Gearbox or Pneumatic or Motorized actuator is available to install。

NOTE:  Different raw material, different body color like Gray or White or Beige, the shape and functions of butterfly valve are same.




Packing & Delivery


Packing Details
1.wafer type butterfly valves be packed in Inner bubble plastic bag and with foam board; 2.outer strong carton with packing belt; 3. If less than a container load, then pallets with wrap film; 4. If a full container, packing without pallets.
Delivery date
15-30days, up to order quantity.
Loading port
Tianjin port;  Shanghai port, Ningbo port, Or as request.




Certifications


We can apply for the Certificate of Origin for dear clients to have preferential tariff,  like China-Pakistan FTA, China-Korea FTA, Asean-China Free Trade Area Form E, China-Chile FTA Form F......As long as you need it, we can apply for it by free. Also we have ISO9001:2015, and Mill test certificate, test report issued by authority.
NOTE:  We're a professional & trustworthy & reliable valves factory from China.                                   With us, your BUSINESS is safe; your MONEY is safe.




Our Equiment






Butterfly Valves are


Operation is similar to that of a ball valve, which allows for quick shut off. Butterfly valves are generally favored because they cost less than other valve design, and are lighter weight so they need less support. The disc is positioned in the center of the pipe. A rod passes through the disc to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, so it induces a pressure drop, even when open.

A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a reinforced disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The valve may also be opened incrementally to throttle flow.





FAQ


1.What is your MOQ?
Our MOQ is usually 5 CTNS, up to the detailed size. Contact us, you will get a surprise.

2.What is your delievery time?
The time of delievery is around 10-30days,up to quantity. In a word, Prompt delivery.

3.What is the shipping port?
Main shipping port is TIANJIN port. OR Shanghai or Ningbo port, or other domestic port, as request.

4.What is your payment terms?
Total amount is less than USD5000, 100% TT payment;
More than USD5000, 30% T/T in advance, 70% before shipment.

5.How should I contact you?
You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

6.What is the location of your company?
Our company is located in the Tianjin,city, China.
Warmly welcome to visit our factory anytime anywhere

7.How about the samples?
We could send you the samples,  samples are free, transport fee should be paid by dear client.

8.Why choose us?
1 Genuine produces with excellent quality and competitive price.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 Tianjin Da Yu is a professional & reliable valves factory. Everyone can be rest assured working with us.
4 After- Services will be highly-satisfied. Any problems and feedback will be answered in a short of time.

9. Factory or Trading company?
Factory since 2009, goods be exported to more than 60 countries and regions.
In a word, with us, your business is safe, your money is safe.
