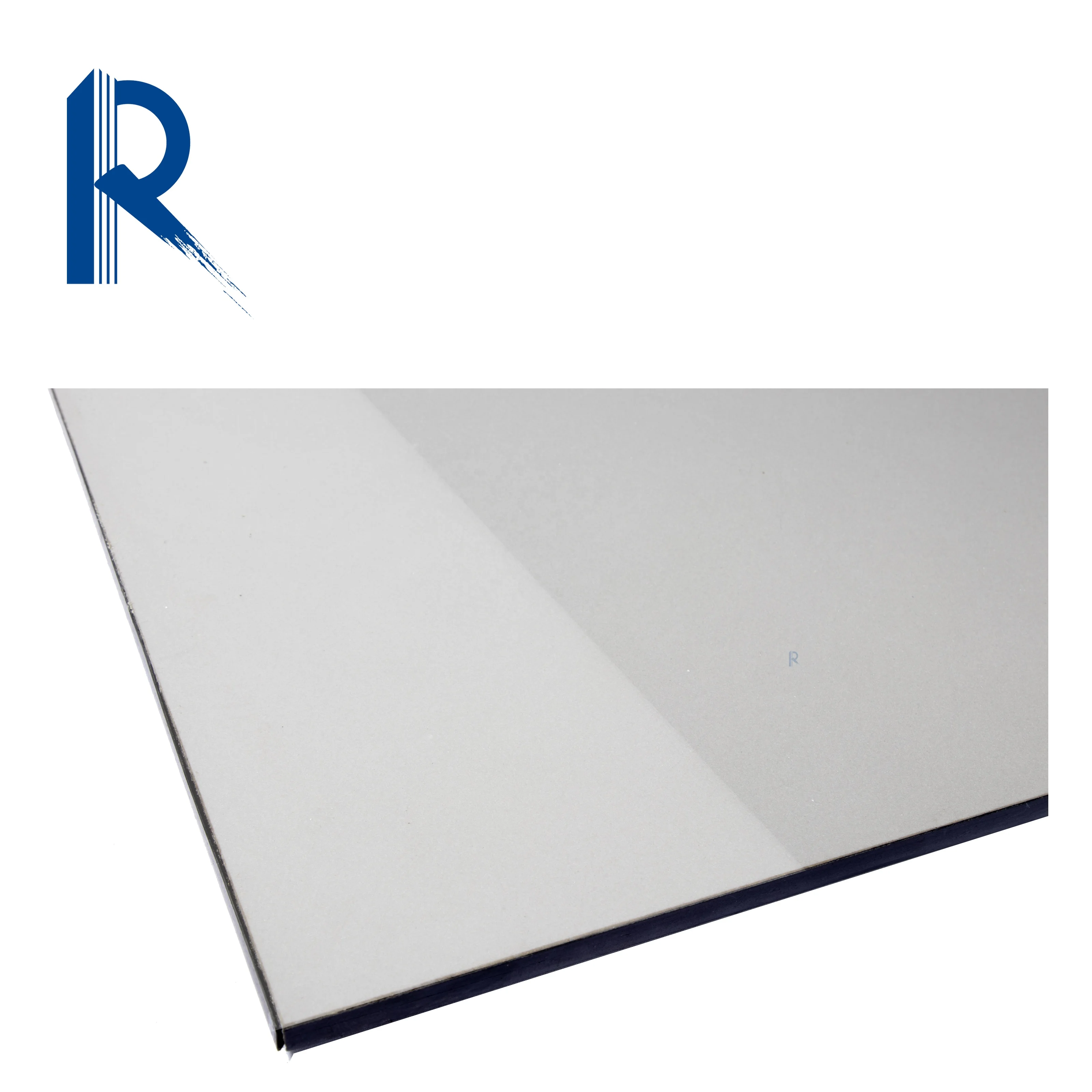

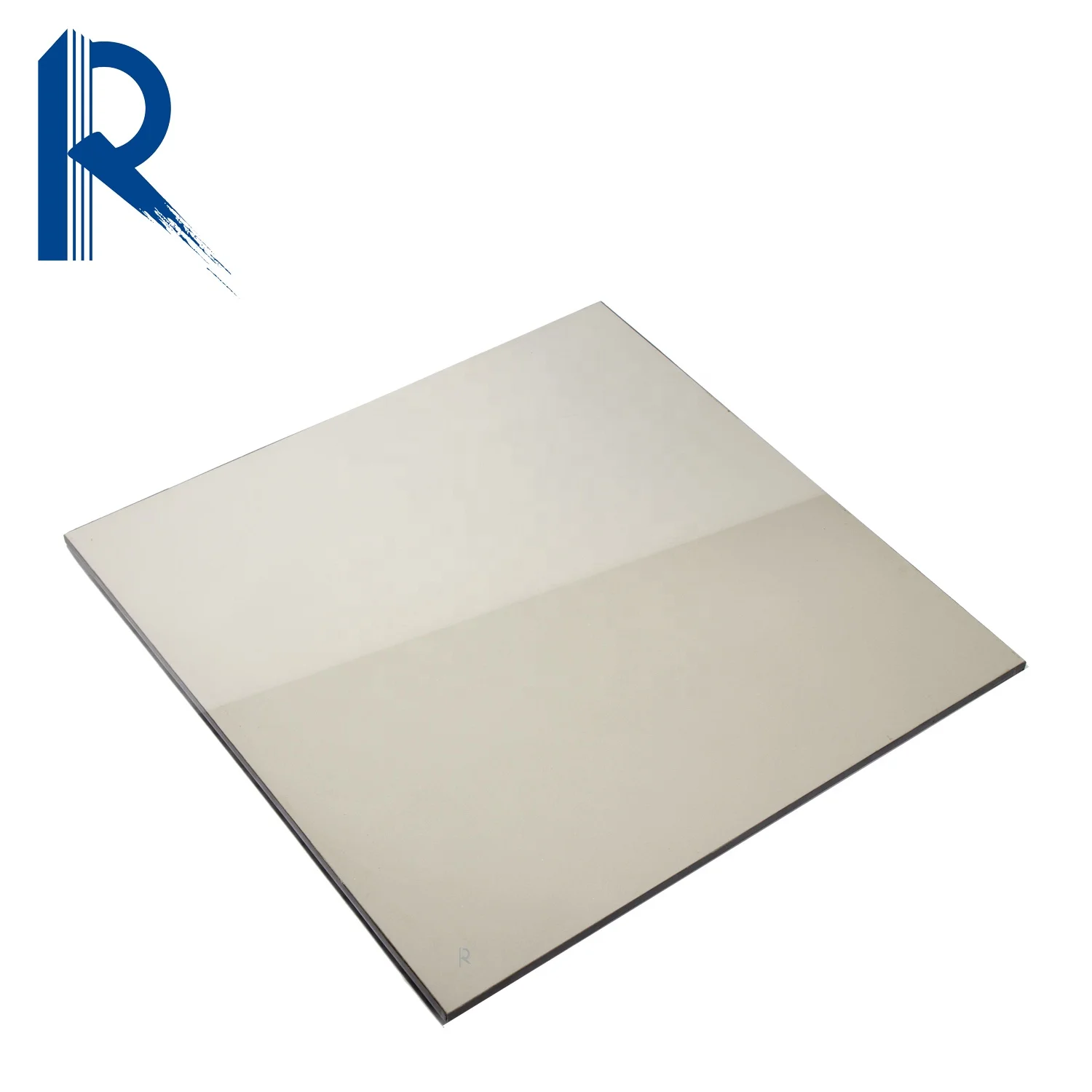

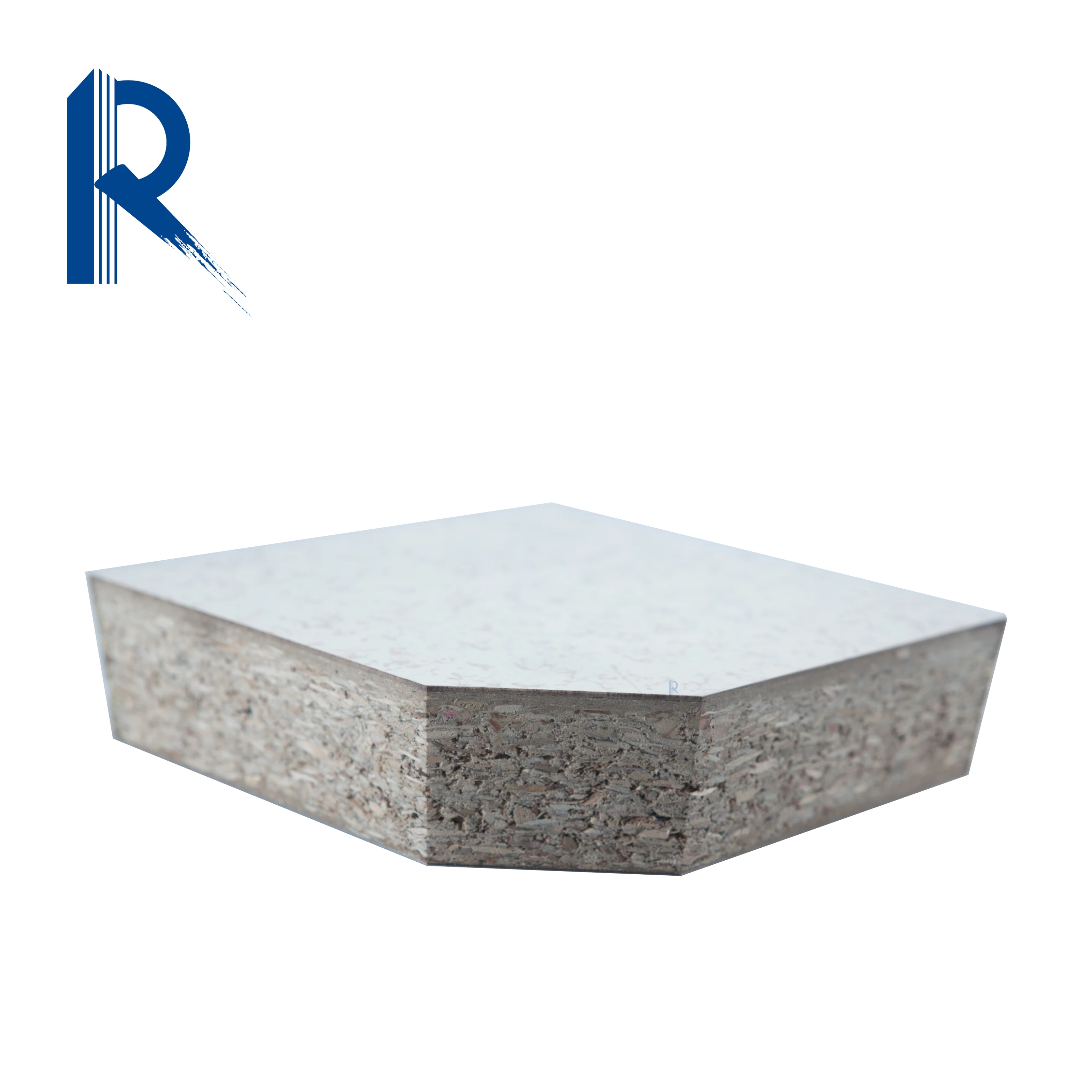

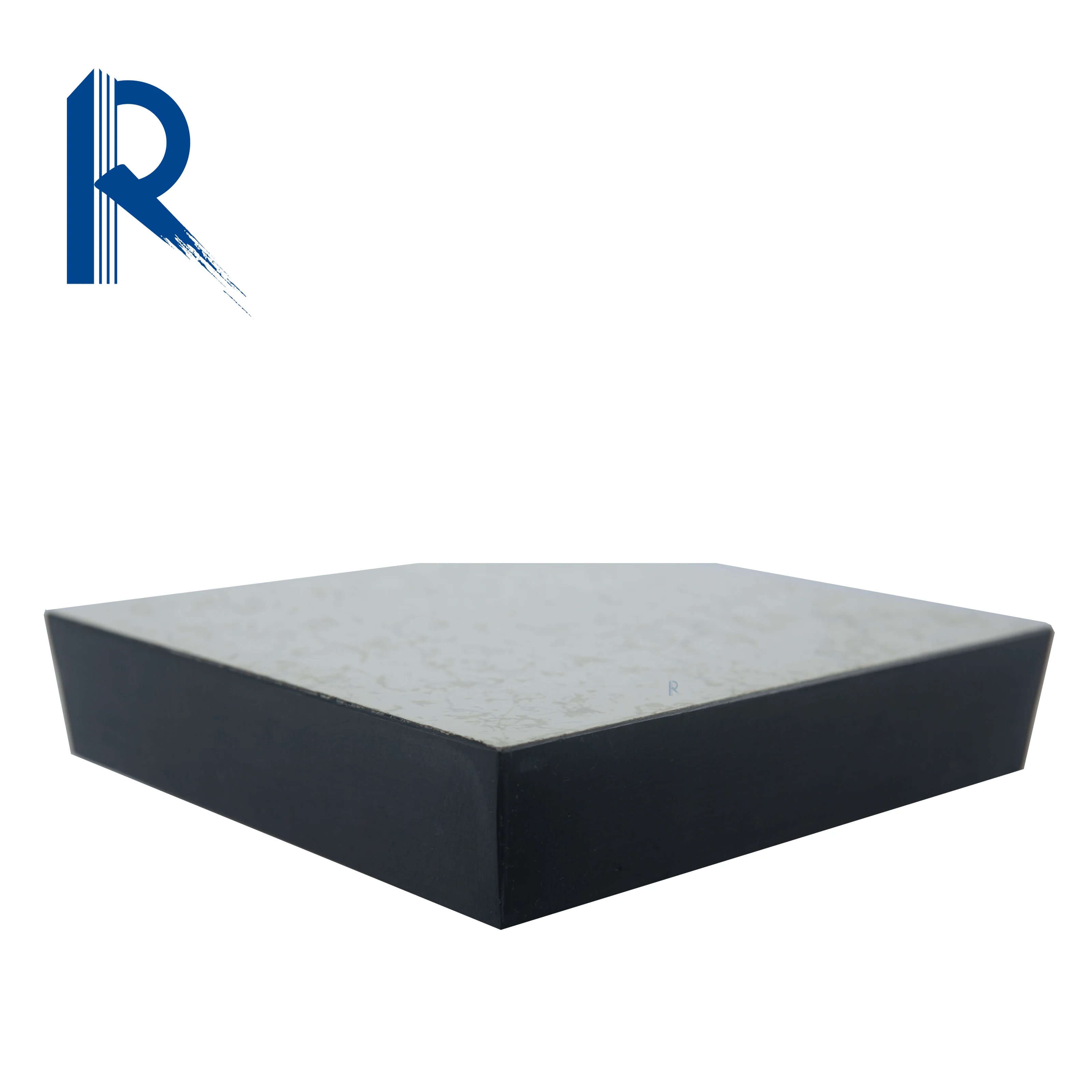

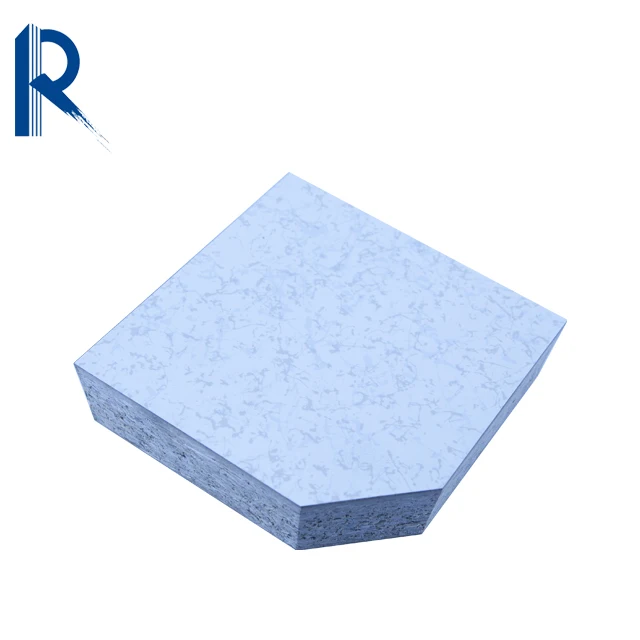

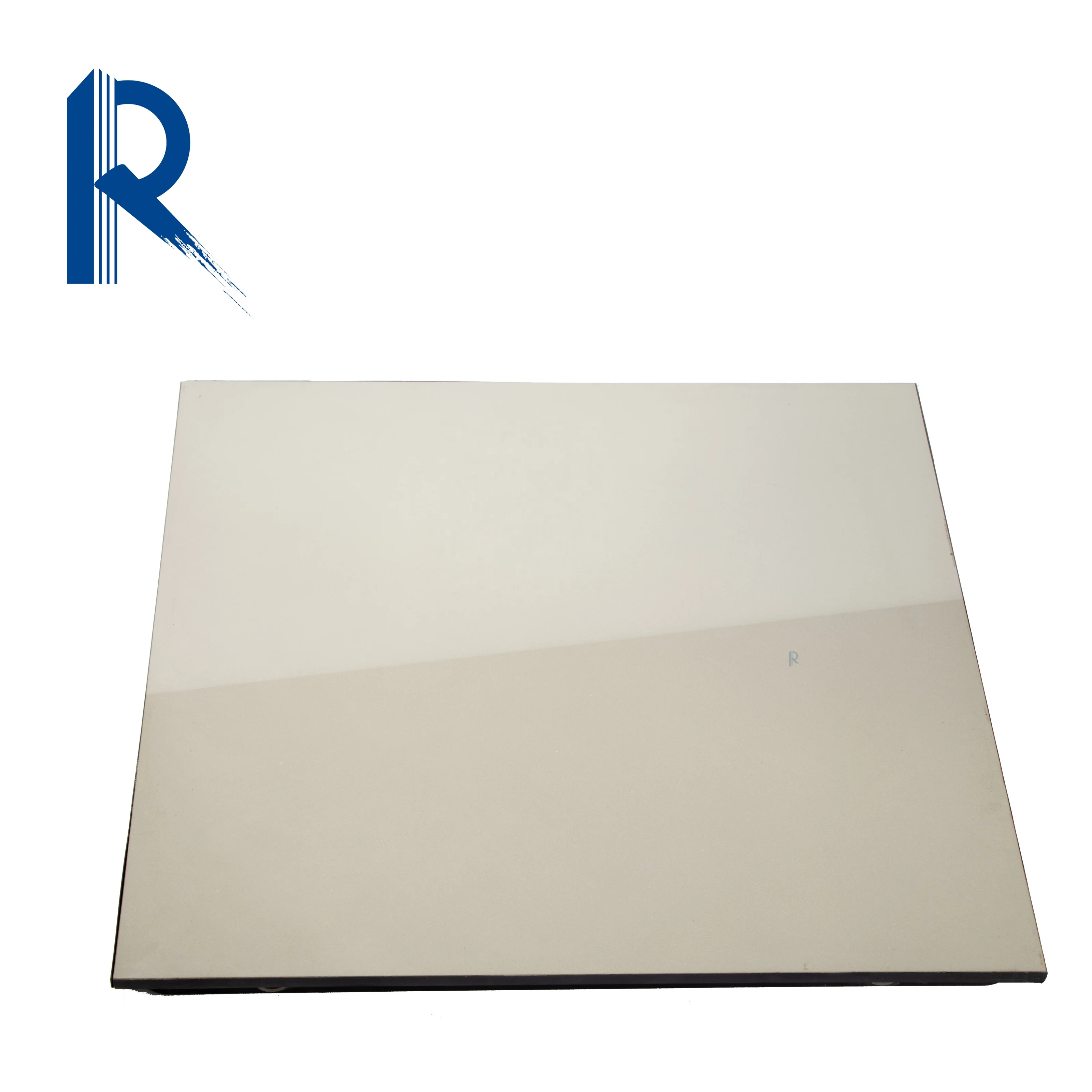

Wood Core Raised Access Floor With Ceramic Tiles Surface

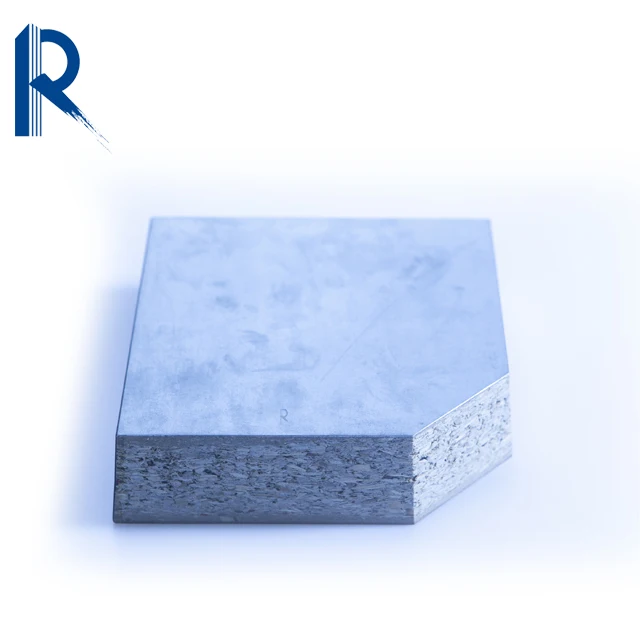

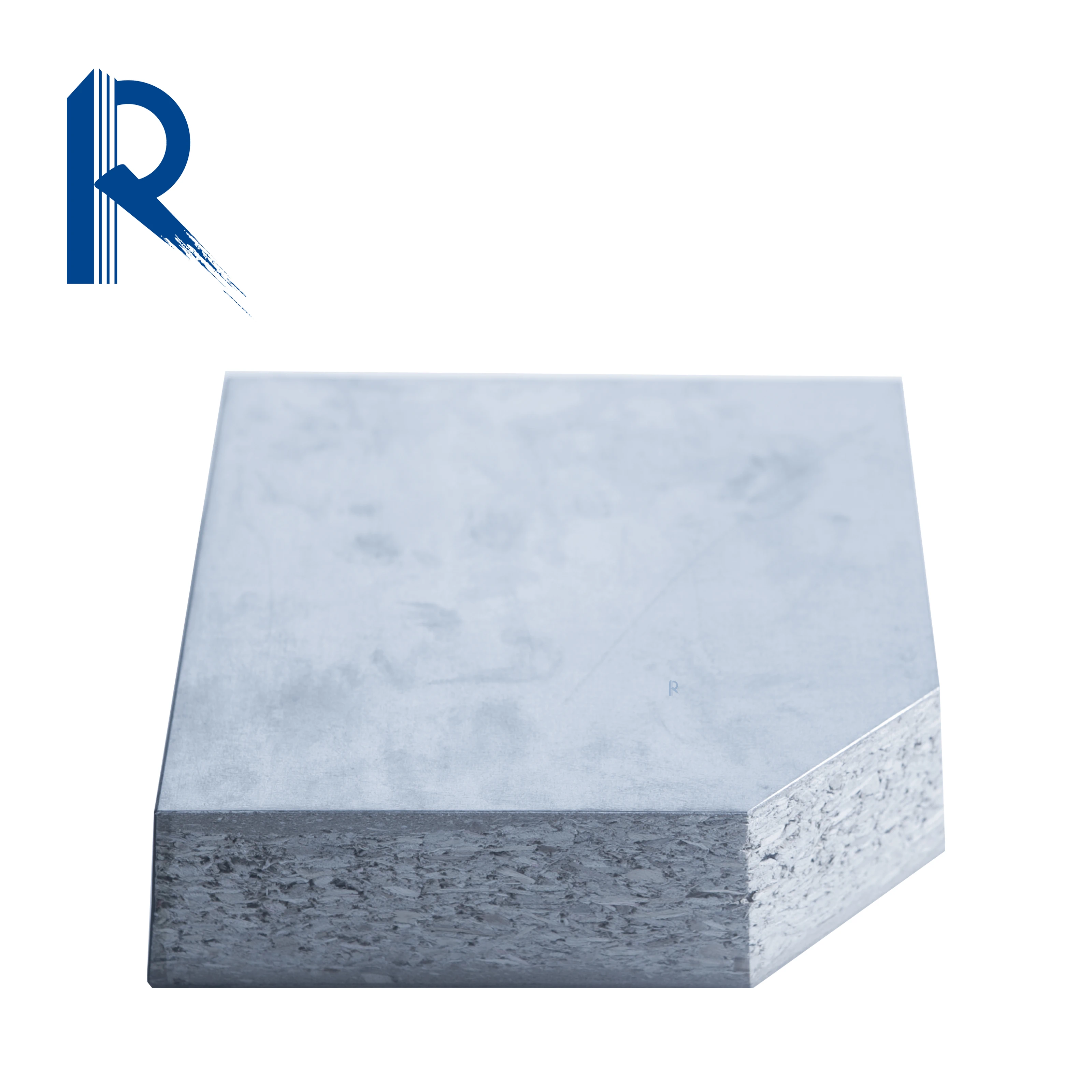

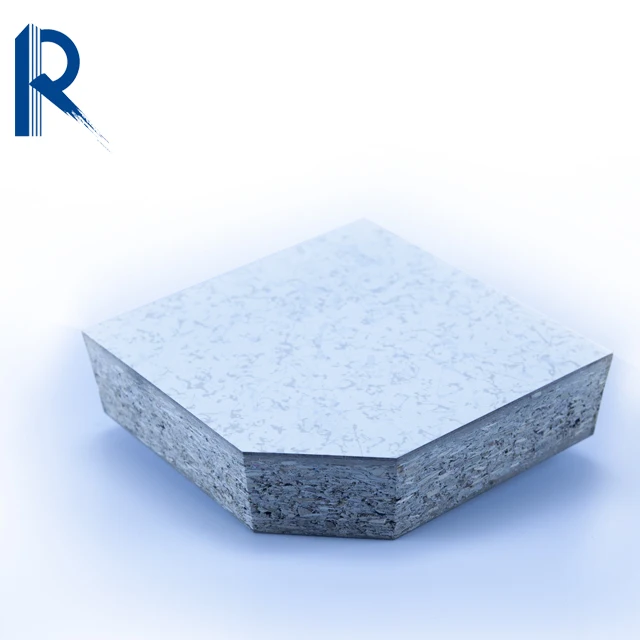

Wood core floor is a new type of raised access floor the substrate use the high quality chipboard, rust-proof galvanized steel with top and bottom, through a special paste, riveting together. Concentrated load up to the standard
all-steel raised floor, the weight of only 60% of similar steel floor, with a good waterproof, fireproof and anti-static functbn. the increasing emphasis on environmental protection high on the international market prospects.

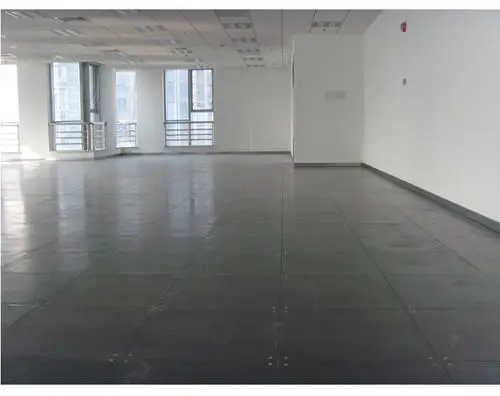

Application
Intelligent buildings in the 5A level, grade A office space, banking office buildings, power dispatch floor, radio and television offices, Securities Building, Telecom Mobile Unicorn office buildings, school buildings, which are integrated wiring requirement, the ground is more suitable for the transformation of the old building.



Packing

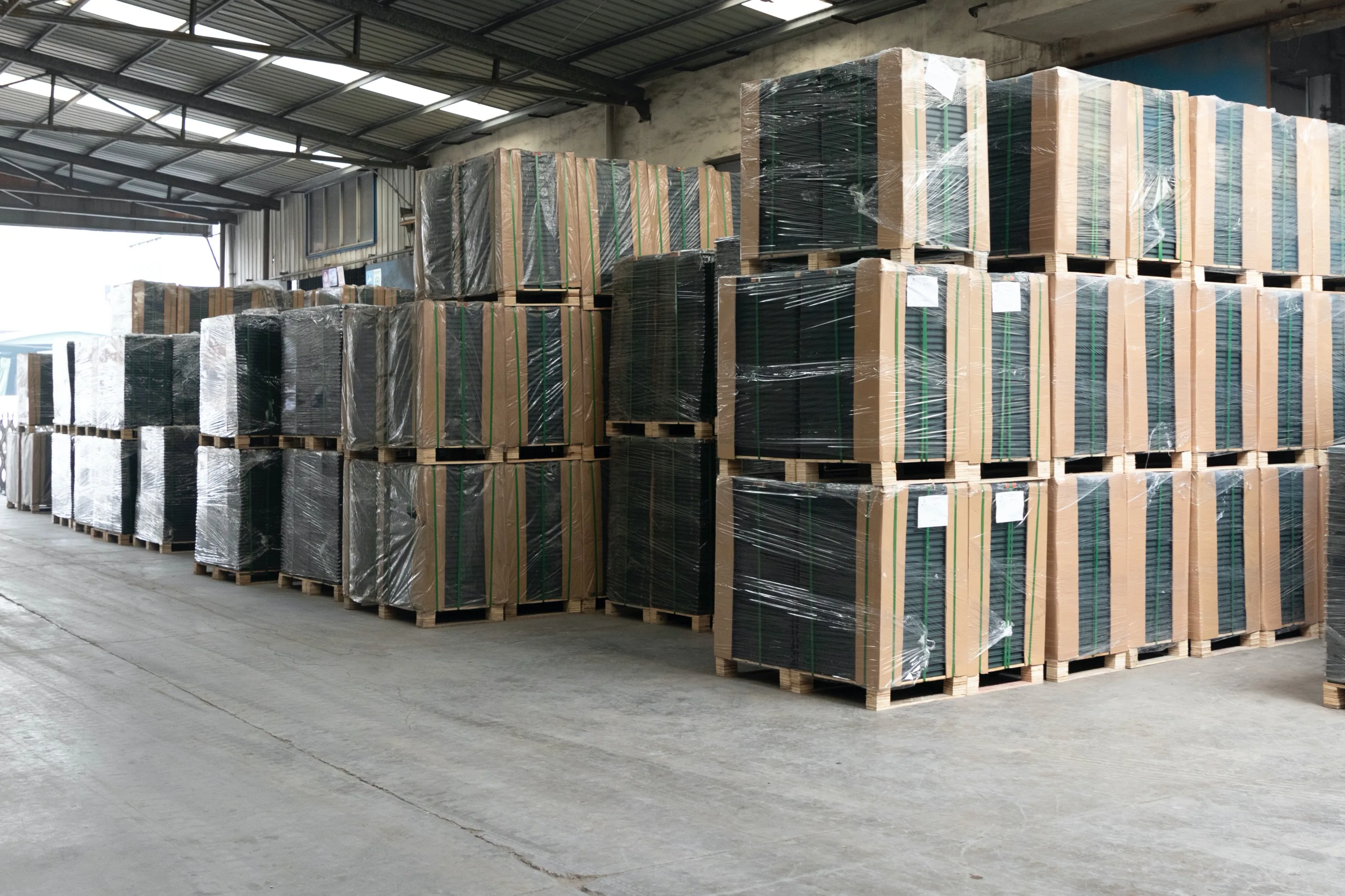

2 pieces are packed in a small package, 20 small packages are packed in a pile, 2 piles are packed in a tray, the four corners are gprotected by cardboard, the four corners are bound and fixed by a packing belt, and finally the plastic film is used for wrapping.


Product Paramenters



Type

Size（mm）
Concentrated load

Ultimated Load(N)

Distributed load(N/m2)
IB
N
KG

CXS600
600*600*30

≧600

≧600

≧272

≧11010

≧8000
600*600*40

CXS440
600*600*40

≧600

≧2600

≧272

≧5880

≧4200
600*600*45

CXA700
600*600*40

≧800

≧3550

≧363

≧8850

≧6500
600*600*45


Product installation&Maintenance


1. Site’s Requirements

◆ Interior floor laid in the civil engineering and construction completion of the renovation.

◆ Ground should be smooth，clean，no debris，no dust.

◆ Use of space under the fioor，laying cable layout，electrical，water，air ducts and air-conditioning system should be installed before the floor construction is completed.

◆ Large heavy equipment，Fixed base completed，equipment installed in the base，the base surface of the fioor height should be completed with a high degree of consistency.

◆ There are power and water sources that can be directly used at the construction site.


2.Construction Steps

◆Carefully check the surface roughness is found to have significant deficiencies need local transfornlation，to party reIevant departments，

◆HorizontaI pull，and installation height of the floor pIaying with the ink Iine to the waII，to ensure that the fIoor after laying in the same horizontaI plane.measure the room's Iength.width and seIect the laying of the reference position，and pop-up stand on the ground positioning grid square intersecfion of the grid Iocation of the base bracket to ensure the laying of neat，attractive，whiIe minimizing the floor of the cutting.

◆Intersection in the grid position，according to put away support. beams.adjusting bracket heiqht，the steeI floor beams frame by frame and put into the grid:and calcium sulfate composite floor beams on the floor by.
◆If the walI near the floor at the activities of the remaining smaIIer than the length of the method with the cut and pieced
together the floor，the floor after cutting burr to do in order to avoid staff cuts in the work pIace injuries due to tread.

◆In the Iaying of fhe floor.bIock by block with a leveIing bubbIe spirit level，activities by the adjustable height of the fIoor
bearing adjustment process shouId be Iaid gently to prevent scratches and damage to the edge of the floor，Iaying side edge shouId also be cleaned to avoid to debris.dust left on the floor below.

◆Heavy equipment in the engine room set，the device can be installed under the floor of the base stand，to prevent deformation of the floor.

◆HPL decorative board processing need to cut or opening.the opening should be made concave corner ended 6-8 hole to prevent the processing of the floor after the decorative veneer cracking.






Company Profile




Company Profile

We are an international company specializing in R&D, production and sales of raised floor. We have many OEM factories in China. Combined with international use scenarios, we have developed and produced many high-quality products, and strive to serve every customer well. Serve the whole world for good products, and take every step in a down-to-earth way. I hope our efforts will bring you a good experience. Sincerely look forward to your favor.




Cooperation Case




FAQ


Q：Are you a factory or a trading company?
A：We were trading companies. At that time, we had cooperative factories.

Q：Can you provide samples?
A：We can provide free samples, but you need to pay for the freight in advance.

Q：What is your sample packing like?
A：The samples are packed in plywood wooden boxes that do not need to be fumigated.

Q：What kind of payment method can you accept?
A：We can accept L / C, T / T, Western Union

Q：What is your mode of delivery?
A：Our delivery methods include: EXW, FOB, CIF,

Q：What is your delivery time?
A：Ship 10 to 15 days after receiving the advance payment, depending on the type and quantity of goods you ordered.

Q：Can you order products?
A：Yes, according to your samples or technical drawings.

Q：Do you inspect the goods before delivery?
A：We have quality inspectors to inspect products in every process.
