Incremental magnetic measuring heads offer maximum precision over the full range of measurements. As a result of the magnetic operating principle and the robust mechanical construction, they are insensitive to soiling and are therefore ideally suited to use in production facilities. Thanks to the high quality of their measurements, their high protection and long service life, these sensors are used in many technologies (industry, research, development etc.).
Typical applications include: -Monitoring both slow and fast movements between machine parts -Measurements of position and positional changes in components and structural foundations, of servo regulators, valve and robot controllers -Measurement of growth, and so on
The incremental displacement sensors are based on a magnetic principle: consisting of a magnetic scale and a multi-slot reading head that responds to changes in magnetic flux, they detect linear movements with high precision and resolution.
The scale of ferromagnetic alloy - or magnetic tape - is magnetized by an alternating magnetic field with a pole spacing of 0.2 mm. A special recording head and a laser measurement system guarantee that the graduations are very precise. From the magnetic pattern on the scale, the multi-slot reading head generates a signal proportional to the movement.
The analog signal generated by the reading head is electronically divided and digitized. Changes in length can be measured with a resolution of from 1 microm down to 0.1 microm.
Features: -Measuring ranges between 0 ... 5 mm and 0 ... 100 mm -Accuracy up to ± 2 microm -Diameter 20 ... 25 mm -Vibration resistant and dust proof -High protection class up to IP64
Specific characteristics: -Diameter 20 ... 25 mm -Vibration resistant and dust proof
Characteristics:
Principle
Incremental
Measuring range
0 ... 25 mm 0 ... 50 mm 0 ... 100 mm
Resolution
0.5 microm
Signal output
TTL
Protection class
IP64
Range of operating temperature
0 ... +50 degC
Excitation voltage
5 V +/- 5 %
Electrical connection
Shielded cable

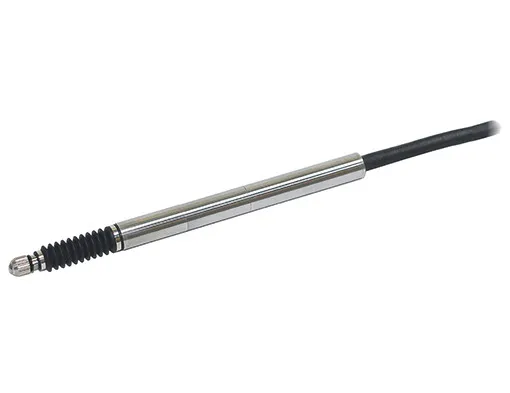

Pictures:
