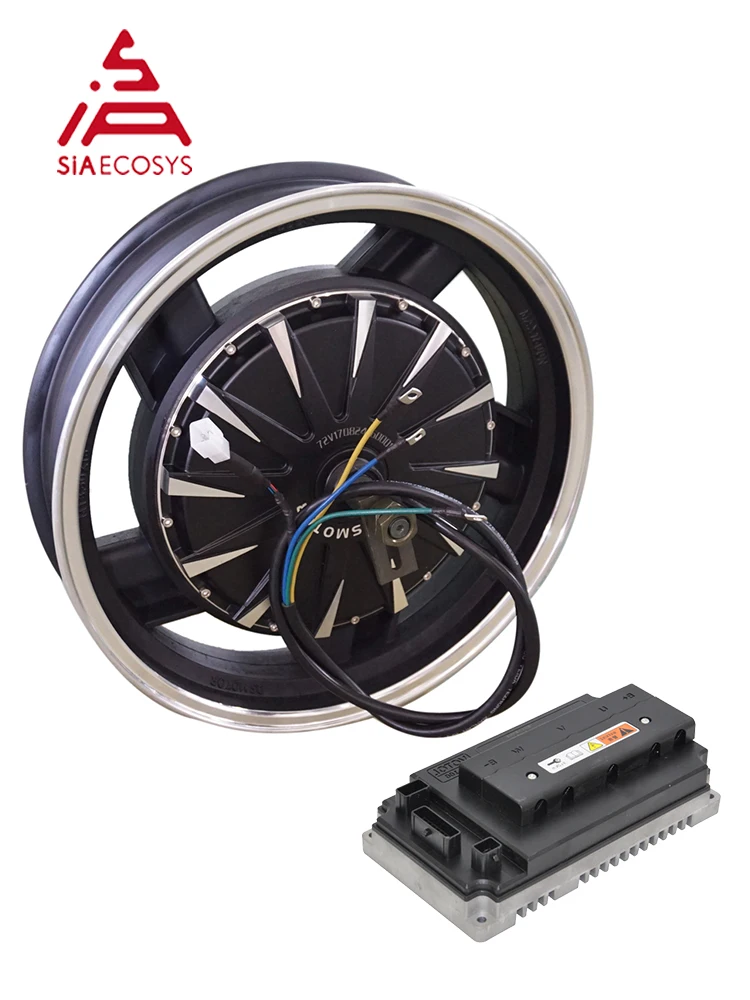

16X3.5inch 3000W V1.2 electric motorcycle hub Motor with EM72100SP72V BLDC motor controller

For 16inch E-Motorcycle wheel hub motor kits, it could be used for electric motorcycle.
e.g. Electric Motorcycle
E-motorcycle weight, approx 100kg+75*2kg
Tire diameter: 120/80-16
Speed: 72V 90km/h @ fully charged
Climbing slope: 15 degree @250kg
Battery: 72V30Ah lithium battery

One set including below kits
1. 1pc X 3000W 16X3.5inch V1.2 Electric Motorcycle hub Motor
2. 1pc X EM72100SP 72V sinusoidal wave BLDC motor controller, with CAN BUS

Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%

Product Description

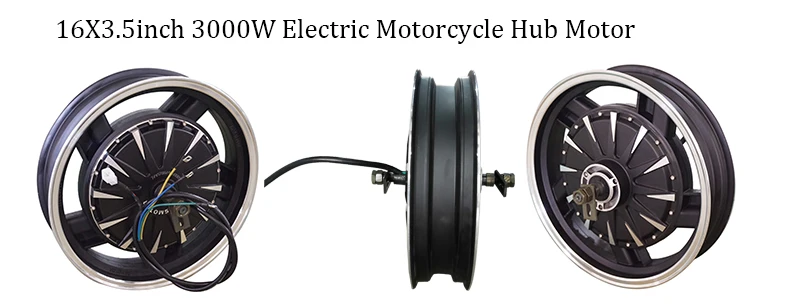

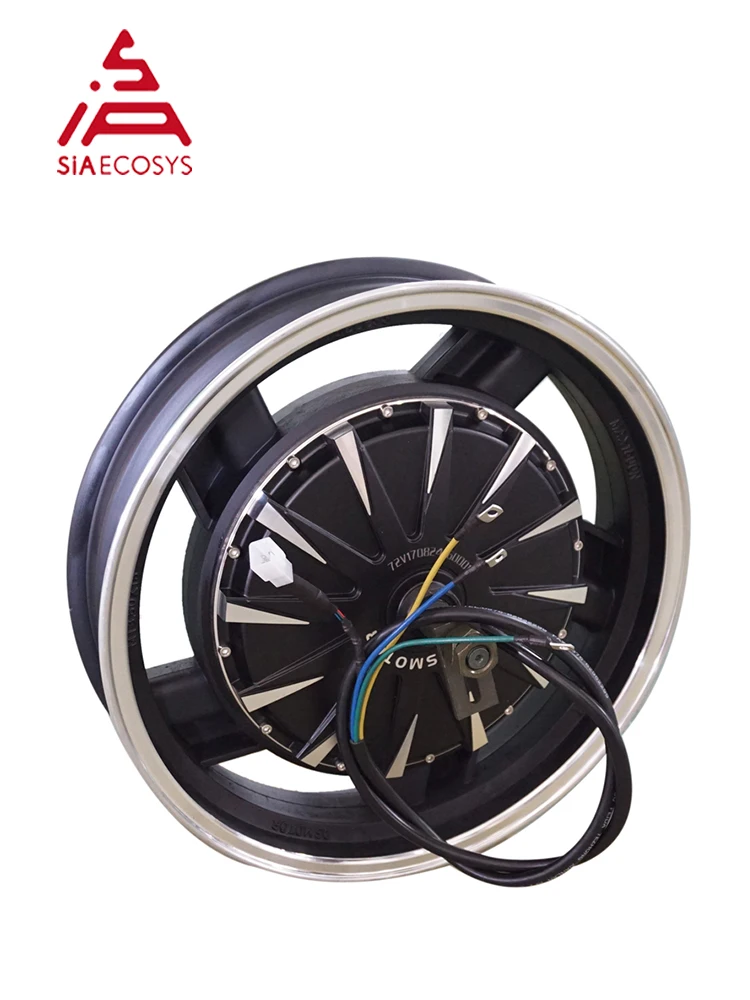

1. 3000W 16X3.5inch V1.2 Electric Motorcycle hub Motor
Specification

• Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
• Brand: QS Motor,QSMOTOR
• Motor Design: double axle with rim
• Matched Tire: 120/70-16, 110/70-16
• Stator: Steel Core
• Rated Power: 3000W (6000kW peak in few seconds)
• Rated Voltage: 72V
• Speed: 880RPM no load, approx 90km/h when fully charged
• KV: 11.5kV
• Max Torque: approx 182N.m
• Max Efficiency: approx 87.8%
• Continuous Battery Current: 63A (72V)
• Peak Battery Current: 80A, 100A maximum (72V)
• Suggest Peak Phase Current: /A
• Thermal Probe: KTY83/122 (as default, optional)
• Working Temperature: 70-110℃ , peak 120 ℃
• Brake type: Disc brake, PCD3*80mm-M8, CB 58mm
• Dropouts: 200mm
• Single Hall Set with waterproof connectors
• 8mm² Cross Section of Phase Wire (not include insulation layer)
• Hall Sensor Phasing angle: 120 degree
• Waterproof Grade: IP54
• Color: Black
• N.W./G.W.: approx 23.2kg/25.0kg (TBD)
• Package Dimension: 50.5cm*50.5cm*35cm/piece

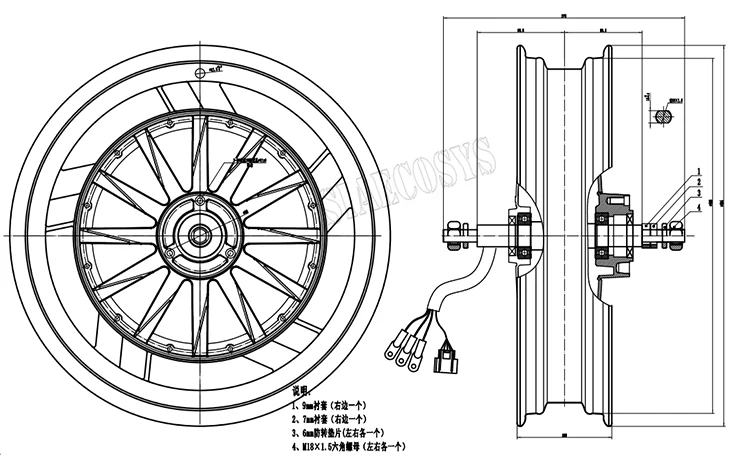

Drawing

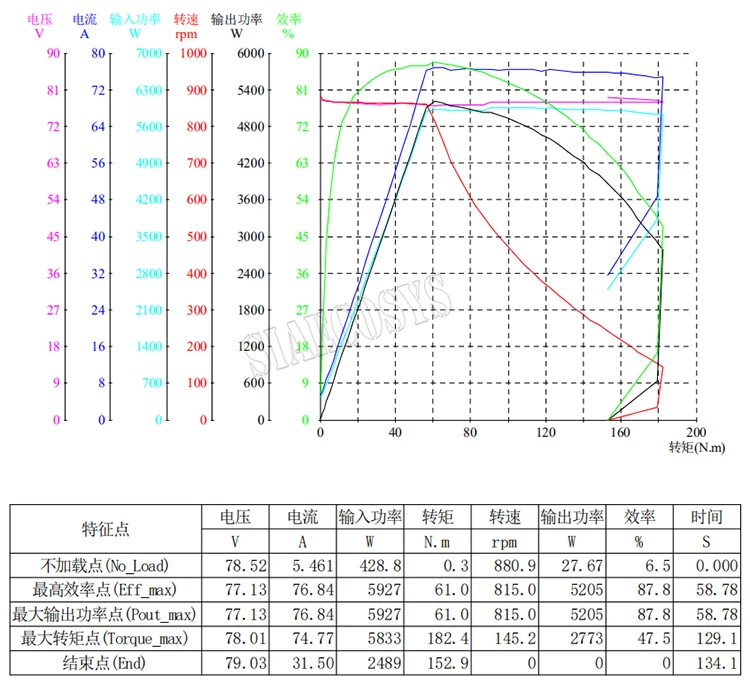

Test Report

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

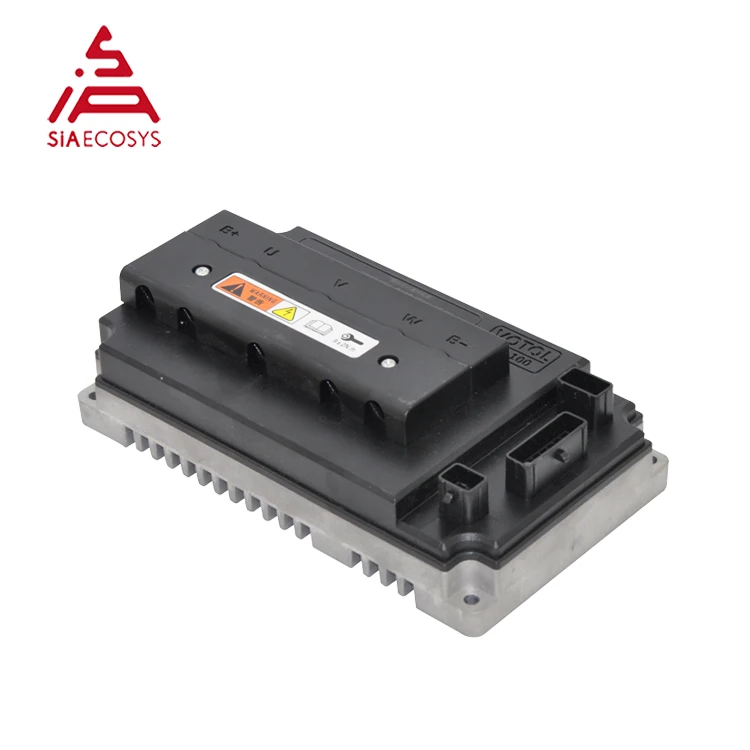

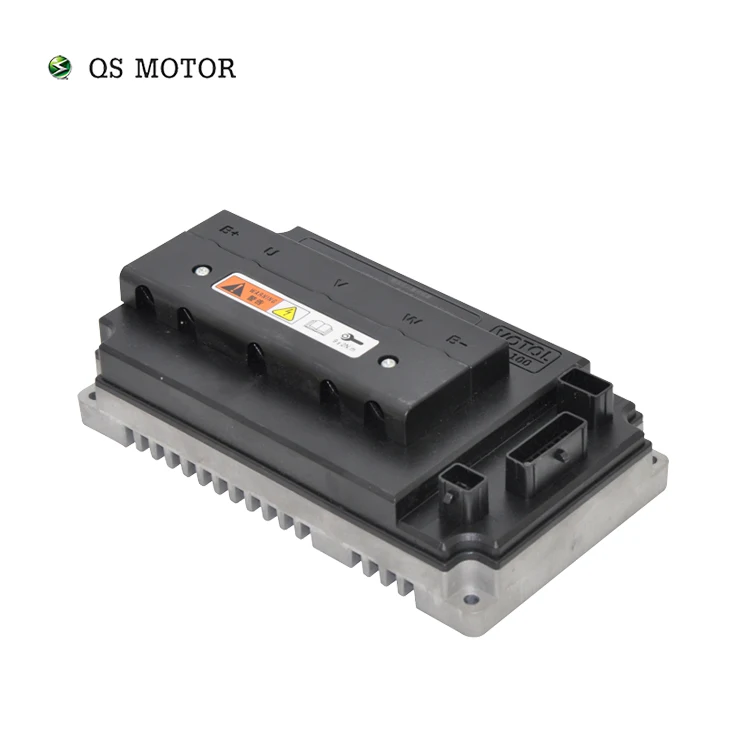

2. EM72100SP 72V sinusoidal wave BLDC motor controller, with CAN BUS

Specification

·Sine wave controller, programmable, with regen function

·Rated Current:100A

·BOOST Current:130A

·Peak Current:330A

·Max.Power:7200W

·Flux Weakening Ratio:100~250%

·Max.Efficiency:88~93%

·Net weight: 1650g

·Waterproof IP67

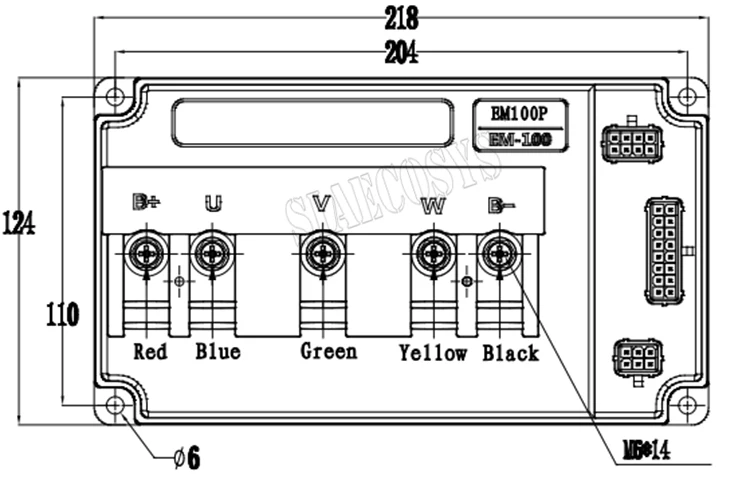

Drawing

 Conversion kits

We're able to supply adaptable more motor kits, e.g. speedometer, throttle. Please contact with us for details.

 Application

A note to client

1. Please contact seller confirm the parameter, otherwise we will produce as default.

2. Please extended 15 days more at least for order prepare when motor no in stock. (Most of motor is customized based on application, without in stock).

3. When place order please leave email address, for seller provide manual.

4. Please read manual careful before using motor and controller, and if meet problem please contact seller in time, and don't disassemble cargo without seller permit, otherwise there will be no warranty.
