Product Overview
Description
Products Description
weight | 110-230KG |
power | 41-129 KW |
Direction of rotation | reversible |
Overall life | high |
Features | high volume efficiency and mechanical efficiency |
Certification | ISO9001、CCS、KR、NK |
Details Images

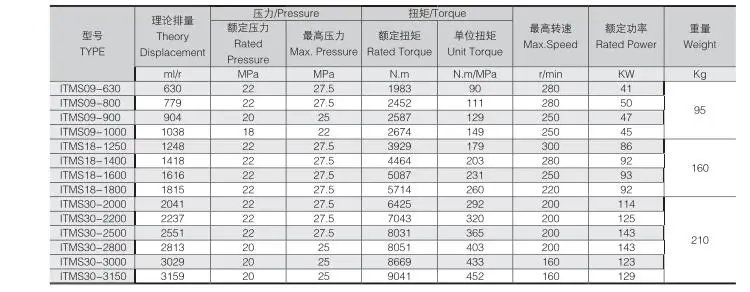

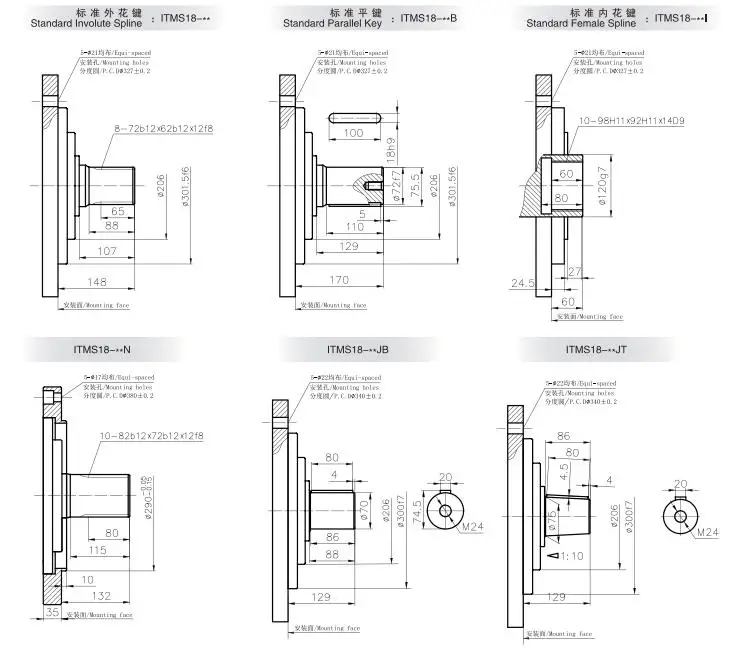

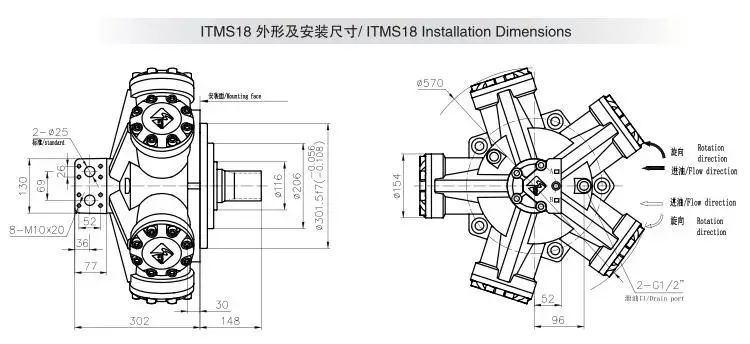

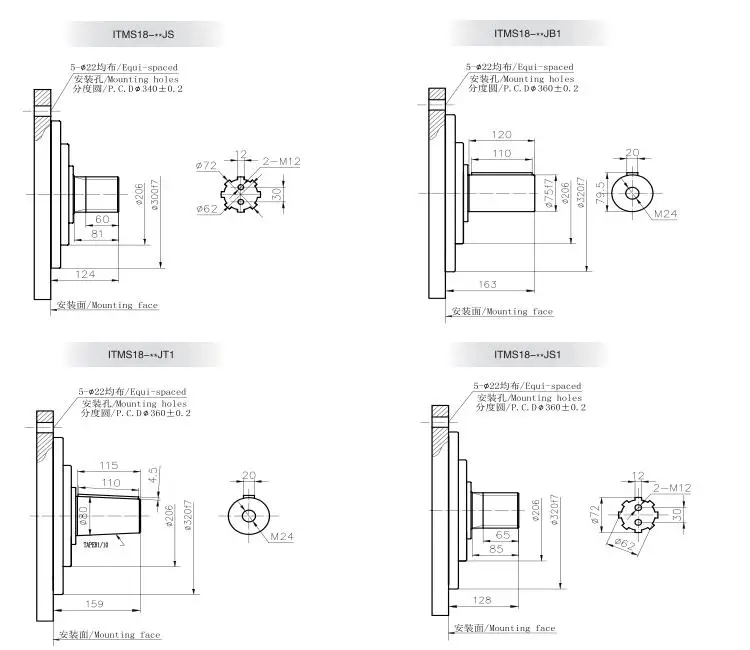

Product Paramenters
Product Feature:

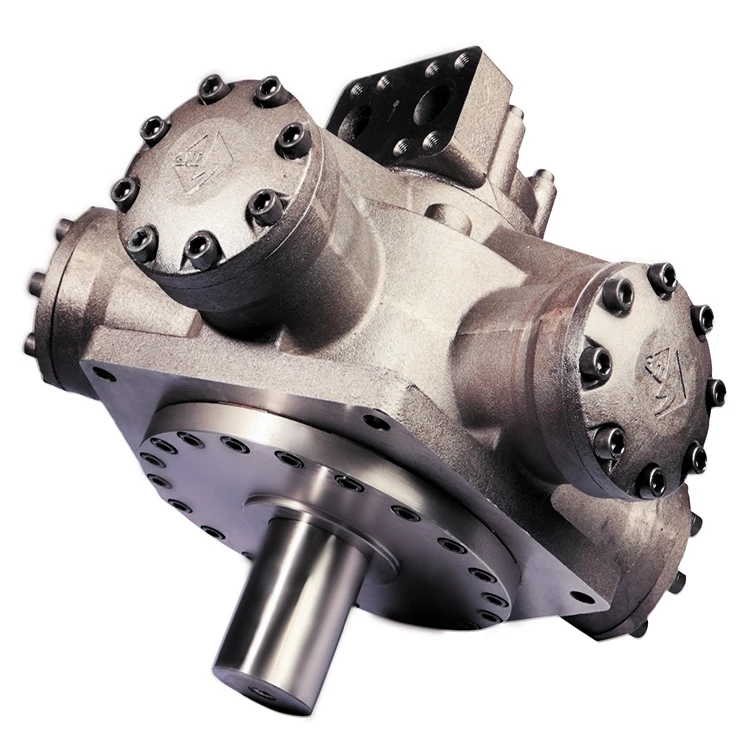

ITMS series' hydraulic motor integrates the advantage of ITM and STF series'motor. It is a new concept hydraulic motors with higher comprehensive performance;
Main characteristics:
1.Same structure as STF series as removed piston sleeve, integrated body case and piston cylinder hole; featured with high power-mass ratio and technical performance;
2.Applied hydrostatic oil-film modality between ball-socket of piston and ball head of con-rod to heighten its contact pressure ratio, working pressure and mechanical efficiency;
3.Special surface treatment of piston guarantees its permanent structure and low-friction seal that enables its higher volumetric and mechanical efficiency;
4.higher anti-impact and load performance due to its enhanced roller bearing;
5.Longer service life due to special materials and advanced heat treatment in main transmitting parts;
6.Same installation data as ITM series; an ideal replacement of ITM series in higher pressure & performance application.
Main characteristics:
1.Same structure as STF series as removed piston sleeve, integrated body case and piston cylinder hole; featured with high power-mass ratio and technical performance;
2.Applied hydrostatic oil-film modality between ball-socket of piston and ball head of con-rod to heighten its contact pressure ratio, working pressure and mechanical efficiency;
3.Special surface treatment of piston guarantees its permanent structure and low-friction seal that enables its higher volumetric and mechanical efficiency;
4.higher anti-impact and load performance due to its enhanced roller bearing;
5.Longer service life due to special materials and advanced heat treatment in main transmitting parts;
6.Same installation data as ITM series; an ideal replacement of ITM series in higher pressure & performance application.
