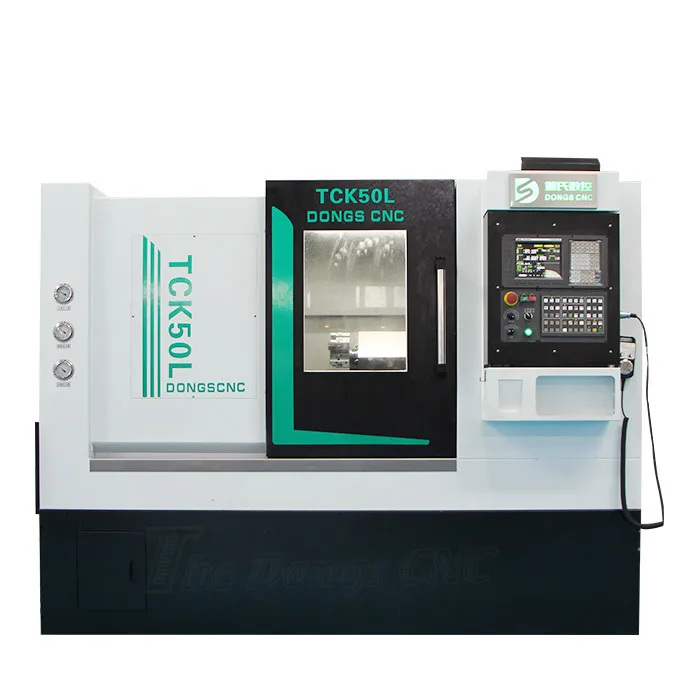

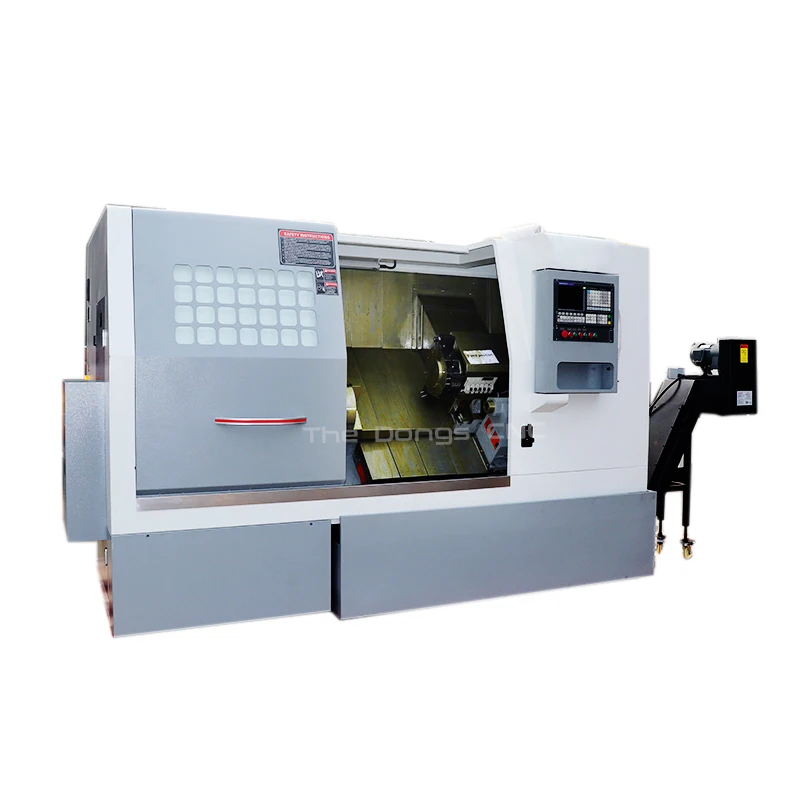

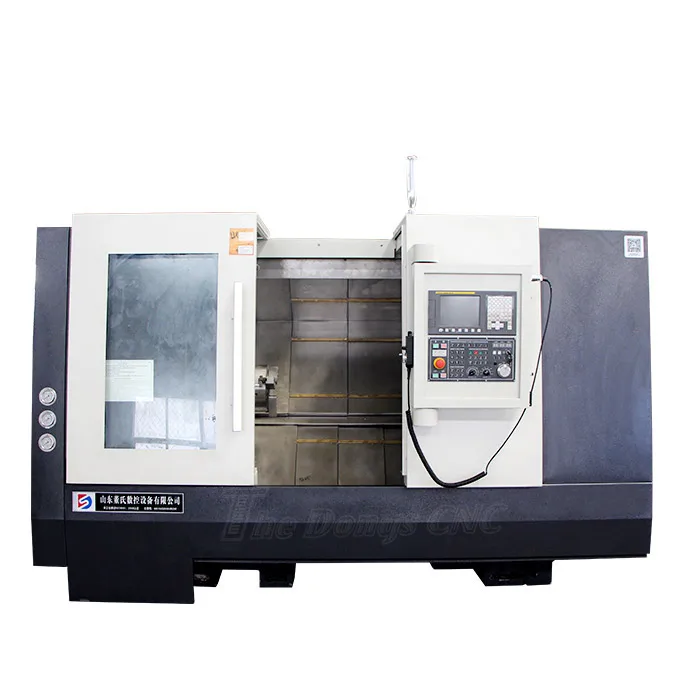

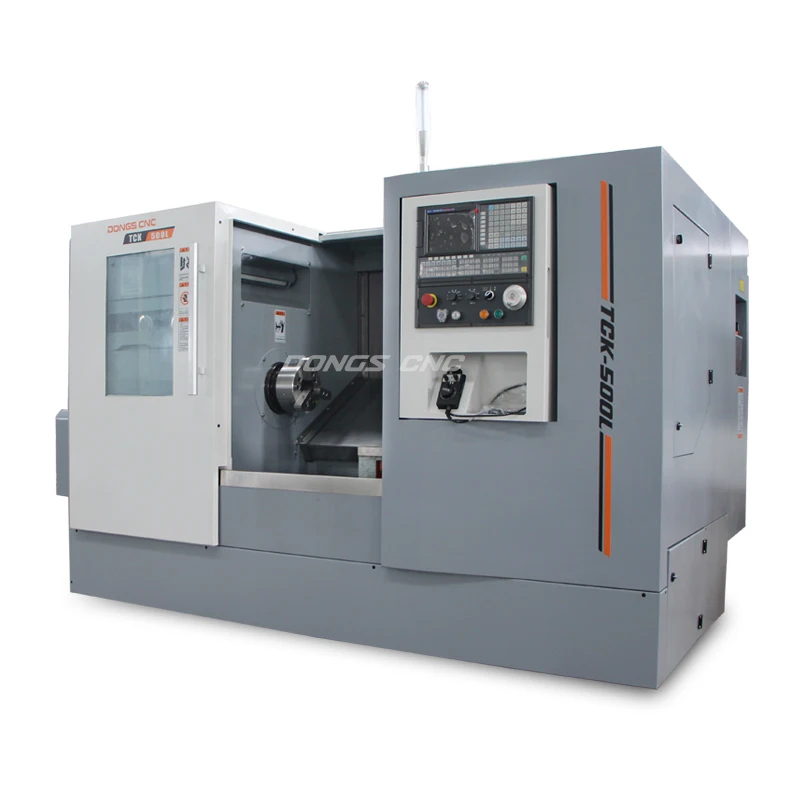

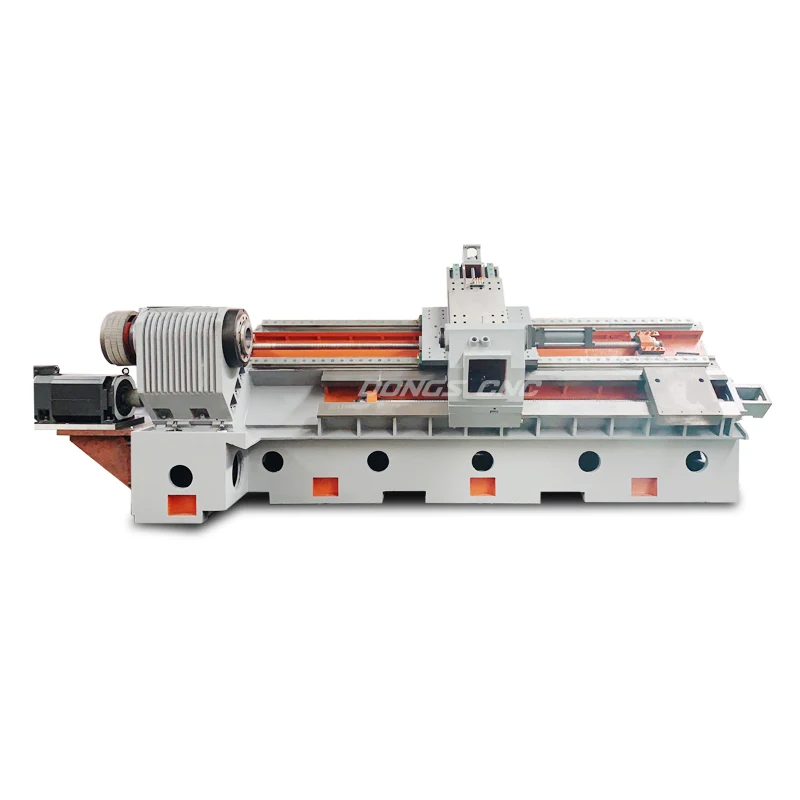

Slant bed cnc turning center live tool 8 station hydraulic turret CNC lathe
- Category: >>>
- Supplier: SHANDONG THE DONGS CNC EQUIPMENT CO. LTD
Share on (62490177840):
Product Overview
Description
Slant bed cnc turning center live tool 8 station hydraulic turret CNC lathe
technical specifications | Unit | TCK630 |
Swing over bed | mm | Φ630 |
Maximum turning diameter on saddle | mm | Φ315 |
Recommended turning diameter / length | mm | 750/1000/1500/2000/3000 |
Maximum Turning diameter | mm | Φ550 |
Maximum bar diameter | mm | Φ66 |
Hydraulic chuck diameter | mm | Φ250 |
Spindle head type | / | A2-8/11 |
Spindle taper / through hole diameter | mm | Φ 82/105 |
Spindle speed | r/min | 最高2800 |
Main motor power | kW | 15/18.5（伺服） |
Tailstock sleeve diameter / travel | mm | Φ120/100 |
Taper hole in sleeve | MT No. | 5 |
Inclination angle | DEG | 45 ° |
Moving distance X / Z | mm | 315 |
Fast moving speed X / Z | m/min | 24/24 |
Servo motor torque X / Z | Nm | 15/15（18） |
Ball screw diameter x / Z | mm | Φ50X10/Φ40X10 |
Number of bits | / | 12工位 |
Tool size (turning / boring) | mm | 25×25/Φ32 |
Power Supply | kVA | 35 |
Volume (L × w × h) | cm | 4000X2000X1900 |
weight | kg | 5000 |
