Pt100 sensor with fixed female thread
- Category: >>>
- Supplier: Yancheng Baojun Stainless Steel Products Co. Ltd.
Share on (62490310239):
Product Overview
Description
Specifications of RTD temperature sensor
RTD temperature sensor | ||
Ref No. | PT100/PT500/PT1000 | |
Thermal element materials | Platinum | |
Accuracy Class | 1/3B A B | |
Ways of Mounting & Fixing | 1: Without fixing device 2: Fixed compression thread 3: Movable compression thread 4: Fixed compression flange 5: Movable compression flange 6: Shock-resistant & Anti-leakage compression thread | |
Types of connections box | 0: Connection seat type 2: Anti-spray (Protection class: IP65) 3: Water-proof (Protection class: IP67) 6: Round plug type 7: Flag plug type 8: Small Connection type 9: Compensation wire type | |
Types of sensor end | 1. insulation type | |
Diameter of thermowell | 0: Ø16 1: Ø123: Ø3 4: Ø4 5: Ø5 6: Ø6 8: Ø8 | |
Measuring range | -200~450 degrees Celsius | |
Shipping | By air, sea, express | |
Sample time | 2~7 days | |
Manufacture time | 7~30 days depending on order quantity | |

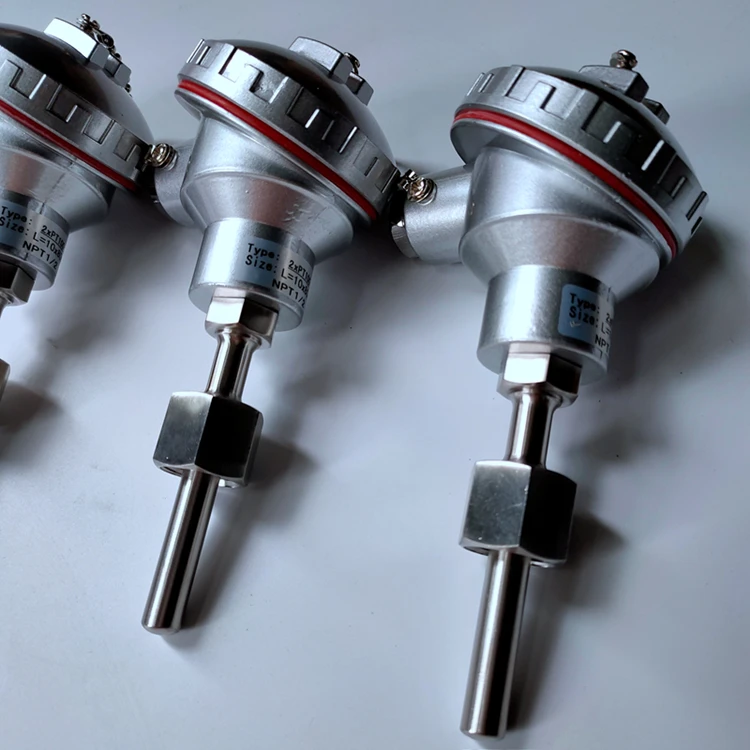

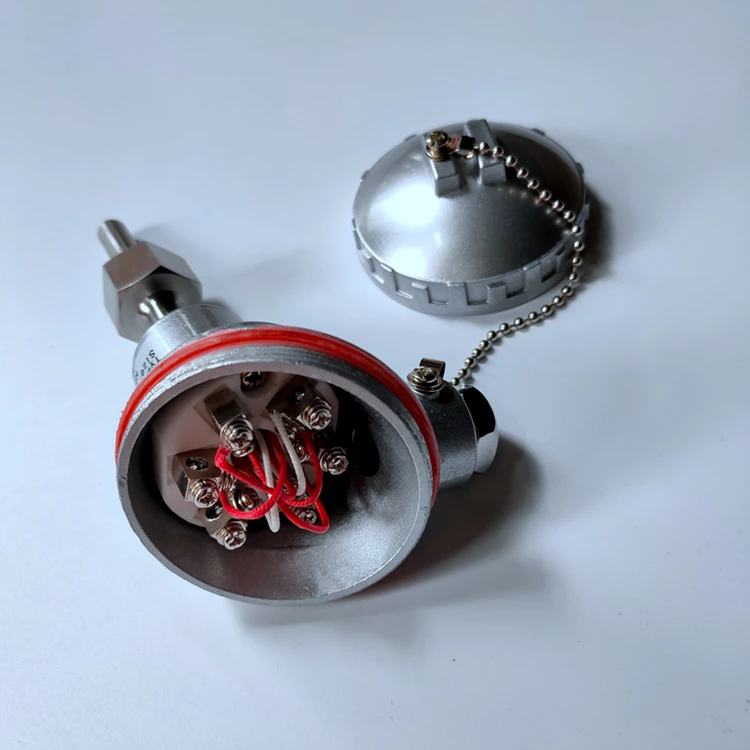

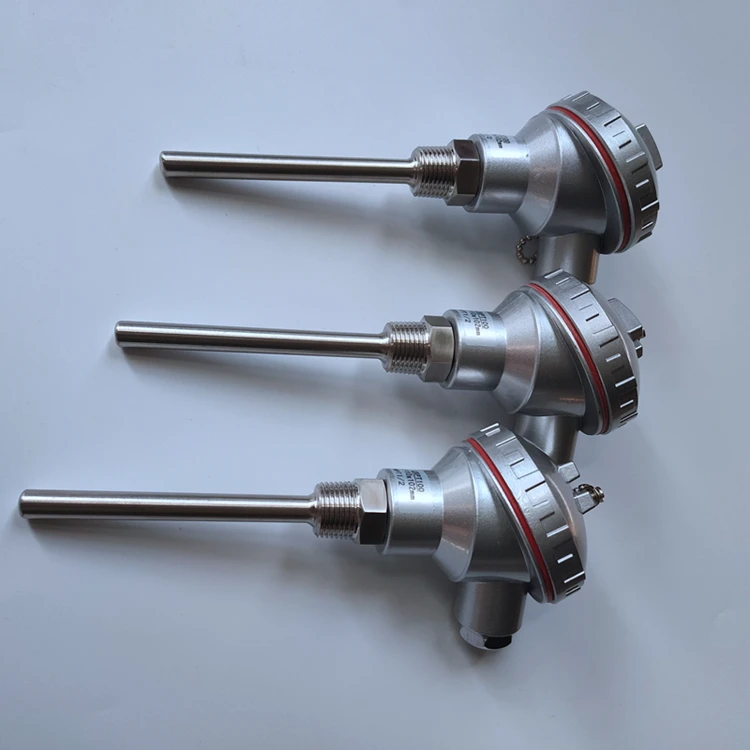

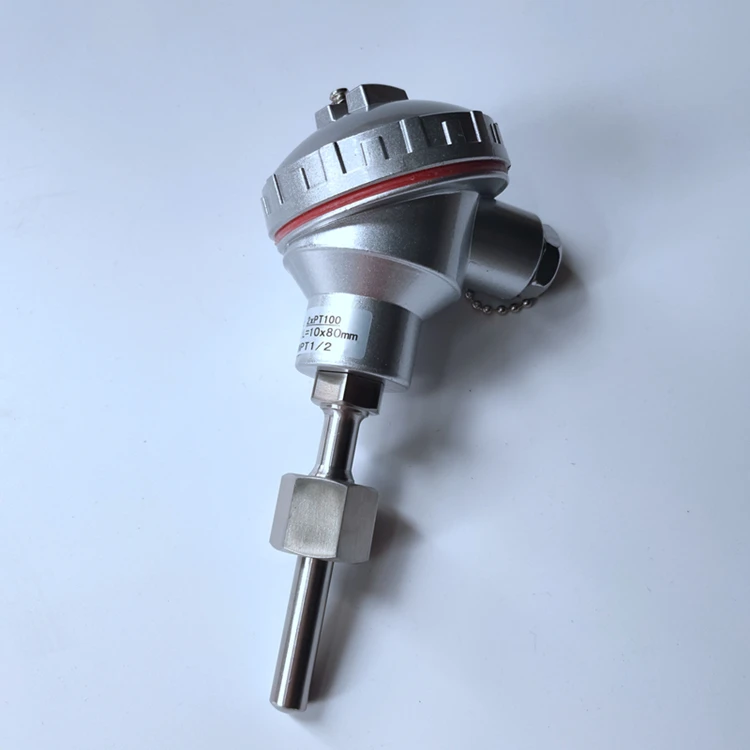

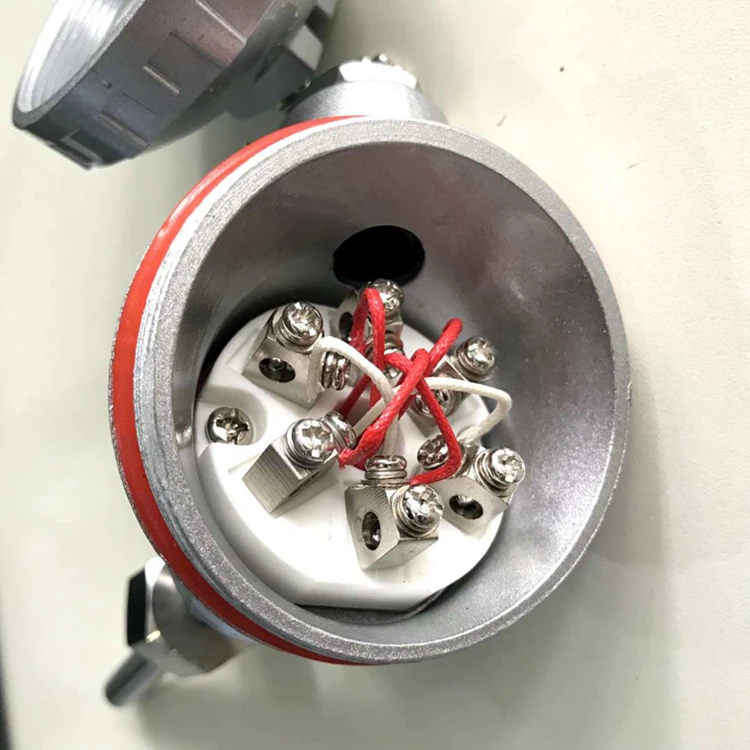

Products Images
Applications of rtd pt100 temperature sensor
1. Widely Used In Science and Industry
2. Temperature Measurement for kilns
3.Gas Turbine Exhaust Application
4. Used For Diesel Engines and Other Industrial Processes
2. Temperature Measurement for kilns
3.Gas Turbine Exhaust Application
4. Used For Diesel Engines and Other Industrial Processes
