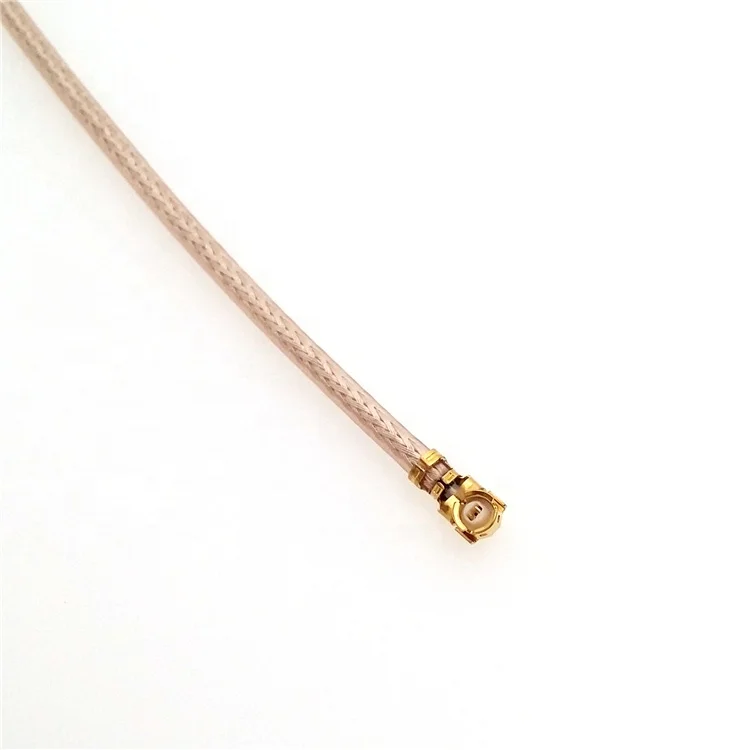

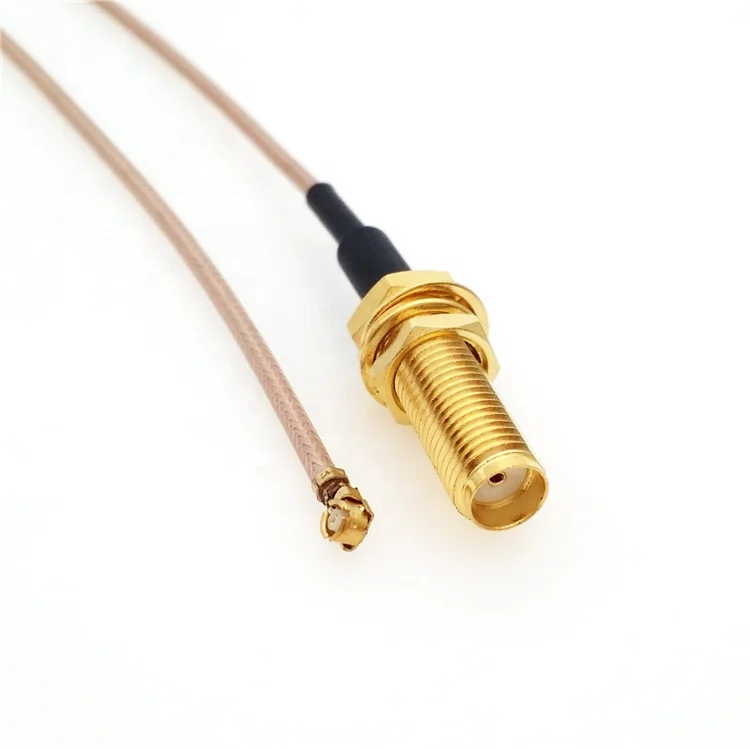

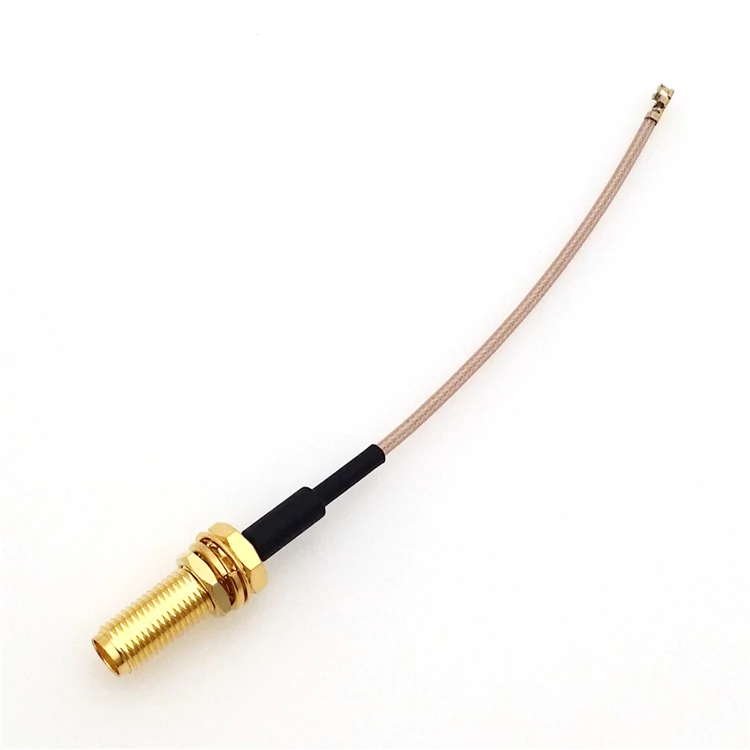

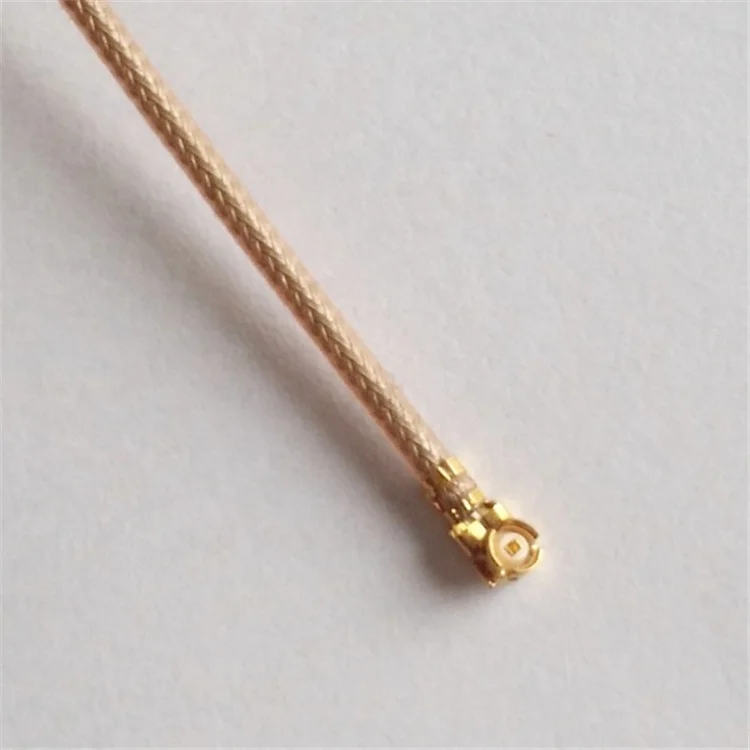

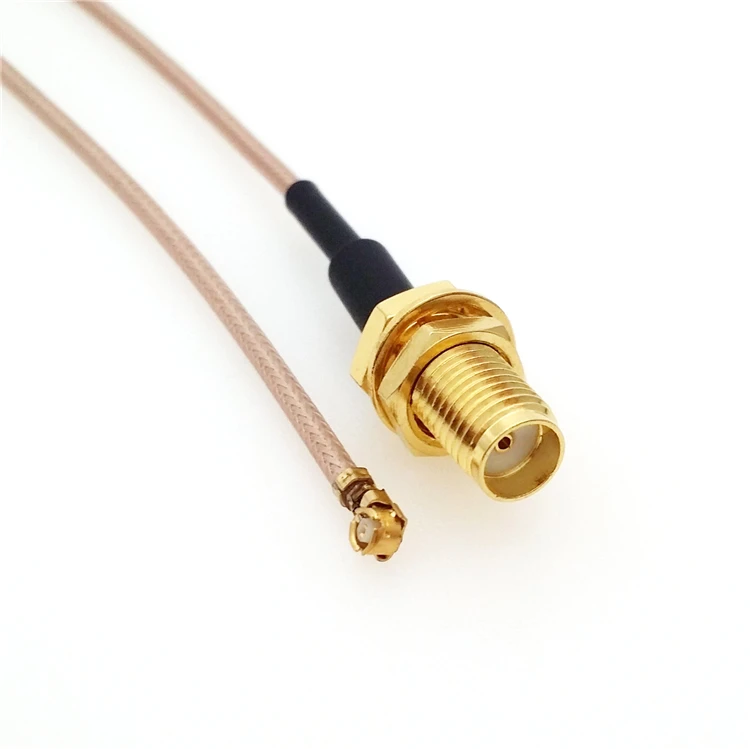

RF coaxial cable UFL / IPEX female to SMA female17mm thread leng nut fixing flange RG178 cable UFL / IPEX K SMA KY antenna cable
- Category: >>>
- Supplier: Shanghai Yuandao Electronic Co. Ltd.
Share on (62490418352):
Product Overview
Description
Note: connector and cable type,length an be changed based on customer's requirements
Product advantages:
More product models
1) RF coaxial cable assemblies
2) RF connector with Andrew / LMR / RG cable series
3) Connector type:
N, SL16,IPEX(UFL),SMA, SMB, MCX,MMCX, F, BNC,TNC ,M5(L5),C2and others
4)Cabletype: STYV2,SFX086(RG405),SFX141(RG402),RG174,RG58,RG213,RG223,RG316,RG316D,RG303,RG142,RG400,RGLMR100, LMR195, LMR200,
LMR240, LMR400,and others
5) OEM / ODM orders are welcome
Product advantages:
1. Comply with RoHS requirements
2. Free samples (only shipping)
3. Competitive prices
4. High quality andhigh performance (2 years warranty)
5.Minimum order quantity 1
6. Fast delivery (1-3 days)
3. Welcome ODM & OEM
More product models
1) RF coaxial cable assemblies
2) RF connector with Andrew / LMR / RG cable series
3) Connector type:
N, SL16,IPEX(UFL),SMA, SMB, MCX,MMCX, F, BNC,TNC ,M5(L5),C2and others
4)Cabletype: STYV2,SFX086(RG405),SFX141(RG402),RG174,RG58,RG213,RG223,RG316,RG316D,RG303,RG142,RG400,RGLMR100, LMR195, LMR200,
LMR240, LMR400,and others
5) OEM / ODM orders are welcome
Details Images
Product Description | ||
Poduct Name | RF coaxial cable UFL / IPEX female to SMA female nut fixing flange RG178 | |
Connector A | UFL / IPEX female (or customized) | |
Connector A | SMA female (or customized) | |
Cable Type | RF1.13 (or RG316 RG316D RG58 RG142 ) | |
Cable Length | 0.1M (Can be customized for your required length) | |
Cable OD | Ø1.8mm | |
Weight | 0.05KG | |
Operating Frequency | DC0-3GHz ( or 6GHZ 10GHZ 18GHZ) | |
V.S.W.R | ≤1.15 | |
Characteristic impedance | 50Ω | |
Package | Ploybag,carton | |
RF cable UFL/IPEX female to SMA female RG178 | ||||||
Product Description | ||||||
Electrical | ||||||
1 | Characteristic Impedance | 50ohm | ||||
2 | Frequency Range | DC-3GHz | ||||
3 | VSWR | ≤1.15(DC-3GHz) | ||||
4 | Dielectric Withstanding Voltage | ≥ 2500V | ||||
5 | Dielectric Resistance | ≥5000MΩ | ||||
6 | PIM3 | ≤ -160dBc | ||||
Mechanical | ||||||
1 | Durability | Mating cycles ≥500 | ||||
Material and plating | ||||||
Description | Material | Plating | ||||
1 | Body | Brass | Tri-alloy/Au/Ni | |||
2 | Insulator | PTFE | – | |||
3 | Center conductor | Brass | Ag/Au | |||
4 | Gasket | Silicon rubber | - | |||
5 | Other | Brass | Ni | |||
Environmental | ||||||
1 | Temperature Range | -40℃~+85℃ | ||||
2 | Waterproof | IP67 | ||||
Main Products
Company Profile
ABOUT US
Shanghai Yuandao Electronics Co., Ltd., located in Baoshan District, Shanghai, is a telecommunications product manufacturer integrating independent research and development, production and sales. Specializing in the production of high-end radio frequency products, to undertake a variety of fixed and non-standard products and processing products. RF coaxial connectors, coaxial injection cables, RF cable assemblies, antennas and other products. Connectors include SMA SMB SMC SSMA MCX MMCX TNC BNC N SL16 M5 UHF UFL and so on. Cable products include RG178 RG316 RG179 RG402 RG405 RG142 LMR195 LMR200 LMR400, etc. Antenna products include 4G / LTE antenna, 3G / WCDMA antenna, WIFI / WIMAX antenna, GSM antenna GPS antenna, etc. We have advanced production equipment and sophisticated measuring instruments, mainly serving the medical, automotive, computer, wireless router, satellite positioning
and navigation, ship, satellite communications and other industries.
and navigation, ship, satellite communications and other industries.
Delivery
FAQ
Q: What is the minimum order quantity for your company?
A: There is no minimum quantity limit, the minimum quantity is 1PCS
Q: What is your delivery time?
A:The fastest one day, usually 1-5, depends on the quantity of products ordered.
Q: Can your company accept customization?
A: OEM & ODM are welcome.
Q:Quality problems?
A: If thers is any quality problem or question,we could offer technical support or return service.
A: There is no minimum quantity limit, the minimum quantity is 1PCS
Q: What is your delivery time?
A:The fastest one day, usually 1-5, depends on the quantity of products ordered.
Q: Can your company accept customization?
A: OEM & ODM are welcome.
Q:Quality problems?
A: If thers is any quality problem or question,we could offer technical support or return service.
