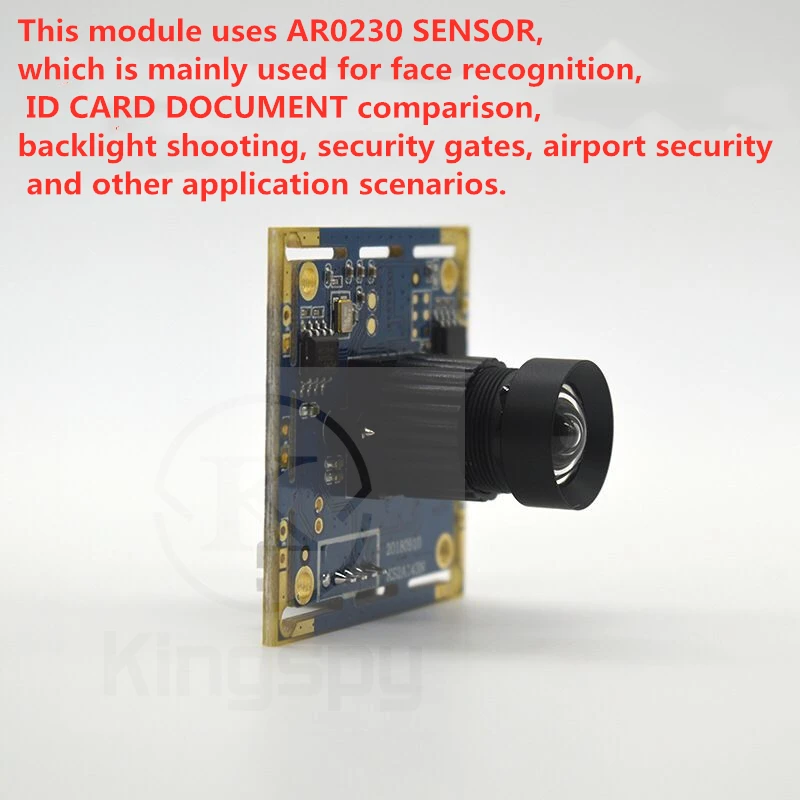

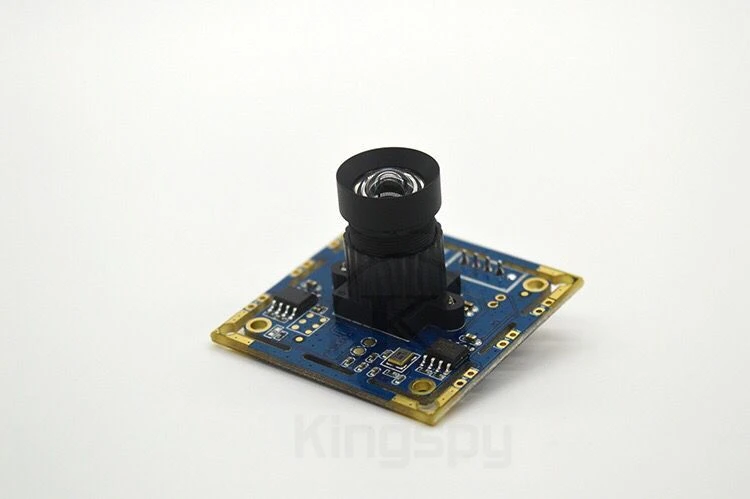

Professional factory sale mini usb OTG UVC WDR 2mp usb micro camera module 1080p hd AR0230 sensor 1080p usb2.0 cmos camera
- Category: >>>
- Supplier: Shenzhen Kingspy Technology Co. Ltd.
Share on (62490466336):
Product Overview
Description
Certifications
Product Description

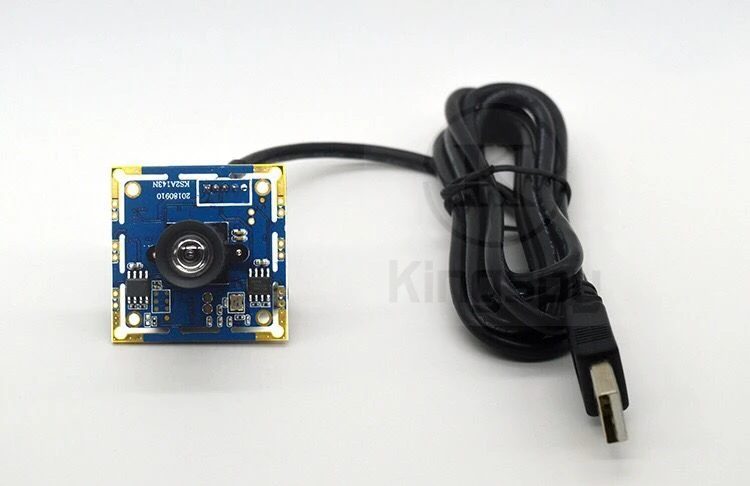

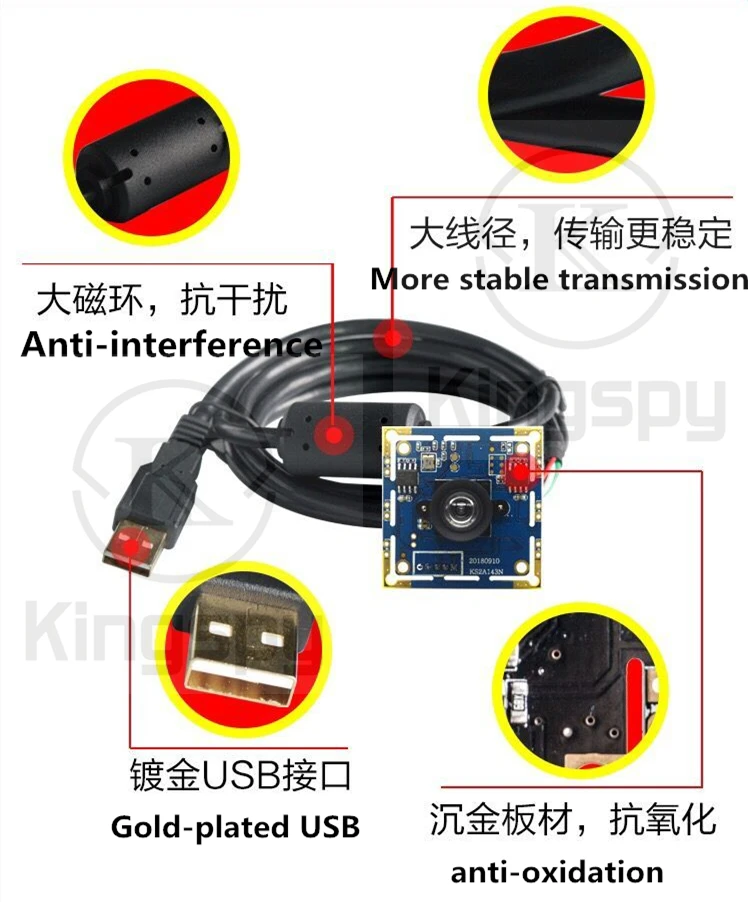

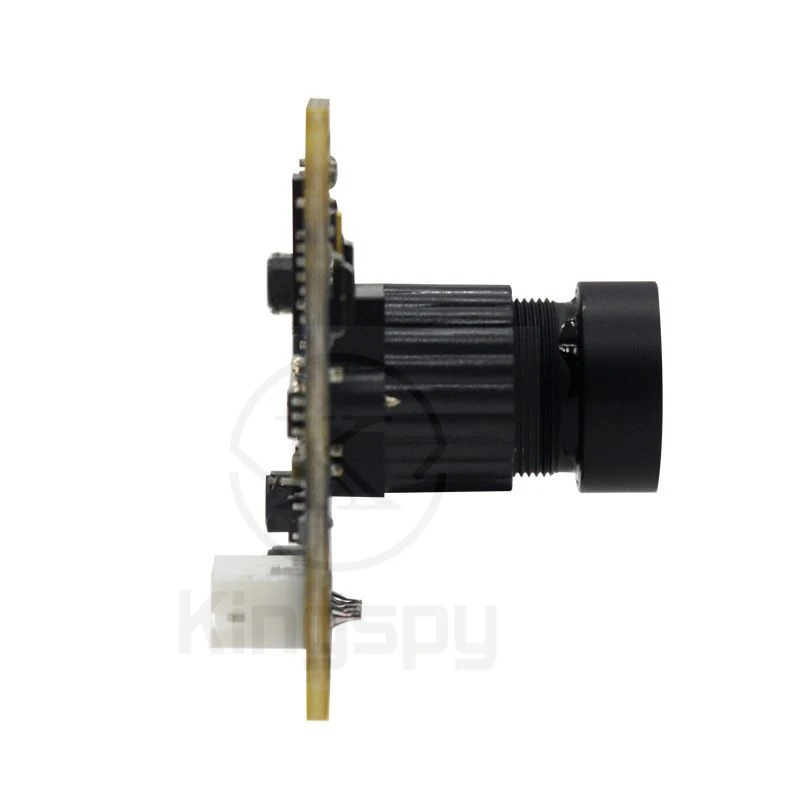

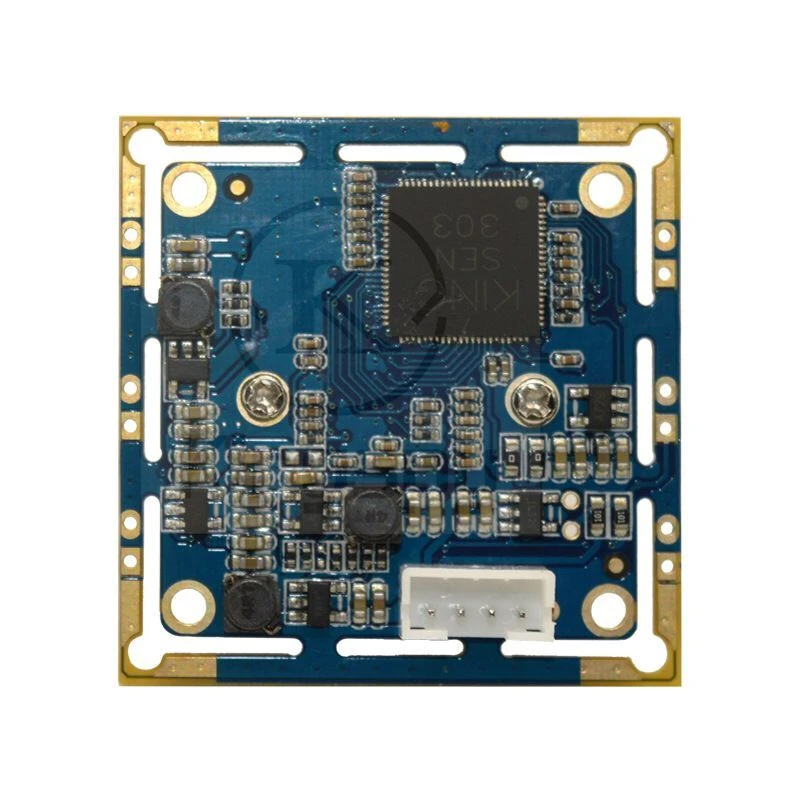

Professional factory sale mini usb OTG UVC WDR 2mp usb micro camera module 1080p hd AR0230 sensor 1080p usb2.0 cmos camera
|
Sensor:CMOS, AR0230 |
| Type:WDR Digital Camera |
| Technology:USB Camera module |
| Image Sensor:1/2.7 inch CMOS |
| Resolution:2MP 1920*1080 |
| Protocol & Connection:Plug and play, driverless |
| Lens:Non Distortion FOV=75°±5% |
| Supported Operating Systems:Windows 10,Windows Vista,Windows 8,Windows |
| USB 2.0 interface:high speed USB 2.0 |
| Compression format:MJPEG/YUY2 |
Feature:
*KS-2A143N is a WDR(Wide Dynamic Range) USB camera, it can view clear image under very strong light or very low light, such as the car front light is very strong, while the WDR camera can capture the clear image too)
*WDR camera very newly used in USB cameras, with USB port easy to plug and play installation, widely used in all kinds of industrial or personal home security, equiped with WDR perfect to use in any light condition.
*2.0 megapixel WDR usb camera module for any light condition, strong or low light can both capture clear image
*H.264/MJPEG/YUY2 compression format optional, easy to install to linux,android,windows PC system
*AR0230 sensor with HD sharp image
*Dynamic Range up to 100 dB for strong car plate, sunlight etc.
Specification:
Module No | KS-2A143N |
Module Size | 32*38mm |
Temperature(Operation) | -30℃to85℃ |
Temperature(Stable Image) | -20℃to70℃ |
Assembly technique | SMT(ROSH) |
Focus | FIX |
Object distance | 10CM to Infinity |
Resolution | 1000LW/PH(Center) |
PCB printing ink | Black |
Interface | USB2.0 and 1.1 |
POWER | USB bus power |
Operating system request | Win2000,Win XP,Win7, Win8, Win10, Linux,Android |
Package | Anti-electrostatic tray |
Certifications | FCC and CE |
working current | <150mA |
sleep model current | <10mA |
Sensor Type | AR0230 |
Active Array Size | 1920*1080 |
Dark Current | 896mV/s @ 60℃ |
Sensitivity | 4.0V/(lux • s) |
pixel size | 3.0um*3.0um |
Maximum Image Transfer Rate | 1920*1080 1280*720 800*600 640*480 :30fps |
S/N Ratio (maximum) | 41db |
| UP to 105 db@8X gain |
Package | ON PC IN OUR BAG |
LENS Type |
|
Lens Construction | 4G2P+IR |
F/NO | 3.0 |
EFL | 4.3mm |
BFL | 3.62mm |
FOV | 75°±5% |
TV Distortion | <1.2% |
Relative lumination | 50% |
IR filter | 650±10nm |
AGC/AEC/Whiter balance | AUTO |
Output Format | YUY2 MJPG |
Fixed Pattern Noise | <0.03% |

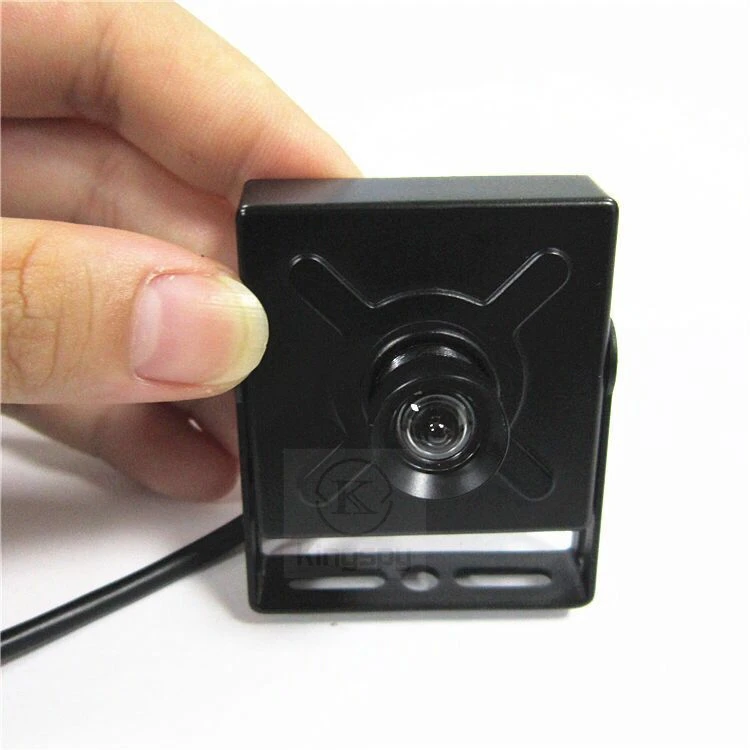

If you want to add housing case.like this one as below : pls let us know if you like .
Our Services
1) Guarantee We promise 1 year warranty from Shipping date,
once there's a problem which users can't fix themselves,
we'll sent accessories or a new IP camera as replacement to you.
2) Authorisation We will sent you authorization as business partner / distributor.
3) MOQ 1pcs
For big order, I suggest order by standard carton,
4) OEM/ODM order are also most welcomed.
5) Why us? Reply < 10 hours, Delivery time > 99%, Quality Control > 99%, After-sales Service > 99%
100% QC inspection Before the timely delivery of the goods.
And we have more than 6 new models released each year!
POSITIVE REVIEWS FROM OTHERS CUSTOMERS :
About us
FAQ
1.Are you manufacturer?
Yes, we are designer and manufacturer for CCTV camera for more than 15 years!
2.What lens optional you have?

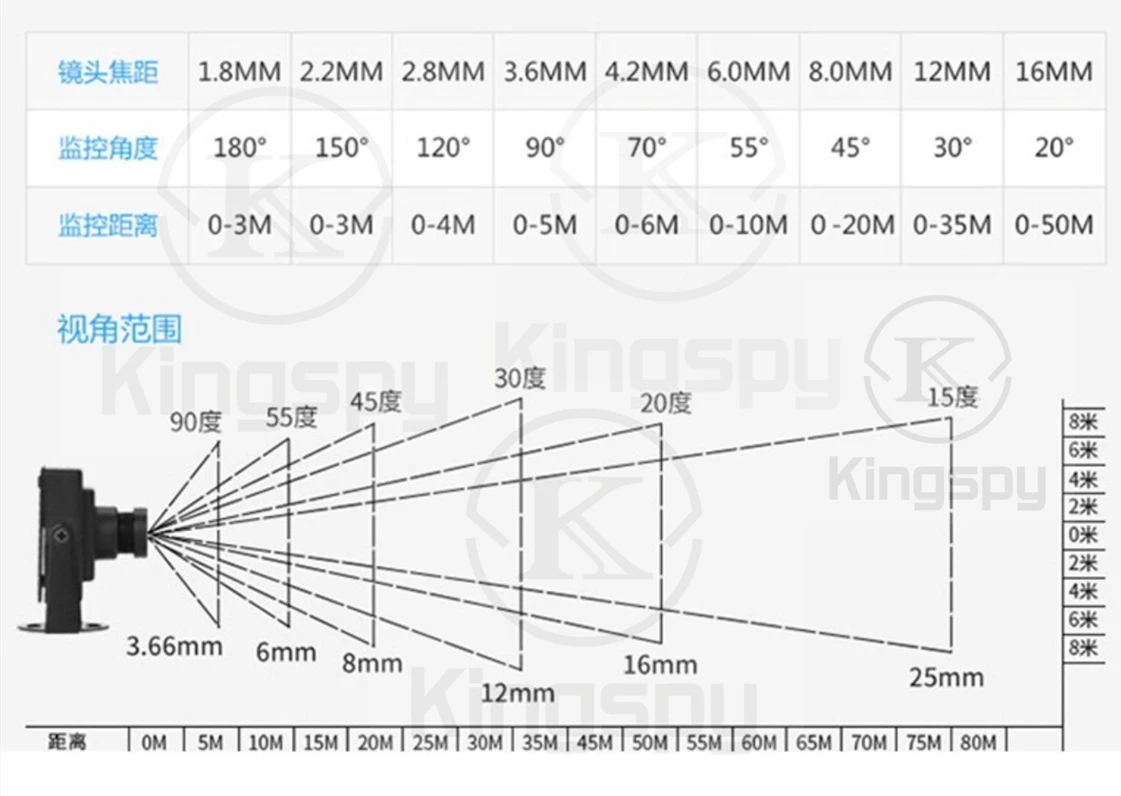

We have normal M12 2.1/2.8/3.6/6/8/12mm lens, wide angle fisheye lens and varifocal lens etc
can according customer's requirement use different lens !
3.What certificate your products have?
CE, FCC, partial have RoHS and UL
4. Do you accept small order?
A: Yes, Sample order available. we can also provide drop ship service.
5.What's your Trade Terms and Payment?
Ex-work Shenzhen as our standard trade terms, CIF, FOB is available. Payment by L/C, T/T, Western Union,Paypal, Escrow are accepted.recommend use alibaba trade assurance !
6.what’s your warranty policy?
A: All of our products has 2 year warranty. we are supplying free spare part for customer repair if quality issue.
7..Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
8. What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
9.How could I get samples?
For New Customer ,We can provide samples if you have a Fedex or DHL account or other courier freight collectable account and agree to pay the courier freight.or, you send us the samples charge together with the courier cost by T/T. For Old customer ,we offer free charger samples for testing!
Yes, we are designer and manufacturer for CCTV camera for more than 15 years!
2.What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, wide angle fisheye lens and varifocal lens etc
can according customer's requirement use different lens !
3.What certificate your products have?
CE, FCC, partial have RoHS and UL
4. Do you accept small order?
A: Yes, Sample order available. we can also provide drop ship service.
5.What's your Trade Terms and Payment?
Ex-work Shenzhen as our standard trade terms, CIF, FOB is available. Payment by L/C, T/T, Western Union,Paypal, Escrow are accepted.recommend use alibaba trade assurance !
6.what’s your warranty policy?
A: All of our products has 2 year warranty. we are supplying free spare part for customer repair if quality issue.
7..Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
8. What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
9.How could I get samples?
For New Customer ,We can provide samples if you have a Fedex or DHL account or other courier freight collectable account and agree to pay the courier freight.or, you send us the samples charge together with the courier cost by T/T. For Old customer ,we offer free charger samples for testing!
Packaging & Shipping
