PHX Hot Selling ABS Box Type CWDM DWDM WDM with OEM / ODM Service
PHX Hot Selling ABS Box Type CWDM DWDM WDM with OEM / ODM Service
PHX Hot Selling ABS Box Type CWDM DWDM WDM with OEM / ODM Service
PHX Hot Selling ABS Box Type CWDM DWDM WDM with OEM / ODM Service
PHX Hot Selling ABS Box Type CWDM DWDM WDM with OEM / ODM Service
PHX Hot Selling ABS Box Type CWDM DWDM WDM with OEM / ODM Service
PHX Hot Selling ABS Box Type CWDM DWDM WDM with OEM / ODM Service

PHX Hot Selling ABS Box Type CWDM DWDM WDM with OEM / ODM Service

Share on (62490489732):


Price:RUB 1,486.55

Quantity:


Product Overview

Description

Product Features
Low insertion loss
Broadband transmission
High channel isolation
High stability and reliability
Epoxy-free optical path
Application
Optical Fiber Communication Systems Optical Fiber CATV Passive Optical Network (PON) Optical Amplifiers Optical Access Networks/LAN Monitoring Systems Optical Fiber Sensor Medical OCT Devices
Product Paramenters
Parameter
4-Channel
8-Channel
16-Channel
Mux
Demux
Mux
Demux
Mux
Demux
Channel Wavelength(nm)
ITU 100GHz Grid
Channel Spacing(GHz)
100(0.8nm)
Channel Passband (@-0.5dB bandwidth(nm)
>0.25
Insertion Loss(dB)
≤1.8
≤3.7
≤5.5
Channel Uniformity(dB)
≤0.6
≤1.0
≤1.5
Channel Ripple(dB)
<0.3
Isolation(dB)
Adjacent
N/A
>30
N/A
>30
N/A
>30
Non-adjacent
N/A
>40
N/A
>40
N/A
>40
Insertion Loss Temperature Sensitivity(dB/℃)
<0.005
Wavelength Temperature Shifting (nm/℃)
<0.002
Polarization Dependent Loss(dB)
<0.1
<0.1
<0.15
Polarization Mode Dispersion(ps)
<0.1
Directivity(dB)
≥50
Return Loss(dB)
≥45
Maximum Power Handling(mW)
300
Opterating Temperature(℃)
-5~+75
Storage Temperature (℃)
-40~+85

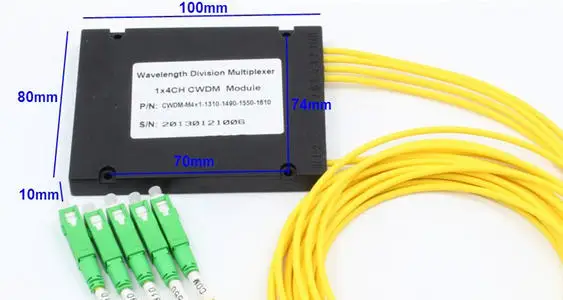

Package dimension(mm)
A: L100×W80×H10
B: L120×W80×H18
C: L141×W115×H18
