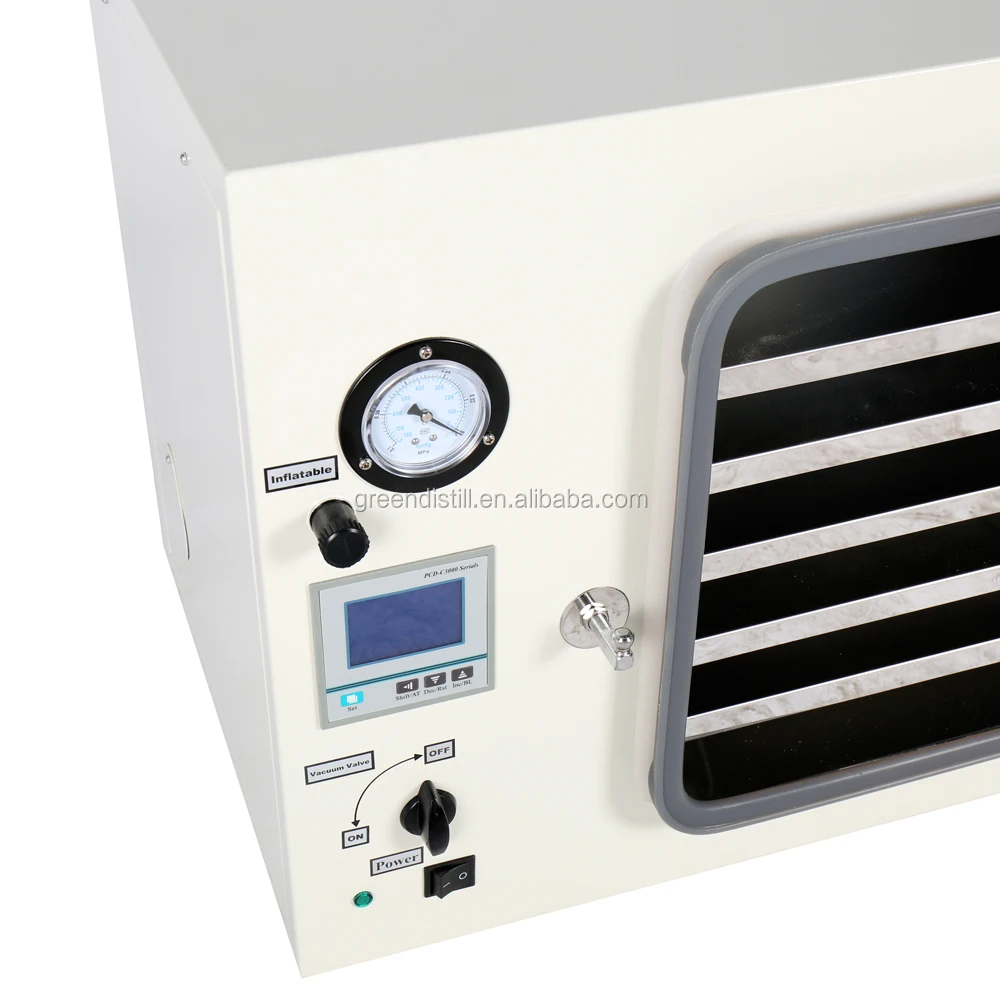

Green Distill Vacuum Drying Machine 1.9 Cu Ft Price
The welding electrode heating and drying oven is specially designed for drying of material which is thermo-sensitive or decompounded and oxidative easily. The laboratory drying oven can be filled with inert gas to dry some materials with complicated components. The laboratory drying oven has been widely used in pharmaceutics, electrical and chemical industry.

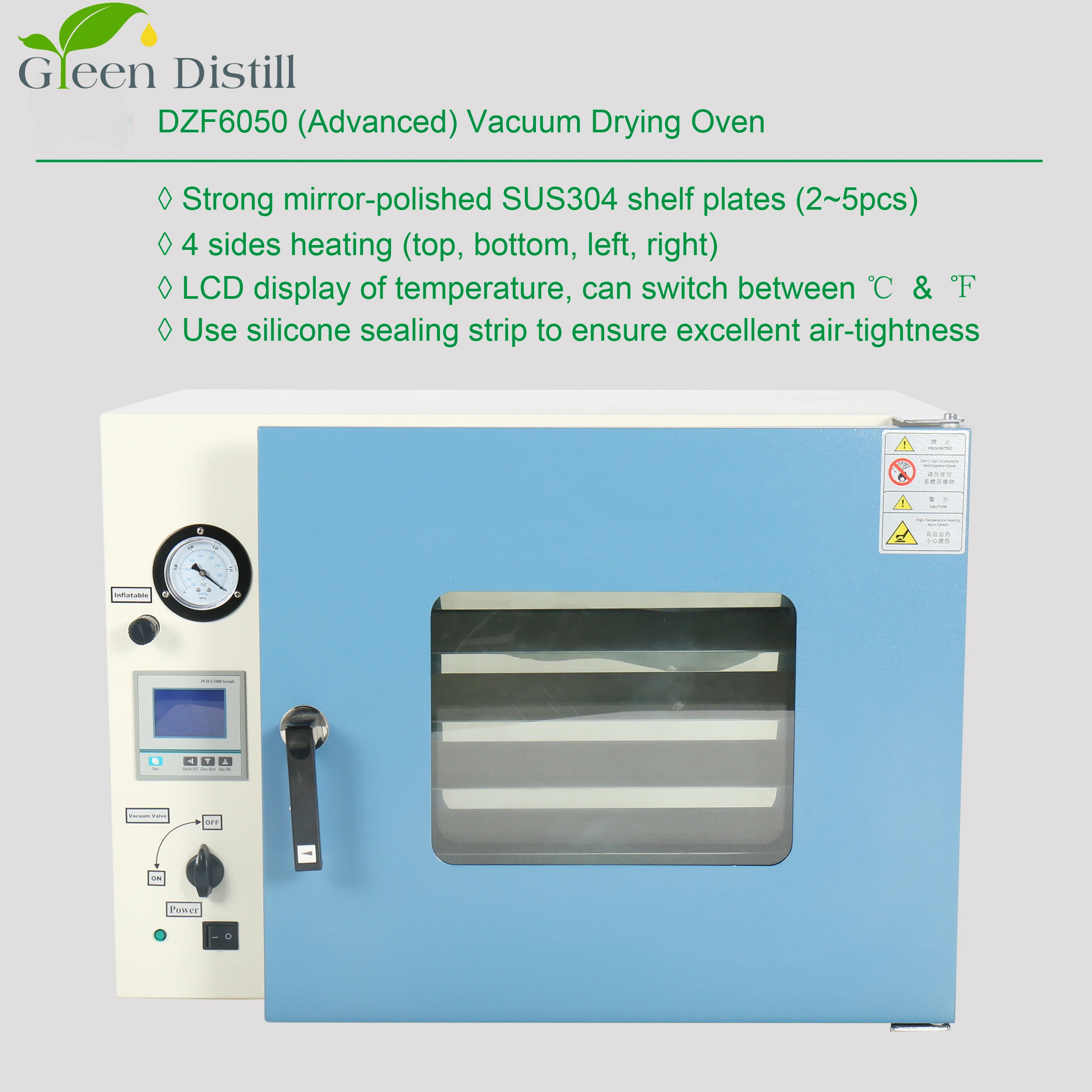

Features of the Vacuum Drying Oven
- Intelligent temperature controller for maximized performance in a wide dynamic range of 480°F (250°C), eliminating the need of human intervention in parameter setting. - Evenly distributed heating elements for gentle drying throughout the chamber interior and absolute temperature uniformity. - High performance MCU-based temperature controller with advanced PID algorithm to maintain temperature uniformity (+/- 1°F) from low temperature to 480°F (250°C). - Dual layer observation window with adaptive 1/2" tempered safety glass, as well as force-adjustable door handle, to maintain constant vacuum level even for long-term operation. - Good thermal insulation of vacuum chamber for low energy consumption. - Easy-to-clean and heavy-duty SUS304 electropolished vacuum chamber. - Built-in adjustable temperature limiter and fuse for the protection of both sample and oven. Strong mirror-polished SUS304 shelf plates (each of them has 15kg load capacity). - Complete application-specific vacuum drying system contains vacuum drying oven, vacuum pump, fume/mist filter, cold trap & connection kit of various sizes and features. - Electrical components are isolated from the inner chamber for the protection of user. - Various options (programmable controller, independent temperature switch, digital pressure indicator, etc) for your own customized system. - Modular design for easy and cost-effective maintenance and future upgrades. - Built-in timer of 9999 minutes/hours.
Technical Data
Specifications of the Vacuum Drying Oven

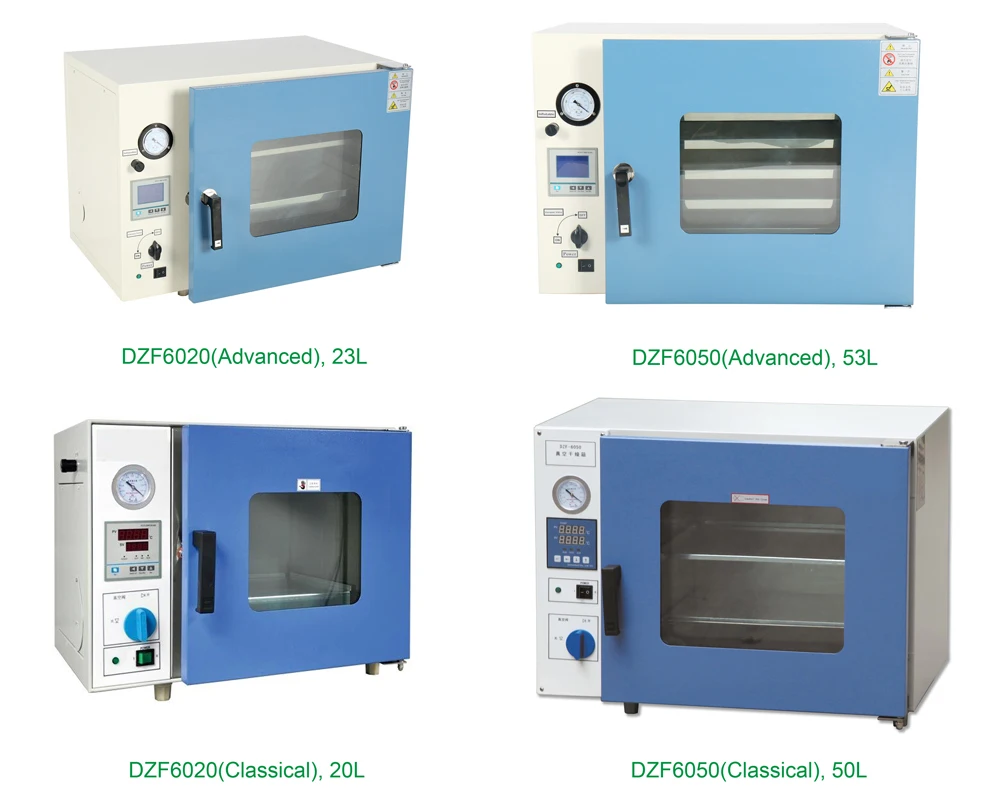

Model
DZF6020(Advanced)
Product Type
vacuum oven
Voltage
220 V 50/60 Hz (Optional: 110V)
Power
500 W
Chamber Volume
0.9 cu. ft (23 Liter)
Chamber Material
SUS304, Mirror Surface
Temperature Range
Ambient + 5°C to 250°C
Temperature Control Accuracy
+/- 0.5°C
No. of shelves
2 (can add to 4 as clients require)
End Vacuum Level
<133 Pa (1 mmHg)
Max Leak Rate
<0.01 bar/h
Max Heating Rate
5-9°C/min
Chamber Size W x D x H (mm)
300mm x 300mm x 275mm
Overall Size W x D x H (mm)
605mm x 490mm x 450mm
Timer
to 9999 minutes (9999 hours upon request)
Structure & Details

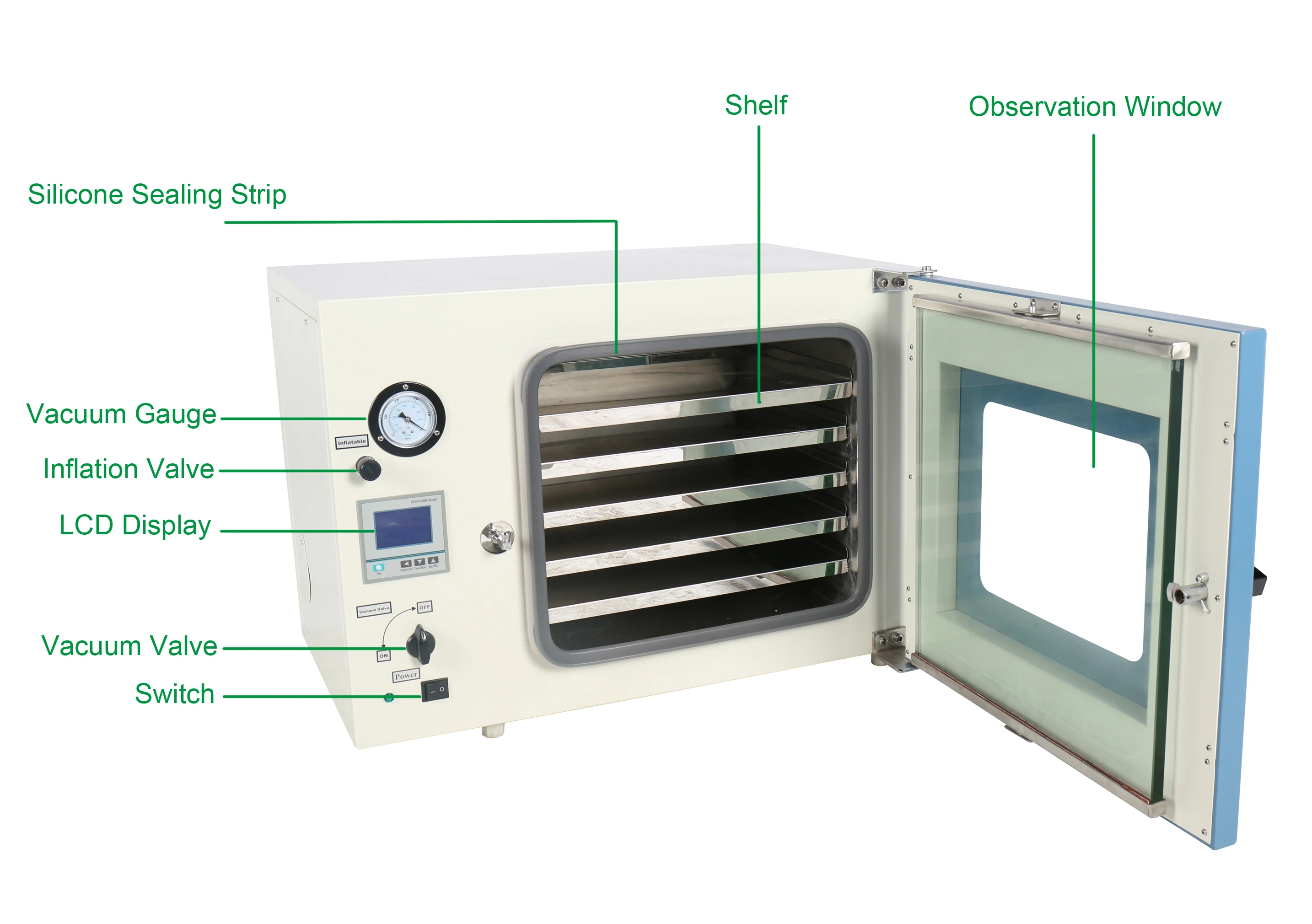

Structure demonstration of the Vacuum Drying Oven
Machine Parts

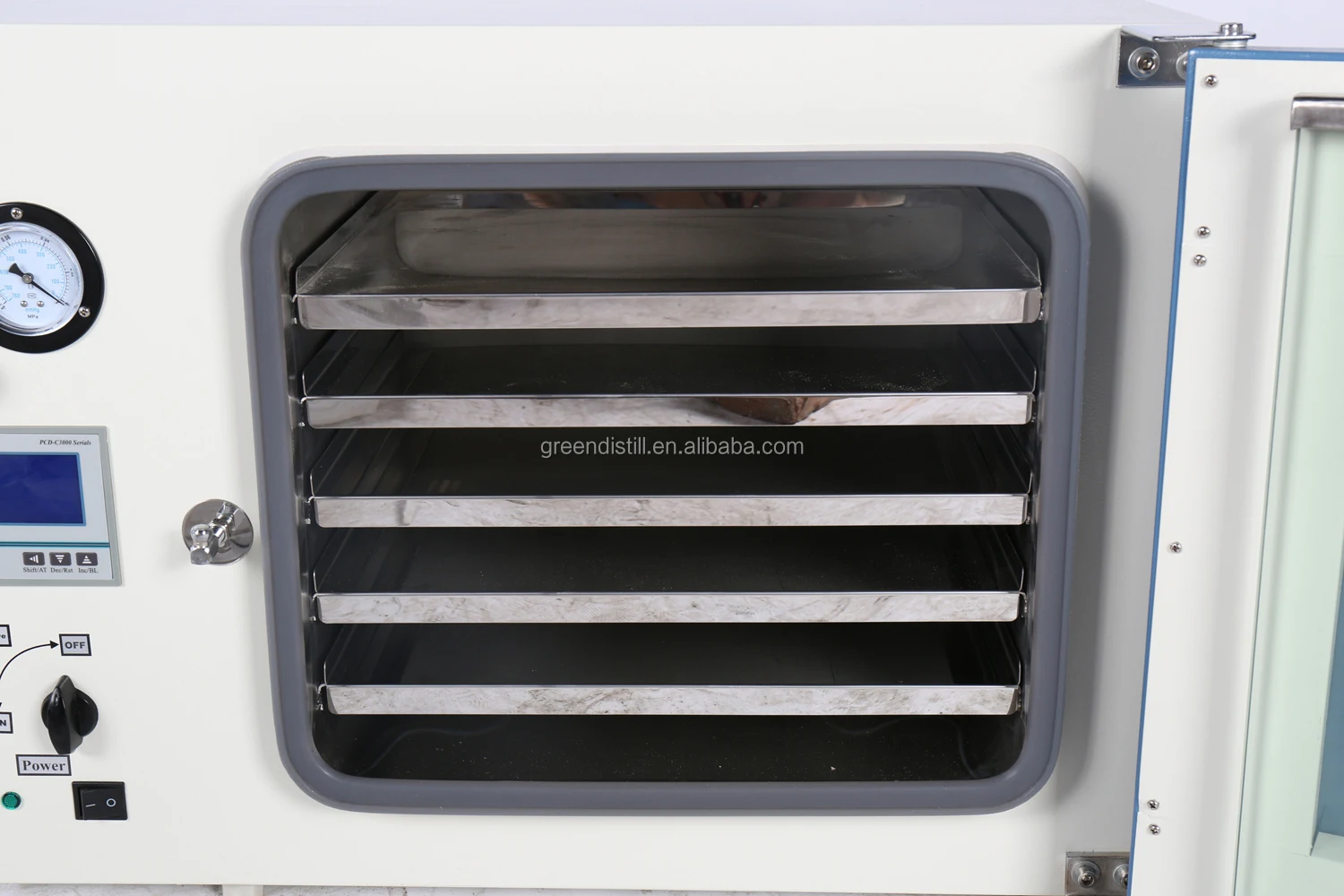

Name: Shelf Plates
Brand: YHCHEM
Original: China (Mainland)
* SUS304 stainless steel shelf * Anti-corrosion * Durable * High temperature resistance * No cross contamination
Machine Parts
Name: Sealing Strip Brand: YHCHEM Original: China (Mainland) * Made by high quality silicone material * Excellent air-tightness
Machine Parts

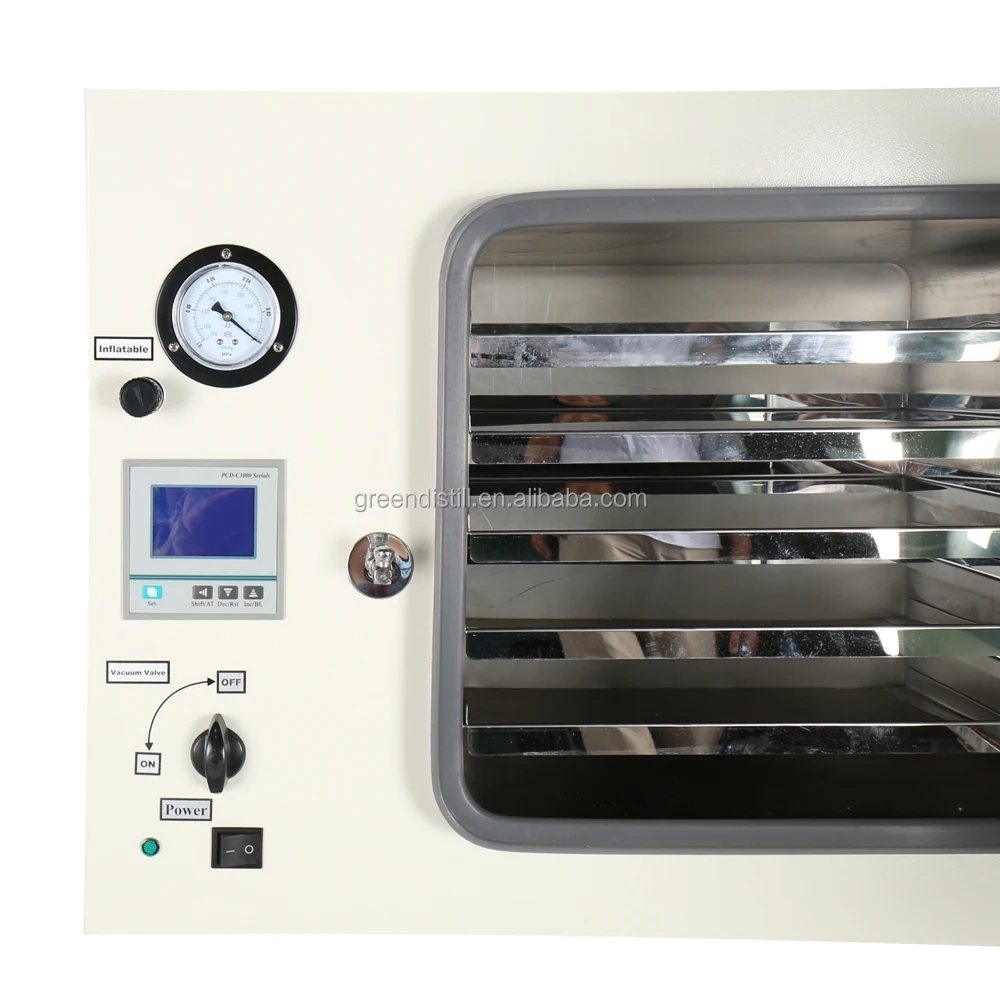

Name: Micro-computer Temperature Control Brand: YHCHEM Original: China (Mainland) * Temperature controller with timer function to ensure precise and reliable temperature control * LCD display, temperature display accuracy ±0.1℃
