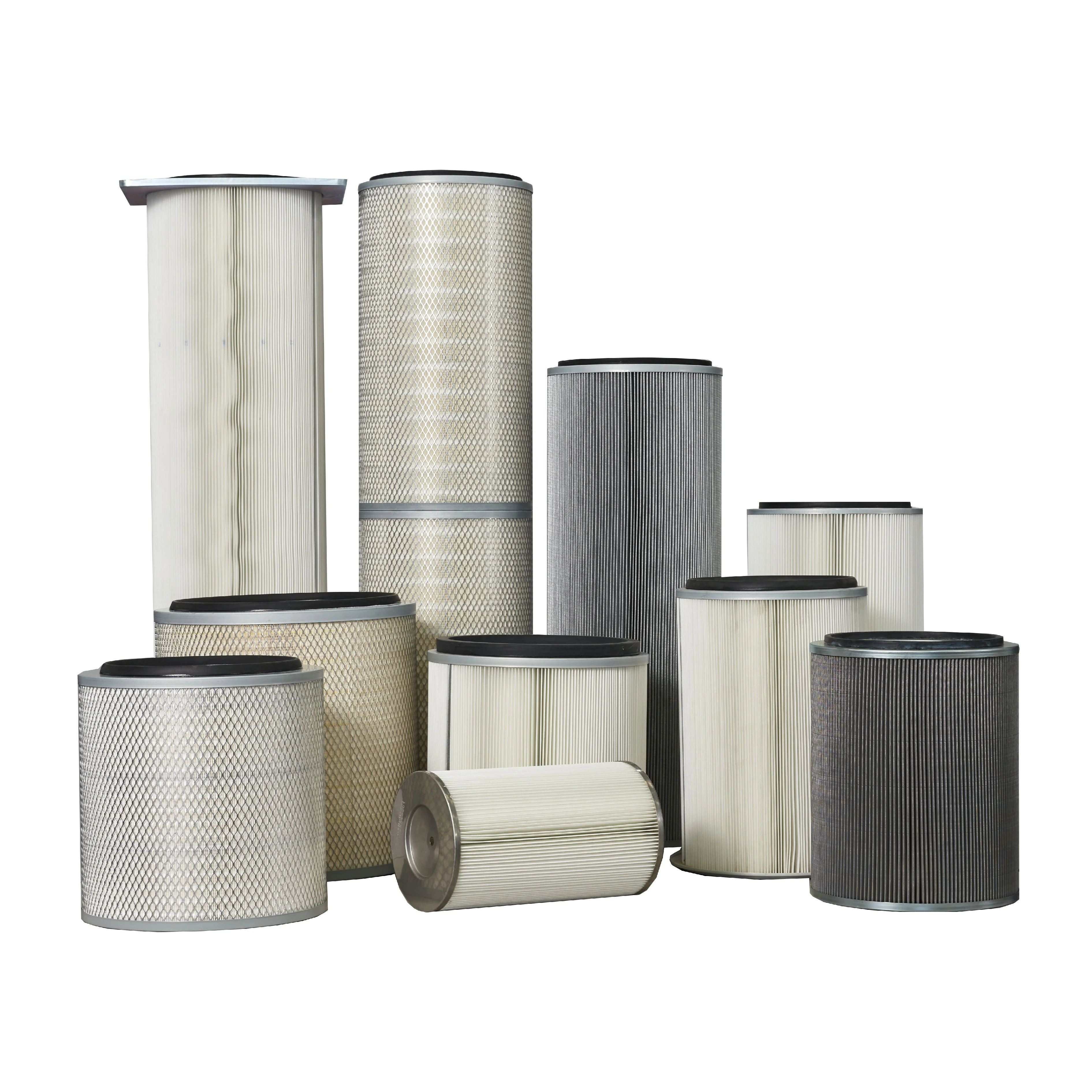

Cellulose material cartridge filter element

Product Overview

Description

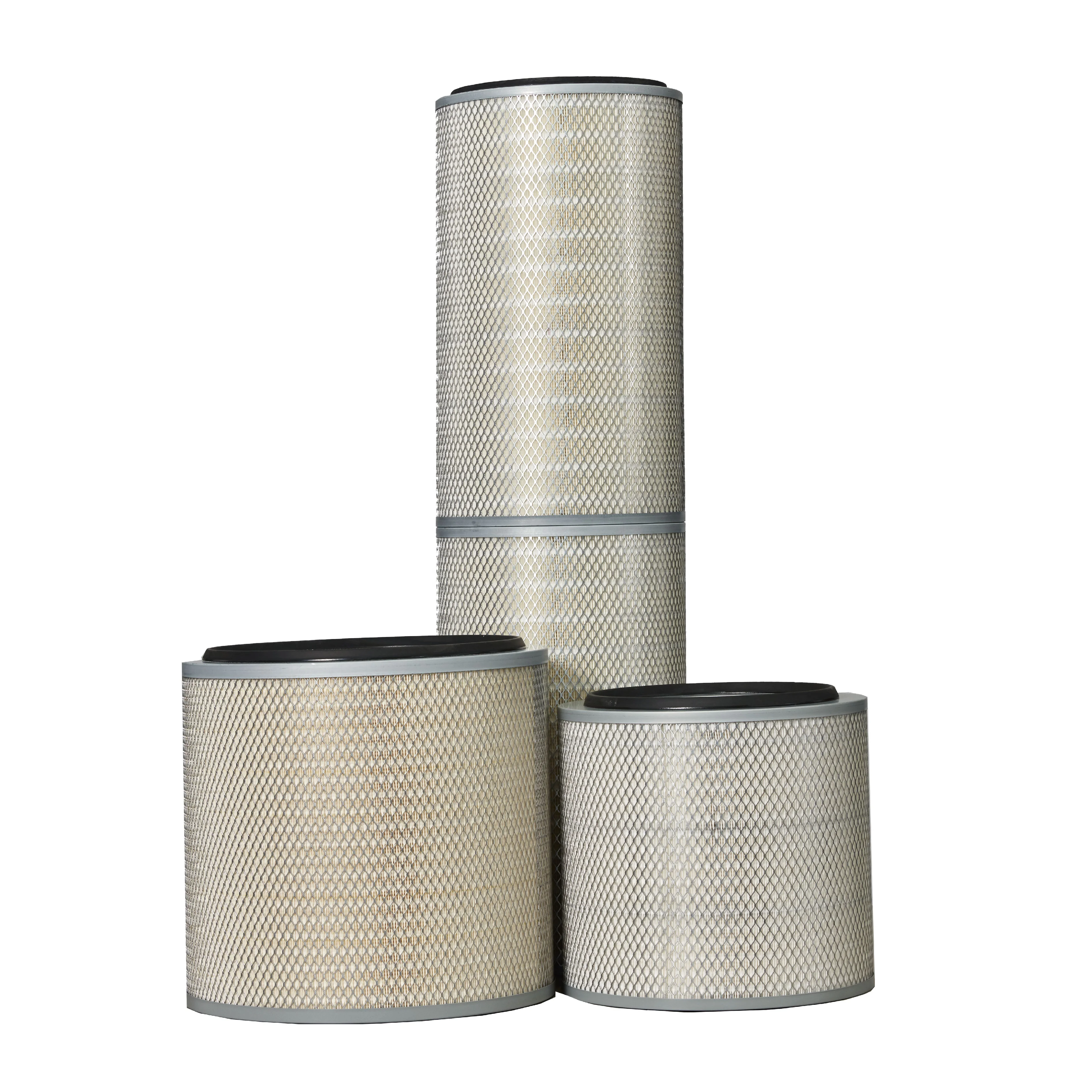

Cellulose material cartridge filter element



Main features



Nanometer fire resistance fiber filtering medium



The surface filtering design doesn’t form filtering cake, to have high filtering efficiency.



Filtering precision is high, the filtering efficiency reaches 95% for 0.5μm dust.



Excellent cleaning performance, the surface on the filtering medium piles up dust less.



During the cleaning cycle, the dust particles are easy to discharge out, so it solve the issue which the micro dust gathers up between V shape fold of filtering medium and V shape fold filtering medium. Finally, it ensures the air flow minimization and stability.



The air flow is large, it can increase above 30% air flow than common filtering medium.



Usage life is longer, the resistance of rising is more stable. The wear-resistance is good.



Consumption is low, it can save above 25% power than common filtering medium.



Application: It replaces kinds of foreign brand relevant products.



Note: The dust collecting system must equip with the catcher of spark to prevent plenty of spark to enter

           the filter system.



Filtering efficiency parameter



Filtering status	Initially operating status	Stably operating status
Air speed	3/Min
Difference pressure	220 Pa	236Pa
Dust size	Filtering efficiency
0.3-0.5 μm	82.6%	93.9%
0.5-0.7 μm	88.0%	96.9%
0.7-1.0 μm	92.2%	98.3%



Dimension parameter



Model	Up cover external diameter	Bottom cover external diameter	Up cover internal diameter	Installation small hole	Height	Filtering arera
JS00-20	φ370 mm	φ370mm	φ260mm	φ14mm	367mm	15 m2
JS00a-13	φ445 mm	φ445mm	φ330mm	φ14mm	442mm	30 m2
KS03a	φ325 mm	φ325mm	φ213mm	φ14mm	860mm	21.5 m2
KS03b	φ325 mm	φ325mm	φ213mm	φ14mm	1200mm	30 m2
