Smart Home Thermostat for Air Conditioner 2/4 pipe 3 stage fan speed with Modbus Cooling and Heat Function
Smart Home Thermostat for Air Conditioner 2/4 pipe 3 -stage fan speed with Modbus Cooling and Heat Function
Smart Home Thermostat for Air Conditioner 2/4 pipe 3 -stage fan speed with Modbus Cooling and Heat Function
Smart Home Thermostat for Air Conditioner 2/4 pipe 3 -stage fan speed with Modbus Cooling and Heat Function
Smart Home Thermostat for Air Conditioner 2/4 pipe 3 -stage fan speed with Modbus Cooling and Heat Function
Smart Home Thermostat for Air Conditioner 2/4 pipe 3 -stage fan speed with Modbus Cooling and Heat Function
Smart Home Thermostat for Air Conditioner 2/4 pipe 3 -stage fan speed with Modbus Cooling and Heat Function

Smart Home Thermostat for Air Conditioner 2/4 pipe 3 stage fan speed with Modbus Cooling and Heat Function

Share on (62490583809):


Price:$58.56 - $75.50

Quantity:


Product Overview

Description





Products Description






Power Supply
24VAC/DC
Self Consumption
＜600W
Load Current
＜3A
Protection
IP20
Networking Technology
RS485 Modbus
Available Temperature
1~50℃ (Factory Default: 16~30℃)
Control Precision
±1℃
Temperature Display Accuracy
±0.1℃
Ambient Temperature
-10~60℃
Ambient Humidity
5~95RH (Non condensing)
Storage Temperature
-10~60℃
Inputs
Passive Sensor
Outputs
Relays or 0-10v signal
Sensor Type
NTC10K
Changeover Sensor
NTC10K (Optional)

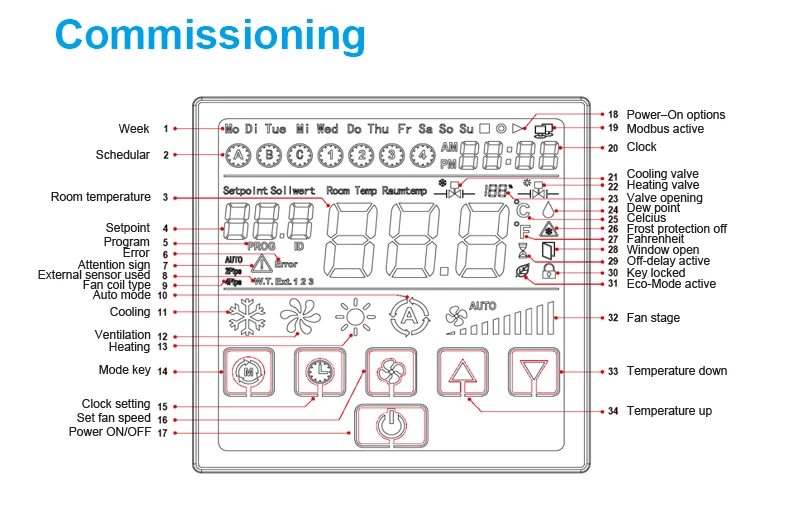

LCD
Touch Screen (64*41mm)
Enclosure Colour
ABS, pure white or black
Enclosure Material
Fire proof ABS; Anti-reflective tempered glass
Installation Type
Flush mounted with standard EU box (Ø=60mm)

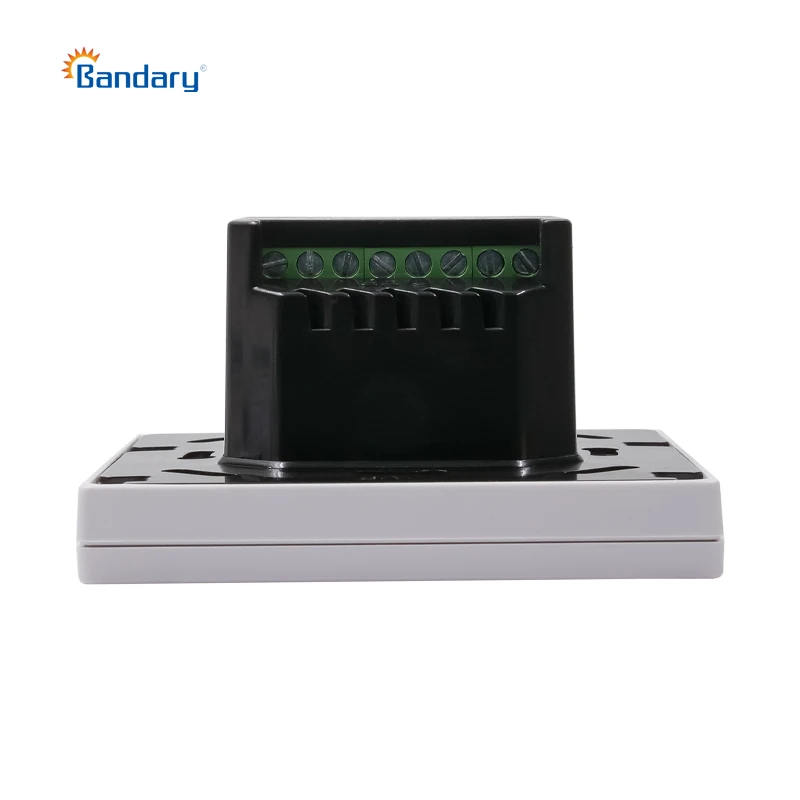

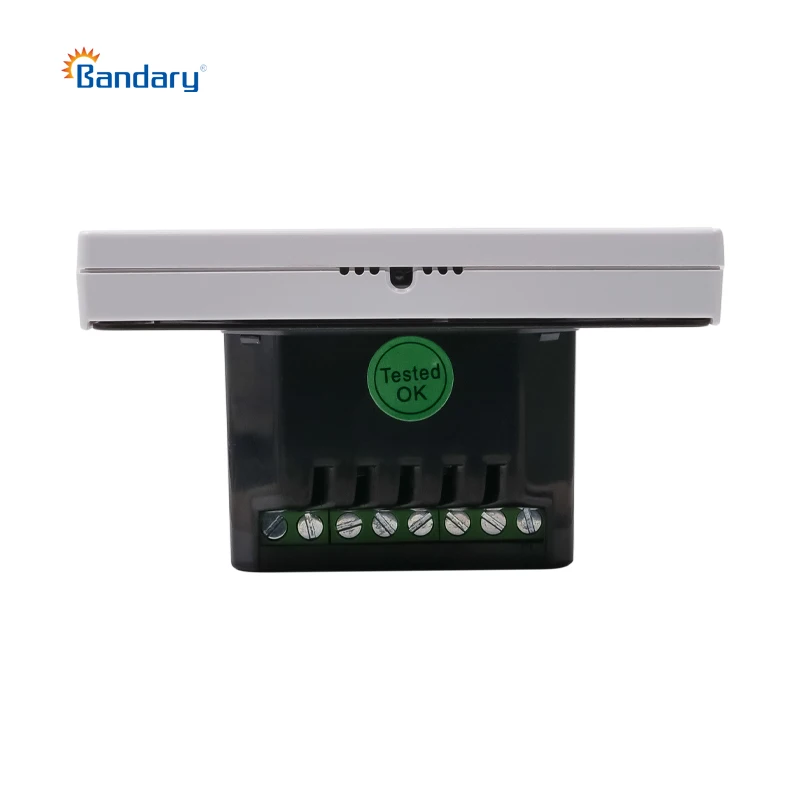

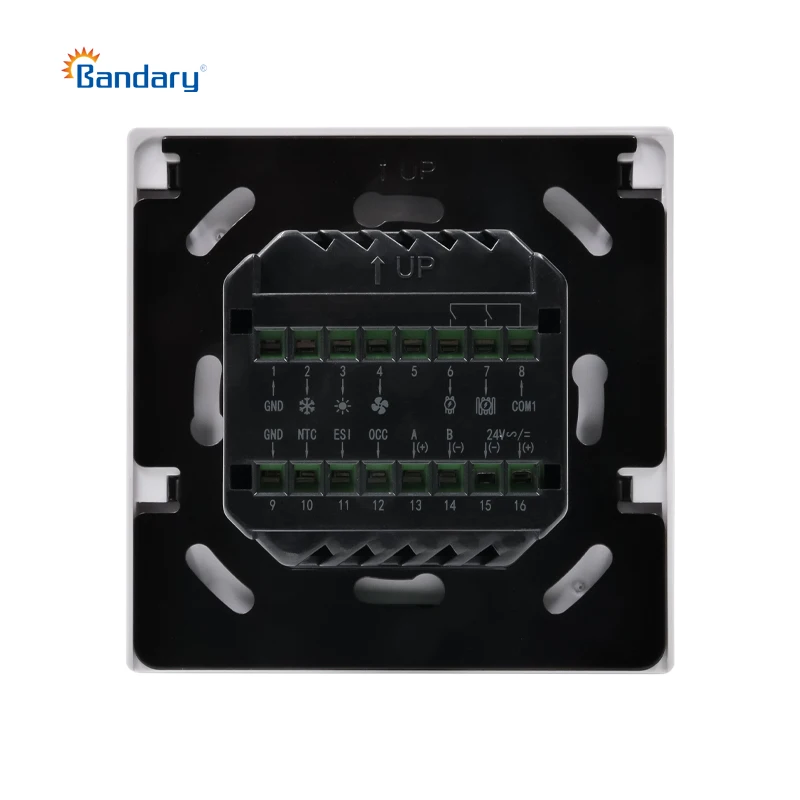

Wirings
Terminals block Max. 1.5m㎡
Hope Pitch
Standard wiring case 60mm

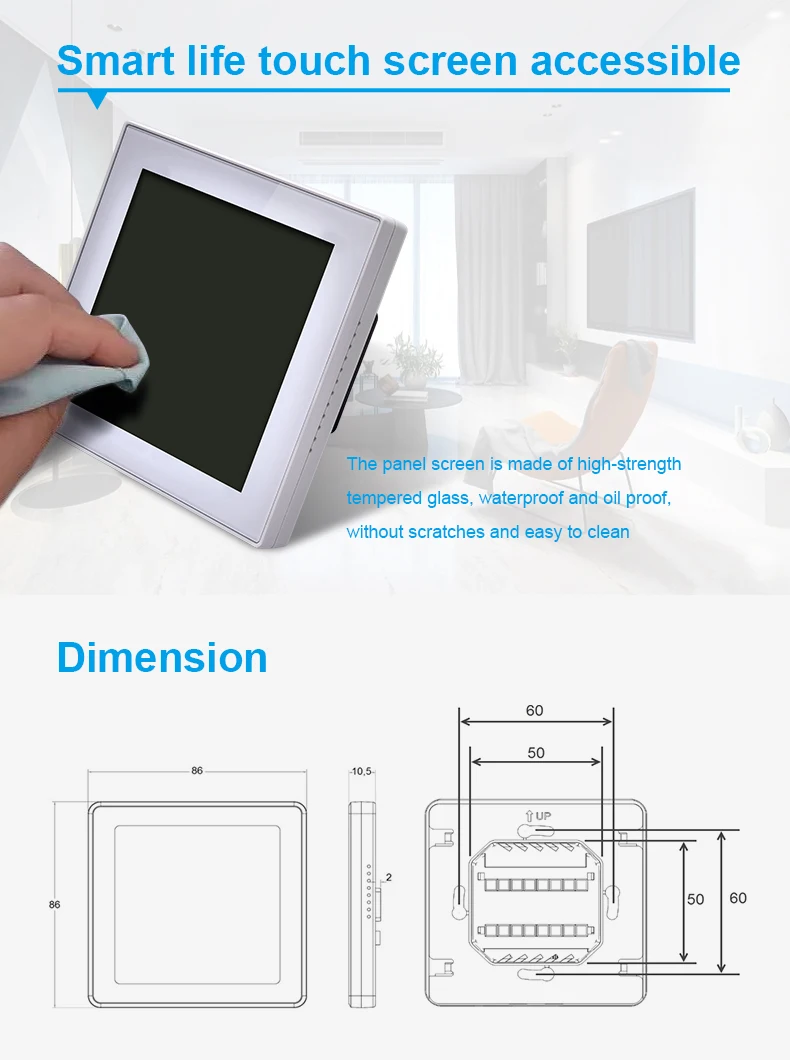

Shape Dimension (W*H*D)
Display board: 86*86*15mm
