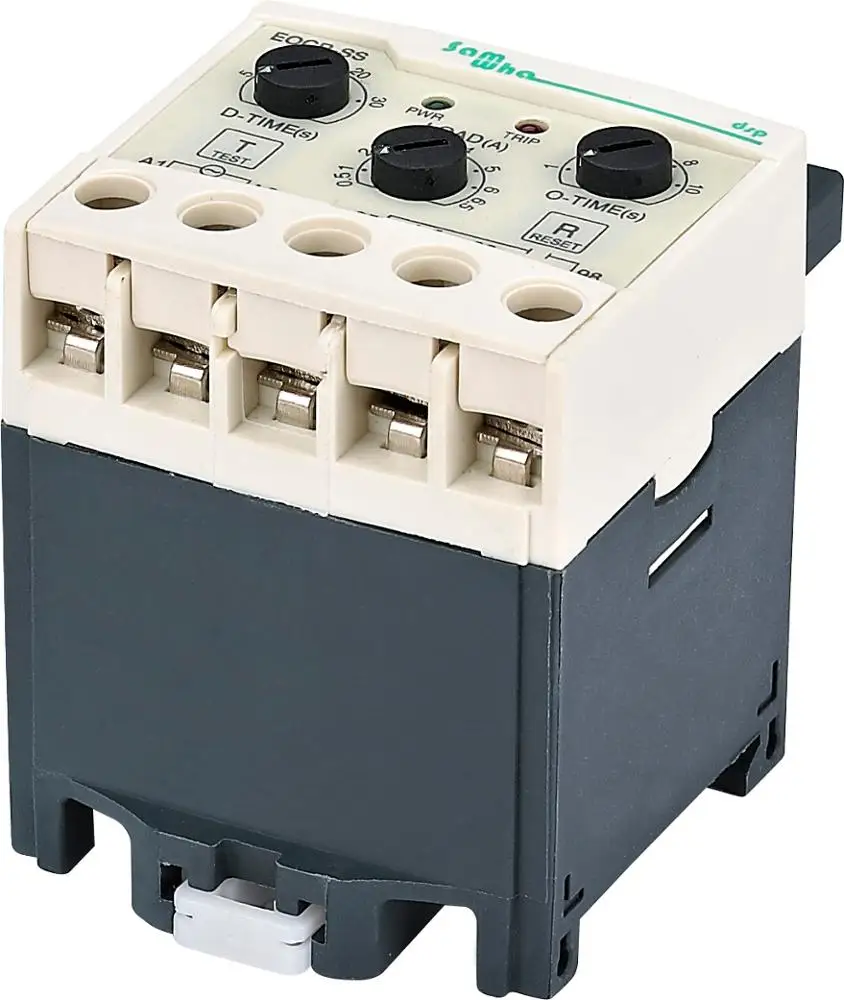

Samwha dsp Eocr ss 30 220 Three Phase Integrated Protector Motor Three Phase Relay Protection Hioki
- Category: >>>
- Supplier: Zhejiang Hannuo Electric Co. Ltd.
Share on (62490691579):
Product Overview
Description
Product Description
Features
■ Compact Design
■ Overload / Phase Loss / Locked Rotor
Protection
■ Independently Adjustable Starting Trip Delay &
Operating Time
■ Wide Current Range:0.1~600A
■ Wide Operating Voltage Range
■ PWR & Trip Indication LED
■ Manual / Electric Reset
■ Ambient Insensitive
■ Low Energy Consumption
■(No Volt Release/Fail-safe Operation)→N Type
※Single-phase, three-phase available (No Volt Release/Fail-safe Operation)→N
■ Overload / Phase Loss / Locked Rotor
Protection
■ Independently Adjustable Starting Trip Delay &
Operating Time
■ Wide Current Range:0.1~600A
■ Wide Operating Voltage Range
■ PWR & Trip Indication LED
■ Manual / Electric Reset
■ Ambient Insensitive
■ Low Energy Consumption
■(No Volt Release/Fail-safe Operation)→N Type
※Single-phase, three-phase available (No Volt Release/Fail-safe Operation)→N
Used for
- Low Voltage Induced Electromotor (600V Level)
Protective Relay
- Break-Down Watch Current Relay
- Alternative Replacement for the Existing Relay
Protective Relay
- Break-Down Watch Current Relay
- Alternative Replacement for the Existing Relay
Protetcion | ||
Protective Item | Operating (Trip) Time | |
Over-Current | O-TIME | |
Phase Loss | O-TIME | |
Locked Rotor | D-TIME+O-TIME | |

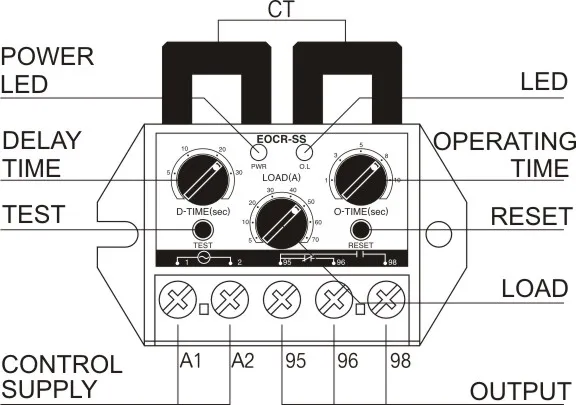

LED
Ammeter Function:
After the motor runs smoothly, turn the overcurrent setting knob slowly counter clockwise to the red indicator light, which is 100% of the actual running current. And then turn the knob clockwise to just turn off the red light at this point for the actual running current value of about 103%.
After the motor runs smoothly, turn the overcurrent setting knob slowly counter clockwise to the red indicator light, which is 100% of the actual running current. And then turn the knob clockwise to just turn off the red light at this point for the actual running current value of about 103%.
Run / Operation Indicator:
Relay Trip: Red LED
Power / normal operating status: Green LED
Relay Trip: Red LED
Power / normal operating status: Green LED
Set
After the installation is complete the settings as follows.
Set knob: D-TIME(Delay Time) Set two to three seconds longer than the motor starting time.
Set knob: O-TIME(Over-current run time) Set less than the motor's endurance time with over-current.
Set knob: Load(Rated Current) Set over 110% of the motor's rated current of under 120% of its operating current.
Set knob: D-TIME(Delay Time) Set two to three seconds longer than the motor starting time.
Set knob: O-TIME(Over-current run time) Set less than the motor's endurance time with over-current.
Set knob: Load(Rated Current) Set over 110% of the motor's rated current of under 120% of its operating current.
TEST Instruction
With test button ehld down,the red LED is on and the product will trip after O-TIME.
The relay will be de-energized when RESET button is pushed or the control power is disconnected.
The relay will be de-energized when RESET button is pushed or the control power is disconnected.
LED Indication | ||||
Item | PWR(Green)LED | Trip(Red)LED | ||
Power | ○ | × | ||
Normal Running | ○ | × | ||
Trip | × | ○ | ||
Specifications | ||
Current Range | Type05) 0.5-6.5A | |
Type30) 3-35A | ||
Type60) 5-70A | ||
Type600) Use an external CT(secondary 5A)over 60A with 05 type | ||
Operating Voltage(Un) | Tpye110)110VAC | |
Tpye220)90-260VAC | ||
Tpye380)180-460VAC | ||
Operating Frequency | 50/60Hz | |
Operating Power | <2W | |
Operating Temperature | -20℃·····+55℃ | |
Waiting(t) | D-Time 0.2-30s | |
O-Time 0.2-10s | ||
Asymmetry Set | %±10 | |
Contact | 5A 250VAC Resistive Load | |
Mounting | 35mm Din Rail(D) or Pane(P) | |

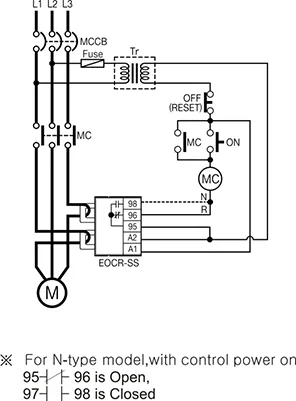

Connection Diagram

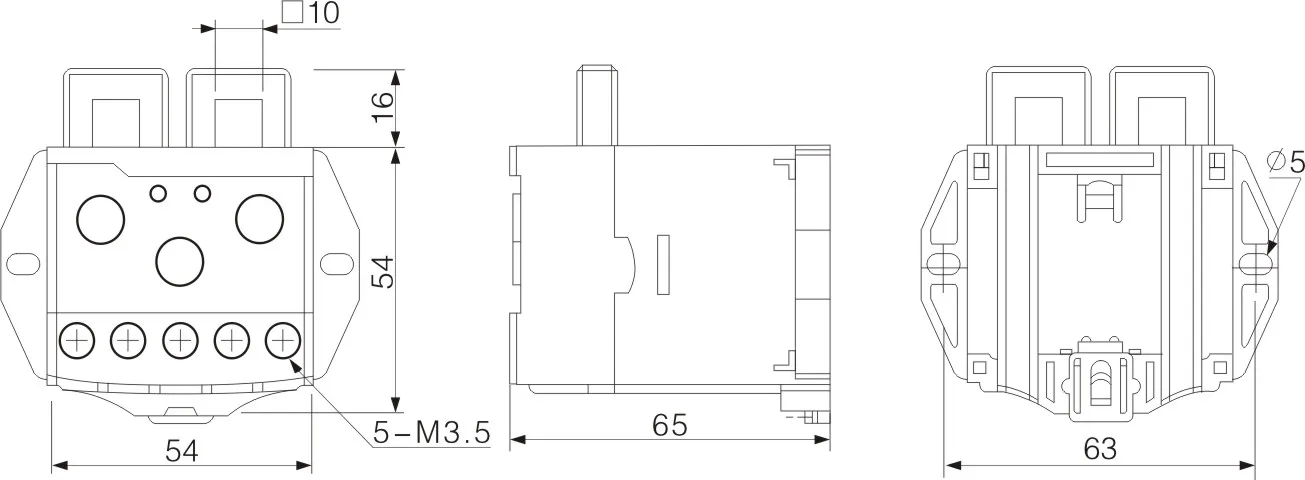

Dimensions
