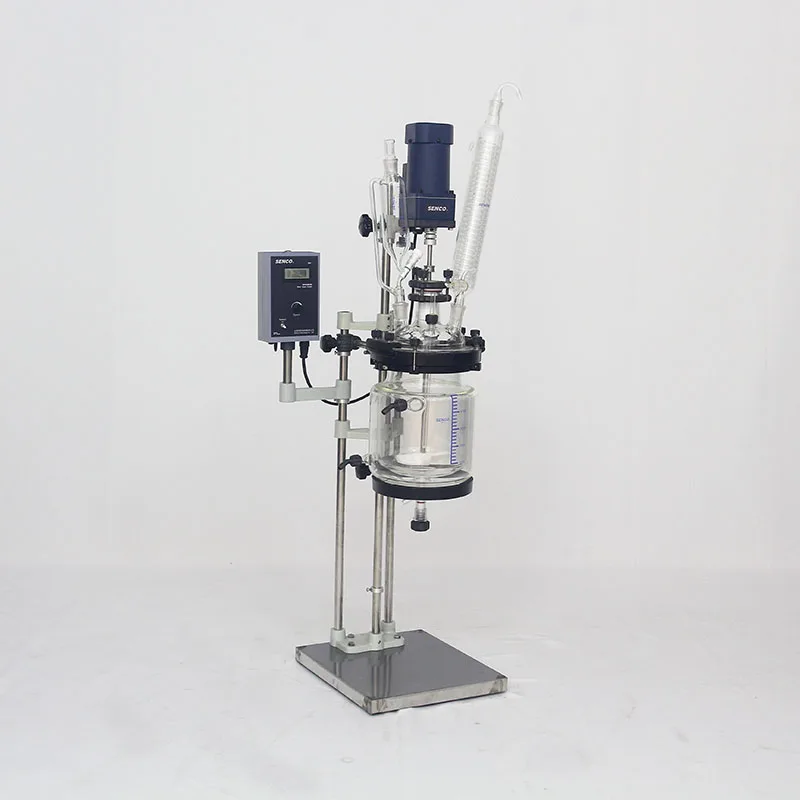

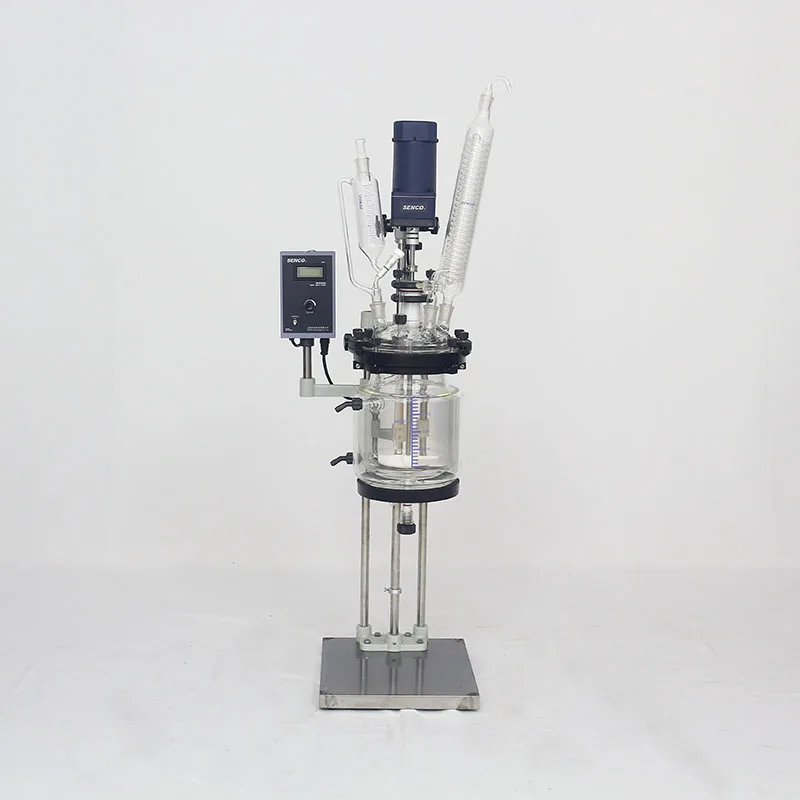

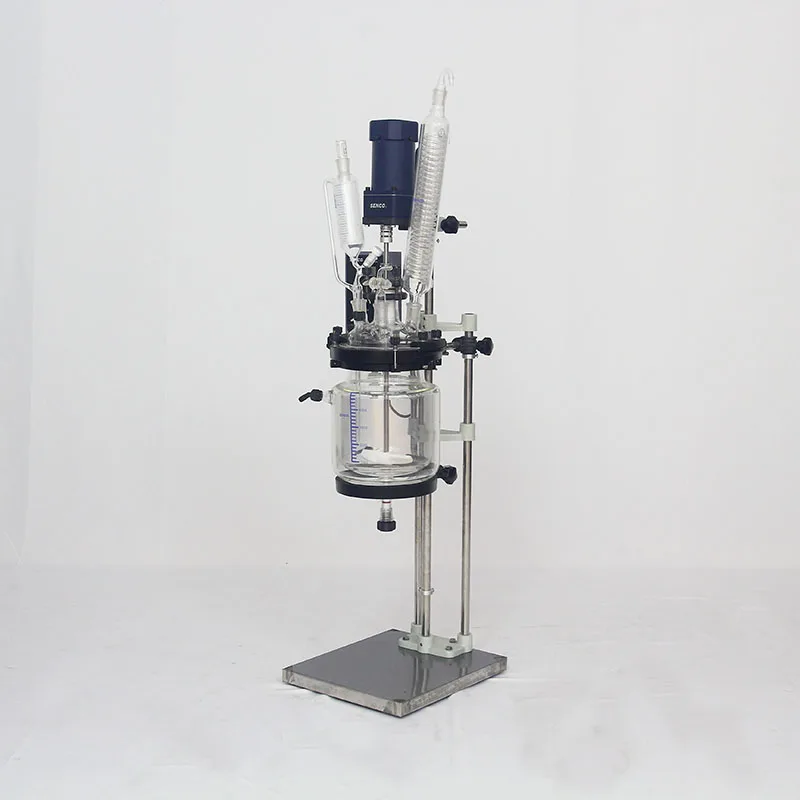

Cap Style Jacketed Reactor Senco FC302
Usually experiment use oil to heat material in jackteted reactor. But temperature can't reach over 200°C, otherwise seal set can't bear the high temperature's soften so as to cause air and liquid leakage.
Features:
- High vacuum performance is able to reach 133Pa(1.33mbar, 1 Torr);
- Long lasting sealing performance, majority user do not replace sealing part in one year;
- Rich function,can be customized as your demand;
- Popular model FC302 among Senco big Jacketed Reactor
- Rugged steel-reinforced PTFE stirrer with anchor agitator which is suitable for a wide range of material viscosity.
- Frequency-conversion stirring system + PTFE seal & bearing system
- Digital display and control

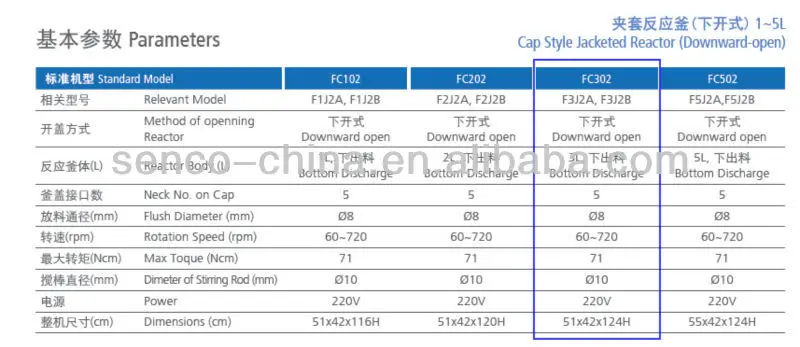

Parameters:

| Standard Model | FC0202 | FC0502 | FC102 | FC202 | FC302 | FC502 |
| Reaction Vessel Capacity | 250ml | 500ml | 1 | 2 | 3 | 5 |
| Flush Diameter | φ10 | |||||
| Neck No.on Cap | 5 | |||||
| Rotation Speed(rpm) | 60-720 | 20-460 | ||||
| Nominal Toque(Ncm) | 32 | 180 | ||||
| Dimeter of Stirring Rod(mm) | φ6 | φ10 | ||||
| Power | 220V,1P | |||||
| Dimensions | 30x35x90H | 51x42x126H | 51x42x120H | 51x42x124H | 55x42x124H | |

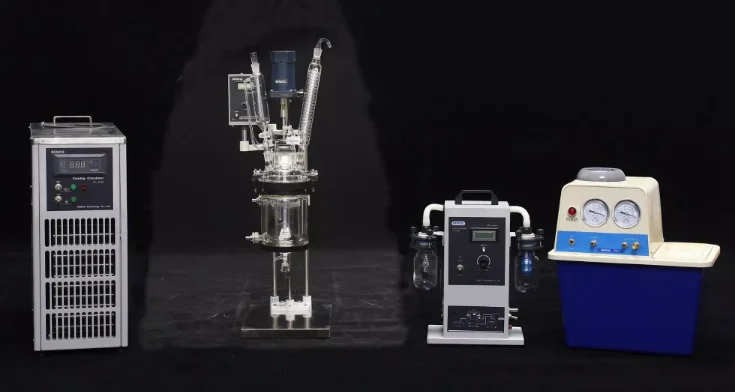

| DL-2004 | FC302 | VC100C | SHB-5 |
