Product Overview
Description
High reflective Insulation Aluminum Foil PE Foam Heat Insulation Material/ PE Radiant Barrier Roof Building/Aerogel insulation
Company Profile:
Our factory was established in 1978,we now have 7 branched in China,prodce pe foam products ,such as epe foam ,xpe foam .Our main products is foam roll,sheet ,block,rod ,tube ,aluminum foil foam for heat insulation and resistant for building ,baby play mat ,even all foam products .
Product Description:
This kind of heat insulation consists Al/Pe foam/Al etc multi-layers of obstruction material.It is an environment friendly product which has good heat preservation and insulation properties.Each layer of the product has good function on abrasion and tearing resistance.The middle layer (epe/xpe) shows strong ability in moisture barrier,oxygen reduction and sound insulation,The outer layer (aluminum foil) also has the advantages like reflecting light and heat and preventing the damages caused by ultraviolet radiation.
Specifications
1.Reflect up 97% radiant heat
2.Excellent Fireproof function,flammability inded:class 1
3.Complies with AS/NZS 4200.1
4.Ressistance p.qo.Pure aluminum:95%
5. Emissivity:0.3
6.-100+85℃ teperature
Product Name | Aluminum Foil EPE/XPE Heat Insulation, Foam Building Material, Reflective Foil Foam Insulation |
Material Structure | Aluminum Foil/XPE(EPE)/Aluminum Foil |
Specification | Star Packaging Supplies 2 layers Aluminum foil(AL+CPE) and 3 layers Aluminum foil(AL+PET+CPE) for your selection. 3 layers is much stronger than 2 layers |
XPE | Regular Thickness:4/5/6/6.5/8 MM |
Regular Density:30KG/ m³ | |
XPE Color: Blue, Green, Orange or customized | |
Roll Size(M) | Width*Length:1.2*40 or customized made |
Roll size could be customized with the maximum width 3M | |
Package | PE bag. also could print the packing bag as your request |
Promotion | The product can be made with fire-retardant function or without. We are always glad to get your creative idea to make our product better and more versatile |

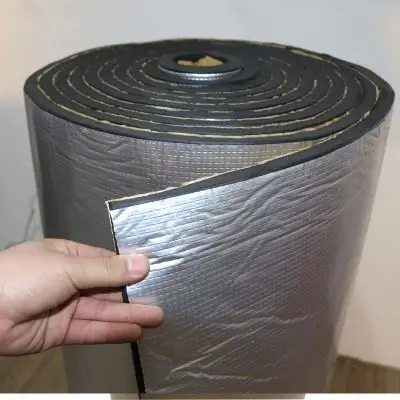

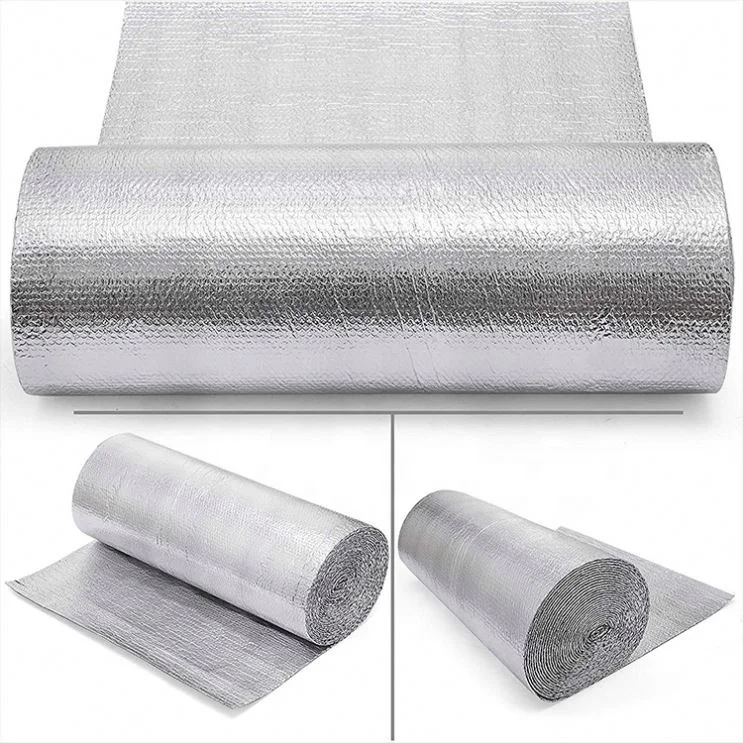

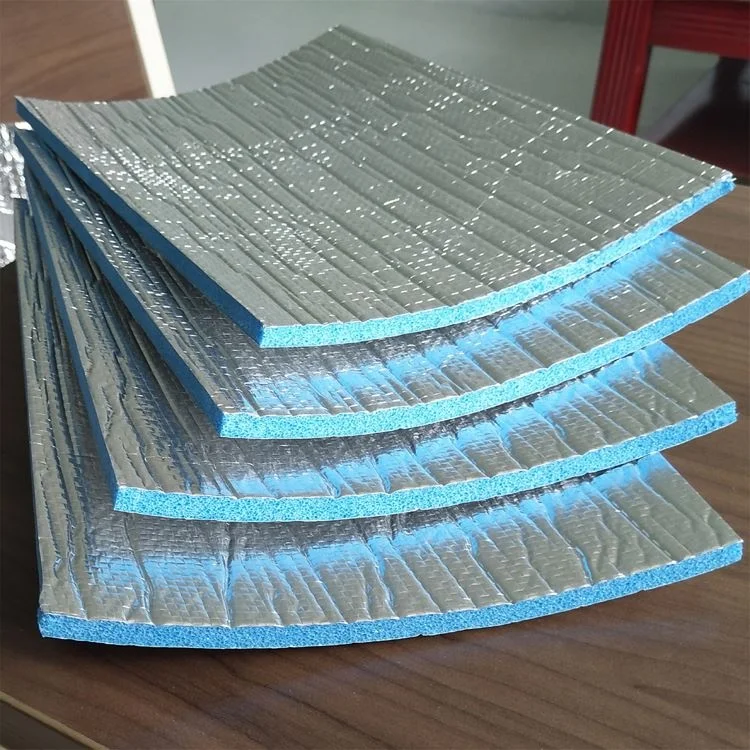

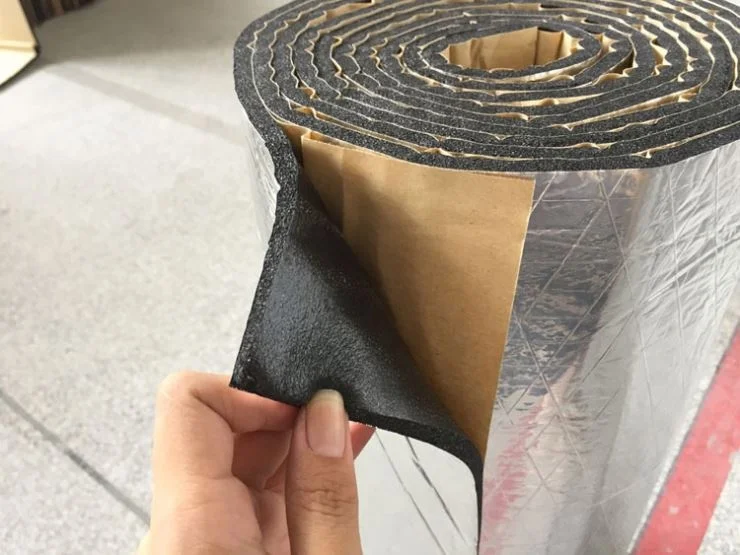

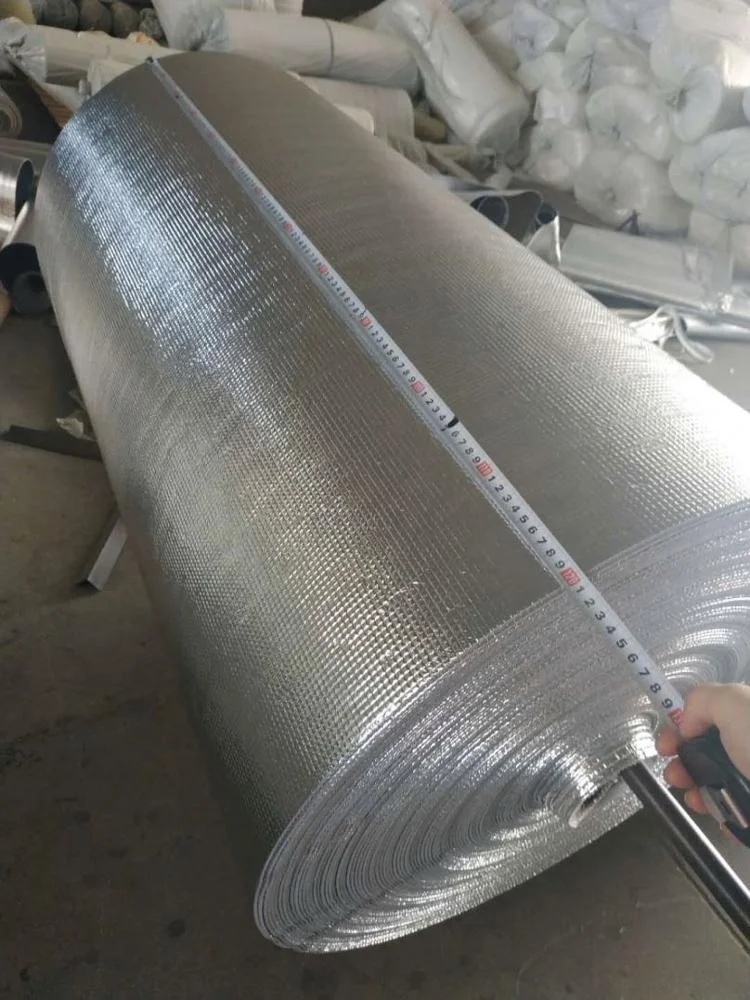

Product Images:
Application:
Y%LL6637LTA[KY745_YPL.jpg" width="605" height="331" ori-width="750" ori-height="410"/>
Technical Date:
| Product Description | XPE Foam Foil Heat Insulation |
| Specification | Coated Al Foil/XPE Foam/Woven/Al |
| Foam Density | 30 Kgs/M3 |
| Thickness | 3.5-6 mm |
| Regular Size | 1.35*22.25/1.2*30 (W*L) |
| Roll Diameter | 450-470 mm |
| Weight | 400 GSM |
| Foil Reflectance | 97% |
| Silver Emmitance | E0.03 |
| Coated Foil Emmitance | E0.08 |
| Thermal Resistance | 0.20 (W/M2) |
| Flammability | AS/NZS 1530.2-1993 |
| Thermal Performance | AS/NZS 4859.1-2002 |
Certificate:
