Roller glass coating machine
US $30000
Станок для шлифовки и полировки стекла с прямой линией
- Category: Glass Production Machinery >>>
- Supplier: Jinan Glasino Glass Technology Co. Ltd.
Share on (62490873929):
Product Overview
Description
Product Description

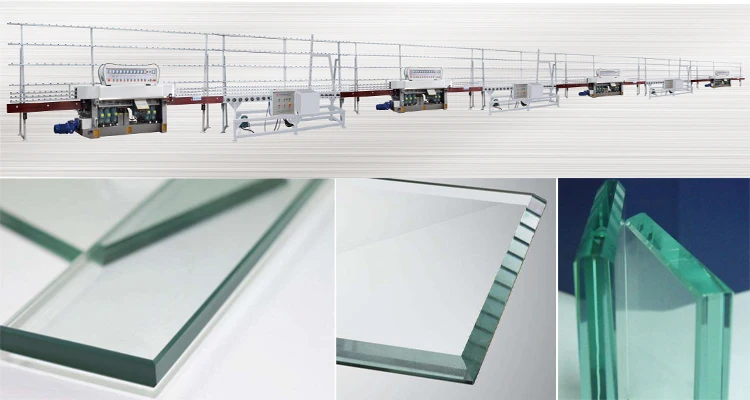

Glass Straight Line Pencil Edging Machine
1. Suitable for grinding flat glass with straight line rounded edge or duckbilled edge etc.
2. Which use eight wheels grinding the surrounding, the coarse grinding, fine grinding and polishing can be finished at one time.
3. Working speed and working load can be adjusted smoothly by continuously variable mechanism transmission,
4. Adjust front rail to match different glass thickness.
1. Suitable for grinding flat glass with straight line rounded edge or duckbilled edge etc.
2. Which use eight wheels grinding the surrounding, the coarse grinding, fine grinding and polishing can be finished at one time.
3. Working speed and working load can be adjusted smoothly by continuously variable mechanism transmission,
4. Adjust front rail to match different glass thickness.
Main parts
Beams are heavy duty cast steel, annealing treatment. Stable, will never deformation and Ensure high process precision.
Use CNC grind machine grind beams, provide high process
High quality press plates.
Working speed can adjust 0.5-5m/min.
High quality glass grind wheels.
Thicken glass transmission chain, it’s can handle 600KG big size glass. Which has wood cover at both side, in good look
appearance.
appearance.
TECHNICAL SPECIFICATIONS
Voltage | Power | Glass thickness | Min size |
380v/50Hz | 17.5kw | 3-25mm | 80x80mm |
Feeding speed | Weight of machine | Overall Size(LxWxH) | |
0.5-5m/min | 2600kg | 6300x1000x2500mm |
Product Packaging and Exhibition
European market
South American market
In Italy
In Moxico
In China
FAQ
1.Are you a factory or a trading company？
We are factory
2. How long is the equipment warranty？
One year.
3.How to provide after-sales service？
Provide on-site installation, commissioning and training.Free accessories within one year.Provide remote service and videoguidance
4.What operating language is the machine
Standard English, can also be changed as required
5.How long is the delivery time？
30-40days after receive the deposit.
We are factory
2. How long is the equipment warranty？
One year.
3.How to provide after-sales service？
Provide on-site installation, commissioning and training.Free accessories within one year.Provide remote service and videoguidance
4.What operating language is the machine
Standard English, can also be changed as required
5.How long is the delivery time？
30-40days after receive the deposit.
6.How many days for installing?
Generally 7-10days
Generally 7-10days
