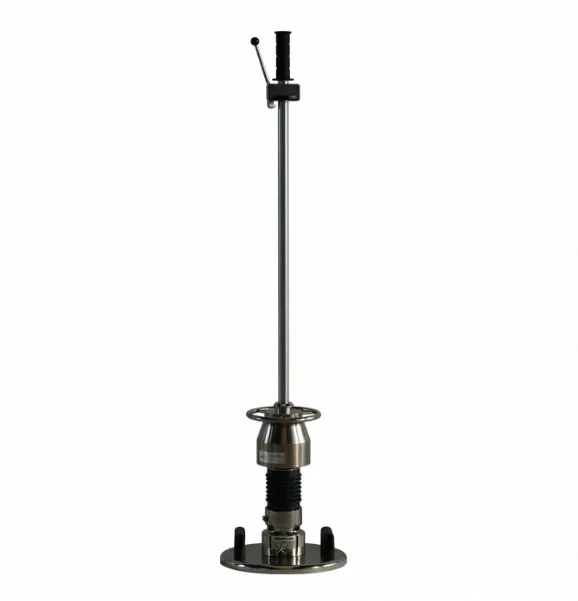

EVD Hand-held Lightweight Falling Weight Deflectometer (LWD)

Evd dynamic deformation modulus tester, falling weight bearing capacity of foundation Tester, is for high-speed rail-based bed surface and the transition section of the Evd graded gravel testing, the new railway, the existing railway speed transformation K30 detection, as well as the highways, airports, urban transport, ports and industries. Determination of embankment under the action of moving loads bend value is to assess the amount of subgrade bearing capacity and deformation.

Features:
1. Imported sensors and some components are used for high test accuracy.
2. LCD display in English and Chinese, with corresponding Chinese and English prompts under different interfaces; with backlight, it has better visibility in various environments.
3. The operation is simple, the test speed is fast, and the detection of one point takes only 35 seconds.
4. Automatically calculate the Evd value and display the curve, which is accurate and intuitive.
5. Handheld mainframe with Bluetooth micro-printer for direct on-site printing to ensure accurate and objective test results.
6. USB transmission interface for easy connection to a computer.
7. The instrument simulates the impact of the train on the subgrade when driving at high speed. Compared with the static load test, it can better reflect the actual situation of the subgrade soil.

Technical Parameters

Test range	Applicable soil types	Diameter of a quarter of all kinds of soil particle size is not greater than the load board and earth-rock mixture packing
	Test range	10Mpa≤Evd≤225Mpa
	Test impact depth	0~500mm
	Work environment	temperature -10ºC~40ºC Humidity <90%HR
Data acquisition device	Loading device	Weight:15kg,Drop weight:10kg,Hammer drop height:700±20mm Maximum impact force:7.07kN Impact duration:18±1ms
Data acquisition device	Loading plate	Weight:15kg Diameter:300mm Thickness:20mm

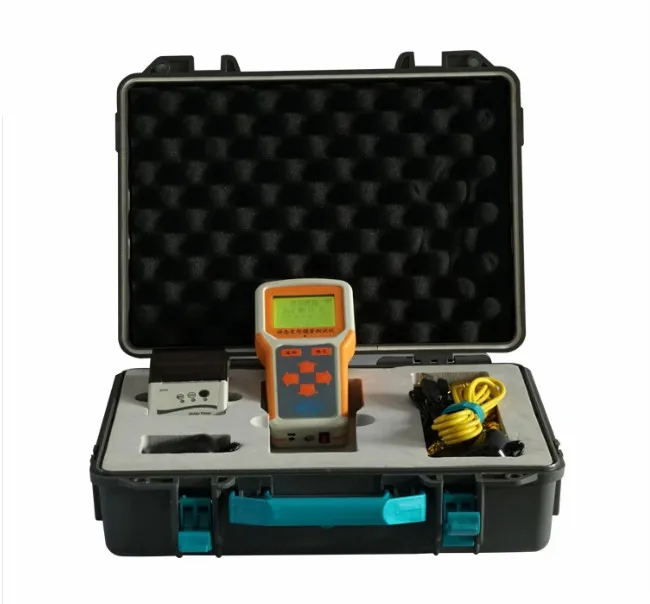

Handheld main engine	Subsidence test range	0.10mm~2.00mm
	Storage capacity	2000 groups of test data
	Specifications	Screen size:3 inch Volume:100×205×40mm Weight:0.8kg
	Power supply mode	The large capacity lithium battery, working time is more than 18 hours
	Display support	Chinese/English
Printer	Connection method	Wireless bluetooth print

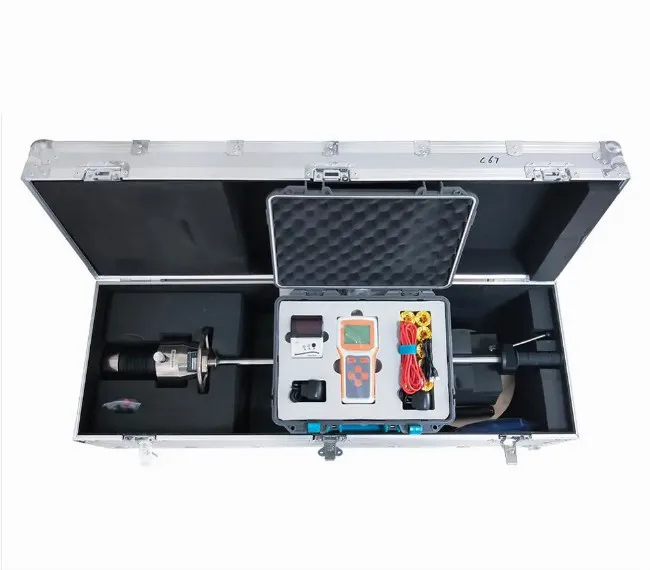

Packing specification	Main box	Material: Engineering plastics Volume:385x300x175mm Weight:4.5Kg
Packing specification	Outer packing	Material: Aluminum alloy Volume:1220x395x380mm Weight:56Kg
