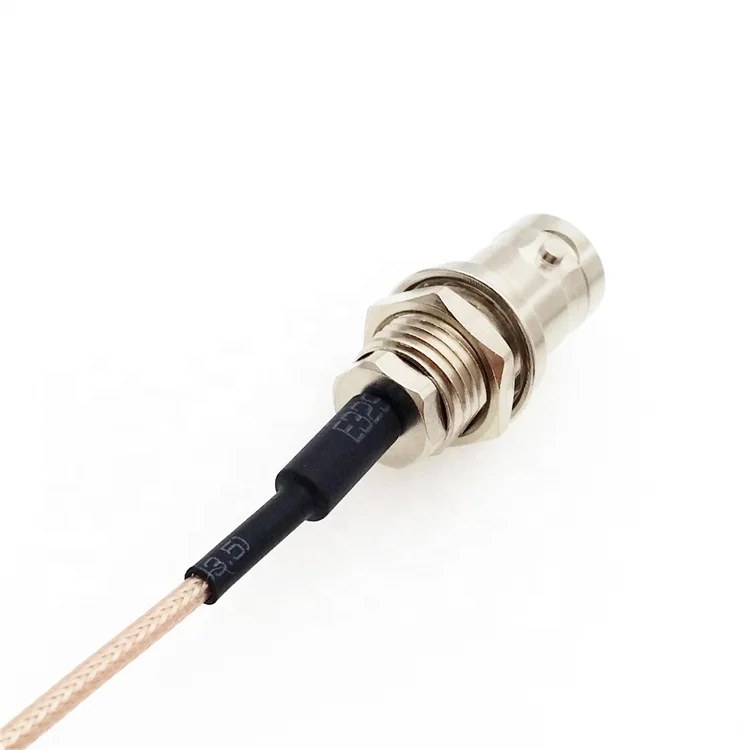

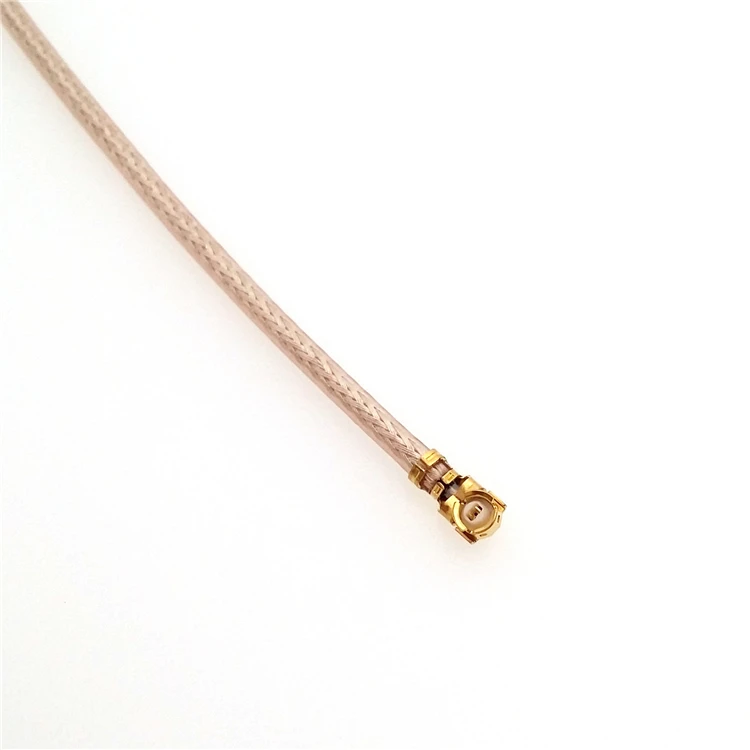

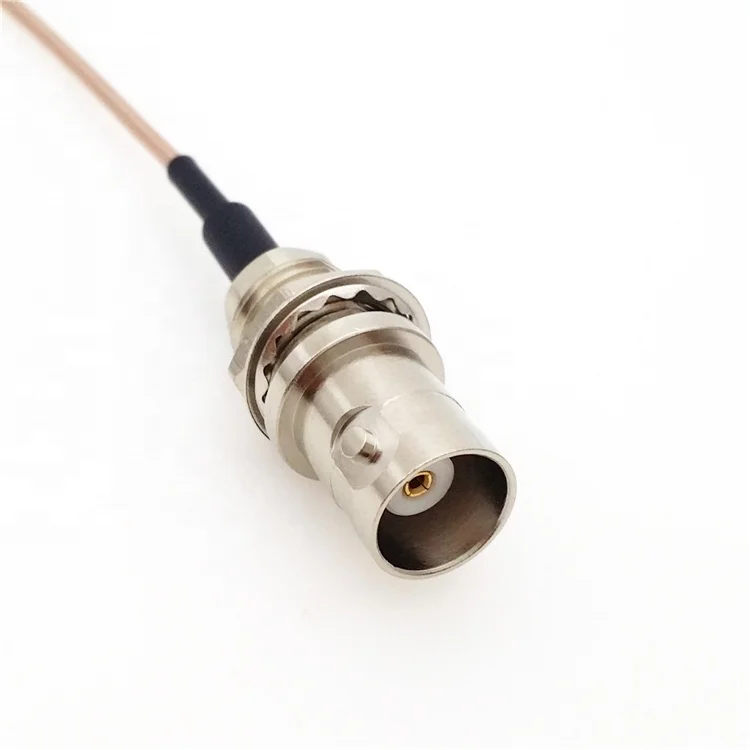

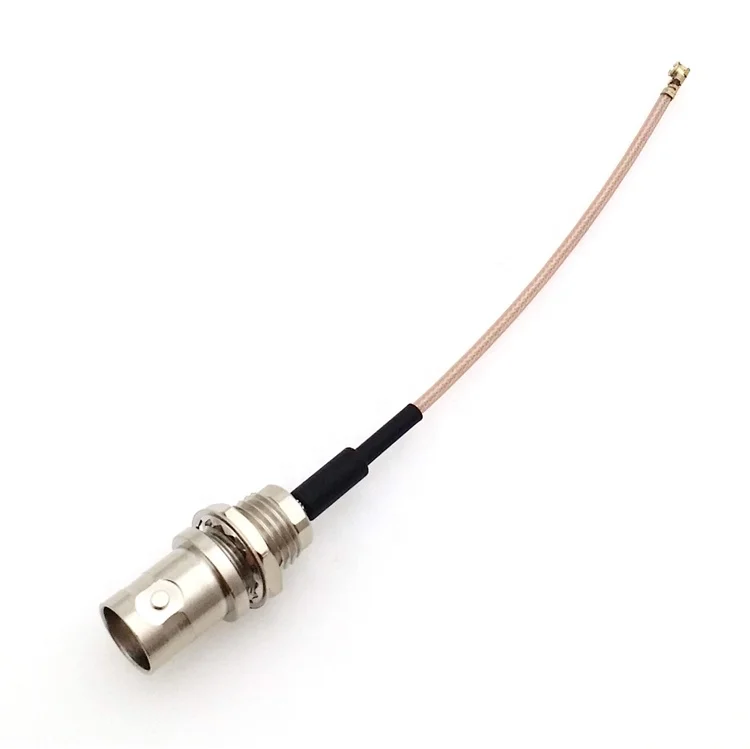

RF coaxial cable IPEX/U.FL famale to BNC female nut fixing flange RG178 cable IPEX/U.FL K BNC KY antenna cable
- Category: >>>
- Supplier: Shanghai Yuandao Electronic Co. Ltd.
Share on (62491085228):
Product Overview
Description
Note: connector and cable type,length an be changed based on customer's requirements
Product advantages:
More product models
1) RF coaxial cable assemblies
2) RF connector with Andrew / LMR / RG cable series
3) Connector type:
N, SL16,IPEX(UFL),SMA, SMB, MCX,MMCX, F, BNC,TNC ,M5(L5),C2and others
4)Cabletype: STYV2,SFX086(RG405),SFX141(RG402),RG174,RG58,RG213,RG223,RG316,RG316D,RG303,RG142,RG400,RGLMR100, LMR195, LMR200,
LMR240, LMR400,and others
5) OEM / ODM orders are welcome
Product advantages:
1. Comply with RoHS requirements
2. Free samples (only shipping)
3. Competitive prices
4. High quality andhigh performance (2 years warranty)
5.Minimum order quantity 1
6. Fast delivery (1-3 days)
3. Welcome ODM & OEM
More product models
1) RF coaxial cable assemblies
2) RF connector with Andrew / LMR / RG cable series
3) Connector type:
N, SL16,IPEX(UFL),SMA, SMB, MCX,MMCX, F, BNC,TNC ,M5(L5),C2and others
4)Cabletype: STYV2,SFX086(RG405),SFX141(RG402),RG174,RG58,RG213,RG223,RG316,RG316D,RG303,RG142,RG400,RGLMR100, LMR195, LMR200,
LMR240, LMR400,and others
5) OEM / ODM orders are welcome
Details Images
Product Description | ||
Poduct Name | RF coaxial cable IPEX male 90 degrees to BNC female nut fixing flange RG178 | |
Connector A | IPEX male 90 degrees (or customized) | |
Connector A | BNC female nut fixing flange (or customized) | |
Cable Type | RG178(or RG316 RG316D RG58 RG142 ) | |
Cable Length | 0.1M (Can be customized for your required length) | |
Cable OD | Ø1.8mm | |
Weight | 0.05KG | |
Operating Frequency | DC0-3GHz ( or 6GHZ 10GHZ 18GHZ) | |
V.S.W.R | ≤1.15 | |
Characteristic impedance | 50Ω | |
Package | Ploybag,carton | |
RF cable IPEX male 90 degrees to BNC female RG178 | ||||||
Product Description | ||||||
Electrical | ||||||
1 | Characteristic Impedance | 50ohm | ||||
2 | Frequency Range | DC-3GHz | ||||
3 | VSWR | ≤1.15(DC-3GHz) | ||||
4 | Dielectric Withstanding Voltage | ≥ 2500V | ||||
5 | Dielectric Resistance | ≥5000MΩ | ||||
6 | PIM3 | ≤ -160dBc | ||||
Mechanical | ||||||
1 | Durability | Mating cycles ≥500 | ||||
Material and plating | ||||||
Description | Material | Plating | ||||
1 | Body | Brass | Tri-alloy/Au/Ni | |||
2 | Insulator | PTFE | – | |||
3 | Center conductor | Brass | Ag/Au | |||
4 | Gasket | Silicon rubber | - | |||
5 | Other | Brass | Ni | |||
Environmental | ||||||
1 | Temperature Range | -40℃~+85℃ | ||||
2 | Waterproof | IP67 | ||||
