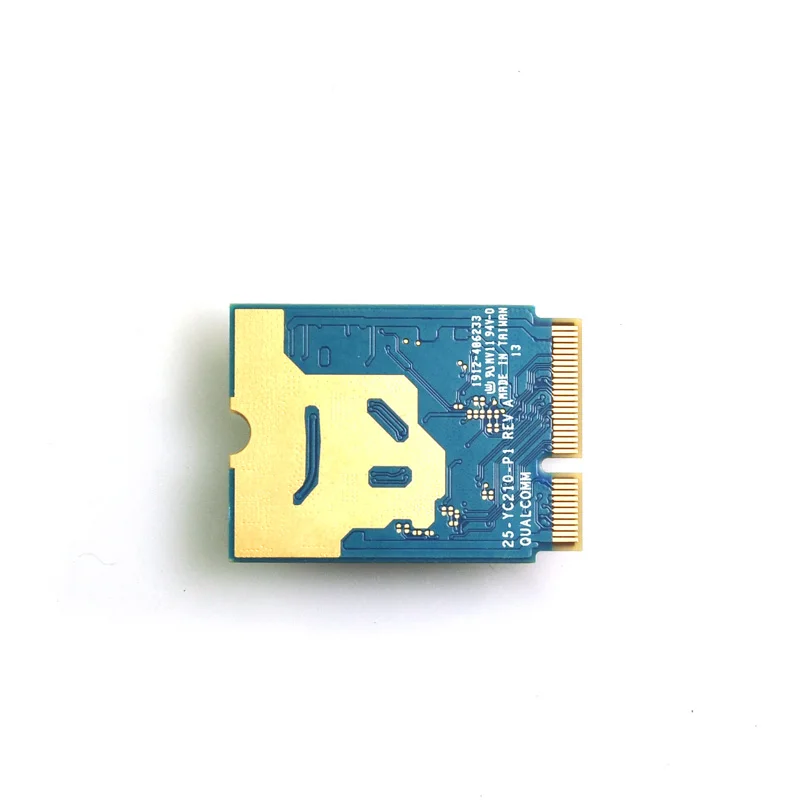

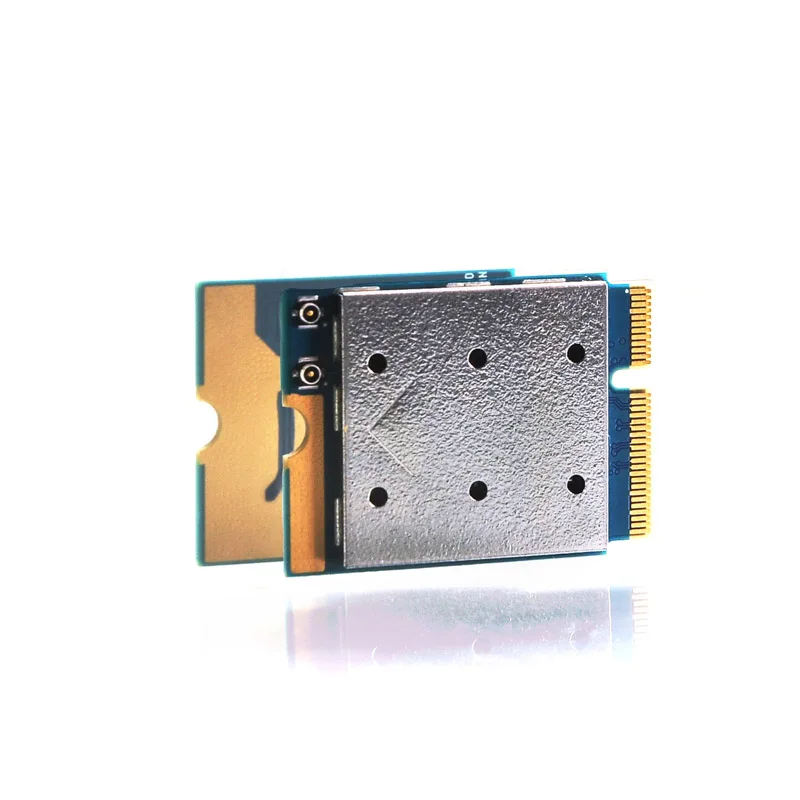

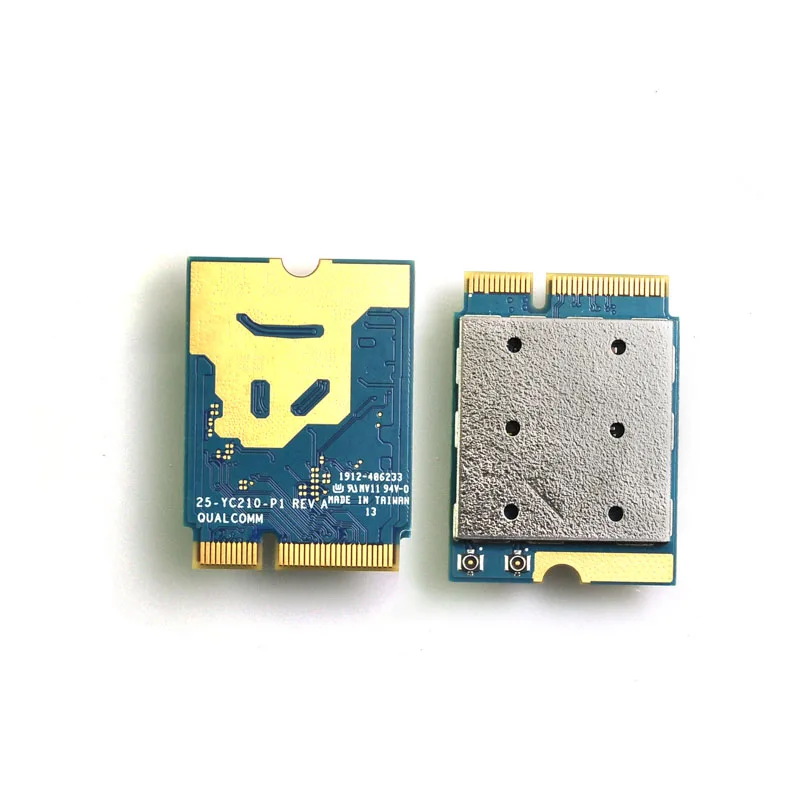

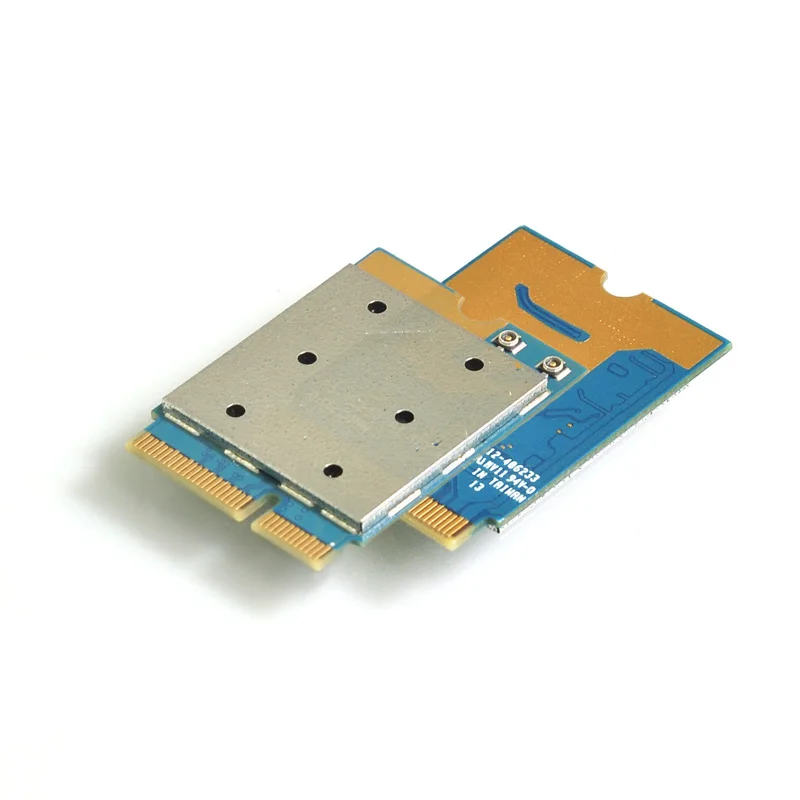

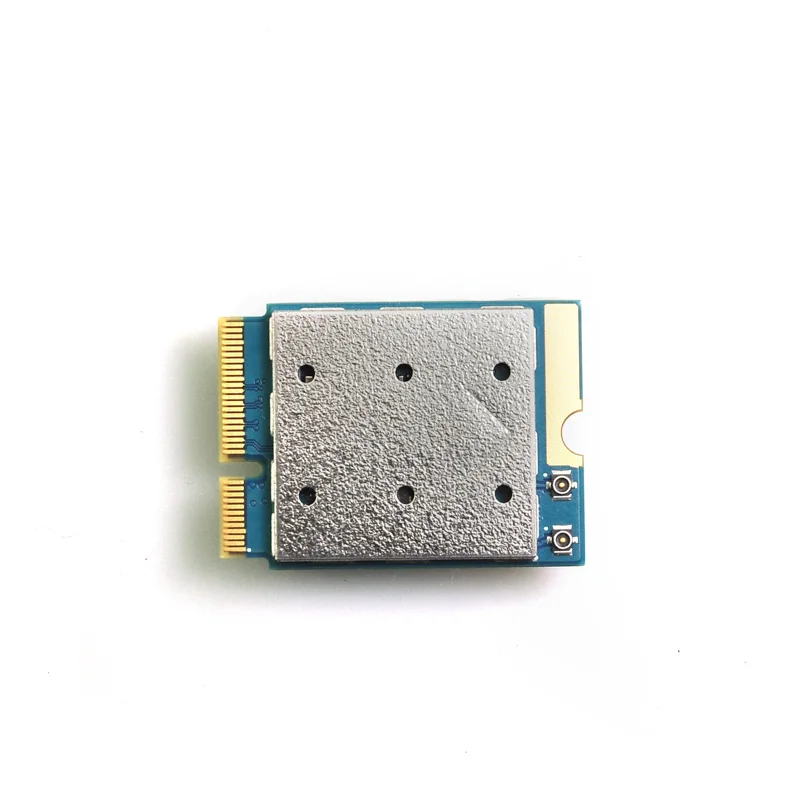

new product ideas 2020 wifi ax module for wifi 6 router
- Category: WiFi Modules >>>
- Supplier: Shenzhen Ofeixin Technology Limited
Share on (62491132841):
Product Overview
Description
Product Description
Introduction
Fn-Link Technology would like to announce a low-cost and low-power consumption module which has all of the Wi-Fi and Bluetooth
functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications. With
seamless roaming capabilities and advanced security, also could interact with different vendors’ 802.11a/b/g/n/ac/ax 2x2 Access
Points in the wireless LAN.
The wireless module complies with IEEE 802.11 a/b/g/n/ac/ax 2x2 MIMO standard and it can achieve up to a speed of 1800Mbps (2x2
80MHz 11ax + 2x2 40MHz 11ax DBS). The integrated module provides PCIe interface for Wi-Fi, UART/PCM interface for Bluetooth. This
compact module is a total solution for a combination of Wi-Fi and Bluetooth V5.1 technology. The module is specifically developed for all portable devices.
Features
Highly integrated wireless local area network (WLAN) system-on-chip (SOC) for 2.4G/5G 802.11ax WLAN applications.
Dual-stream spatial multiplexing up to 1800 Mbps data rate.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
Supports low power PCIe interface for WLAN and UART/PCM interface for
Bluetooth.
Supports Bluetooth V5.1, BLE, ANT+ and be backwards compatible with Bluetooth
1.2, 2.X+ enhance data rate.
Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence.
Supports Bluetooth for class1 and class2 power level transmissions without
requiring an external PA.
Dual-stream spatial multiplexing up to 1800 Mbps data rate.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
Supports low power PCIe interface for WLAN and UART/PCM interface for
Bluetooth.
Supports Bluetooth V5.1, BLE, ANT+ and be backwards compatible with Bluetooth
1.2, 2.X+ enhance data rate.
Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence.
Supports Bluetooth for class1 and class2 power level transmissions without
requiring an external PA.
BT host digital interface:
* - HCI UART (up to 3.2 Mbps)
* - PCM for audio data
* - HCI UART (up to 3.2 Mbps)
* - PCM for audio data
Application Range:
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
& Industrial And Vehical Application
Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile
& Medical Application
Medical equipments/Medical instruments
& Other Consumer Electronic Products
ble 5.0 module wireless audio transmitter module wifi/ bluetooth module with antenna wifi
Detailed Parameters
Model No | 8291M-PR | Main Chipset | QCA6391 |
WIFI/BT Interface | PCI-e | WIFI Standards | IEEE802.11a/b/g/n/ac/ax |
Date Rates | 1800Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | IOS Supported | Android /Linux/Windows |
Operating Frequency | 2.4/5.8GHz | Operating Voltage | 3.3V |
Dimensions | 22.0x30.0x2.2mm | RF Chains | 2T2R |
Operating Temperature | -30°C to 70°C | Storage Temperature | -40°C to 125°C |
Layout Recommendation

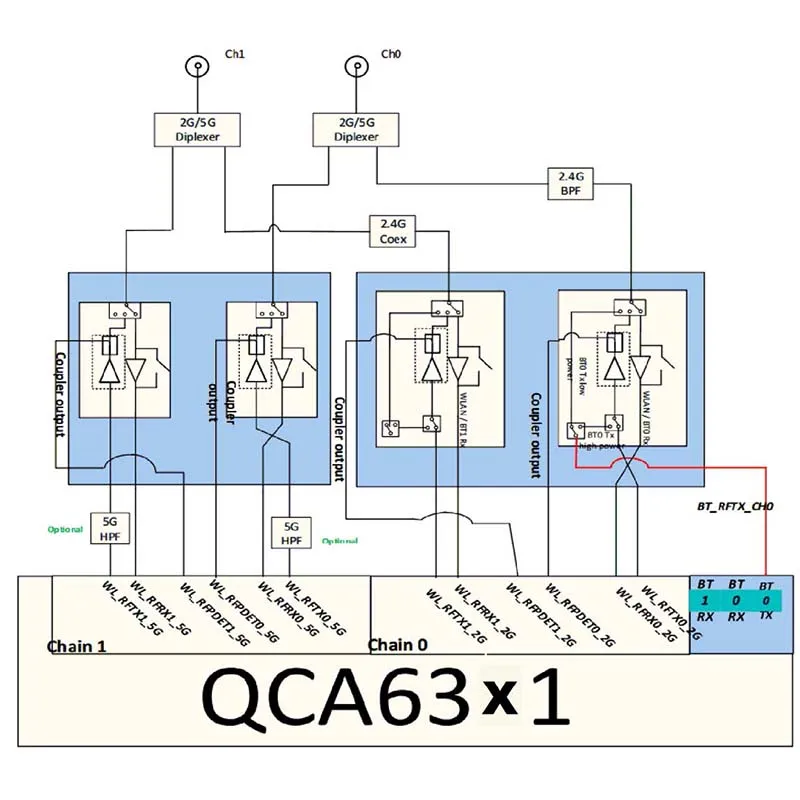

Reference Design
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
