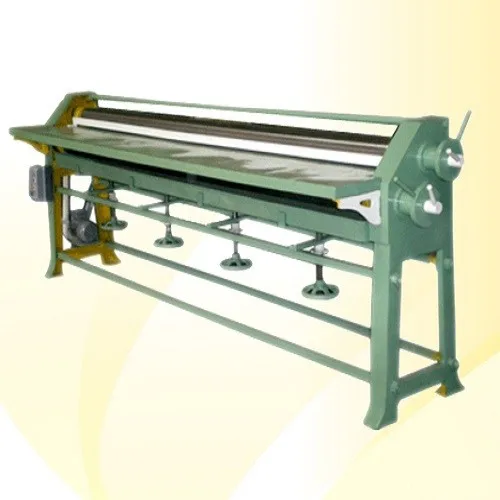

Pasting Machine is useful for gluing the fluted side of the board and for pasting board to paper as will as to board for making 3-5-7 ply board. The model of this machine is different than the others and is full-enclosed model. The Machine is adjustable by rotating handle provided on one side of machine.
Technical Specifications:
(A) 3 nos. M.S. Rollers with Hard Chrome Coated.
(B) Electric motor 1.0 H.P.
(C) Make of Bearings NTN / SKF / NBC
(D)With all Standard Accessories Complete
SIZE
SPEED.
POWER REQUIRED
FLOOR SPACE
HEIGHT
GROSS WEIGHT
65"
150RPM
O.5 H.P.
80"X30"
50"
500KG
75"
150RPM
O.5 H.P.
90"X30"
50"
600KG
85"
150RPM
1.0 H.P.
100"X30"
50"
700KG
95"
150RPM
1.0 H.P.
110"X30"
50"
800KG
105"
150RPM
1.0 H.P.
120"X30"
50"
900KG`
Detailed Images
Packing & Delivery
Delivery Time : 45 to 60 Days
Packing method 1. Plastic film wrapping outside 2. Hard wooden case 3.Then loading in container
Our Services
1. Training how to install the machine and how to use the Machine 2.12 months warranty 3. 100% good Quality 4. 24 hours online service 5. Providing free quick-wear parts 6. Engineers available to service overseas if necessary 7. Product certificated by CE and ISO
