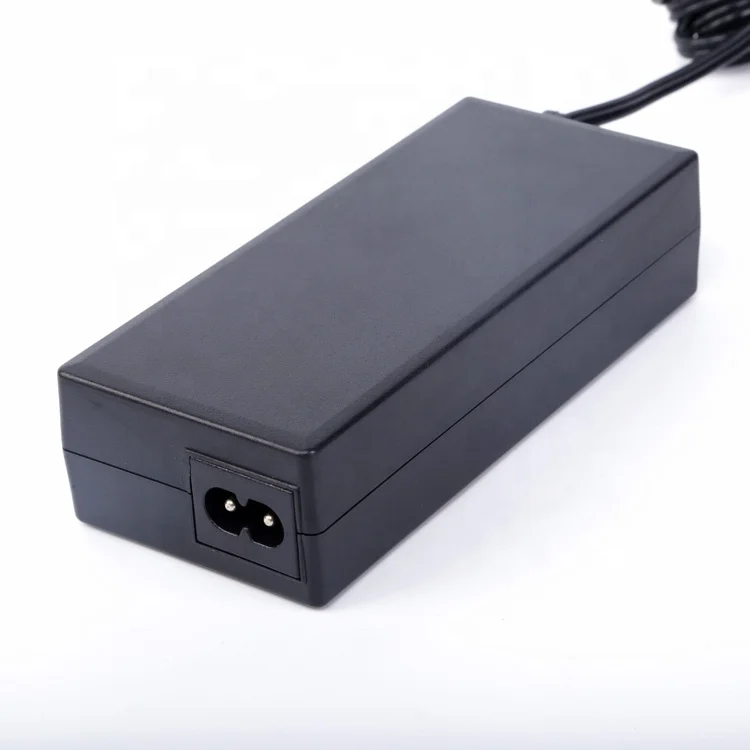

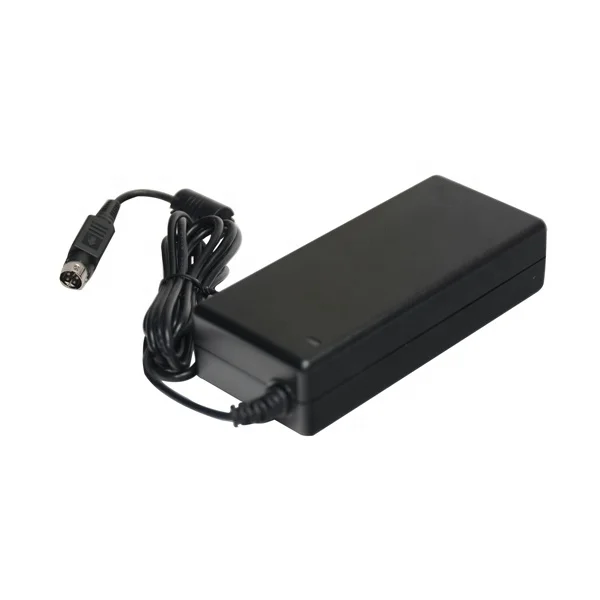

US EU 24V 2.5A ac adapter 60W power supply
- Category: >>>
- Supplier: Ningbo Antow Electronics Co. Ltd.
Share on (62491303808):
Product Overview
Description
US EU 24V 2.5A ac adapter 60W power supply
Features:
- AC to DC power adapter
- Desktop type, with universal AC plug

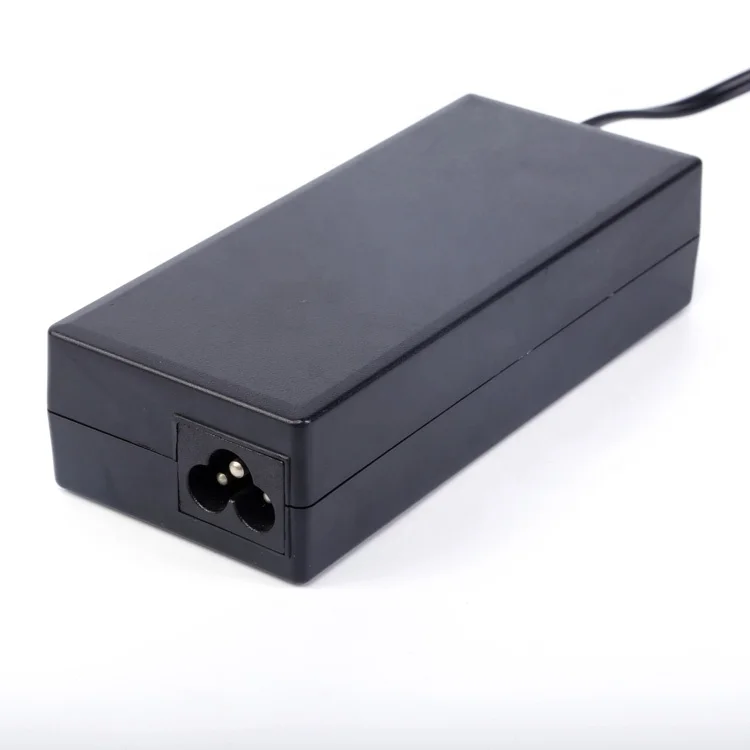

- Optional C4, C6, C14,C18 inlet connector
- Safety certifiates of CE,GS,FCC, UL,SAA, CB, KC etc.
- Engergy efficiency level V, VI
Specifications:
| Input | |
| Input Voltage | 100-240VAC, ±10% |
| Frequency | 50-60Hz, ±3Hz |
| Input Current | 1.2A Max. |
| Inrush Current | 50A at 115vac, 60a at 230vac, full load, cold start |
| Input cable | 3-4 feet, universal input plug |
| Output | |
| Voltage & Current | 12V 5A, 24V 2.5A, 24V 2A, etc. |
| Line Regulation | ±1% |
| Load Regulation | ±5% |
| Ripple & Noise | Max 1% ~ 2% of Output, Voltage (mVp-p), at Full Load |
| Turn on Delay | 3S, at nominal input voltage |
| Hold up Time | 8-10 mS, full load |
| Efficiency ( avg ) | ≥88.00%, meet DoE Level VI; ≥89.00%, meet CoC V5.0 Tier 2 |
| No-loading Power Consumption | 210mV max. ( Level VI), 150mV max. ( CoC V5.0 Tier 2) |
| Leakage Current | less than 3.5mA |
| Leakage Current | 0.25mA max. |
| DC Cord Length | 3-5 feet standard/optional |
| DC Plug | Optional |
| Protection | |
| Short Circuit/Over Current/Over Heat Protection | Capable of self-protect and auto recovery when faults be removed or temperature goes down |
| Input Protection | Internal fuse |
| Protection Class | Class II |
| Environment | |
| Temperature | Operating: 0 ~ 40 °C, Storage: -20 ~ 85 °C |
| Humidity | Operating: 8% ~ 90% RH, Storage: 5% ~ 95% RH non condensing |
| Safety Approvals & EMC ( EMI, EMS ) | |
| RoHS | 2011/65/EU (RoHS 2.0) |
| CE, GS | EN60950, EN61347, EN61558, EN60335, EN60065, etc. |
| KC | EN60950, EN61347, EN61558, EN60335, EN60065, etc. |
| UL | UL60950, UL61347, UL61558, UL60335, UL60065, UL1310,etc. |
| CB | IEC60950, IEC61347, IEC61558, IEC60335, IEC60065, etc. |
| EMI: | EN55023, EN55015, FCC Part 15 etc. |
| EMS: | EN55024, EN61000-3-2,3 etc. |
| Reliablity & Others | |
| Insulation Resistance: | Input to output at 500 Vdc for 3 seconds, 50 MΩ Min. |
| Dielectric Strength (Hi-pot) | Input to output: 3000VAC/5mA/60 seconds |
| Burn-In | 4 hours full load before testing |
| M.T.B.F. | 30K calculated hours |
| Cooling | by natural air |
| Housing Material | PC+ABS |
| Mechanical & Packing | |
| Case Size | 131L X 57W X 33H mm |
| Packing | 1 pcs/box, 50 pcs/carton |
| Carton Size/Gross Weight | 58x42x26cm/0.064cbm, 21.5kgs |
1, What's the payment term?
We normally quote prices base on FOB Ningbo, Shanghai. CNF, CFA, CIF, etc.
2, How ong is your product warranty?
Our warranty is 2 or 3 years.
3, Can I buy customized products?
Yes, we provide OEM/ODM products;
4, Do you offer free samples to for testing?
Yes, we would be glad to provide new customers with 1-2 pcs free samples.
but we might charge about US$60 express cost, or you can provide us your express account for express cost collection.
5, What is the lead time of sample?
5-7 working days.
