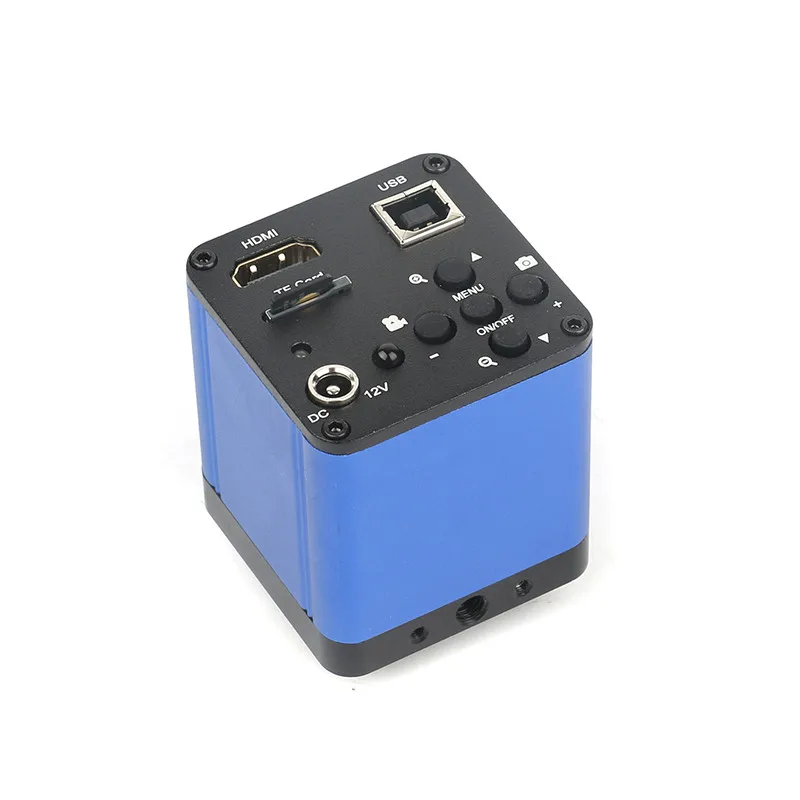

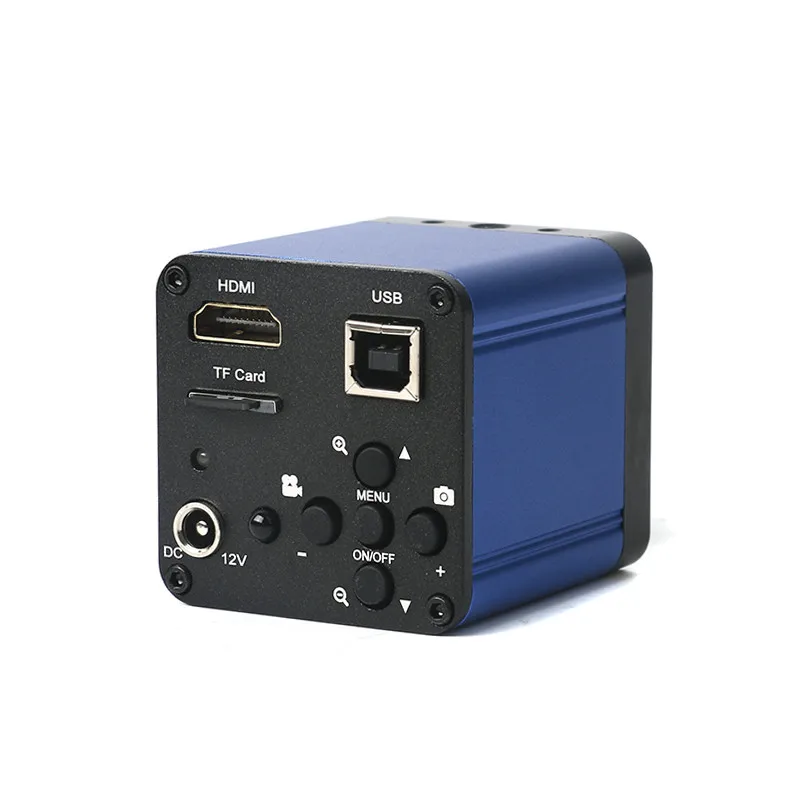

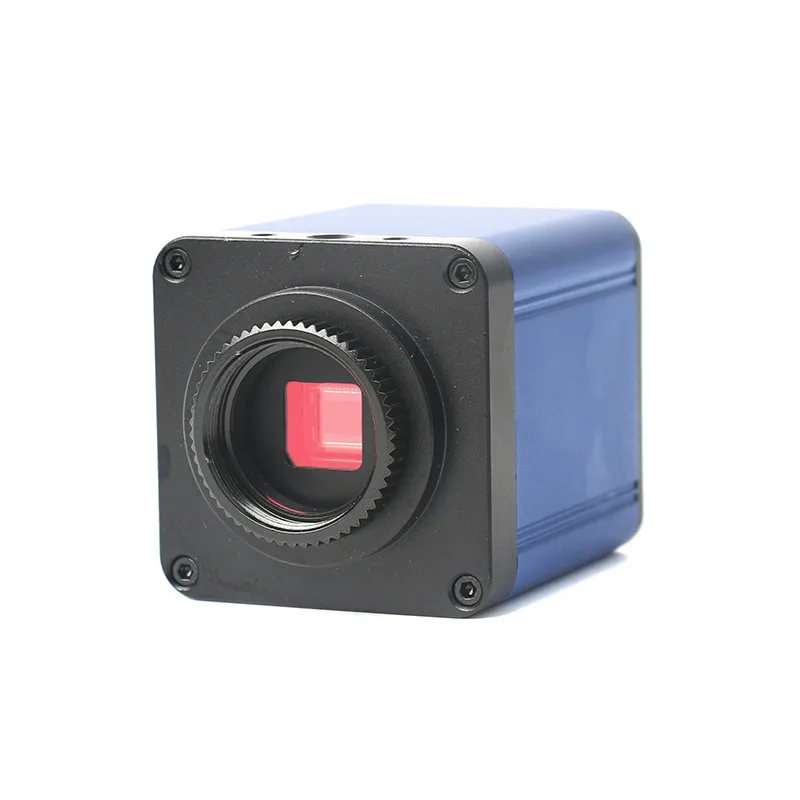

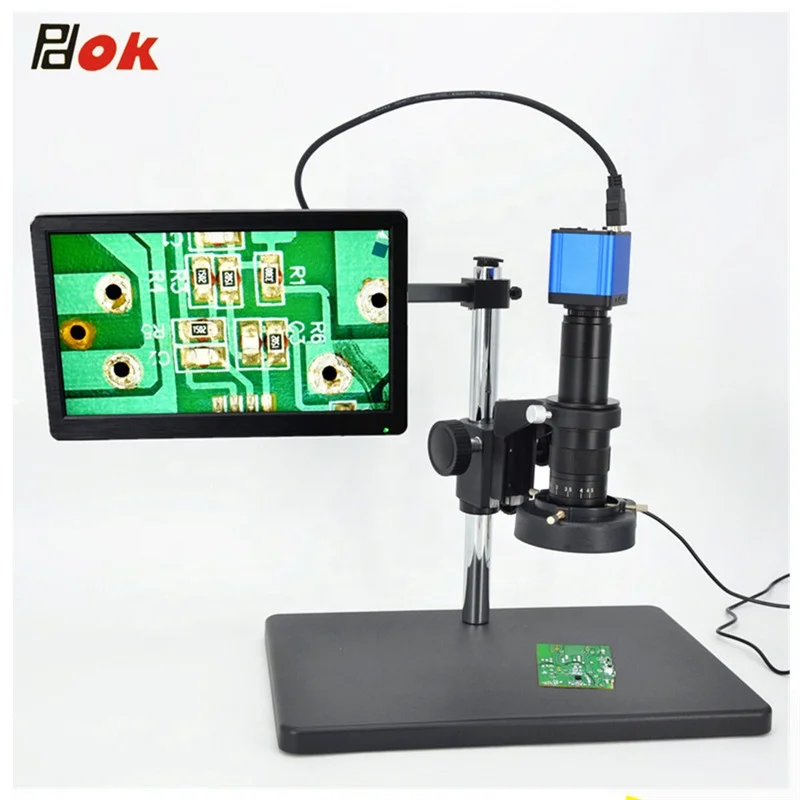

HD 16MP industrial electron microscope camera electronic eyepiece binocular camera

Product Overview

Description

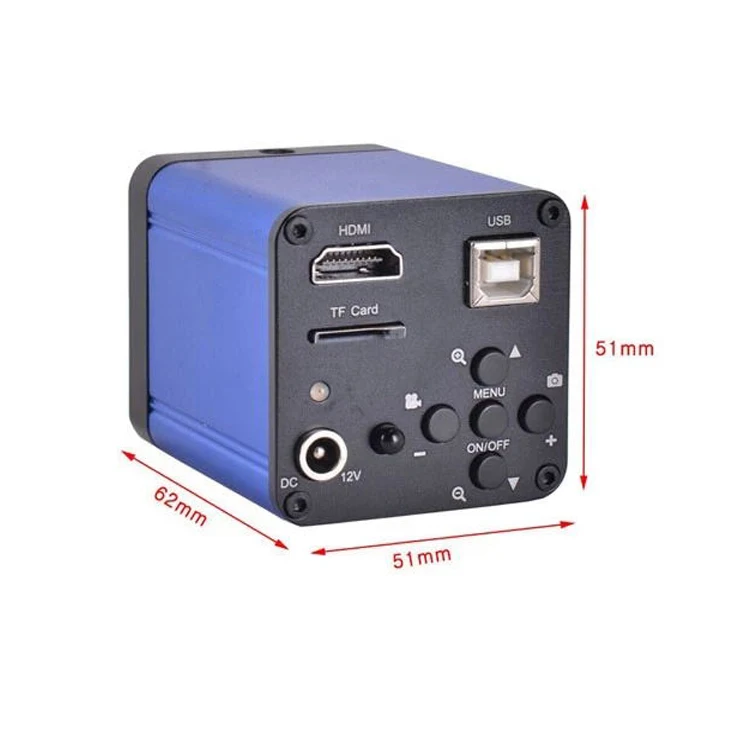

Camera parameters:
Model: PDOK1600

Features of the camera:
Model: Camera with HDMI USB2.0 two outports
Image resolution: 4640*3480 pixels(for TF card); 1920*1080 pixels(for PC USB)
Video recorder: 1920*1080 pixels @30FPS (for HDMI USB)
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,4 horizontal line , 4 vertical line,any positions
Specification for the camera:
Image sensor:16 megapixel Panasonic sensor 1/3 inch
Effective pixel:16 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:CS for test, custom provide
Video format: AVI
Encode: H.264 (High Profile)
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 4 pcs of transverse lines/vertical lines, moveable
Different color,4 horizontal line , 4 vertical line,any positions
SNR:Support
TF card interface:Max 32G
HDMI interface:Standard HDMI output (Type A)
Lens:C
USB interface:Standard usb2.0 interface (Type A)

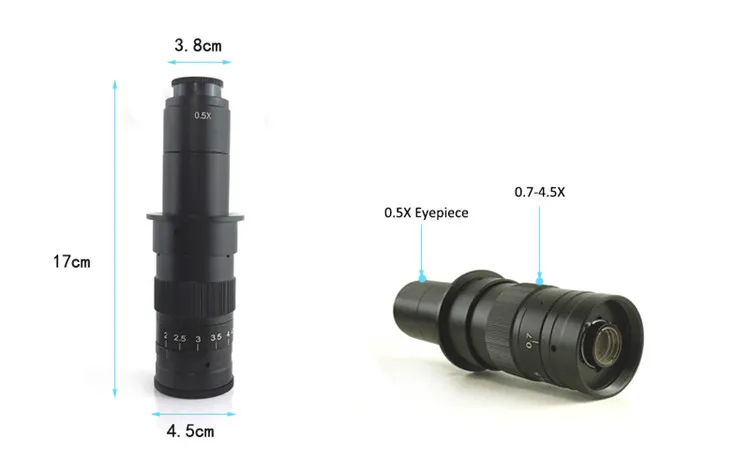

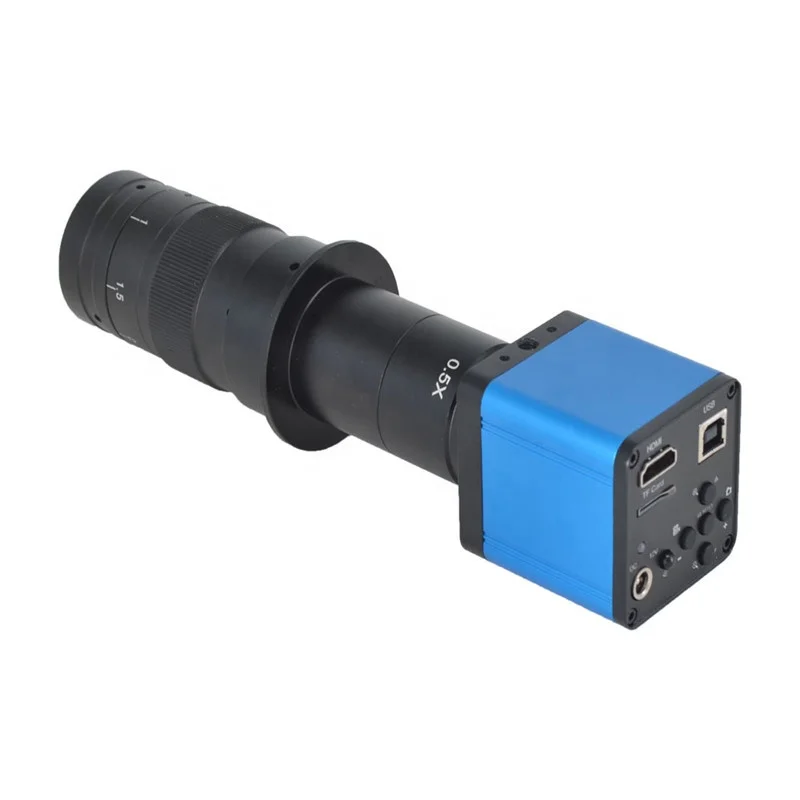

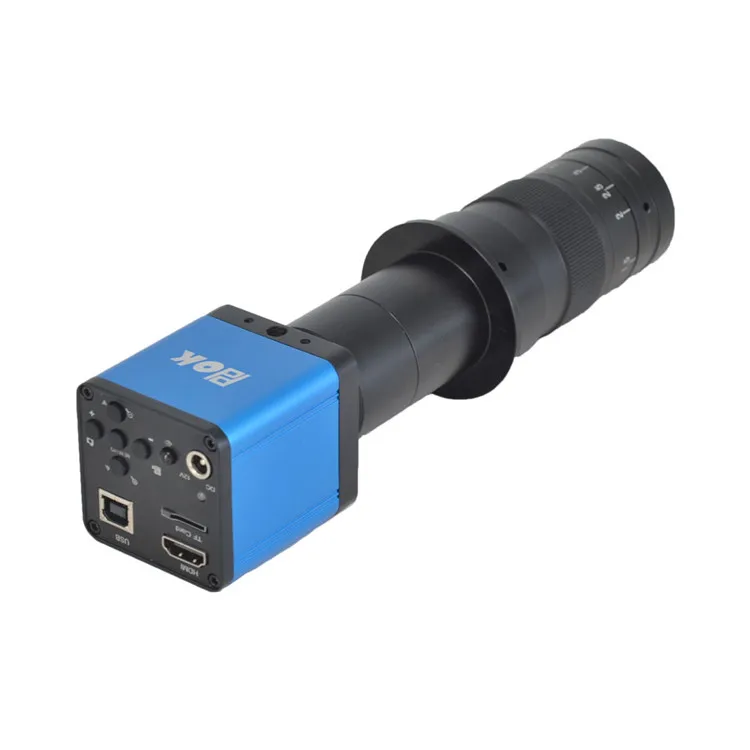

10X-180X zoom C-mount Lens:
Working distance: 95mm
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 168mm(L) * 50mm(DIA)
Weight: 510g

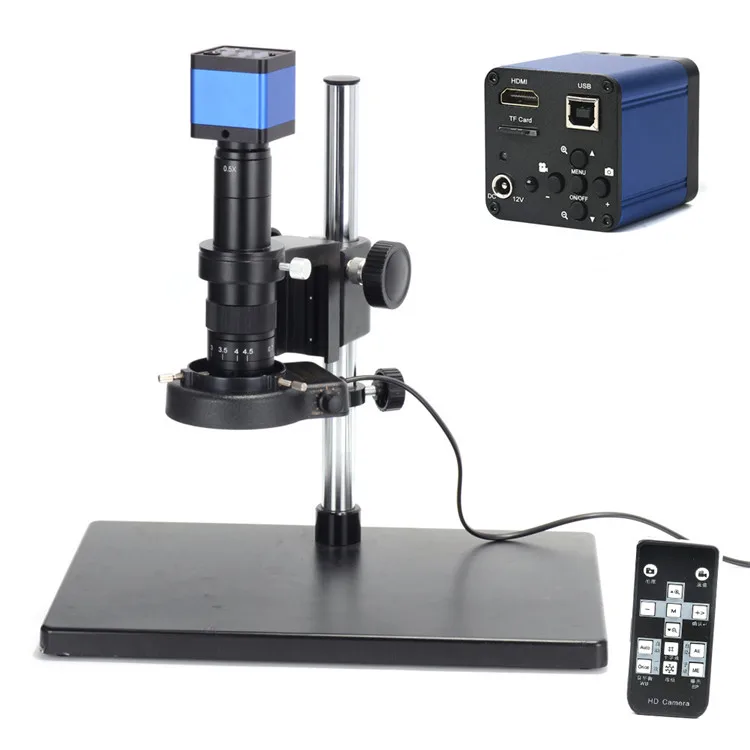

Large Bracket: L38cm*W26cm*H32cm

light source: 52 LED righ lights

Package includes:
1 x Microscope Camera
1 x Power supply
1 x USB cable
1 x HDMI cable
1 x 4GB TF card
1 x 180X lens
1 x 52 LED light
1 x base holder



Package size: 45X33X17 cm
