small Automatic Irrigation Module DIY Kit /Soil Moisture Detection Automatic Water Pumping Intelligent irrigation Kit
- Category: >>>
- Supplier: Cixi Sunstar Electronic Technology Co. Ltd.
Share on (62491613374):
Product Overview
Description
Product Description
small Automatic Irrigation Module DIY Kit /Soil Moisture Detection Automatic Water Pumping Intelligent irrigation Kit
Features:
About each part of the test:
1. Test the relay module: connect the relay module VCC to 5V, GND to ground, IN to GND, the relay jumps, and when IN is suspended,
the relay recovers, so you can hear the relay "Kaka" sound repeatedly;
2. Test the soil moisture sensor module: connect the fork probe and transmitter module with two DuPont lines, the transmitter
module VCC is connected to 5V, GND is grounded, just after power-on, the red power light is always on, green (blue) color
indication The lamp flashes faintly once; the fork probe is directly inserted into the water, and the green (blue) light is on;
3. Connect the red line of the pump to 5V, the black line is grounded, the pump works, pay attention to the test for 1 second, and
it is not allowed to work in the air for a long time;
note:
1, this baby can be free of welding, but you need to peel the wire, twist the copper wire together, and protect it with black
tape;
2. The pump cannot be operated in the air for a long time;

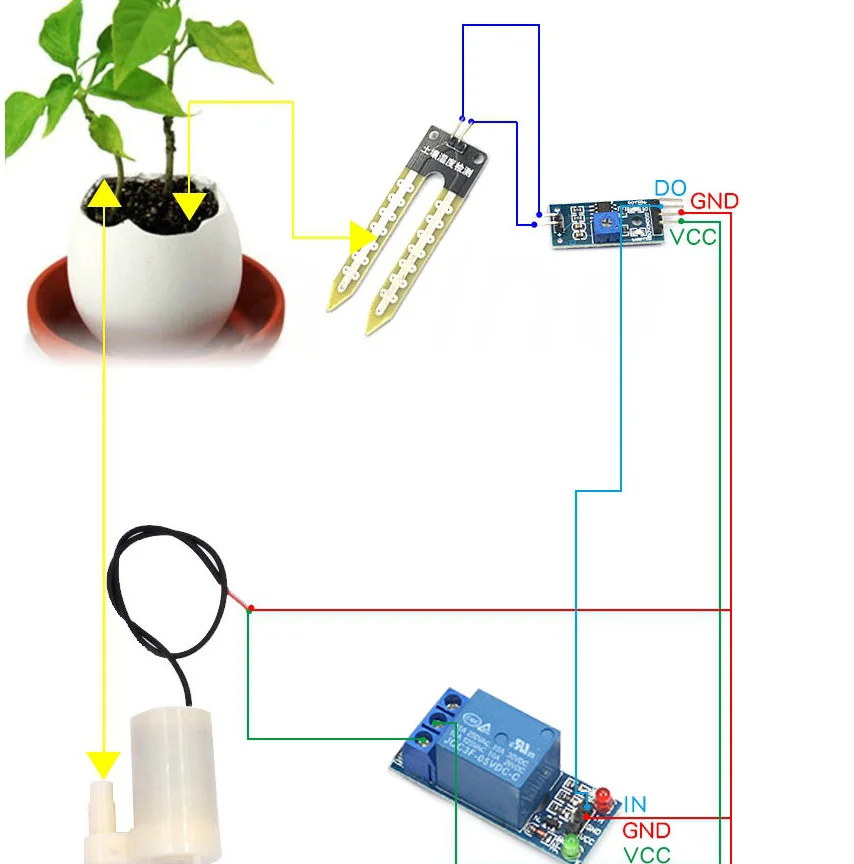

3, the system is connected, power on, the pump has been working, it is correct, because in the air, the probe can not detect the
humidity, so the pump has been working, there is no problem in the correct installation into the pot.
Note that water should not be poured directly on the probe. Many people don't know that the humidity of the water will be rusted
and destroyed soon.

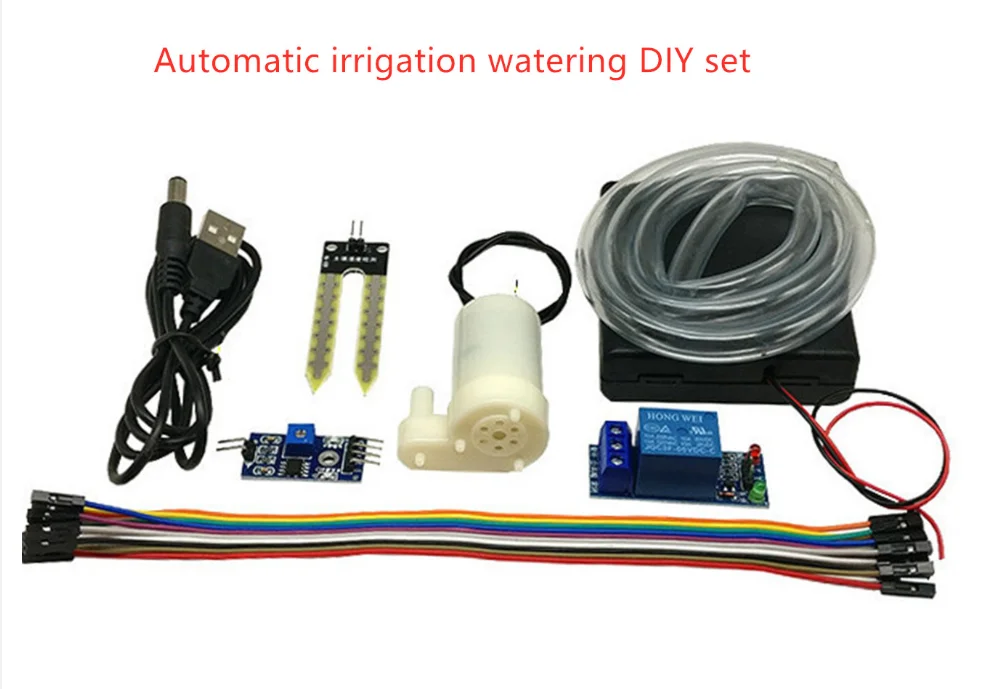

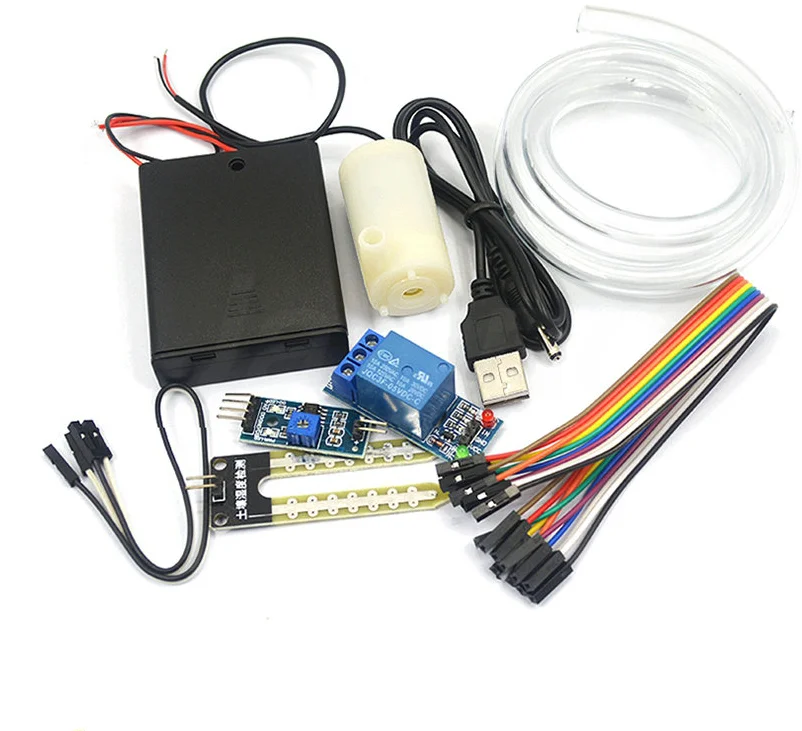

List details
1* relay module
1* soil moisture probe + comparison module
1* small water pump
1* battery case
1*USB power cord
10 *20CM DuPont Line (F-F)
50CM* silicone water pipe (please purchase if you need to lengthen)
This baby does not provide power, you can use the charging treasure (5V DC) as the power supply, or use 4 5th battery box and load
4 batteries
