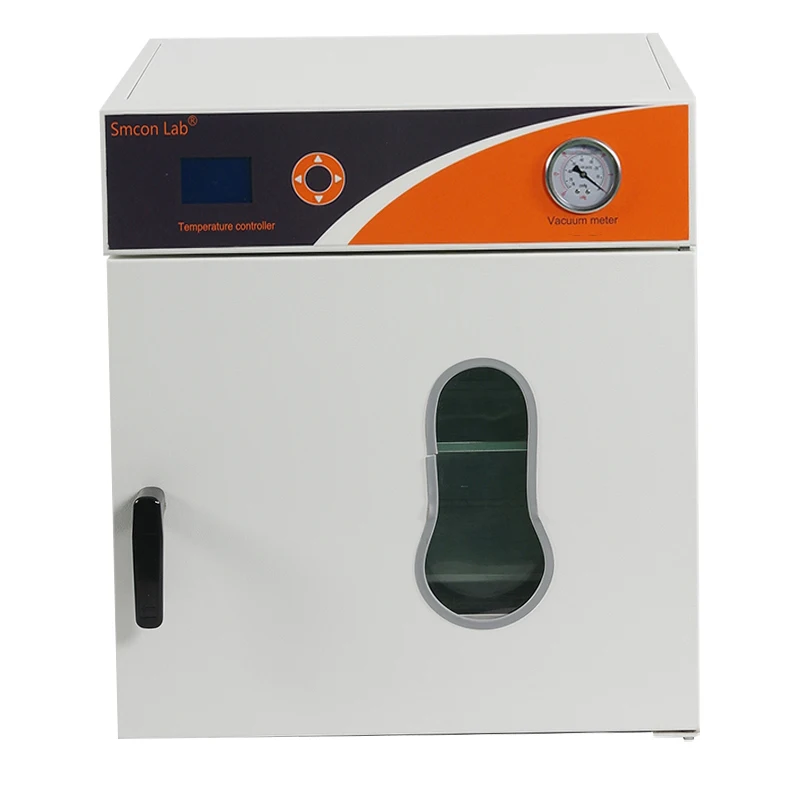

SDZF 6020 MINI laboratory vacuum drying oven
- Category: >>>
- Supplier: Shanghai Xiaocong Technology Co. Ltd.
Share on (62491716460):
Product Overview
Description
Vacuum drying oven is specially designed for deaeration, such as glue, silica gel, the side leakage of cosmetics and the drying heat sensitivity, easy decomposition and easy oxidation substances. It can be filled with inert gas into the interior, it is easier and quicker dry for some articles with complex ingredients.
| sales points: | |||
| 1> Inner material is 304 stainless steel, no rust, durable to use and easy to clean. | |||
| 2> Excellent sealing for wonderful temperature control. | |||
| 3> LCD screen display the temperature, time and other parameters. | |||
| 4> Empty container can keep pressure above three months. | |||
| 5> Durable products can customize and upgrade software. | |||
| 6> Good after-sales service and provide operating video to save users’ time to read instructions. |

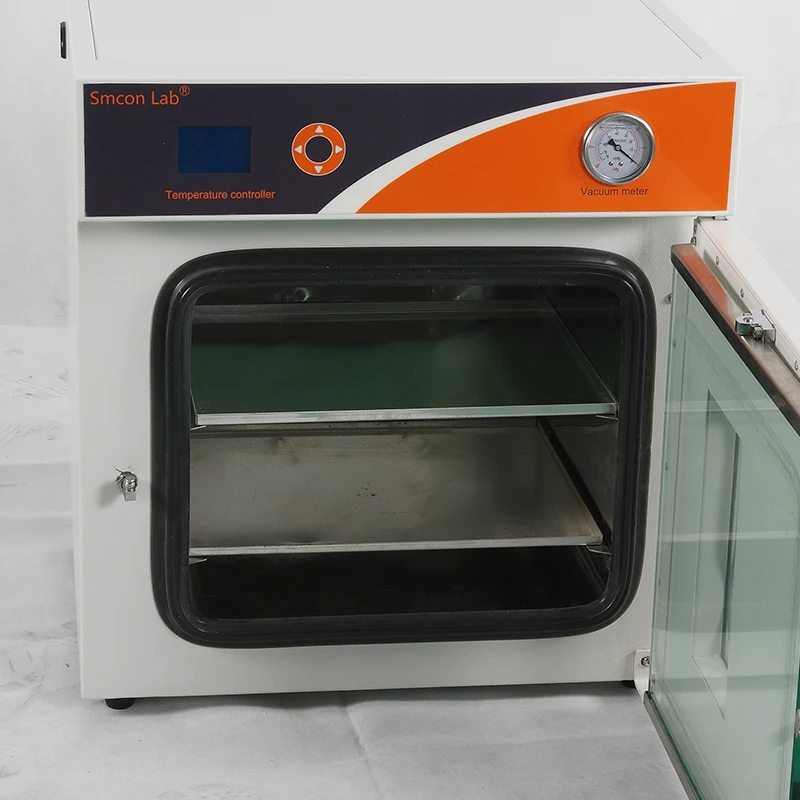

| Streamlined and luxurious design with aesthetic design concept, electrostatic spray box, large view toughened glass observation window on the door | |||
| cuboid studio, high efficiency volume utilization, microcomputer temperature controller, accurate and reliable temperature control | |||
| Double-layer toughened bulletproof glass observation window, it is easy to monitor the objects; (optional if necessary: can fill the interior with inert gas). | |||
| Use a new type of synthetic silicone sealing strip can adjust tightness of the door, new sealing strip is easy to replace, can keep long time at high temperature, After air intake, the door can be opened immediately without waiting. | |||
| It is perfect for storage, heating, test and drying in no oxygen environment or filled with inert gas environment. | |||
| Compared with the traditional vacuum drying oven, the heating time is reduced by more than 50%, which will not cause oxidation. | |||
| LCD screen displays all set parameters and measured parameters | |||
| The newly upgraded intake valve can quickly intake air and reduce waiting time. | |||
| The new upgraded air extraction valve is quick and light. (farewell to traditional mechanical transmission, large clearance and large torque.) | |||
| Control introduction: | |||
| Adopt a microcomputer P.I.D temperature controller to ensure accurate and reliable temperature, with over temperature deviation protection function and timing function. | |||
| Upgraded sound and light alarm environment scanning micro-computer chip, with stronger data processing function | |||
| With over temperature alarm, timed shutdown, recovery original setting procedure function once power-off and power-on, parameter encryption, temperature correction and other functions. | |||
| Security settings: | |||
| consider the ultimate safety protection design to realize triple safety protection for personnel, samples and equipment | |||
| safety function: sensor fault alarm, over temperature alarm, independent over rise protector, independent over temperature protector, over-current trip protection, etc. |
| Product Name | Vacuum drying oven | ||
| Product Model | SDZF-6020 | SDZF-6050 | SDZF-6090 |
| Display | LCD screen | ||
| Power Voltage | 220VAC50HZ/110VAC60HZ | ||
| Temperature control range | RT+10~250℃ | ||
| Temperature Resolution | 0.1℃ | ||
| Fluctuation precision | ±0.1℃ | ||
| Reach Vacuum | <133pa | ||
| Permissible ambient temperature | 5℃~40℃ | ||
| Volume | 24L | 50L | 90L |
| Input Power | 500W | 1400W/600W(for medicine) | 2200W |
| Working Chamber size(W*D*H)mm | 300*300*275 | 415*370*345 | 450*450*450 |
| External Dimensions(W*D*H)mm | 476*510*590 | 593*590*655 | 630*670*760 |
| Carrier(standard) | 1pcs | 2pcs | 2pcs |
| Timing range | 1~9999 min | ||

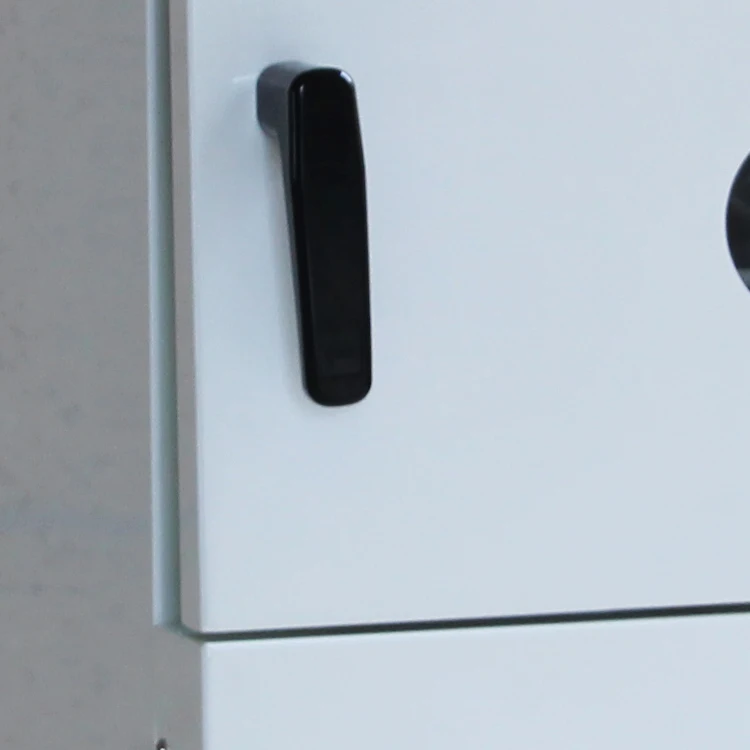

| Door opening mode | Manual door opening | ||
| Material of oservation window | Toughened glass & bulletproof glass | ||
| Stock | Stock on hand | ||
| Location of vacuum pump | External Location | ||
| Optional items | Programmable control, vacuum pump, printer, RS485 interface, remote control of mobile phone and other auxiliary functions. | ||
| Others volume of vacuum drying oven:24L,30L,50L,250L,90L,210L models can be optional. | |||
