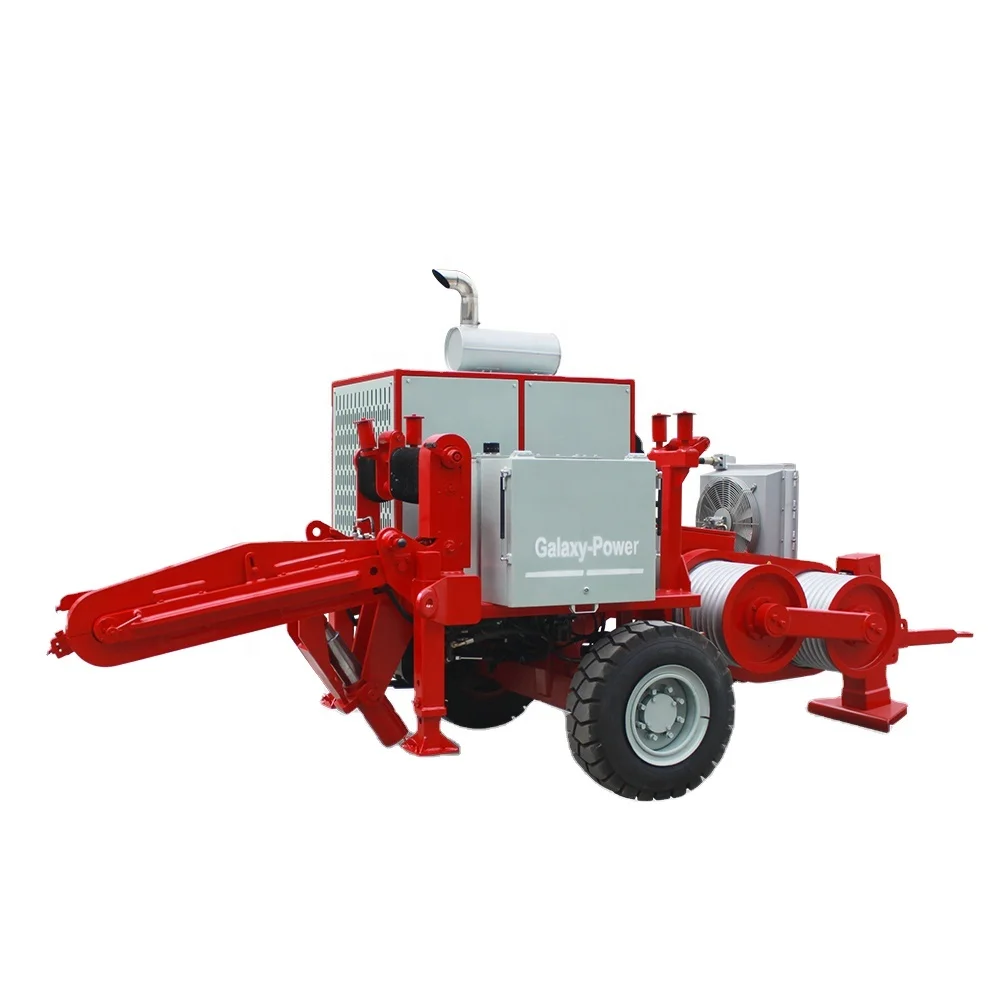

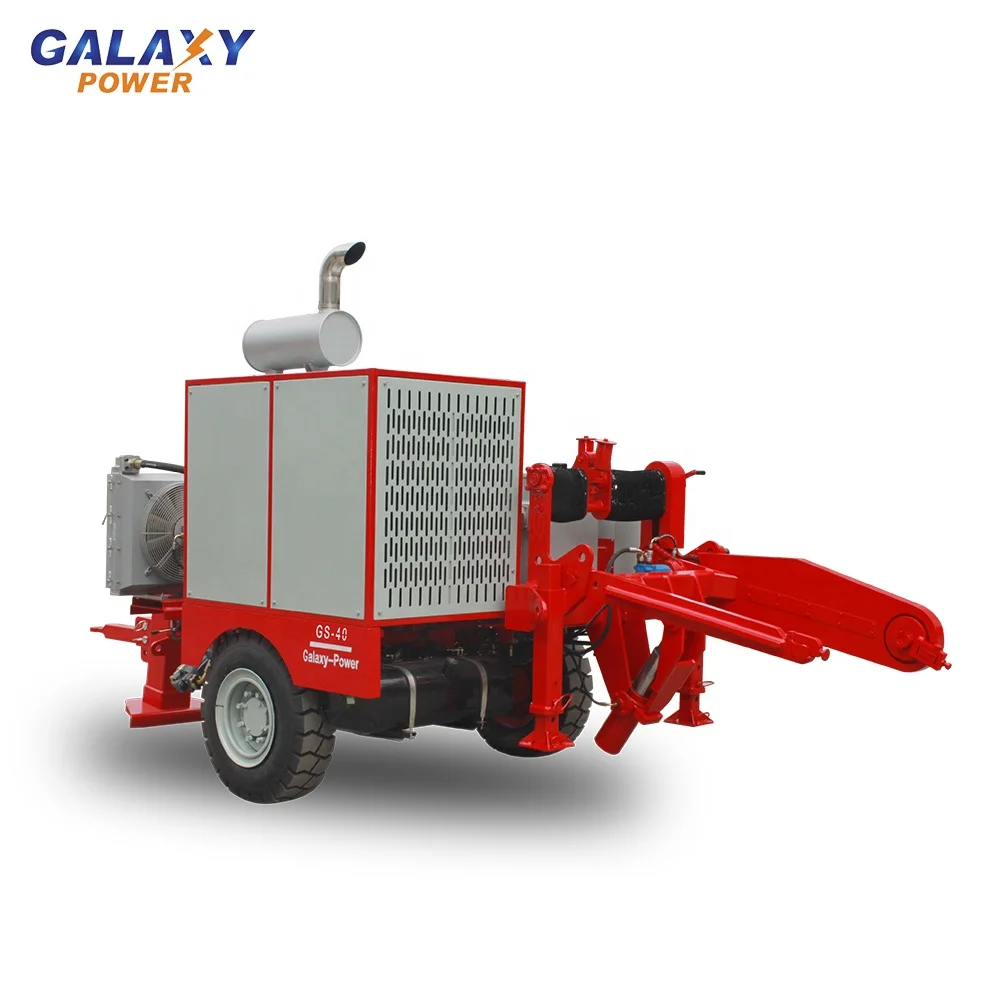

Максимальная мощность промежуточного вытягивания 100KN TY90 Гидравлический Стальной кабельный Съемник
- Category: Other Hydraulic Tools >>>
- Supplier: Jiangsu Milky Way Steel Poles Co. Ltd.
Share on (62491934559):
Product Overview
Description
Product Description
Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.
Performance | ||
Max intermittent pull | 60kN | |
Max continuous pull | 50kN | |
Speed at max pull | 2.5km/h | |
Max speed | 5km/h | |
Pull at max speed | 25kN | |
Engine | ||
Diesel | 77kw(103hp) | |
Cooling system | water | |
Electrical system | 24V | |
Characteristics | ||
Bull-wheel diameter | 450mm | |
Groove number | 7 | |
Max rope diameter | 18mm | |
Max diameter of rope reel | 1400mm | |
Total weight | 3500kg | |
Overall dimension | 3800×2100×2300mm | |
Main Configuration | ||
Engine | Cummins | |

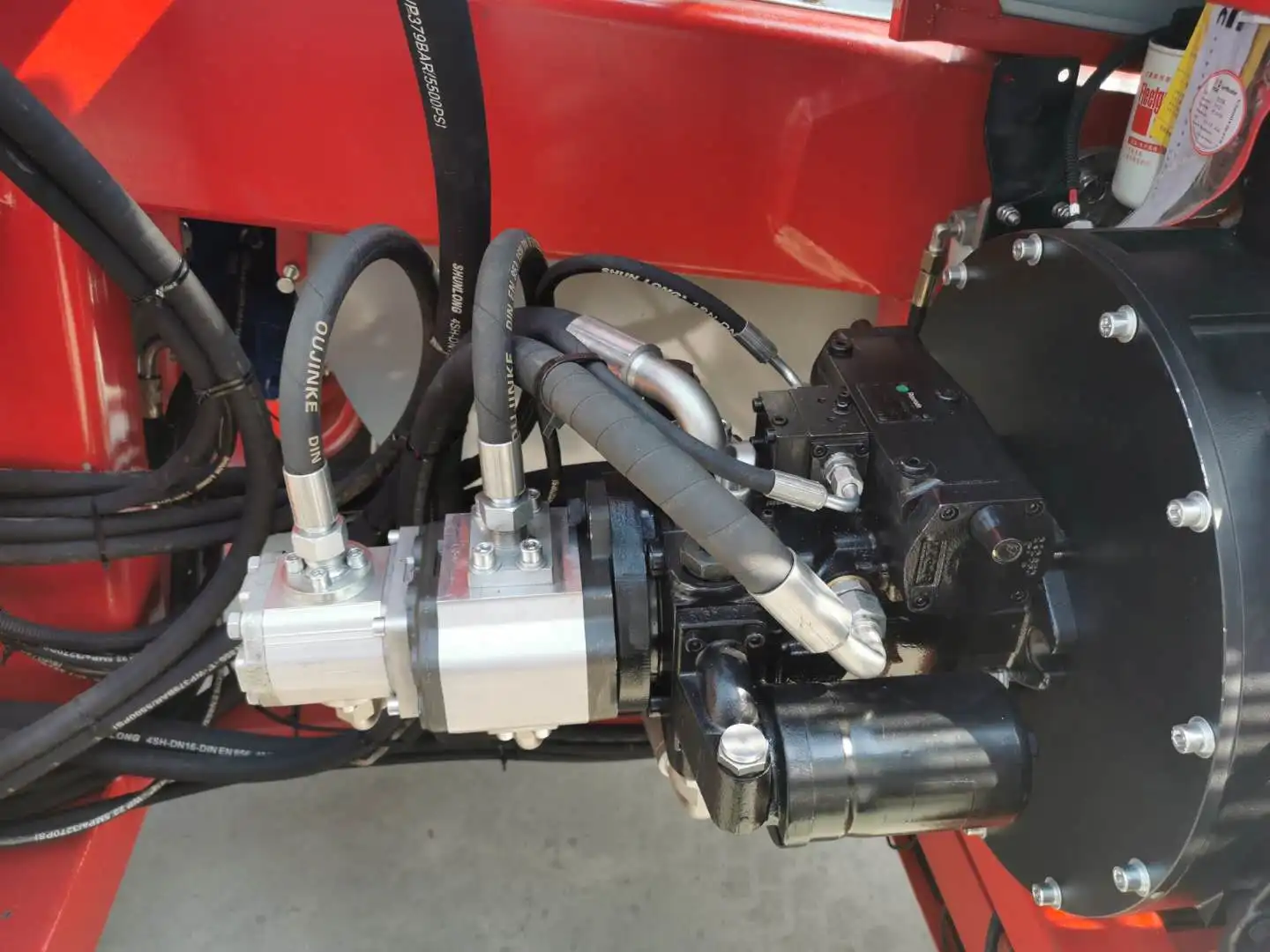

Main pump | German Rexroth | |
Main motor speed reducer | German Rexroth | |
Tail bracket hoisting motor | American Eton | |
Hydraulic meter | German WIKA | |
Operating handle | German Rexroth | |
Configuration | ||
Hydraulic dynamometer with set-point and automatic control of maximum pull | ||
Hydraulic oil cooling system | ||
Control instruments for hydraulic system and diesel engine | ||
On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400 | ||
Hydraulic front stabilizer | ||
Grounding connection point | ||
Additional Devices |
Lighting system for the trailer |
Swivel guide rope roller |
Extra shaft |
Hydraulic rope clamp for reel change |
Trailer for towing at max speed of 30 km/h |
Digital speed and meter counter (extra charge) |

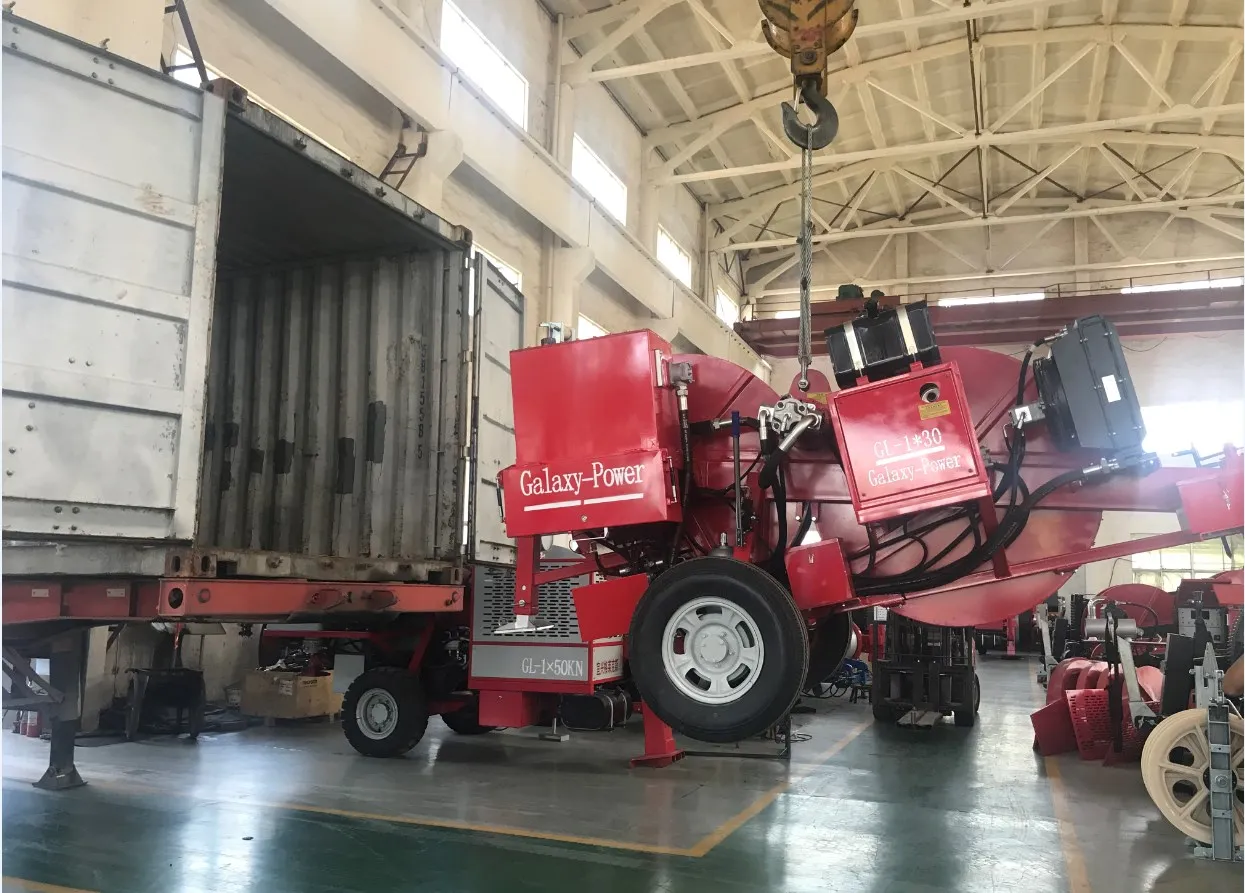

Packing & Delivery
Company Profile
Established in 2016, Galaxy Power Industry
Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech
enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of
different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are
also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor:
German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German WIKA Operating
handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.
Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech
enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of
different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are
also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor:
German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German WIKA Operating
handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.
