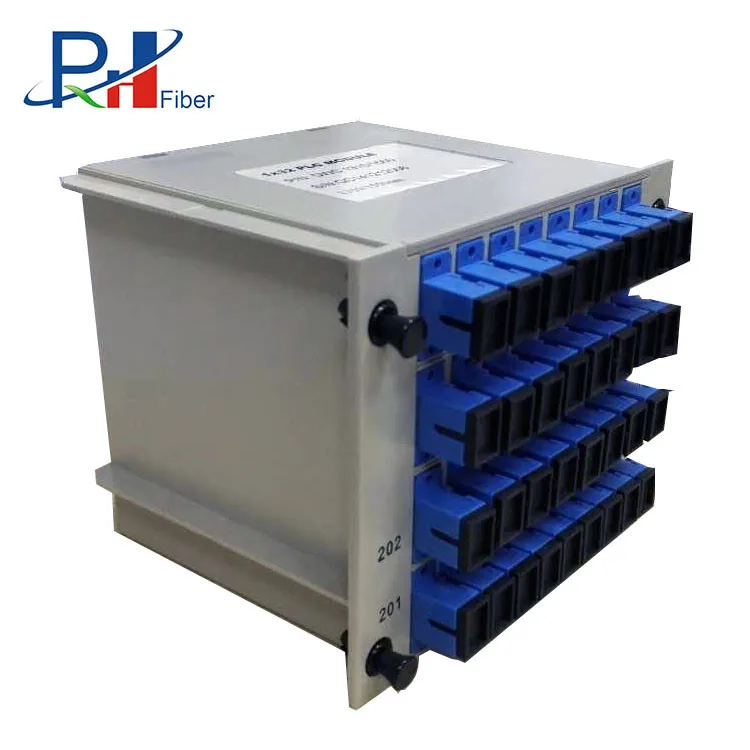

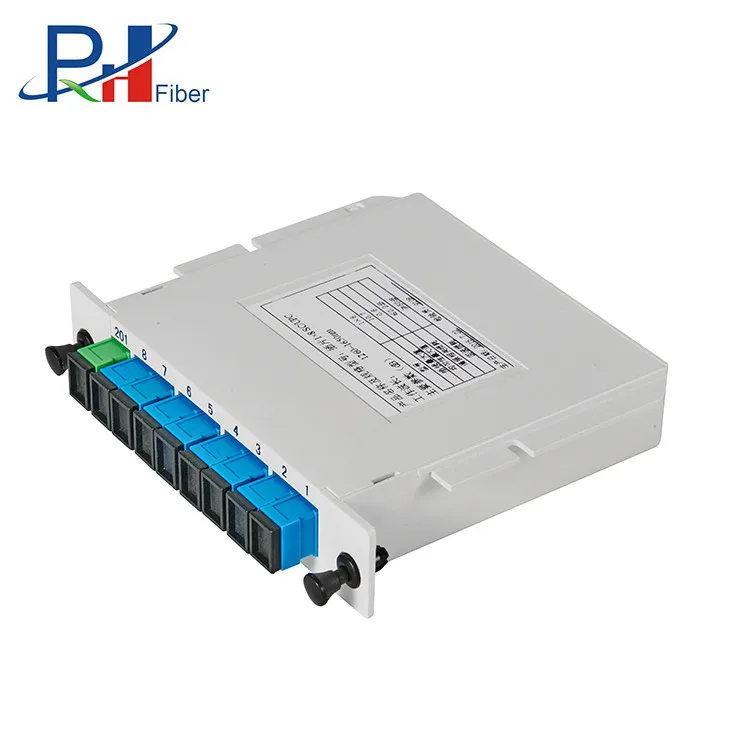

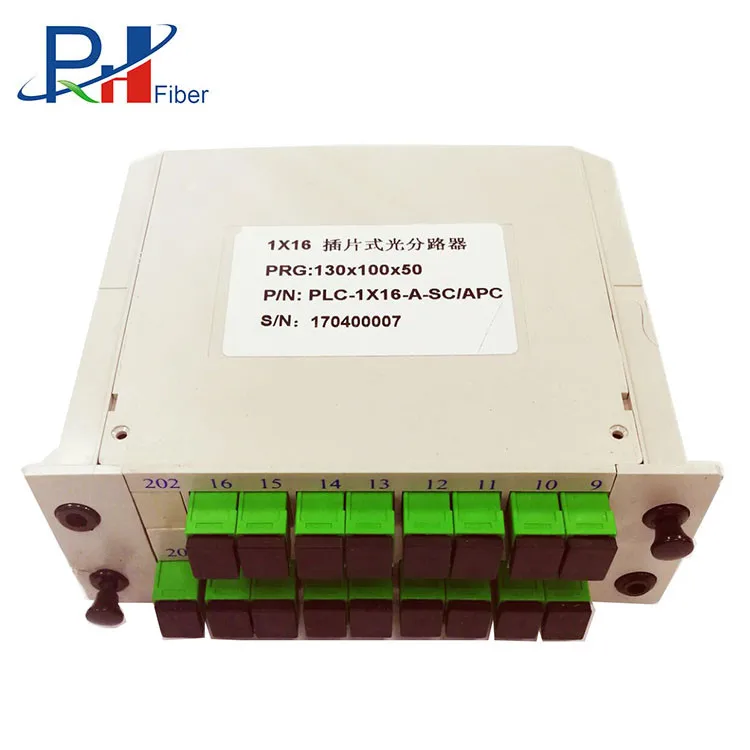

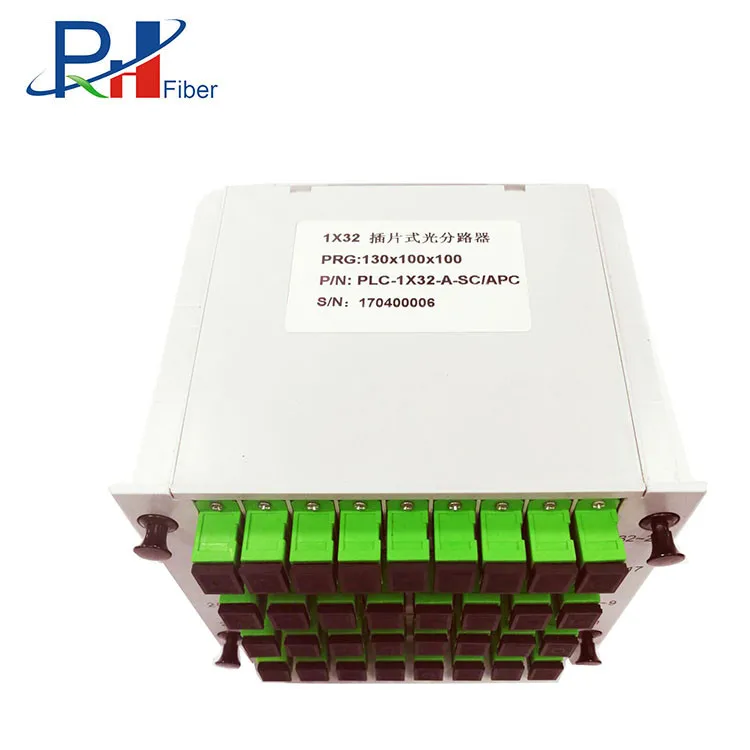

PHX Factory Price 1x4 1x8 1x16 1x32 1x64 PLC Spliter for FTTH
- Category: >>>
- Supplier: Shenzhen Puhuixin Technology Co. Ltd.
Share on (62491963403):
Product Overview
Description

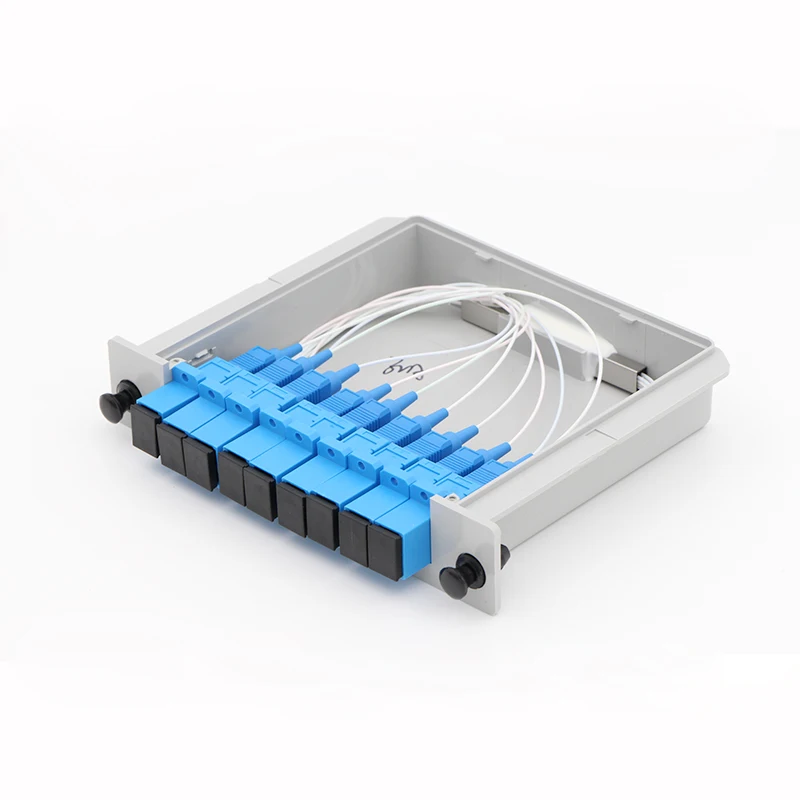

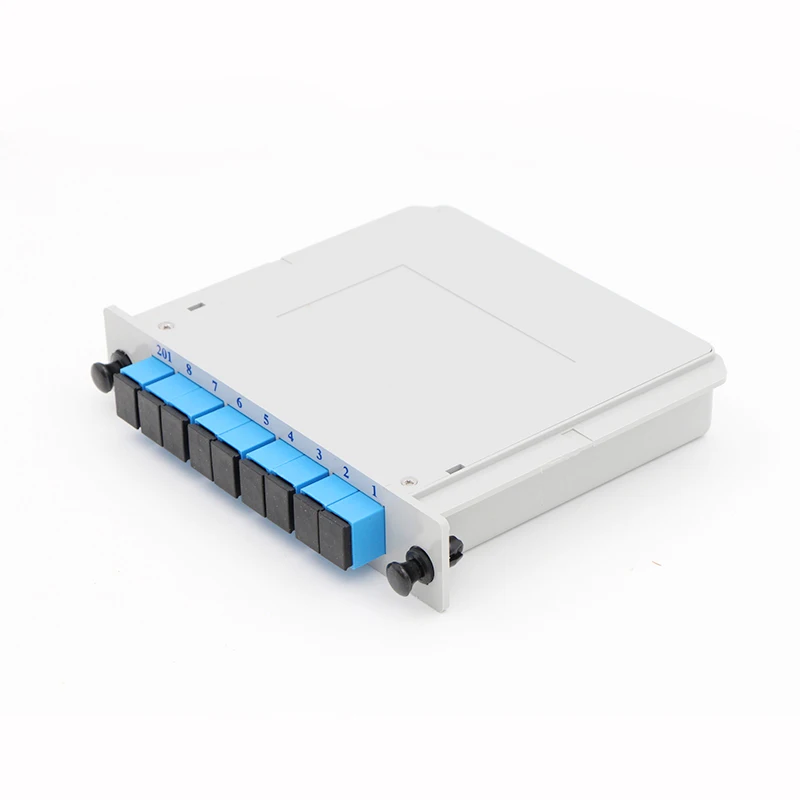

PHX Factory Price 1x4 1x8 1x16 1x32 1x64 PLC Splitter for FTTH
Product Description
Product Features
1. Low Insertion loss
2. Low PDL
3. Compact Design
4. Good channel-to-channel uniformity
5. Wide Operating Wavelength:From 1260nm to 1650nm
6. Wide Operating Temperature: From -40°C to 85°C
7. High Reliability and Stability
2. Low PDL
3. Compact Design
4. Good channel-to-channel uniformity
5. Wide Operating Wavelength:From 1260nm to 1650nm
6. Wide Operating Temperature: From -40°C to 85°C
7. High Reliability and Stability
Application
1. FTTX Systems
2. PON Networks
3. CATV Links
4. Optical Signal Distribution
2. PON Networks
3. CATV Links
4. Optical Signal Distribution
Product Paramenters
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |||||
Operating Wavelength (nm) | 1260~1650 | ||||||||||
Fiber Type | G657A1 or customer specified | ||||||||||
Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | |||||
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 | |||||
Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |||||
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | |||||
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |||||
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |||||
Temperature Stability (-40~85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |||||
Operating Temperature (℃) | -40~85 | ||||||||||
Storage Temperature (℃) | -40~85 | ||||||||||
Device Dimension (mm) (L×W×H) | 40×4×4 | 40×4×4 | 40×4×4 | 50×4×4 | 50×7×4 | 60×12×4 | |||||
Module Dimension (mm) (L×W×H) | 100×80×10 | 120×80×18 | 140×114×18 | 140×114×18 | |||||||
Mini-Module Dimension (mm) (L×W×H) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | |||||
Company Profile
Our Advantages
Exhibition
Certificate
Packaging & transportion

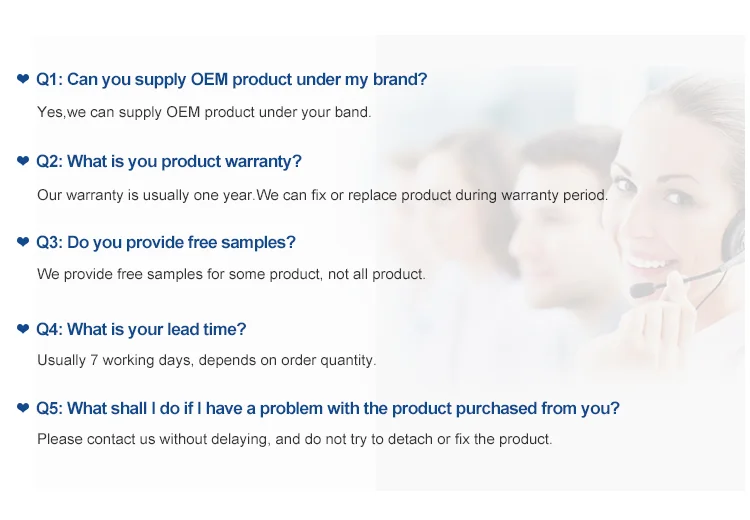

FAQ
