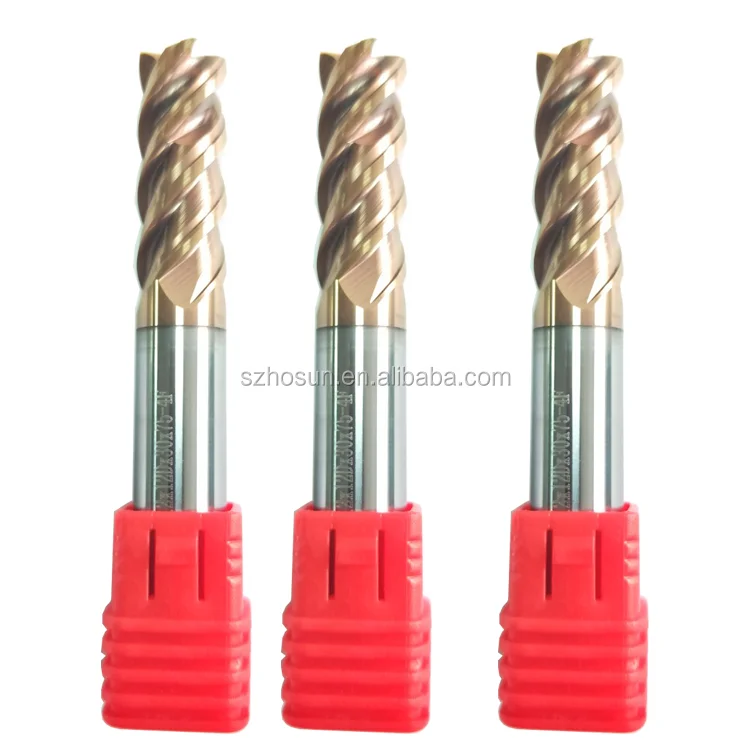

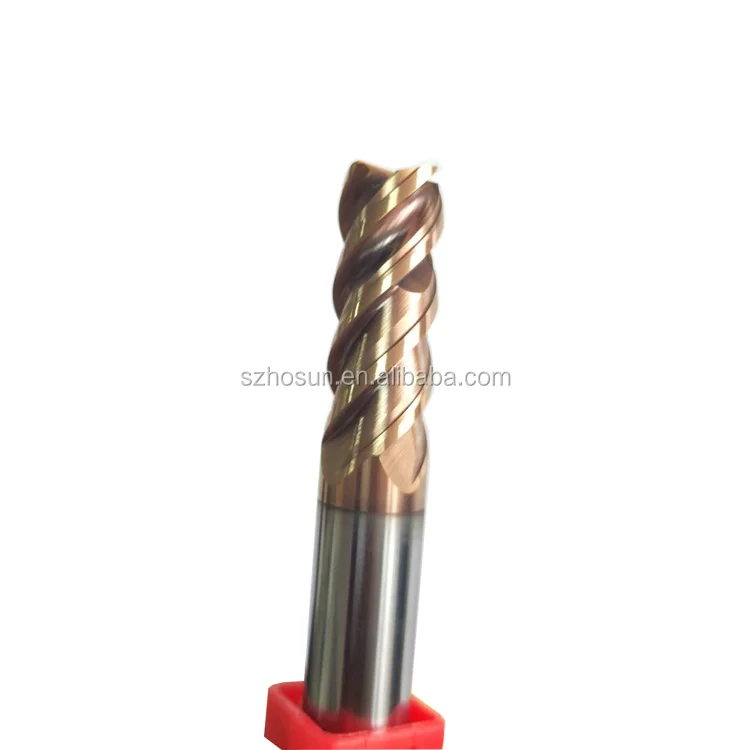

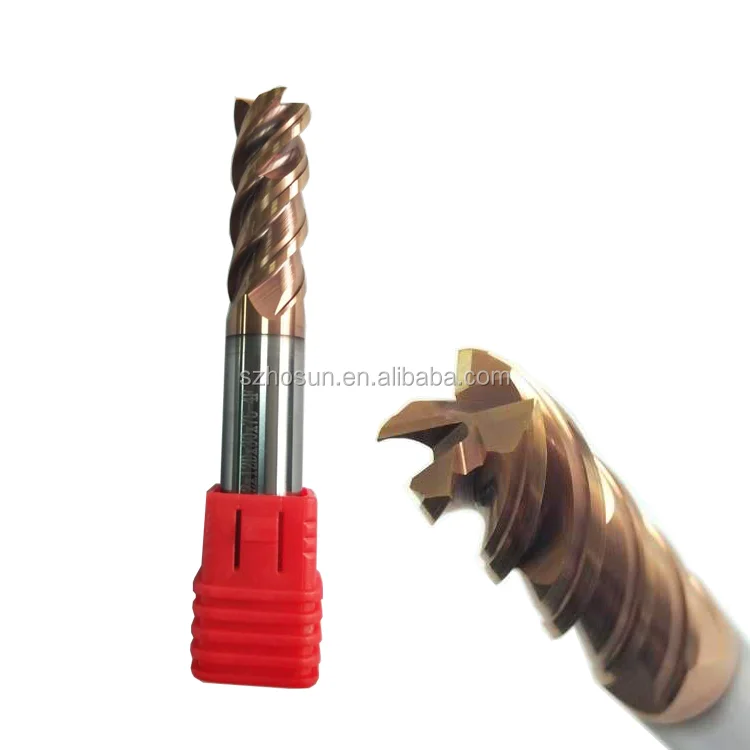

Endmill carbide cutting tool milling cutter tool 4 blades
- Category: >>>
- Supplier: Shenzhen Hosun Precision Co. Ltd.
Share on (62491997340):
Product Overview
Description
Product Overview
ABC15-E 1.5 Ton Excavator
Four-edge milling cutter is mainly used for side milling and face milling. It is used for processing all kinds of die steel, cast
iron, copper parts, etc
iron, copper parts, etc
FEATURES AT A GLANCE
Used in Milling Machine.,CNC,Drill press,Engraving machine. Metal, woodworking, alloy steel, stainless steel, etc. High rigidity, widely used in shallow slot, profile milling, and finish machining.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS

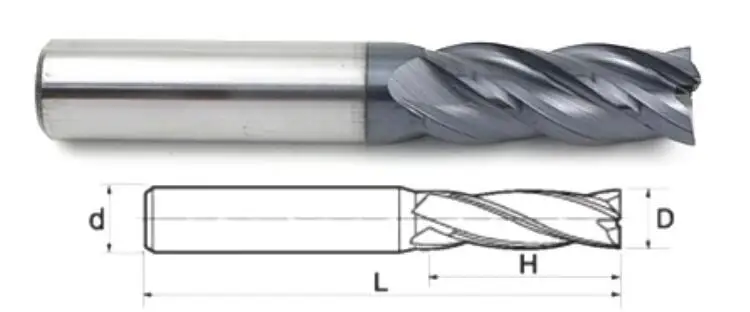

D(Diameter of cut) | d(Shank Diameter) | H(Flute Length) | L(Length) | Flute |
3mm | 3mm | 8mm | 50mm | 4F |
4mm | 4mm | 11mm | 50mm | 4F |
5mm | 5mm | 13mm | 50mm | 4F |
6mm | 6mm | 15mm | 50mm | 4F |
8mm | 8mm | 20mm | 60mm | 4F |
10mm | 10mm | 25mm | 75mm | 4F |
12mm | 12mm | 30mm | 75mm | 4F |
14mm | 14mm | 45mm | 100mm | 4F |
16mm | 16mm | 45mm | 100mm | 4F |
20mm | 20mm | 45mm | 100mm | 4F |
SALES AND SERVICE NETWORK
Successful Project
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer, we have more than 20 years experience in this field.
Q: Is free shipping possible?
A: We don't offer free shipping service to oversea , but can free shipping to China agent's address , and we cooperated with Express Companies many years , we can get best shipping cost
Q: Can you send products to our agent in China?
A: Yes,if you have agent in China, we can free shipping products to them.
Q: Can you produce Special carbide Tools ?
A: Yes We can. we can according to your drawings to make .
A: We are professional manufacturer, we have more than 20 years experience in this field.
Q: Is free shipping possible?
A: We don't offer free shipping service to oversea , but can free shipping to China agent's address , and we cooperated with Express Companies many years , we can get best shipping cost
Q: Can you send products to our agent in China?
A: Yes,if you have agent in China, we can free shipping products to them.
Q: Can you produce Special carbide Tools ?
A: Yes We can. we can according to your drawings to make .
