Full HD 1920X1080 2MP 1080P Sony IMX322 Low LUX illumination 0.01Lux Professional Video Camera H.264 USB CAMERA
- Category: >>>
- Supplier: Shenzhen Kingspy Technology Co. Ltd.
Share on (62492013892):
Product Overview
Description
Certifications
Product Description

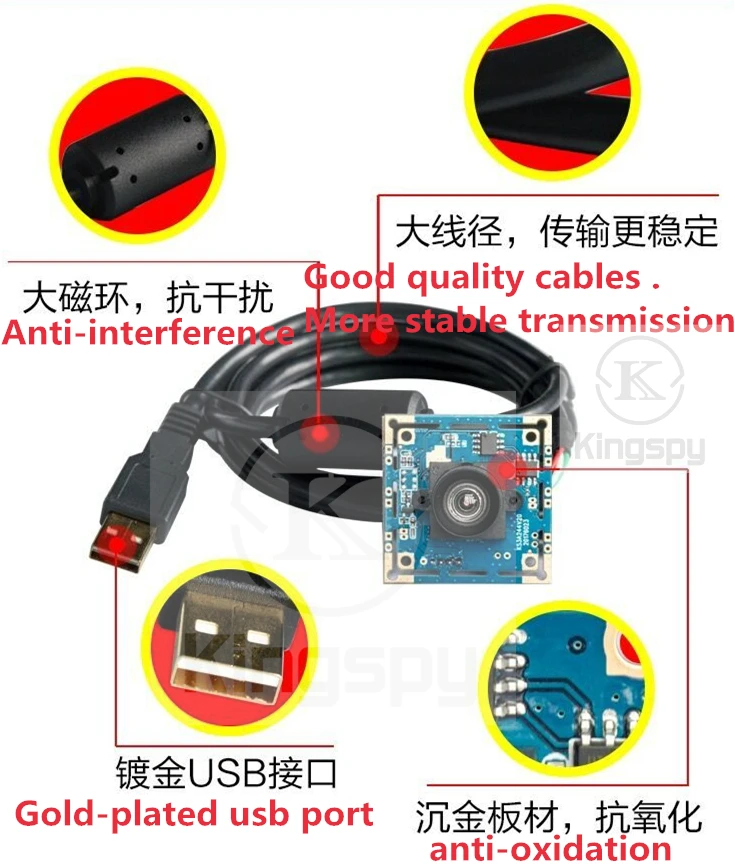

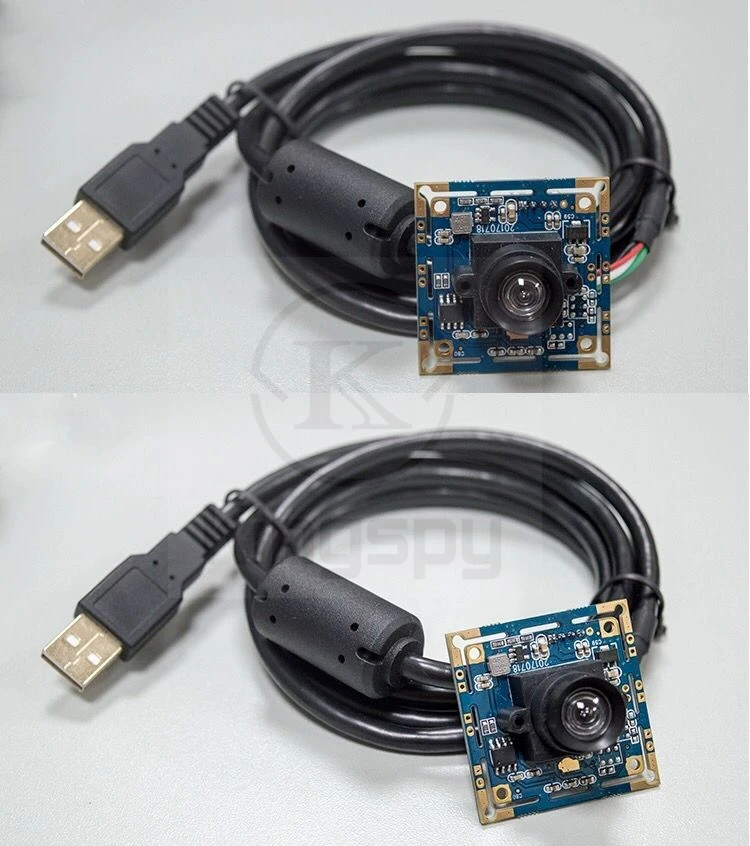

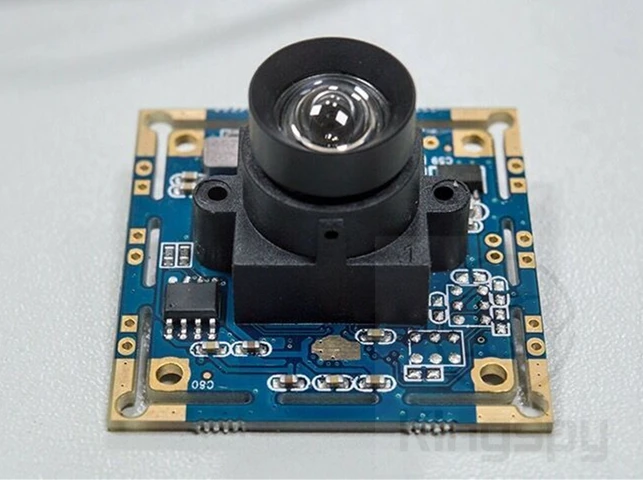

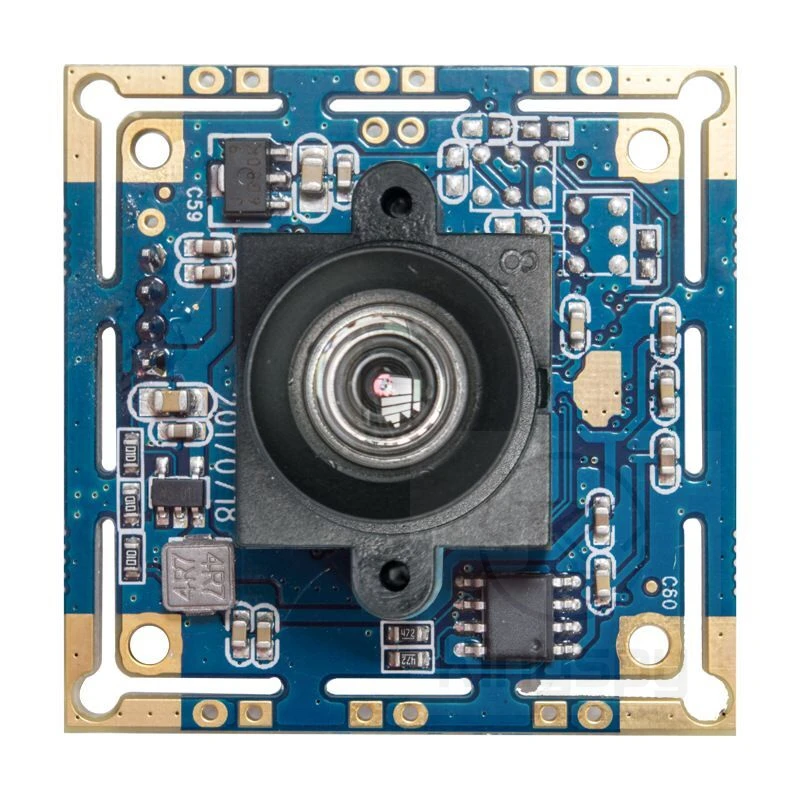

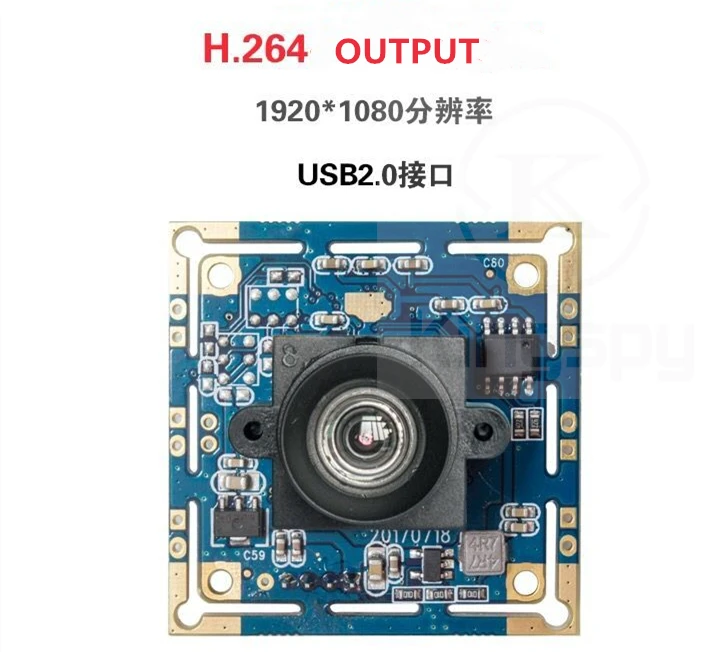

Full HD 1920X1080 2MP 1080P Sony IMX322 Low LUX illumination 0.01Lux Professional Video Camera H.264 USB CAMERA
| *Ultra Low light Camera, Minimum illumination 0.01lux |
| *Highly advanced Sony IMX322 Sensor |
| *Max resolution :1920*1080P ,2.0 Megapixel |
| * Compression format : H.264 /MJPEG / YUV2(YUYV) |
| *Come with microphone on the board which support single channel and dual channel. |
| *Support IR Cut, optional to add IR LED Board for night vision |
| *Equiped with 3.6MM LENS , MORE DIFFERENT LENS 2.8-12mm/5-50mm varifocal lens optional |
| *USB 2.0 High speed port |
| *Support OTG protocal: can connect your mobile via OTG cable |
| *White balance adjustable: Resolve color reduction and tone processing issues |
Resolution & frame rate | H264: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps MJPEG: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps YUV: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps | ||
| Sensor | 1/29 inch SONY IMX322 | Picture format | H.264/MJPEG / YUY2(YUYV) |
| image area | 2000(H)X1121(V) approx. 2.24 M pixels | Lens Parameter |
FOV(D) 170/180 Degree |
| Pixel Size | 12.8μm x 11.6μm | USB Cable | Standard 1M/ Optional 2m,3m,5m |
| Max. Resolution | FULL HD 1920(H)x1080(V)pixels | Board Size/ Weight | 38*38mm/32mm*32mm optional / about 30g |
| S/N Radio | 42dB | Mini illumination | 0.01lux |
| Dynamic Rangde | 86dB | Sensitivity | 5V/lux-sec@550nm |
| Interface | USB2.0 High speed | Shutter Type | Electronic rolling shutter / Frame exposure |
| Support free driver | USB Video Class(UVC) | Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure |
| USB Protocol | USB2.0 HS/FS | Digital Audio | High quality digital MIC, support single, dual channel |
| OTG protocol | USB2.0 OTG | AEC, AEB,AGC | Supoort |
| Power Supply | DC 5V | Working temperatur | -10~70 degree |
| Working Current | 130mA~190mA | Storage temperatur | -20~85 degree |
LED board power connector | Support 2P-2.0mm socket | IR CUT Connector | Support 2P-1.25mm socket |
| Support OS | WinXP/Vista/WIN7/WIN8 / Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above | ||
Our Services
1) Guarantee We promise 1 year warranty from Shipping date,
once there's a problem which users can't fix themselves,
we'll sent accessories or a new IP camera as replacement to you.
2) Authorisation We will sent you authorization as business partner / distributor.
3) MOQ 1pcs
For big order, I suggest order by standard carton,
4) OEM/ODM order are also most welcomed.
5) Why us? Reply < 10 hours, Delivery time > 99%, Quality Control > 99%, After-sales Service > 99%
100% QC inspection Before the timely delivery of the goods.
And we have more than 6 new models released each year!
