DELEM CONTROLLER CNC PRESS BRAKE MACHINE FOR BOX BENDING
- Category: >>>
- Supplier: Nanjing Chzone Machine Tool Co. Ltd.
Share on (62492040786):
Product Overview
Description
PB-CNC 100T/3200 DA58T CNC Press Brake
Product Description
Main features:
* 4+1 Axis,Y1 Y2 X R+Crowing
* Fast Released clamp
* Synchronized cylinders for Y1 & Y2 axis.
* 4+1 Axis,Y1 Y2 X R+Crowing
* Fast Released clamp
* Synchronized cylinders for Y1 & Y2 axis.
* Schneider Electrics, Yaskawa Servo Motor and Driver
* Imported ball bearing lead screw and linear guide rail
* Imported ball bearing lead screw and linear guide rail
Controller | DELEM DA58T |
Motor | Siemens |
Valve | BOSCH Rexroth |
Electrics | Schneider |
Pump | Sunny |
Servo | Yaskawa |
Controller
DELEM DA58T
* 2D graphical touch screen programming
* 15" high resolution colour TFT
* Bend sequence calculation
* Crowning control
* Servo and frequency inverter control
* Advanced Y-axis control algorithms for closed-loop as well as
open-loop valves.
* USB, peripheral interfacing
* 15" high resolution colour TFT
* Bend sequence calculation
* Crowning control
* Servo and frequency inverter control
* Advanced Y-axis control algorithms for closed-loop as well as
open-loop valves.
* USB, peripheral interfacing
Main Parameters
Series | Name | PB-CNC 100T/3200 | Unit |
1 | CNC Controller | DA69T | |
2 | Axis | Y1 Y2 X R Z1 Z2+ Crowing | |
3 | Bending Force | 100 | Ton |
4 | Max. Bending Width | 3200 | mm |
5 | Max. Bending Thickness | 4(MS,L=3200mm),2.5(SS,L=3200mm) | mm |
6 | Stroke | 200 | mm |
7 | Column Distance | 2600 | mm |
8 | GAP | 480 | mm |
9 | Throat Depth | 320 | mm |
10 | Worktable Width | 110 | mm |
11 | Main Motor Power | 7.5 | KW |
12 | Back Gauge Stroke | 600 | mm |
13 | X axis Accuracy | 0.01 | mm |
14 | Oil Pump | 16-MCY | |
15 | Max. Hydraulic Pressure | 30 | Mpa |
16 | Hydraulic Oil need | 250 (L-HM 46) | L |
17 | Crowing | Electric Crowing | |
18 | Voltage | 220/380/415/440 | V |
19 | Length | 3800 | mm |
20 | Width | 2000 | mm |
21 | Height | 2500 | mm |
22 | Weight | 7500 | KG |
Detailed Images
DA58T Controller
Touch Screed, suitable for 4 axis
Fast Released Clamp
One Key clamp and release.
Automatic Crowing
Automatic crowing table
Schneider Electrics
World famous bran, Stable quality. easy to get replace parts
Yaskawa Servo
Japanese Brand, High quality.
Taifeng Cylinder
Most Famous brand in China. Life-long time aftersale maintance.

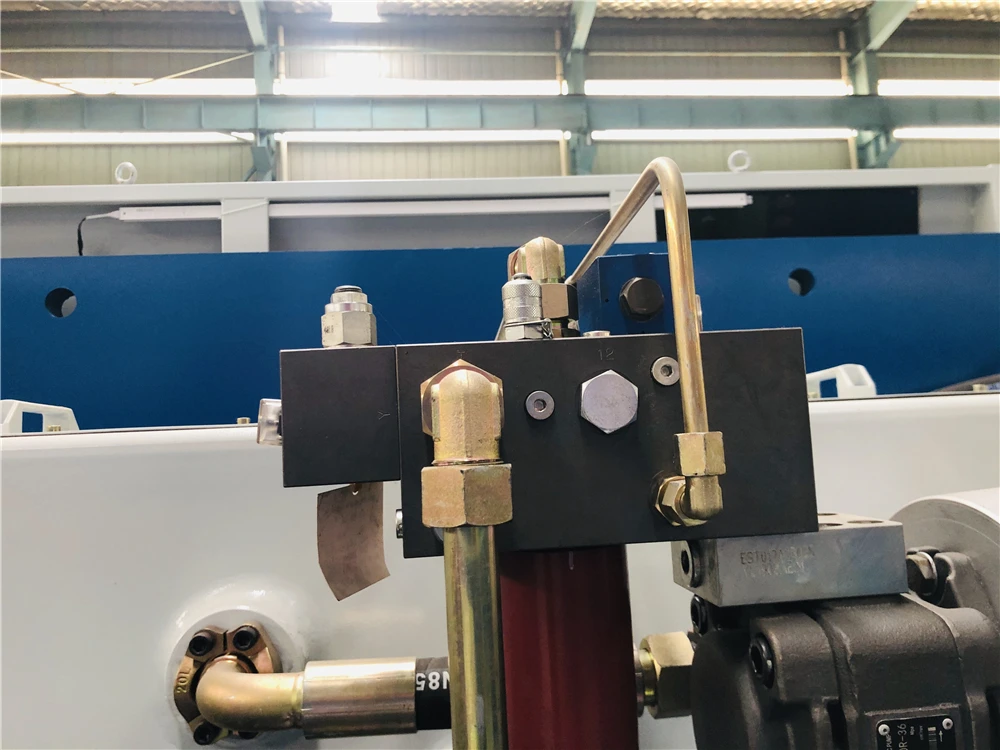

Rexroth Valve
Germany BOSCH Valve. Simple Structure,Easy to repaire

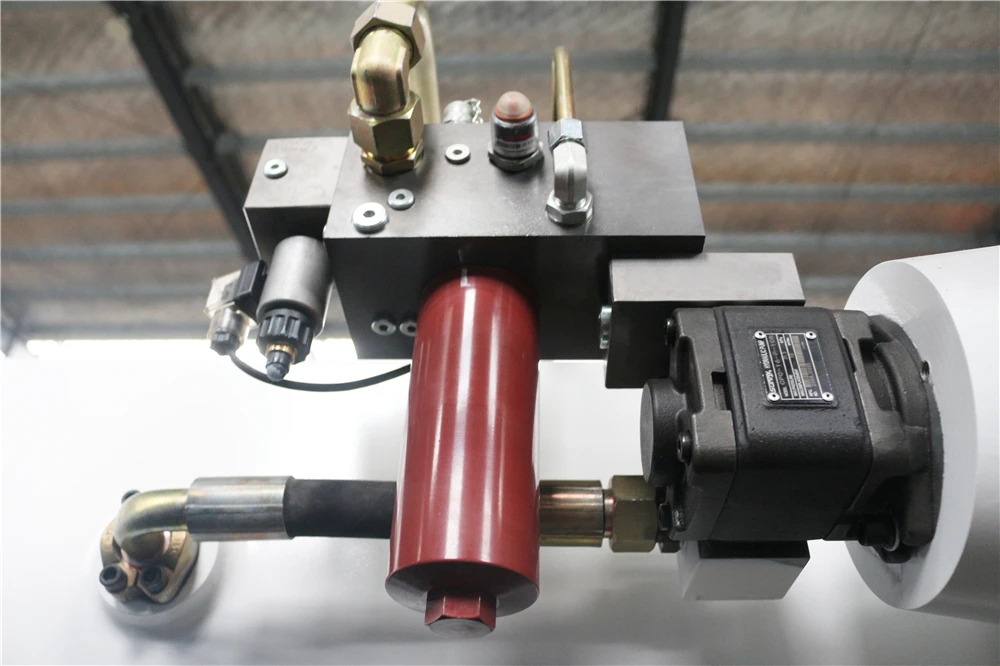

Sunny Oil Pump
American most famous pump brand.
High quality
Siemens Motor
Siemens China Factory Made
Front Supportor
Factory Made, easy to feed plate
Kacon Foot Switch
South Koera CE Standard Foot Switch
GIVI Linear Encoder
High accuracy,stable quality.
Side Fence
CE Safety Standard. Power off when open

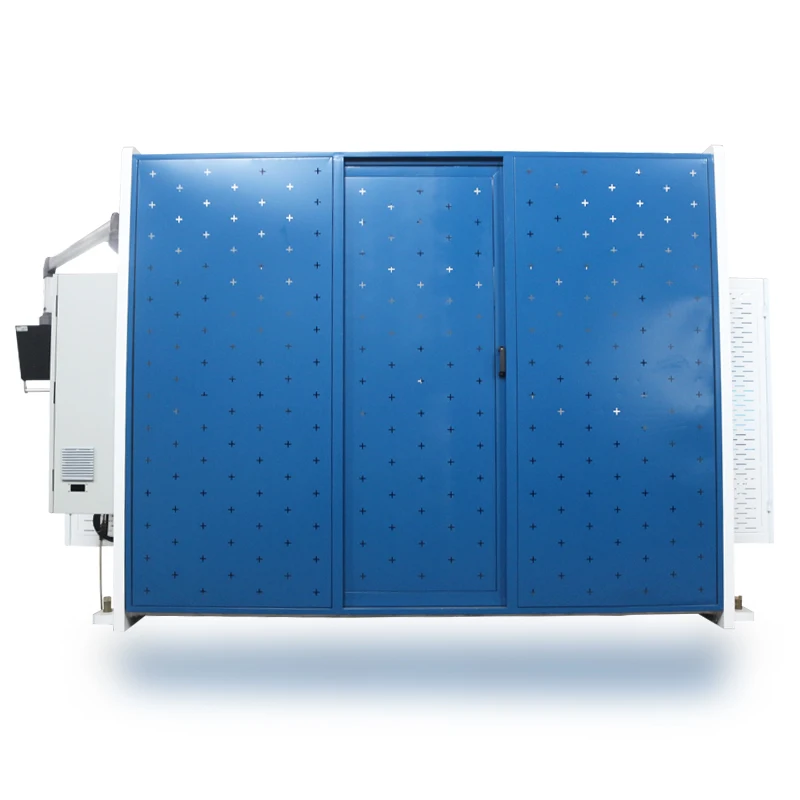

Back Fence
Movable Door. Power off when open the door
Hiwin Linear Guider and ball screw
Taiwan Brand. High Accuracy

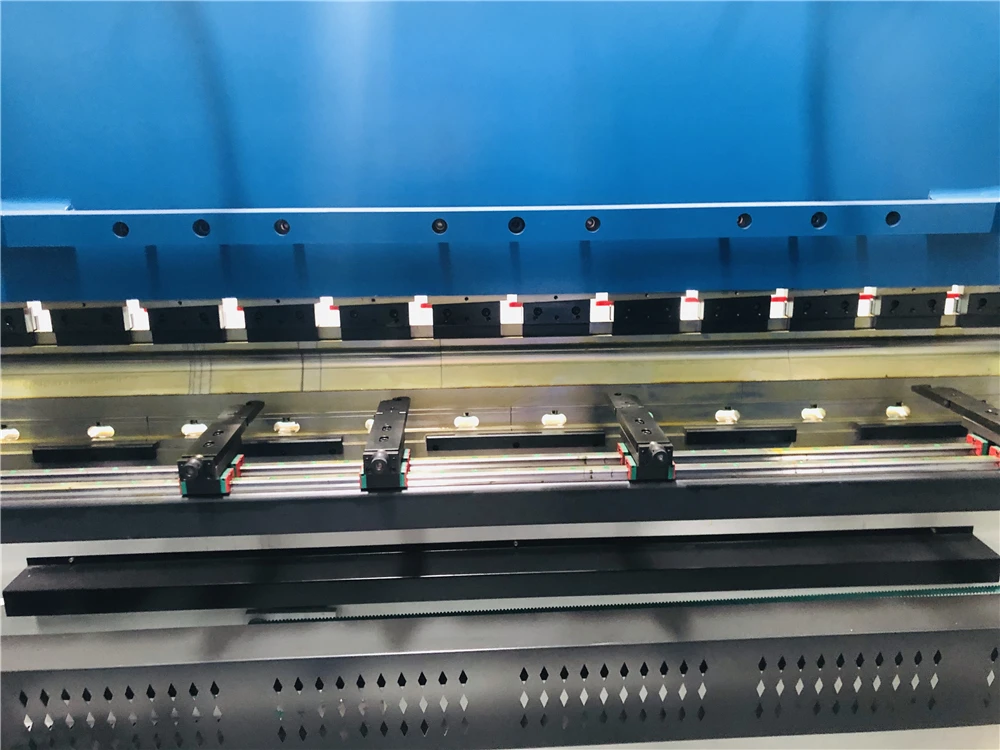

Backgauge
Controlled by servo motor. X,R,axis

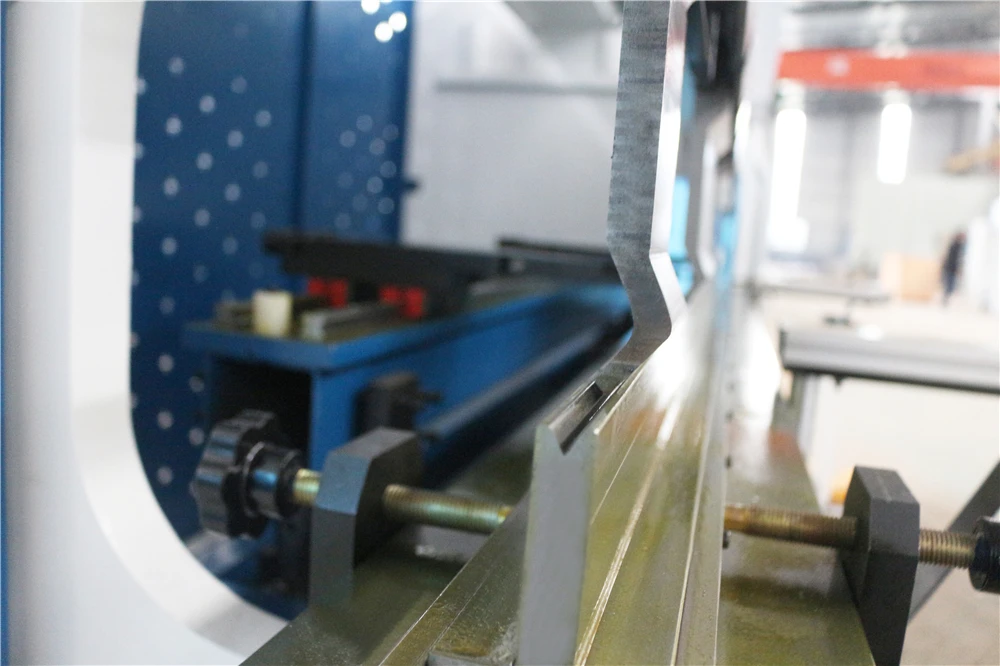

Stop Fingers
Standard equipped with 4 fingers
Standard AMADA type Toolings
*Cr12MoV material ,HRC>55
*Standard Segmented in to 835mm length each
*one piece segmented for small part
*Left and Right side with L shape cut
*Other types tooling for optional
Related Products
Optional Parts
Laser Protection Device
For CE Standard use. Keep safety of finger
Servo Main Motor
Fast Speed. No Noise when machine works. Need less hydraulic oil.
Two Hands Start Foot Switch
For CE Standard, keep safety.
Packing&Shipping
Machine usually send by sea. Is suitable for 20GP/40GP/40HQ/40OT container.
Some small machine can use Plywood case packing.
After loading machine will use carbon steel fix it.
