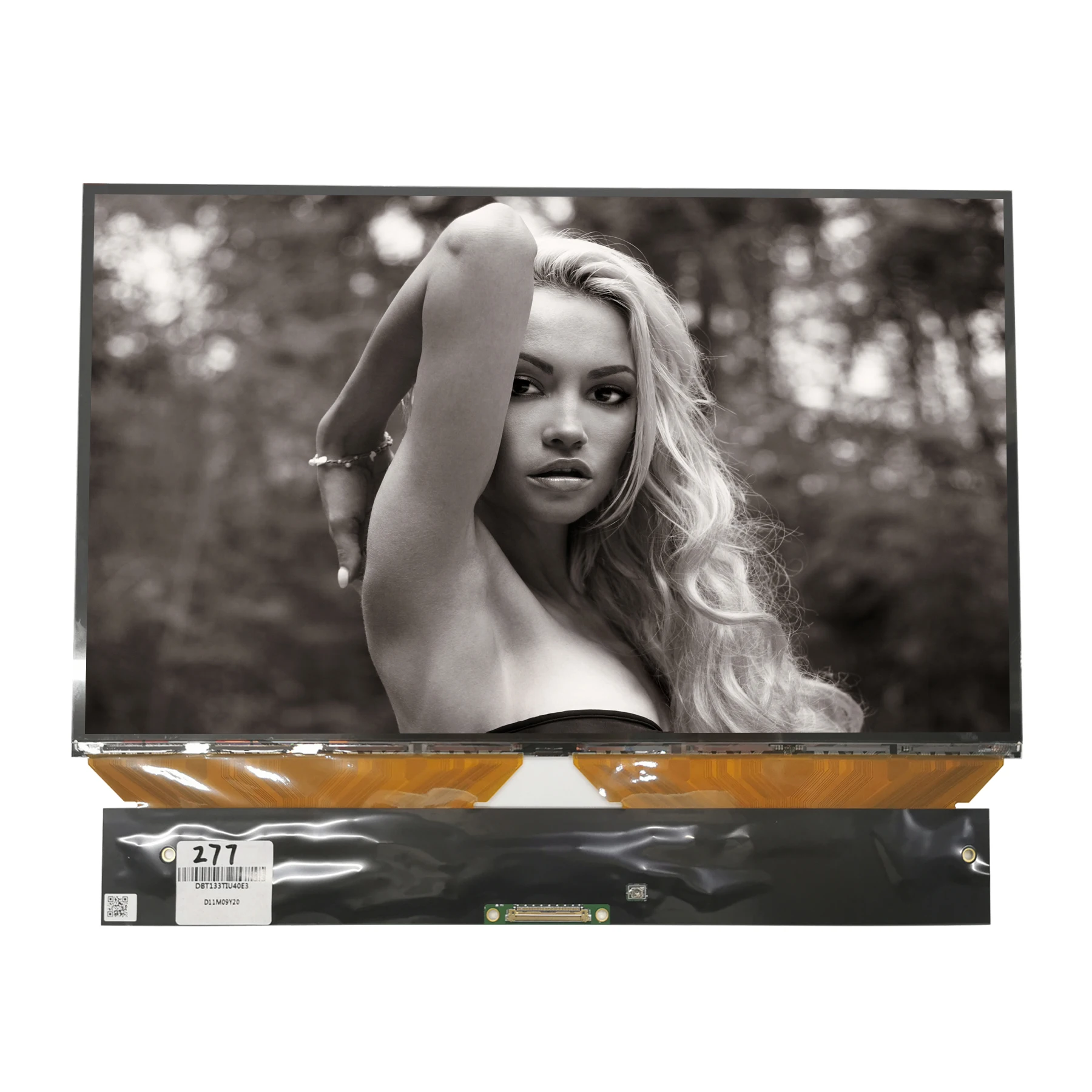

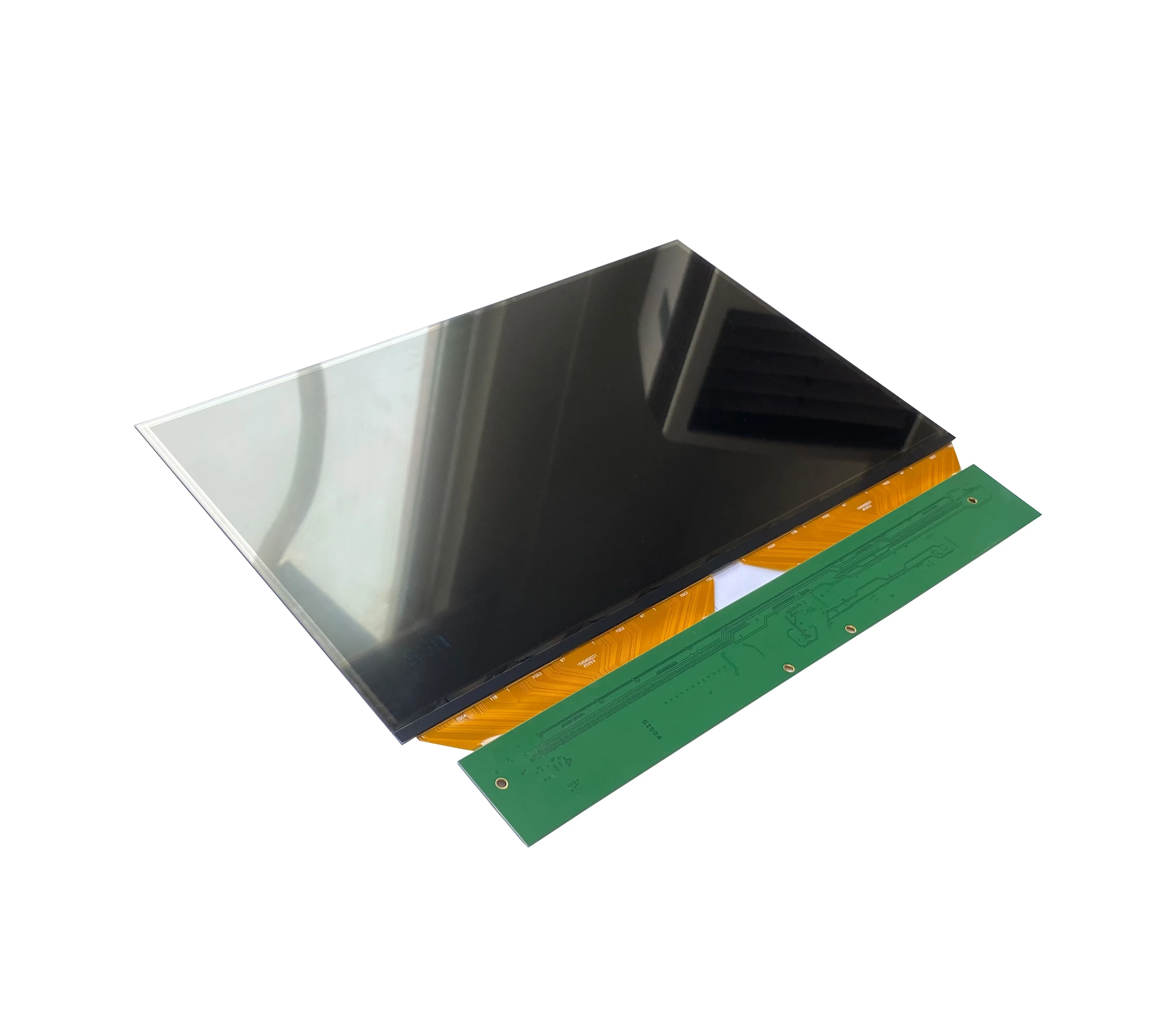

13.3 inch Duobond ips tft UHD monochrome 4k lcd panel for 3D LCD printer backlight removed
- Category: >>>
- Supplier: Shenzhen Aptus Technology Co. Ltd
Share on (62492225186):
Product Overview
Description
Product Description

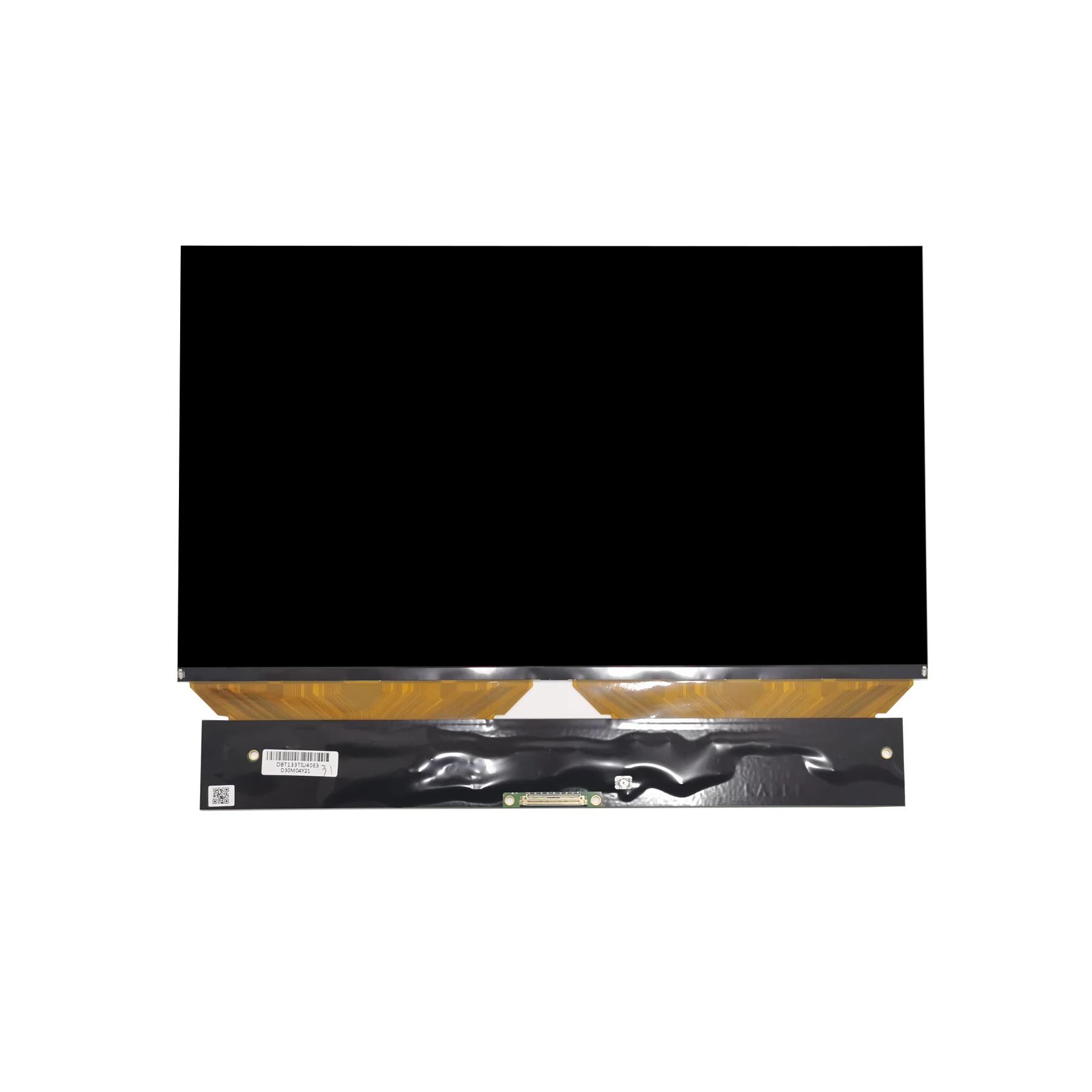

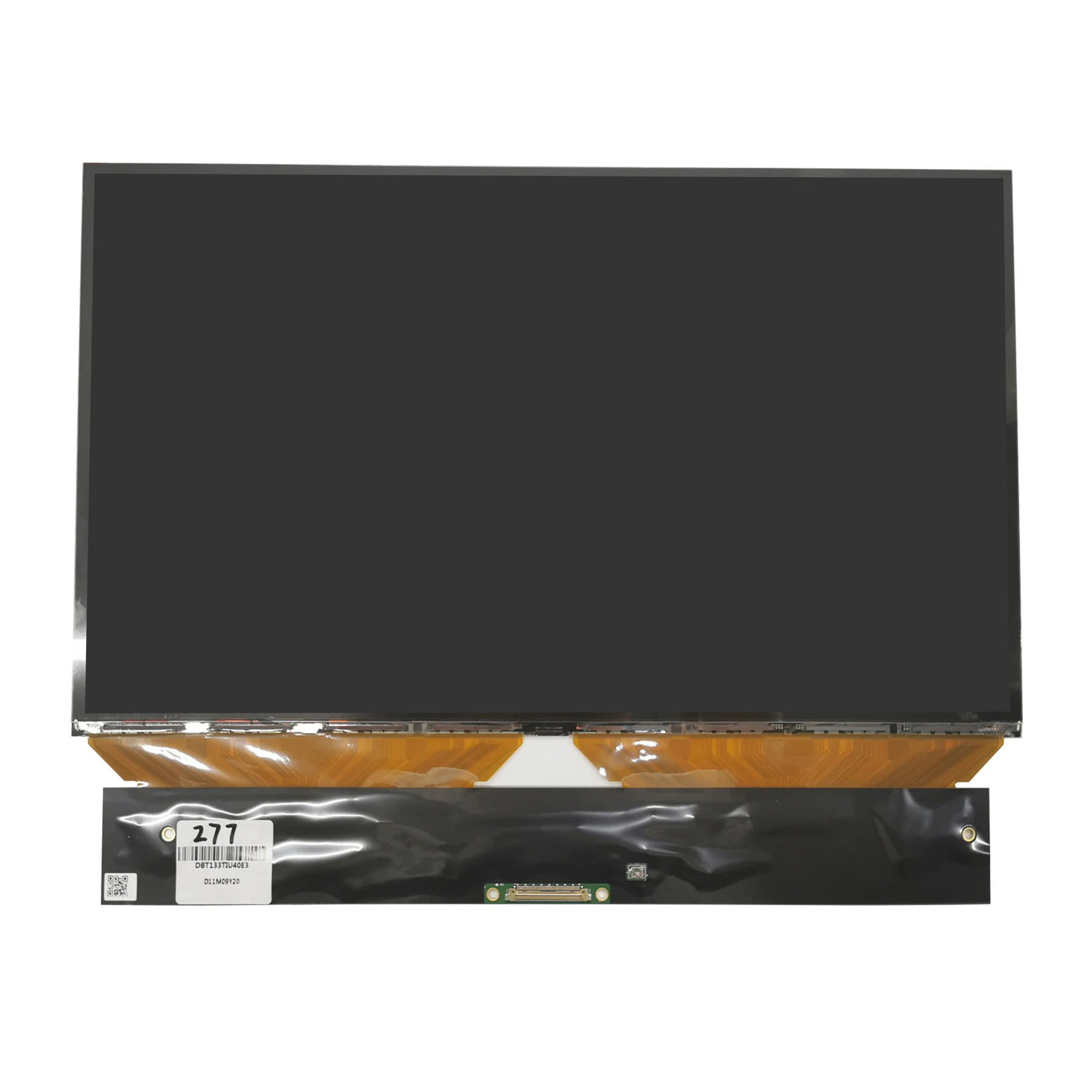

13.3 inch 4K monochrome LCD screen for 3D printer
No. | Item | Specification |
1 | LCD size | 13.3"(Diagonal) |
2 | Model Name | DBT133TIU40E0 |
3 | Resolution | 3840*2160( 4K mono LCD) |
4 | Display Area | 293.76(W)×165.24(H) mm |

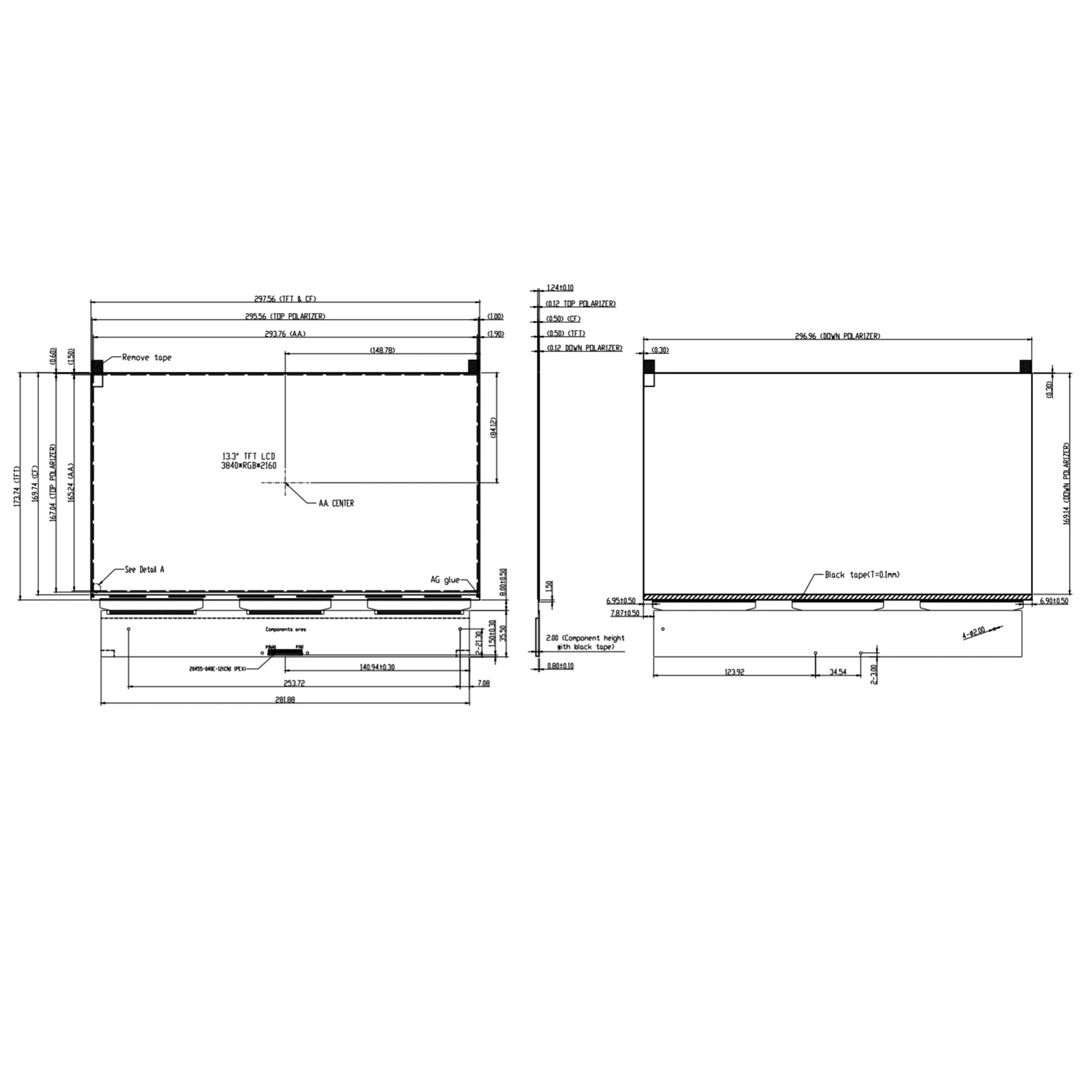

5 | Outline Size | 302.36(W)×176.94(H)x1.228 mm |
6 | Backlight | Without backlight,original open cell |
7 | Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
8 | Pixel pitch(um) | 76.5*76.5 |
9 | Display Colors | 16.7M 100% (CIE1931) |
10 | Signal Interface | eDP 1.4, Connector |
11 | Environment | Operating Temp.: -10 ~ 60 °C Storage Temp.: -20 ~ 80 °C |
12 | Contrast Ratio | 800:1 (Typ.) |
13 | Application | 3D printer |
Details Images
Advantages of Monochrome LCD for 3D Printer
(2). High Resolution : Pixel Pitch 76.5*76.5 um
(3). Original Open Cell(mono LCD without backlight)

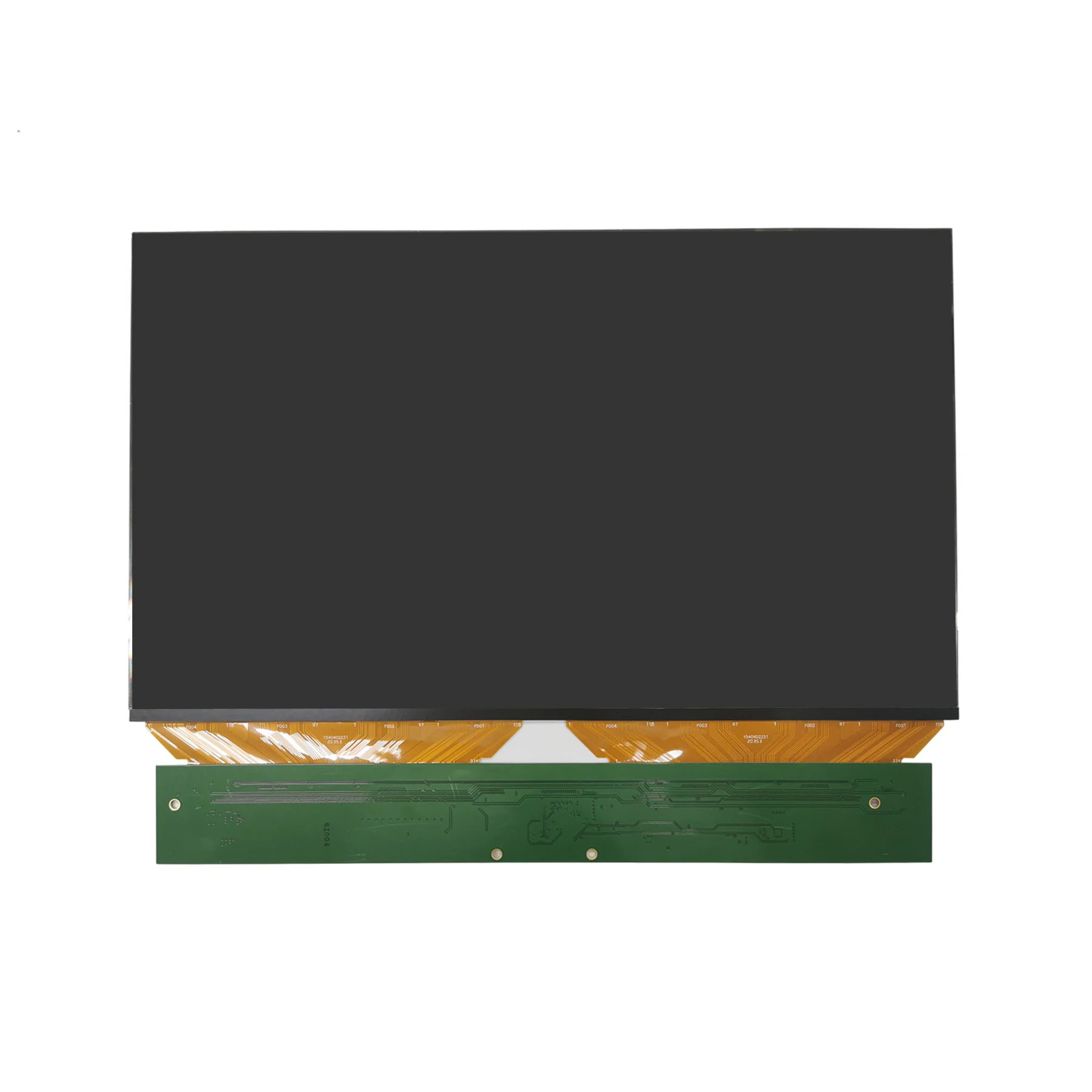

Full Set for 13.3 inch LCD
(We can provide HDMI driver board )
Customer Reviews
Related Products
Product packaging
About Us
Size and Feature | Model No | Resolution | Interface | Viewing angle | Color |
5.5" 2K LCD with driver board | 1440*2560 | MIPI (2 ch, 4 data lanes) , 50 pins , Connector | 80/80/80/80 (Typ.)(CR≥10) | RGB | |
5.5'' 4K LCD with driver board | 2160*3840 | MIPI (2 ch, 4 data lanes) , 60 pins Connector | 85/85/85/85 (Typ.)(CR≥10) | RGB | |
5.5'' MONO 4K LCD with driver board | 2160*3840 | MIPI 4 Lanes x 2 | 85/85/85/85(Typ.)(CR≥10) | MONO | |
5.96'' MONO 2K LCD with driver board | 1620*2560 | 30 pins MIPI | 80/80/80/80(Typ.)(CR≥10) | MONO | |
6.6'' MONO 4K LCD with driver board | 4098x2560 | 50 Pins MIPI | Free | MONO | |
8.9'' 2K LCD with driver board | 1600*2560 | MIPI (2 ch, 4 data lanes) , 61 pins Connector | 80/80/80/80 (Typ.)(CR≥10) | RGB | |
8.9'' 4K MONO LCD with driver board | 3840x2400 | 50pins MIPI | 85/85/85/85(Typ.)(CR≥10) | MONO | |
10.1'' 5K MONO LCD with driver board | 4920*2880 | 40 pins eDP | 80/80/80/80 (Typ.)(CR>10) | MONO | |
12.5'' 4K LCD with driver board | 3840x2160 | eDP 40 pins | 89/89/89/89 (Typ.)(CR≥10) | RGB | |
13.3'' 4K MONO LCD with driver board | 3840x2160 | 40pins eDP | 85/85/85/85(Typ.)(CR≥10) | MONO |
Certifications
Patent Certificate
We designed parallel light sources with patent certificate.
Patent number: ZL 2019 3 0018260.5
Patent number: ZL 2019 2 0120538.4
Patent number: ZL 2019 3 0018797.1
FAQ
Q: What is the MOQ?
A: MOQ is 1 pcs.We can do the support when the test process.
Q: What about the delivery time?
A: We have 13.3 inch 4K monochrome LCD products in stock,can ship them within 7 working days.
Q: Does your product have any warranty?
A: It is well known that UV damage LCDs, and the heat generated by resin curing damages LCDs. Different user cause different damages to LCDs. We guarantee that when you receive the LCD, it will work properly. We do not provide guarantees for damage caused during use.
Q: What's your payment method?
A: We usually accept the payment methods include T/T,Alibaba order,Paypal.
Q: What's your shipping method?
A: We provide comprehensive shipping methods.
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea transportation.
Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now!
A: MOQ is 1 pcs.We can do the support when the test process.
Q: What about the delivery time?
A: We have 13.3 inch 4K monochrome LCD products in stock,can ship them within 7 working days.
Q: Does your product have any warranty?
A: It is well known that UV damage LCDs, and the heat generated by resin curing damages LCDs. Different user cause different damages to LCDs. We guarantee that when you receive the LCD, it will work properly. We do not provide guarantees for damage caused during use.
Q: What's your payment method?
A: We usually accept the payment methods include T/T,Alibaba order,Paypal.
Q: What's your shipping method?
A: We provide comprehensive shipping methods.
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea transportation.
Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now!
