electronic master key access control for electronic lock and smart key

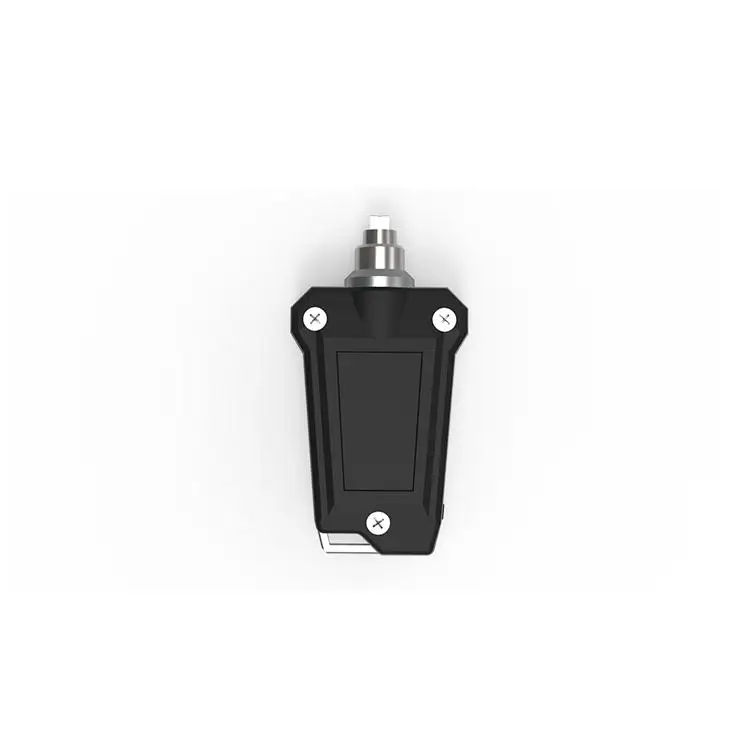

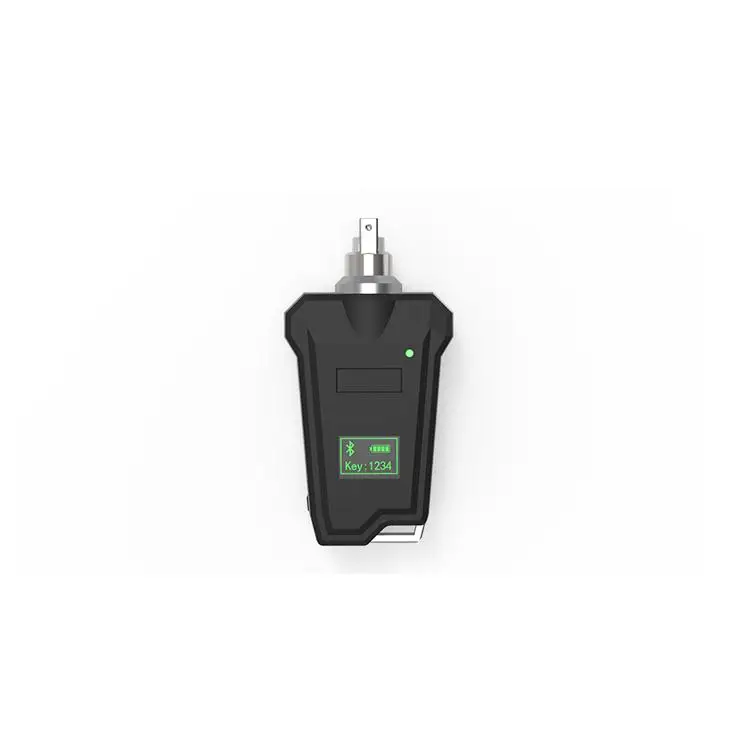

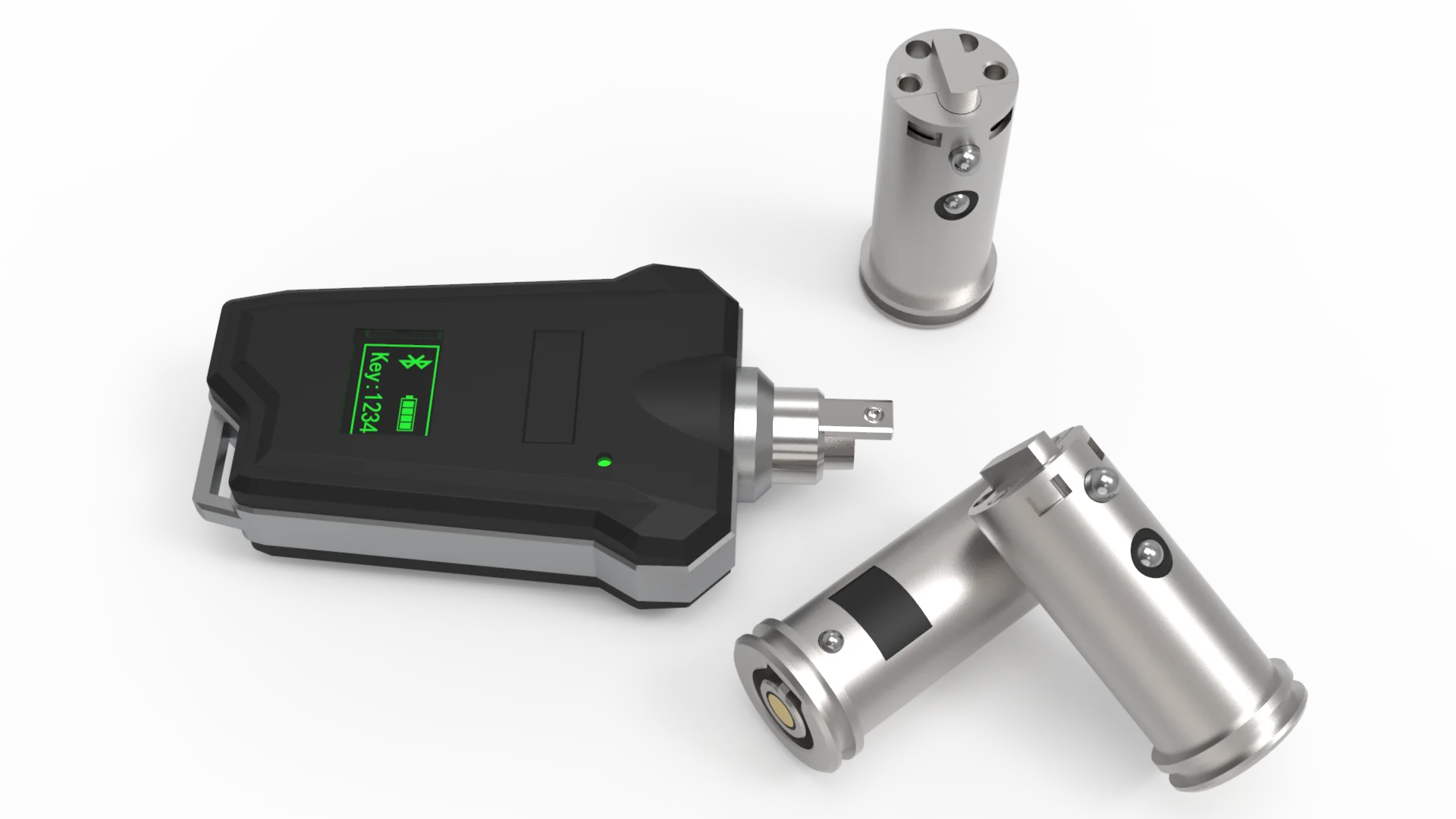

Ekey-ble01 is an electronic key product that supports BLE4.0 bluetooth and USB direct communication.

The product uses the zinc alloy ring edge bright chrome ring,  Overall black and white with upper and down translucent. Graceful! It contains bluetooth communication, USB cable communication, open and close record storage and upload, authorized open and block, sound and light screen tips of three categories, online unlock, offline unlock, operation times and other functions.

Functions:

1. Mobile phone connects to bluetooth in real time

2. Unlock operation (as described above)

3. Record storage and real-time uploading to platform

Product Parameters:

Items	Description
Working voltage	3.7V-4.2V DC
Working current	Working current:≤70mA
	lock current:≤100mA
	Standby current:≤15μA
Temperature range	-40℃to80℃
Humidity range	5%to95%( No condensation)
Standby time	≥6months
Battery capacity	500mAh lithium
torque	≥3Nm
Communication protocol	Customize, see attachment
material	Zinc alloy ring, translucent ABS plastic cover
Surface treatment	Electroplating and sanding
