2023 new design acoustic ceilings perforated fiberglass mat ceiling panels factory manufacturing plasterboard suspended grid
- Category: >>>
- Supplier: Jiangyin Dego Building Materials Co. Ltd.
Share on (62492249244):
Product Overview
Description

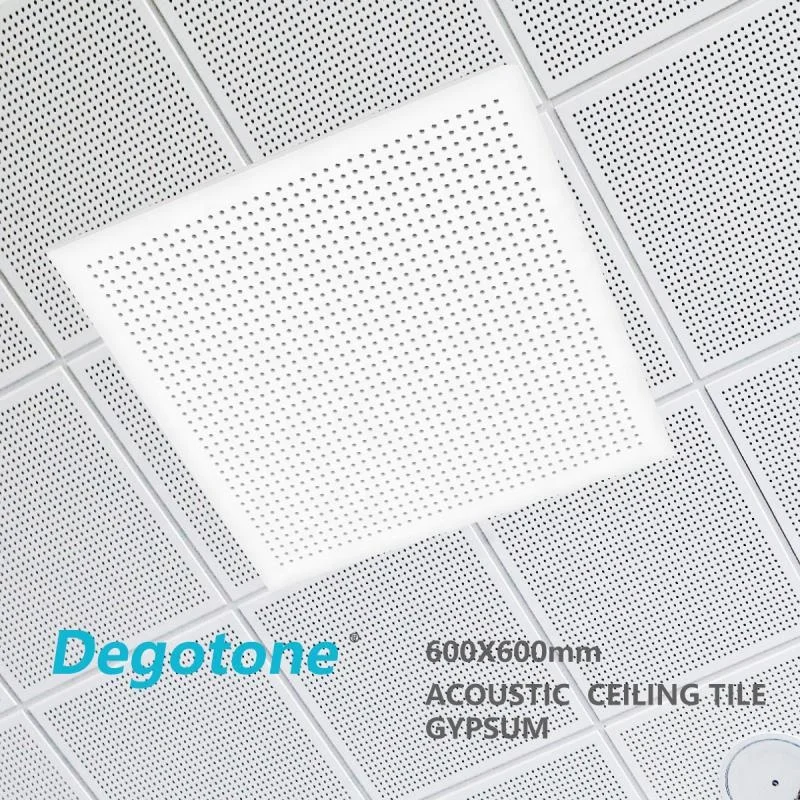

DEGOTONE -600X600mm Acoustic gypsum ceilings

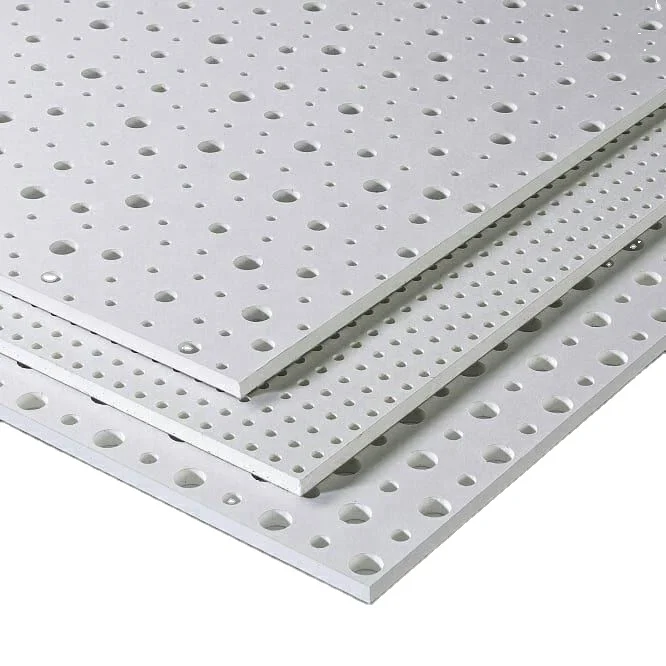

Perforated Plasterboard Ceiling Tile
Perforated Plasterboard Ceiling Tile
DEGOTONE® TILES 600 Acoustical CEILING PANELS add beauty in all sorts of spaces—and in every sense. Elegant, white paintable lay-in panels—with perforated patterns or without—create memorable visible impressions. Exceptional sound absorption helps ensure an agreeable soundscape. For ease of installation and service, panels are compatible with standard suspension grid system.
Benefits.
DEGOTONE CEILING 600 is a perforated plasterboard ceiling tile with machine routed edge detail to suit T24 or T15 exposed grid systems. Panels are pre finished white with acoustic tissue backer. Provides an attractive perforated texture to ceilings
Applications:
Retail Airports Offices SchoolsOffice Atriums Corridor
6/15R Round Ceiling

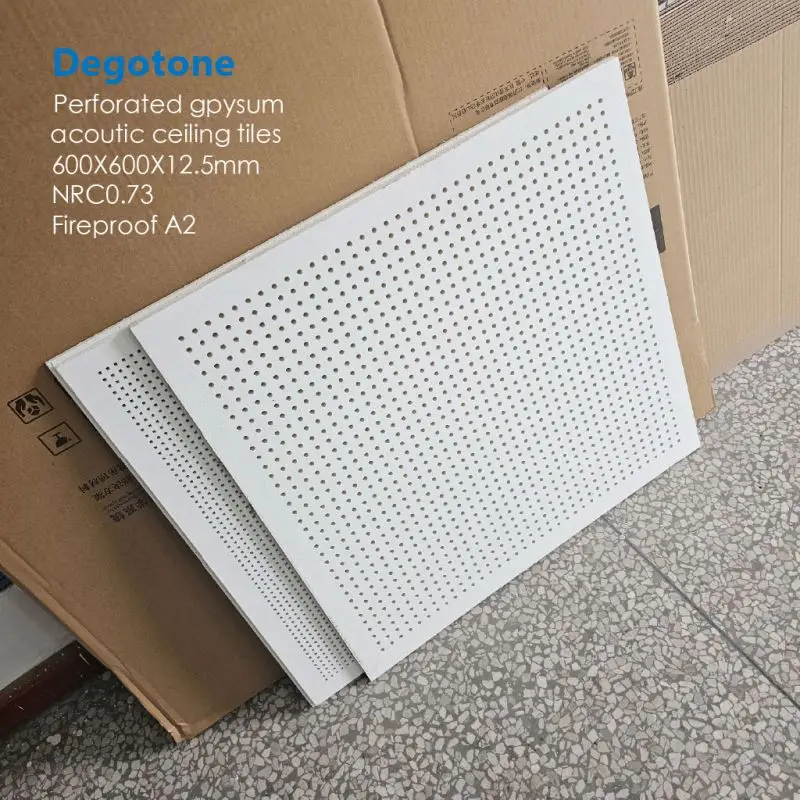

Perforated Ceiling Tiles are squared edged, 12mm thick and available as600mm x600/1200mm tiles to suit common exposed grid systems.
The acoustic properties of the tiles are achieved by a regular grid of 6mm, full depth holes to approximately 10% of the panel
area. This, combined with suitable insulation, provides a medium level of sound absorption to reduce echoes and reverberation. The
edges of the tiles are cut square to suit exposed grid ceiling systems.
The acoustic properties of the tiles are achieved by a regular grid of 6mm, full depth holes to approximately 10% of the panel
area. This, combined with suitable insulation, provides a medium level of sound absorption to reduce echoes and reverberation. The
edges of the tiles are cut square to suit exposed grid ceiling systems.

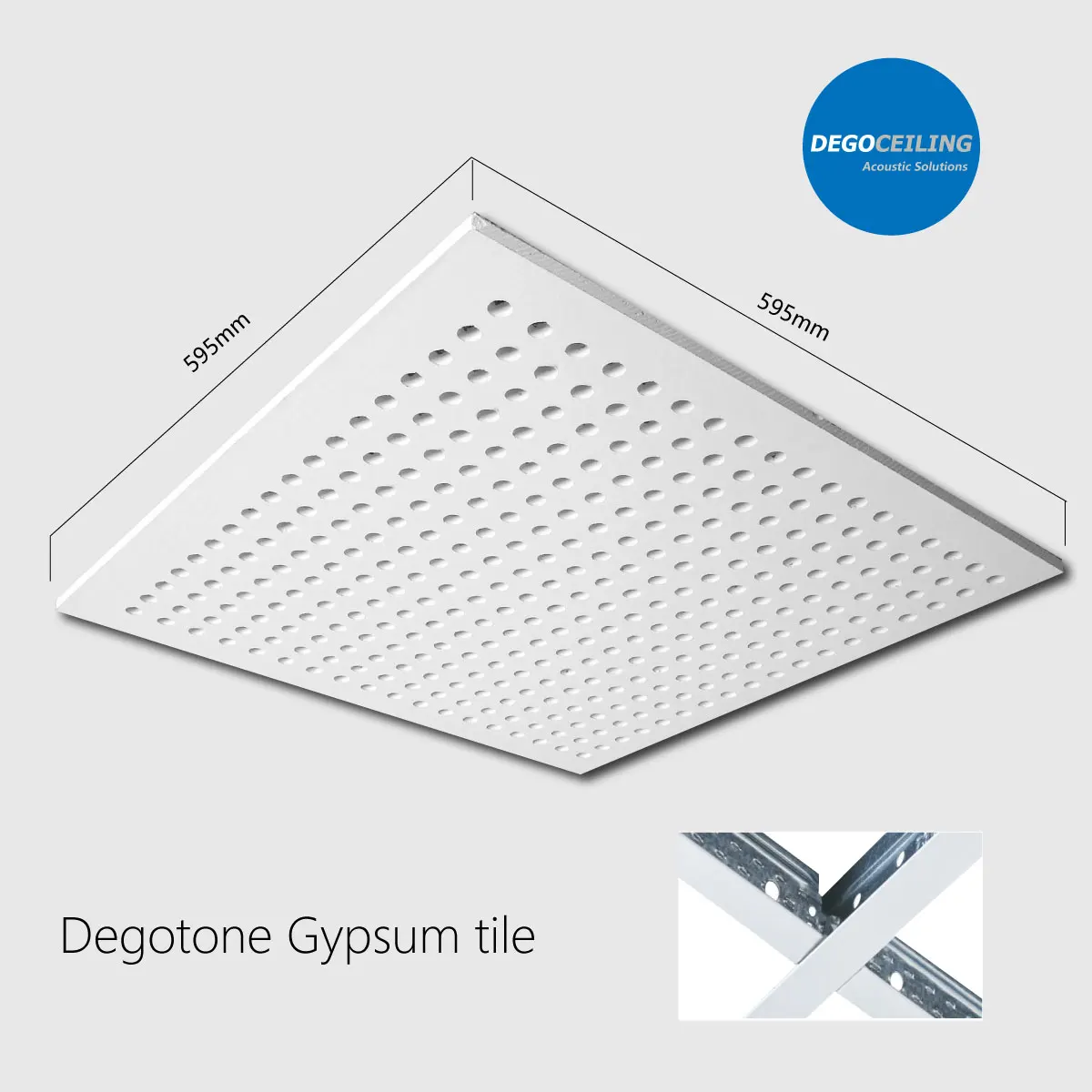

White Acoustic Gypsum 600 Ceiling Tile

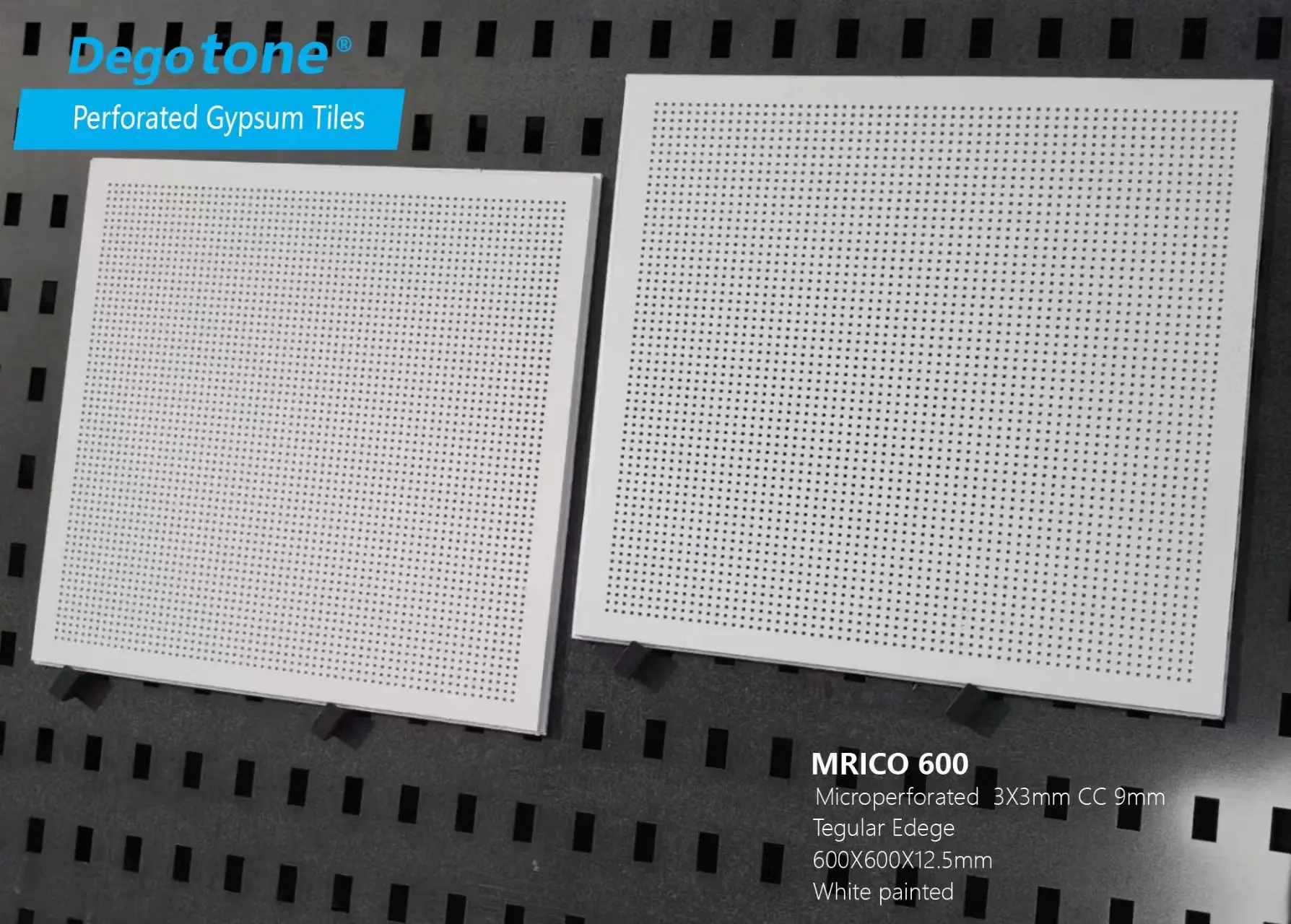

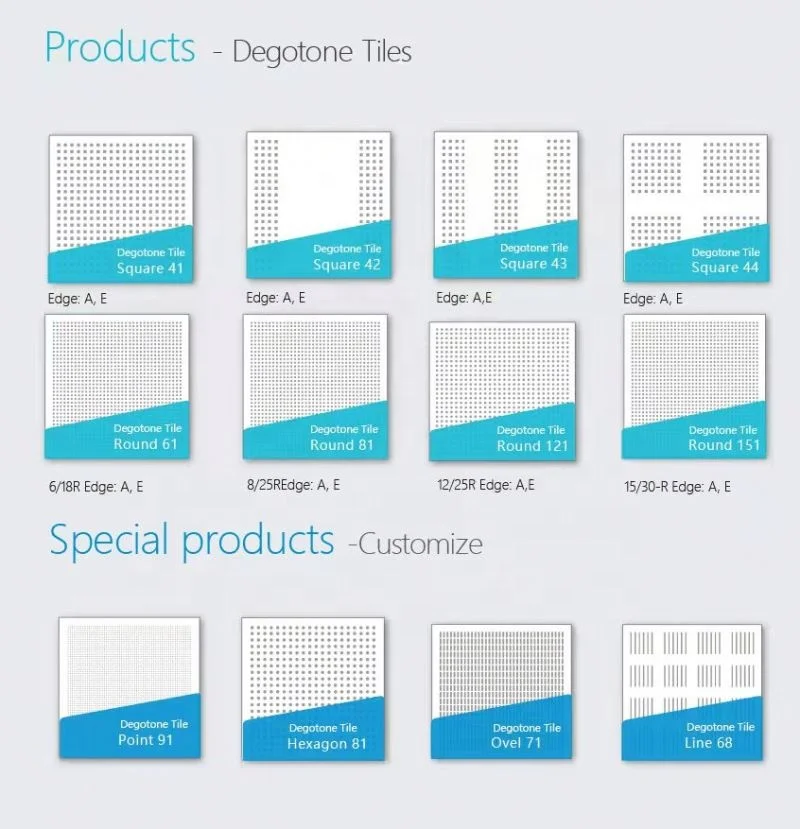

perforation pattern shall be (Tangent, T1 14 x 4mm oval, Micro M1 3 x 3 mm) (squarel Q1 12 x 12 mm) (round 6 mm diameter) (Regula non perforated) with acoustic tissue backing, (aW 0.65) (Tangent aW 0.75), prepainted white, fire group , size (600 x 600) (1200 x 300) (other) suspension shall be (T24) (T15) two way exposed grid system
An adaptable range of pre-finished white gypsum suspended ceiling tiles available in a choice of smooth, textured or perforated finishes. The range includes sound insulating and absorbing options, making them ideal solutions for a wide variety of building environments

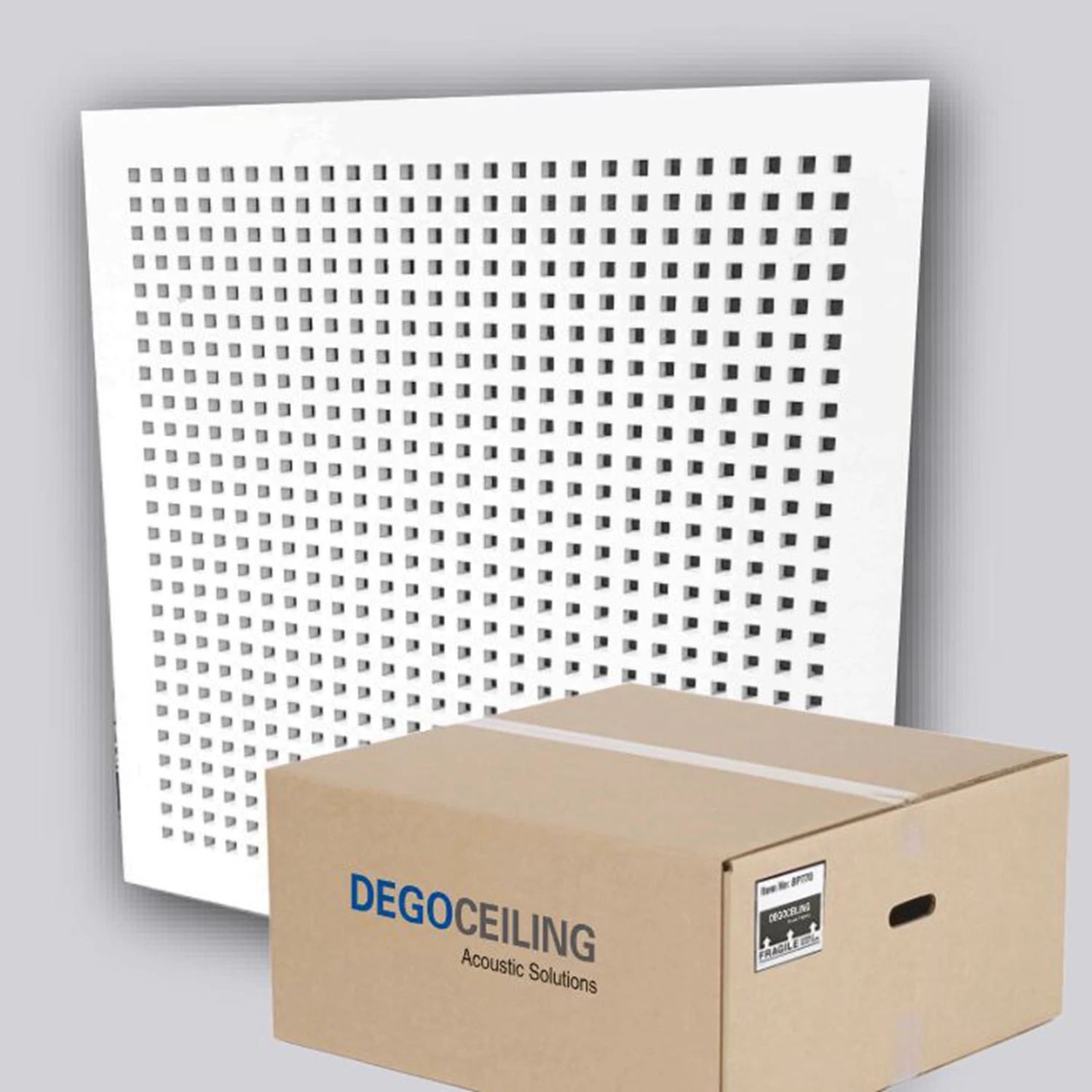

12/25Q Square Ceiling
Perforated Ceiling Tiles are squared edged, 12mm thick and available as 600mm x600/1200mm tiles to suit common exposed grid systems.
This, combined with suitable insulation, provides a medium level of sound absorption to reduce echoes and reverberation. The
edges of the tiles are cut square to suit exposed grid ceiling systems.
The white coating facing is easy to clean 12X12mm square perforations at 25mm centres to provide an open area of 16%.
Degotone gypsum Systems include:
600X600X12.5mm 2400X1200X12.5mm 600X600X9.5mm

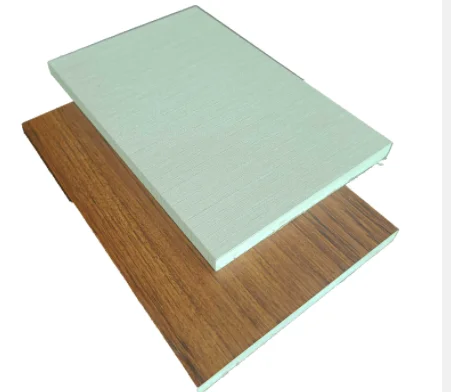

· Degotone® seamless Degotone® Fabric wall board Degotone® PVCquick wall board
2000X1200X12.5mm 2700X1200X12.5mm 2700X1200X12.5mm
Material: | High-strength plasterboard | ||||||
Surface: | Acrylic latex paint | ||||||
Color | White | ||||||
Hole | Round 6 mm，squarel Q1 12 x 12 mm.Tangent, T1 14 x 4mm oval, Micro M 3 x 3 mm | ||||||

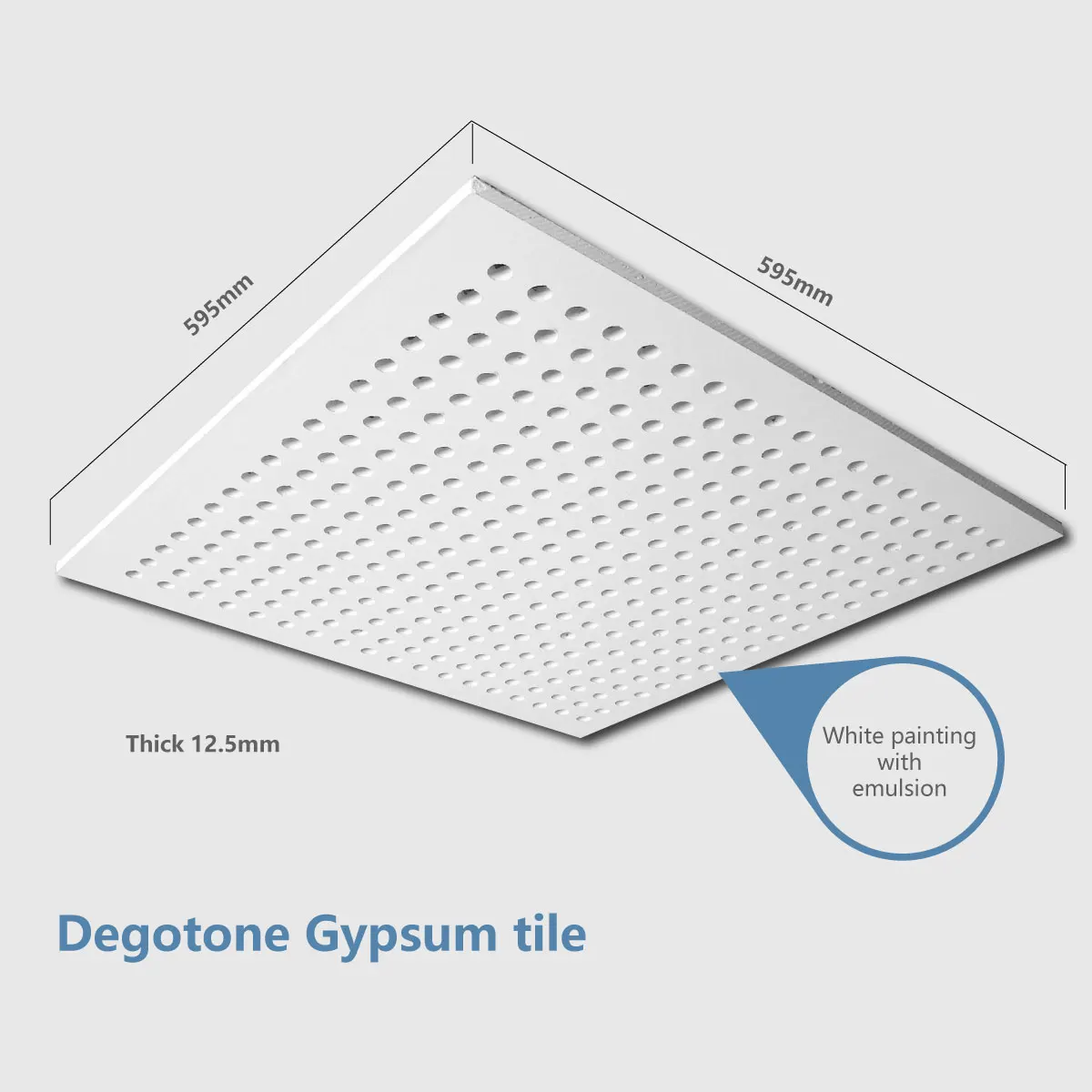

Sizs： | 595*595mm，595*1195mm | ||||||
Thickness | 12.5mm | ||||||
Weight | 7.7kg/m2 | ||||||
Edge | Square ,Tegular | ||||||
Perforation rate | 9-21.3% | ||||||
Back | 45g/m2 Sound absorption fabric | ||||||
Fireproof class | A2 -s1d0 | ||||||
Acoustic performance | αwup to 0.65 - NRC up to 0.65 - Dncwup to 39dB | ||||||
Moisture resistance | RH70 | ||||||
Suspension system | Ceiling grid (Ceiling T bar) | ||||||
Square A24 Edeg
Exposed T-15 grid, Exposed T-24 grid
Demountable/Prepainted
Demountable/Prepainted
Tegular E15 Edeg
Exposed, recessed T-15 grid
Demountable/Prepainted
Demountable/Prepainted
Concealed D24 Edeg
Concealed T-24 grid
Demountable/Prepainted
Demountable/Prepainted
Technical data | Value | |||
Edge | A 24 | B | E15 | D24 |
Modular size, mm | 600 x 600 1200 x 600 | 600 x 600 1200 x 600 | 600 x 600 1200 x 600 | 600 x 600 1200 x 600 |
Actual size, mm | 595 x 595 1195 x 595 | 595 x 595 1195 x 595 | 595 x 595 1195 x 595 | 595 x 595 1195 x 595 |
Thickness, mm | 9.5 12.5 | 9.5 12.5 | 12.5 | 12.5 |
Weight | 7 kg/m2 8 kg/m2 | 8 kg/m2 | 8 kg/m2 | 8 kg/m2 |
Fire performance | A2s1d0 | A2s1d0 | A2s1d0 | A2s1d0 |
Colour | White | White | White | White |
Light reflection | 86% | 86% | 86% | 86% |
Perforation rate | 8.7-23% | 8.7-23% | 8.7-23% | 8.7-23% |
Hole Type | Round Square MICRO Oblong | Round Square MICRO Oblong | Round Square MICRO Oblong | Round Square MICRO Oblong |
DEGO FACTORY
DEGO develops, manufactures and markets acoustic panels baffles and ceiling tiles systems.18 years of experience in many projects through architects, designers, agents, OEMs of famous brand companies
Our acoustic products cover glass fiber, rock wool, mineral wool, gypsum materials .
Customized surface textures, colors, shapes and modular standard products ，High quality products to serve many customers
We offer a wide range of acoustic ceilings for all purposes. Explore our comprehensive product systems.
Customized surface textures, colors, shapes and modular standard products ，High quality products to serve many customers
We offer a wide range of acoustic ceilings for all purposes. Explore our comprehensive product systems.
Mineral wool modular ceiling
Glass wool tile
600X600 600X 1200 Thick15 20mm
Fire performance A2
Moisture resistance RH99
Fire performance A2
Moisture resistance RH99
Sound absorption NRC0.85
Stone Wool tile
600X600 600X 1200 Thick15 20mm
Fire performance A1
Moisture resistance RH99
Moisture resistance RH99
Sound absorption NRC0.85
Hanging Ceiling System
