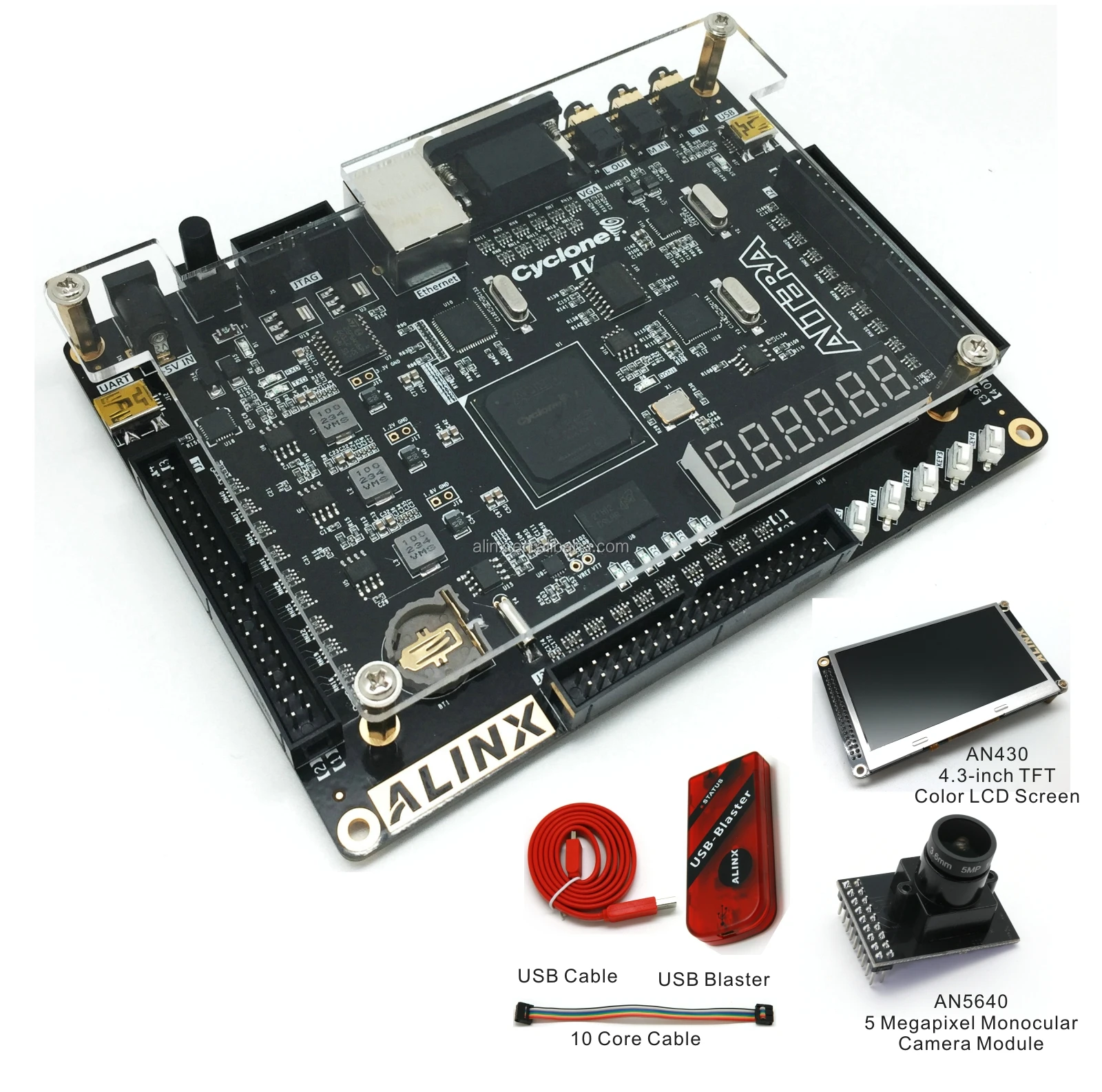

  • INTEL ALTERA CycloneIV NIOS EP4CE15 FPGA Development Board DDR2 Gigabit ALINX (Board Program Loader camera/4.3" LCD)
INTEL ALTERA CycloneIV NIOS EP4CE15 FPGA Development Board DDR2 Gigabit ALINX (Board Program Loader camera/4.3
INTEL ALTERA CycloneIV NIOS EP4CE15 FPGA Development Board DDR2 Gigabit ALINX (Board + Program Loader + camera/4.3
INTEL ALTERA CycloneIV NIOS EP4CE15 FPGA Development Board DDR2 Gigabit ALINX (Board + Program Loader + camera/4.3
INTEL ALTERA CycloneIV NIOS EP4CE15 FPGA Development Board DDR2 Gigabit ALINX (Board + Program Loader + camera/4.3
INTEL ALTERA CycloneIV NIOS EP4CE15 FPGA Development Board DDR2 Gigabit ALINX (Board + Program Loader + camera/4.3
INTEL ALTERA CycloneIV NIOS EP4CE15 FPGA Development Board DDR2 Gigabit ALINX (Board + Program Loader + camera/4.3
INTEL ALTERA CycloneIV NIOS EP4CE15 FPGA Development Board DDR2 Gigabit ALINX (Board + Program Loader + camera/4.3

INTEL ALTERA CycloneIV NIOS EP4CE15 FPGA Development Board DDR2 Gigabit ALINX (Board Program Loader camera/4.3" LCD)

Share on (62492263510):


Price:RUB 16,860.90

Quantity:


Product Overview

Description

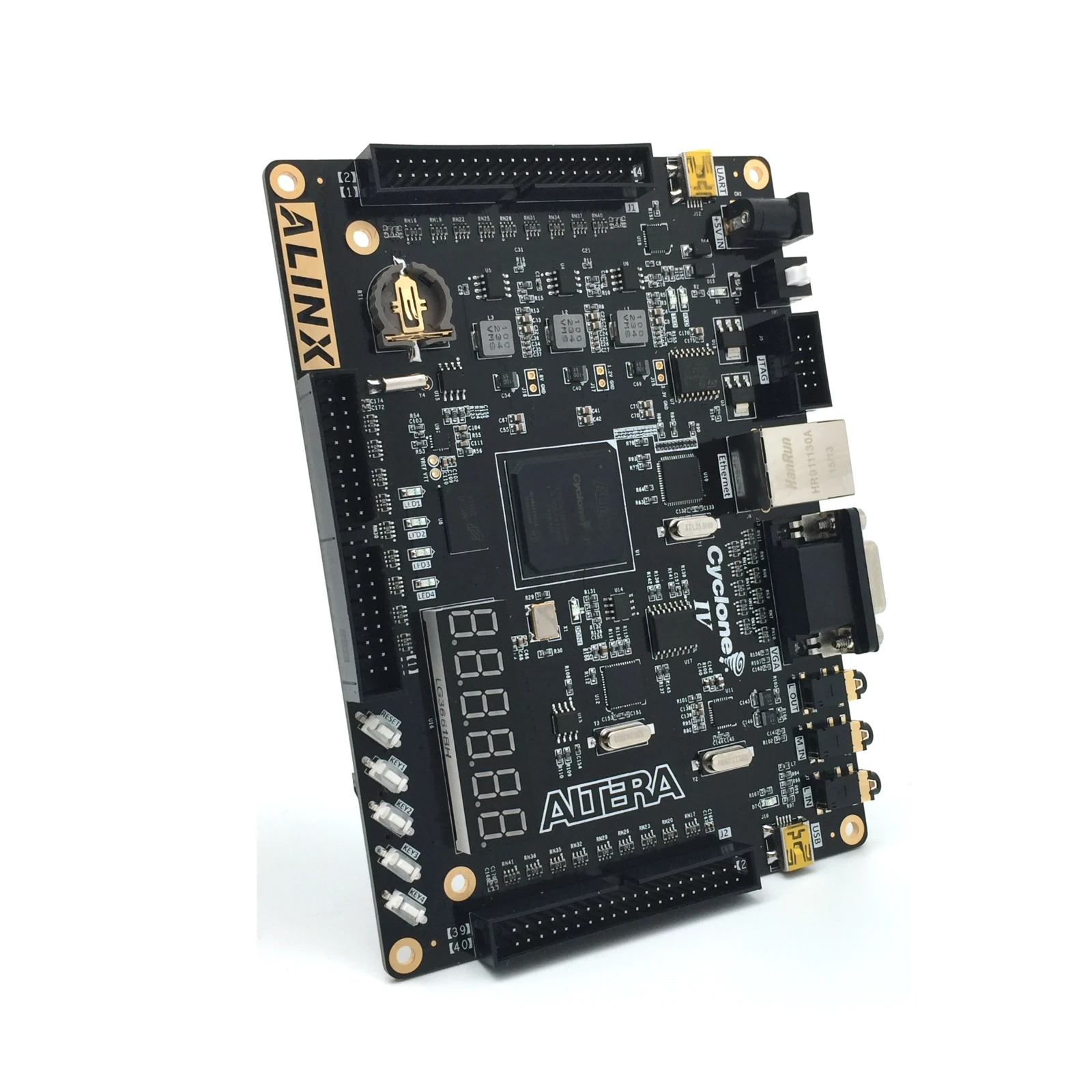

  • Cyclone IV EP4CE15F FPGA Development Board

FPGA: Intel/ Altera Cyclone IV EP4CE6F17C8 Logic Elements: 15,408 Embedded memory (Kbits): 504 18 x 18 Multiplier: 56 General-purpose PLLs: 4 Global Clock Networks: 20 User I/O Banks: 8 Maximum user I/O: 343 Core Working Voltage: 1.2V

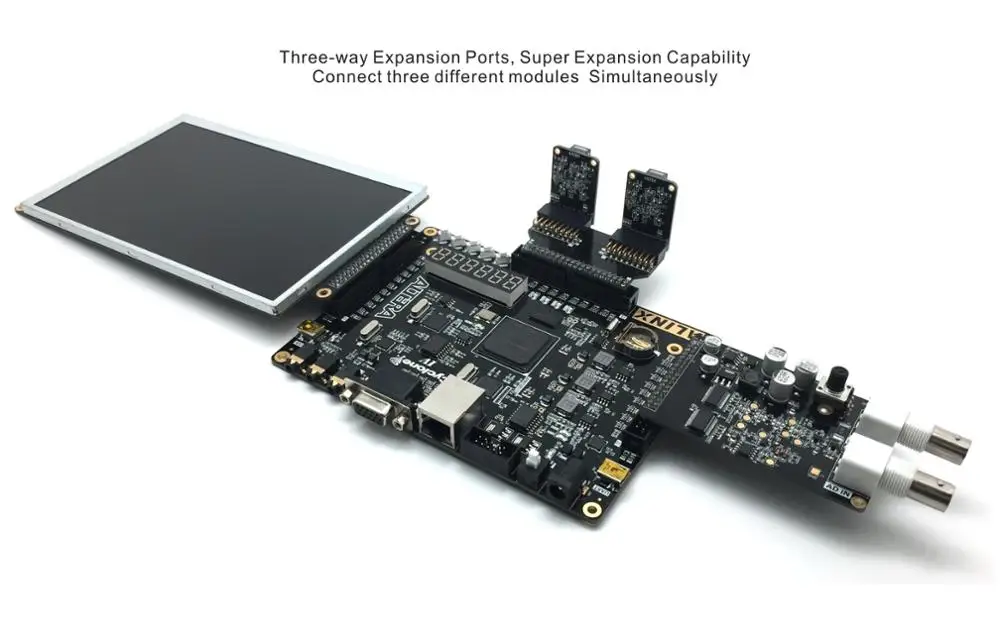

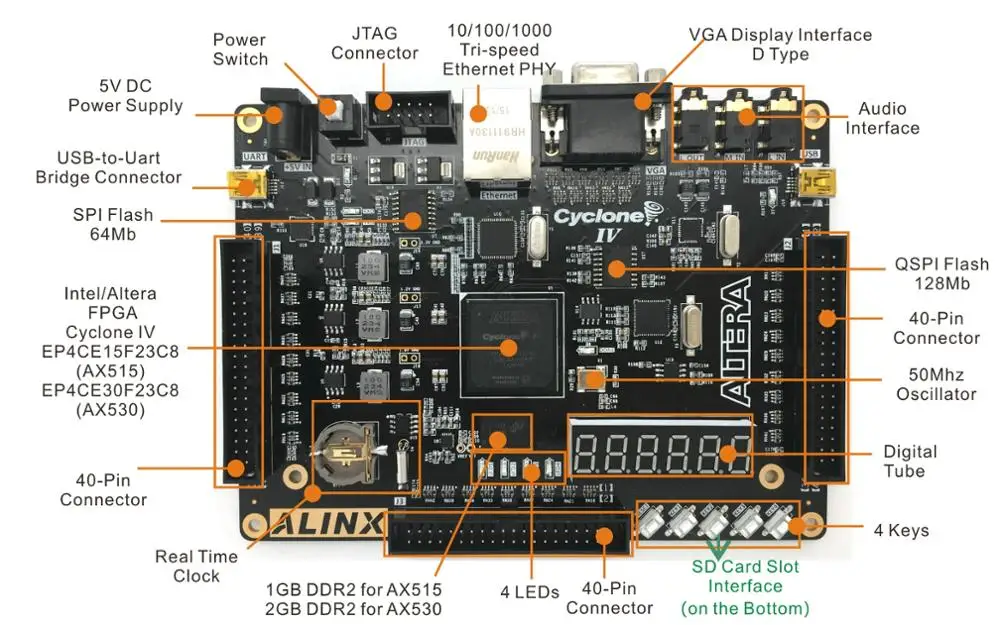

FPGA: Intel/ Altera Cyclone IV EP4CE15F23C8 Clocking: Fixed Oscillator with differential 50MHz output, used as the “system” clock for the FPGA Memory: Configuration chip SPI Flash: 64Mbit; QSPI Flash: 128Mbit; 1Gbit DDR2 (64M * 16bit), 16bit bus; IIC EEPROM 24LC04: 4Kbit (2*256*8bit); SD Card Slot Communication & Networking Gigabit Ethernet Connector, 10/100/1000 Mbps Ethernet (RGMII), Tri-Speed Ethernet PHY USB-to-UART Bridge Connector VGA Video Display interface USB 2.0 Interface Audio Port Configuration: Onboard JTAG header provided for use with ALINX Brand Intel/ Altera download cables such as the Platform Cable USB II Expansion Connectors: 3-port 0.1 inch spacing standard 40-pin expansion headers Display: 5 Keys, 6 LEDs, Digital Tube Real Time Clock Power: 5V DC Power Adaptor
Related Products
Company Introduction

Our Services & Strength
ALINX Electronics Technology (Shanghai) Co., Ltd, founded on 2012 in shanghai, china. It is High-tech Enterprise Specializing in FPGA R&D and Design.
XILINX official partner
Provide FPGA Development Kit (Xilinx MPSOC/ZYNQ7000/KINTEX-7/ARTIX-7/Spartan-7/Spartan-6 series fpga, Intel Altera Cyclone IV, Cyclone 10)
Widely used in artificial intelligence, machine vision, intelligent manufacturing, video image processing, Industrial control,
communications, instrumentation and other industries.
Major Customer: University, research institutes and high-tech enterprises in the development of FPGA technology, Talent
training and other aspects have a leading edge.
Packing&Shipping
Free Shipment: e-package, delivery time 9 to 15 days.
Expedited Shipping: EMS, DHL, SF, delivery time 5 to 7 days. Just paid $9.9 for the first package and $4.9 additional one.
FAQ
1. What are Documents Alinx Provide ?
---Schematic/PCB in pdf
---User Manual in English and Chinese

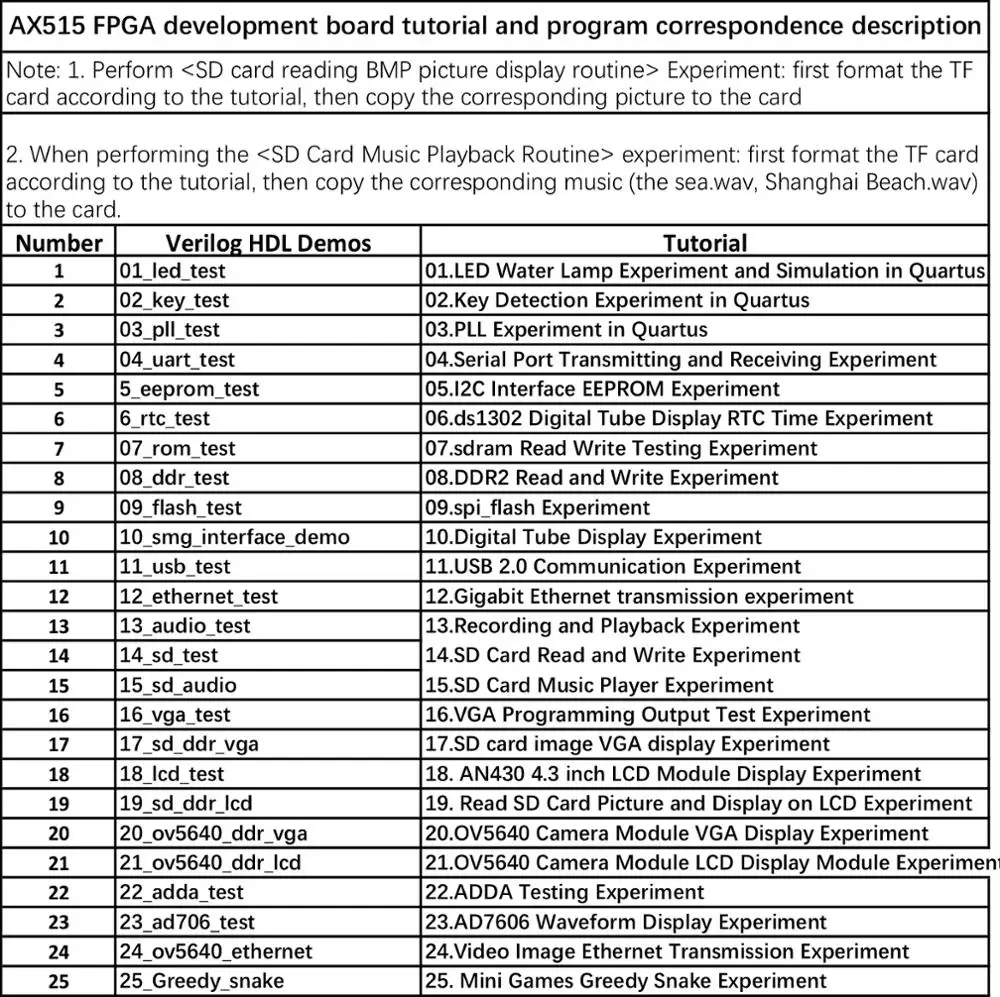

--- Verilog HDL Demos with Tutorial (in English and Chinese)
---Main Chip Datasheet

2. Where can i download the Documents ?
--All the documents saved in the dropbox.
Dropbox Link: https://www.dropbox.com/sh/w9le2i9r4c9thfs/AABWnuyHU55noQFt1kC2vfcXa?dl=0
Password: Alinx_AX515
-- If you need the technical support or customized board (MOQ 100), send email to rachel.zhou@alinx.com.cn
