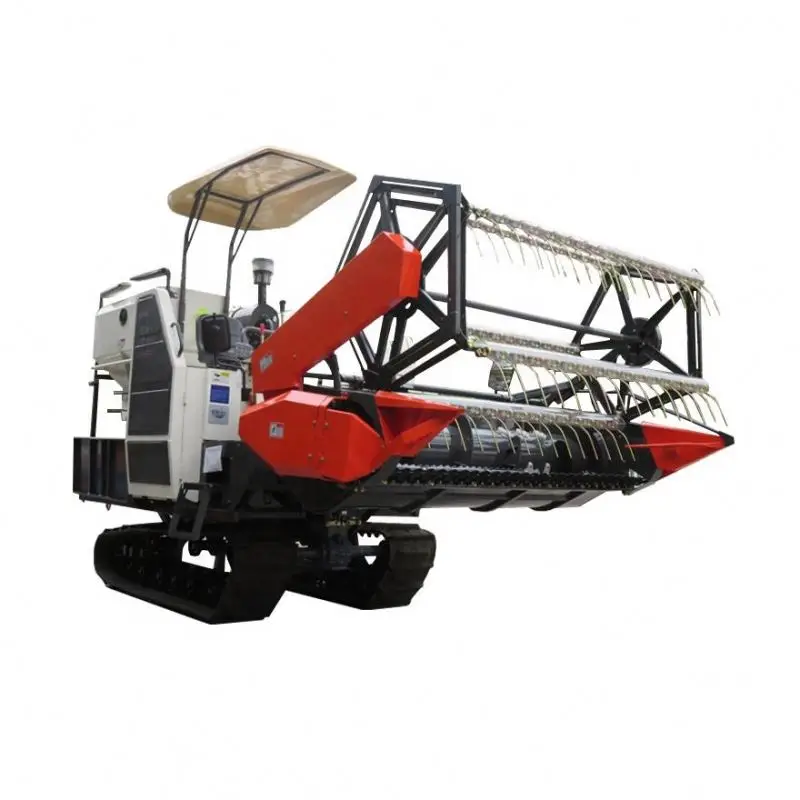

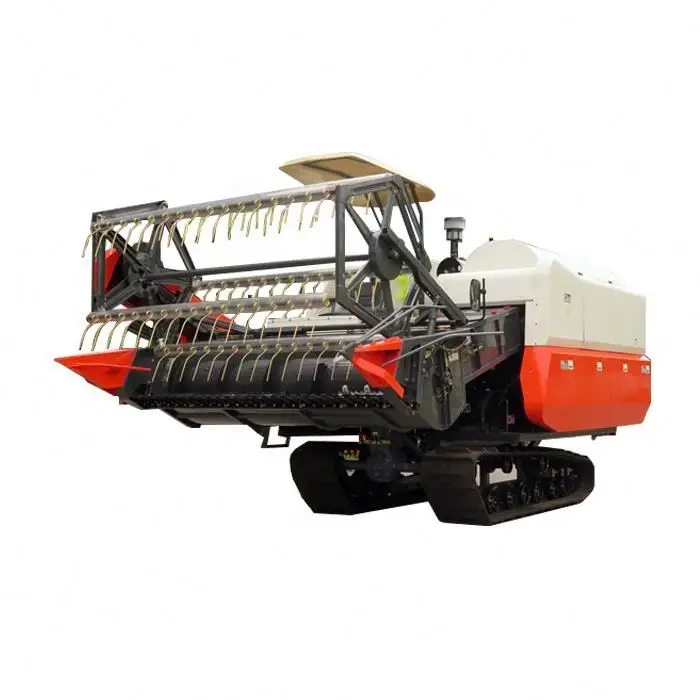

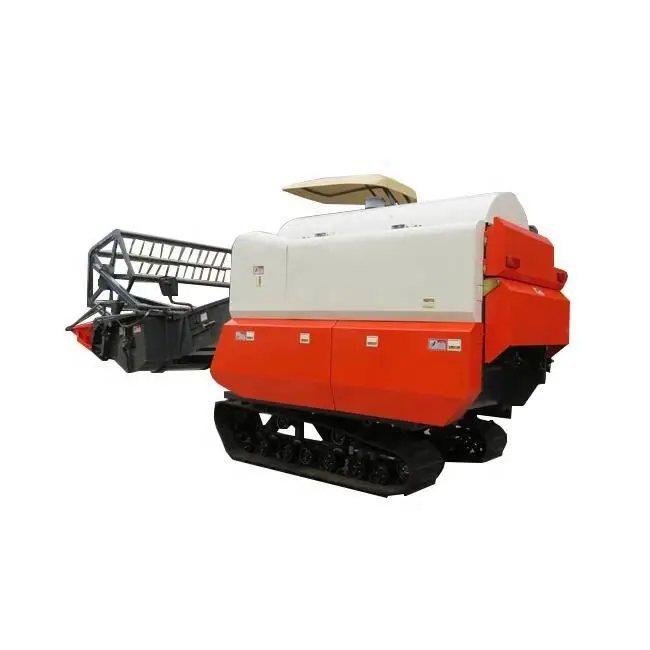

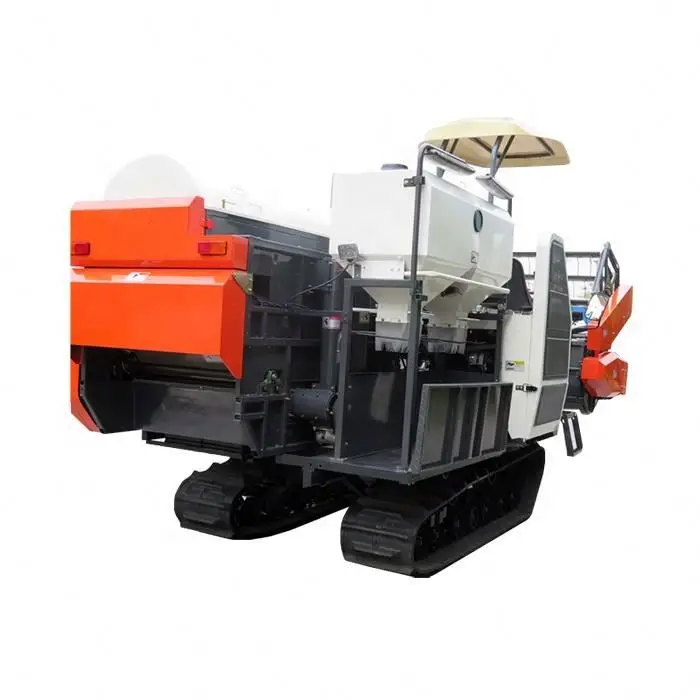

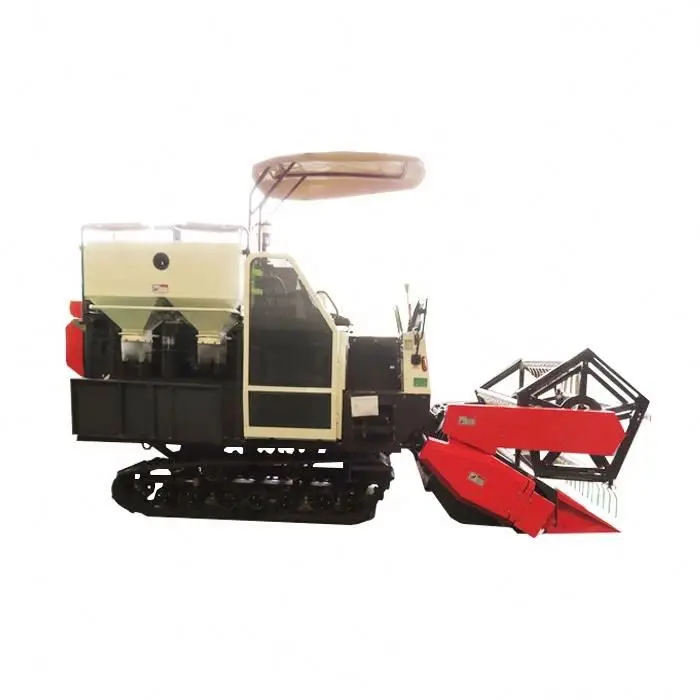

Manual Bagging Kubota Similar Rice Combine Harvester
- Category: >>>
- Supplier: Wuhan Wubota Machinery Co. Ltd.
Share on (62492297331):
Product Overview
Description
Model | 4LZ-5.0 |
Sturcture Type | Vertical Axis Flow Full Feeding Rubber Crawler Self-propelled |
Engine Type | 4-Cylinder,Vertical Engine,Water Cooled, DI-Injection, Turbocharged Engine |
Rated Power | 88HP |
Rotating Speed | 2600r/min |
Dimension（L*W*H） | 5015X2560X2820MM |
Weight | 3140KG |
Cutting Width | 2200MM |
Feeding Capacity | 5 kg/s |
Minimum Ground Clearance | 340MM |
Operation Speed | 1.8 to 5.3 km/h |
Productivity | 0.35 to 0.65 hm2/h |
Fuel Consumption | 18.5 to 40 kg/hm2 |
Cutter Type | Standard Type II |
Cutting Header Auger Type | Telescopic Transverse Conveyor Auger |
Reel type | Eccentric Tooth(off center) |
Threshing Roller | Vertical Axis Flow Spike Tooth |
Brake Type | Wet Friction Plate |
Fan Type | Centrifugal |
Rubber Crawler Size | 500mm*90mm*53 |
Gear Box | Hydraulic Stepless Speed Transmission(HST) |
Rethresher Type | Auger Spike Tooth |
Grain Unloading Type | 360 degrees automatic unloading or manual unloading |
FAQ:
1. Q: What is the warranty of your agricultural machines?
A: 1 year guarantee for whole machine ( except quick-wear parts ), engine and gear box.
2. Q: Are there any optional parts for your combine harvesters ?
A: Yes, optional parts such as rubber track size, grain tank and type of grain unloading.
3. Q: How long is your delivery time ?
A: Normally it takes 15-20 days to deliver after your deposit receipt or L/C at sight.
4. Q: How many harvesters can be loaded in one container ?
A: (1) 20 Feet Container loads:
For combine harvester:
5 sets 4LZ-0.5; 8 sets 4LZ-0.8; 1 set 4LZ-1.2; 1 set 4LZ-3.0; 1 set 4LZ-4.0/4.5
For Power Tiller: 18 sets GN12; 20 sets M80
For Rice Transplant: 4 sets WSTP60; 6 sets WSTP40
For Spare Parts: 15-18 tons
(2) 40 High Cube Container Loads:
For Combine Harvester:
11 sets 4LZ-0.5; 20 sets 4 LZ-0.8; 4 sets 4LZ-1.2; 4 sets 4LZ-2.2; 3 sets 4LZ-3.0; 3 sets 4LZ-4.0/4.5
For Power Tiller: 40 sets GN12; 50 sets M80
For Rice Transplant: 24 sets WSTP40; 18 sets WSTP60
For Spare Parts: 30-35 tons
5. Q: What is the payment term ?
A: Irrevocable L/C at sight or 30% T/T in advance and balance against B/L copy.

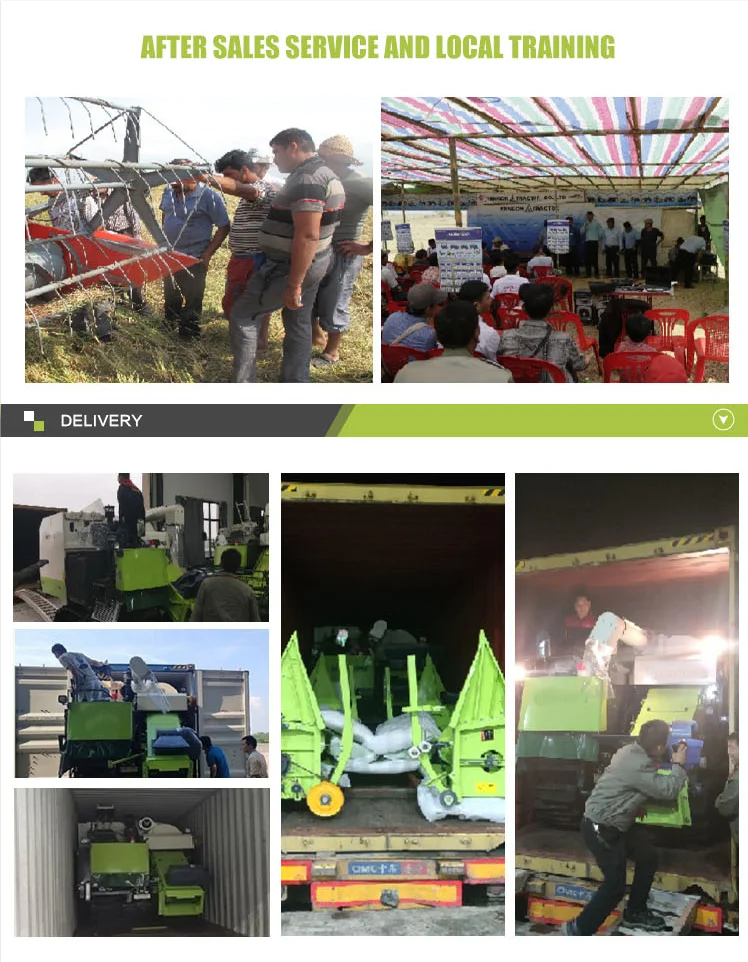

6. Q: What is the after-sales service ?
A: Every year we send our engineer and after-service people to local market to assist our sales agent for staff training,
marketing, advertising, maintaining and repairing the machine during the harvesting season.
7. Q: Is OEM or ODM service acceptable ?
A: OEM service is no problem, if you have any special requirements about the machines, please kindly inform us, our engineering
department will study and offer you the suitable solution.
1. Q: What is the warranty of your agricultural machines?
A: 1 year guarantee for whole machine ( except quick-wear parts ), engine and gear box.
2. Q: Are there any optional parts for your combine harvesters ?
A: Yes, optional parts such as rubber track size, grain tank and type of grain unloading.
3. Q: How long is your delivery time ?
A: Normally it takes 15-20 days to deliver after your deposit receipt or L/C at sight.
4. Q: How many harvesters can be loaded in one container ?
A: (1) 20 Feet Container loads:
For combine harvester:
5 sets 4LZ-0.5; 8 sets 4LZ-0.8; 1 set 4LZ-1.2; 1 set 4LZ-3.0; 1 set 4LZ-4.0/4.5
For Power Tiller: 18 sets GN12; 20 sets M80
For Rice Transplant: 4 sets WSTP60; 6 sets WSTP40
For Spare Parts: 15-18 tons
(2) 40 High Cube Container Loads:
For Combine Harvester:
11 sets 4LZ-0.5; 20 sets 4 LZ-0.8; 4 sets 4LZ-1.2; 4 sets 4LZ-2.2; 3 sets 4LZ-3.0; 3 sets 4LZ-4.0/4.5
For Power Tiller: 40 sets GN12; 50 sets M80
For Rice Transplant: 24 sets WSTP40; 18 sets WSTP60
For Spare Parts: 30-35 tons
5. Q: What is the payment term ?
A: Irrevocable L/C at sight or 30% T/T in advance and balance against B/L copy.
6. Q: What is the after-sales service ?
A: Every year we send our engineer and after-service people to local market to assist our sales agent for staff training,
marketing, advertising, maintaining and repairing the machine during the harvesting season.
7. Q: Is OEM or ODM service acceptable ?
A: OEM service is no problem, if you have any special requirements about the machines, please kindly inform us, our engineering
department will study and offer you the suitable solution.
