Product Overview
Description

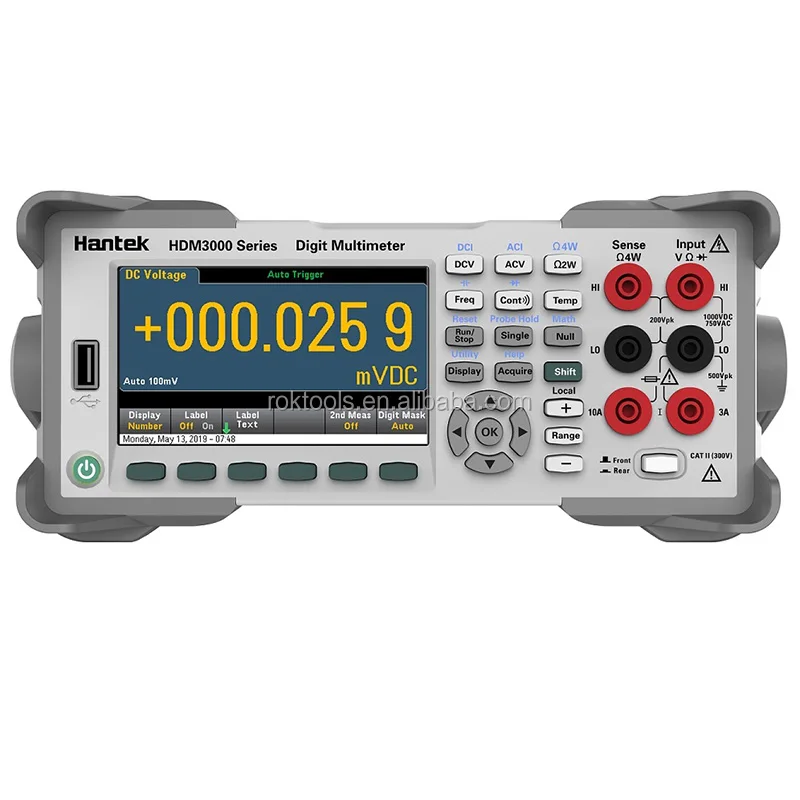

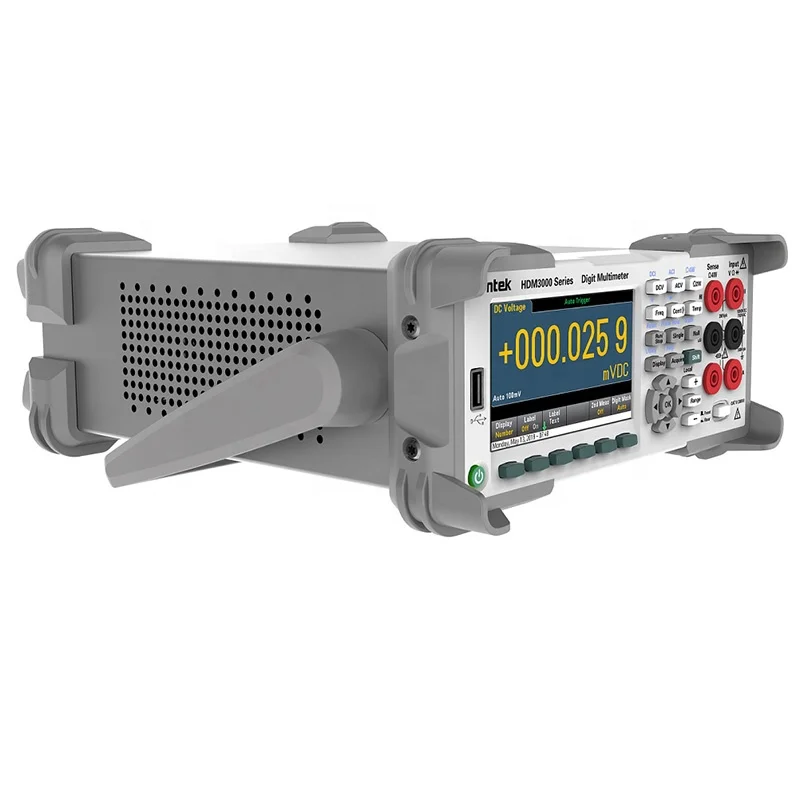

Bentop Digital Multimeter True RMS Up to 30000 Times/sec Reading ROKTOOLS
- Real 6 1/2 bit reading resolution (2,200,000 count);

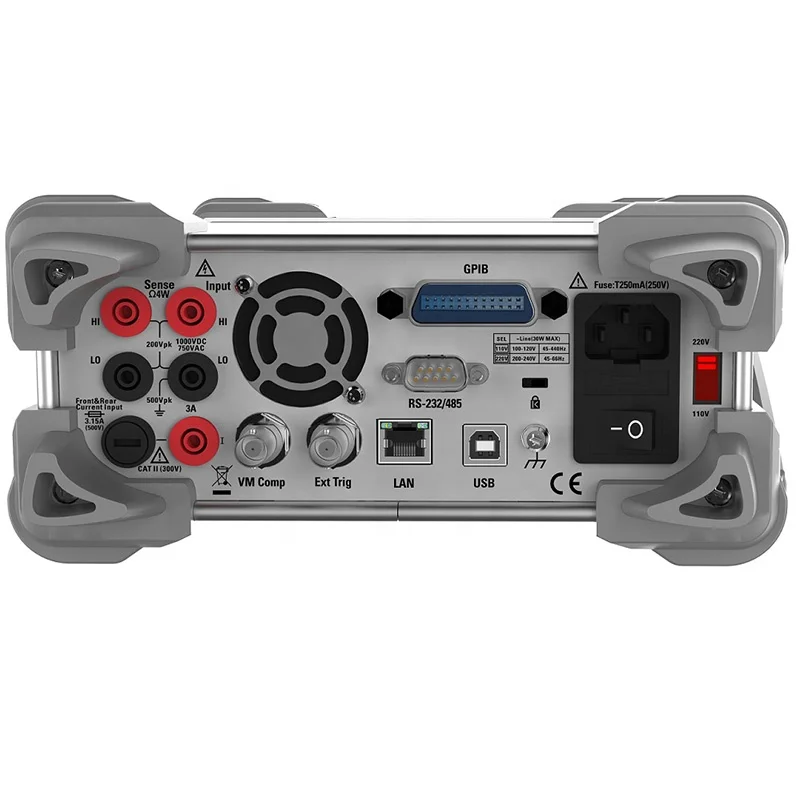

- Front and back 2 sets of multimeter input interface,measure can a key switch;
- Up to 30,000 times/sec reading;
- Graph display function, trenddrawing function to paperless record teating data,statistic information and histogram;
- Double display measurement function,display 2 kinds of signal parameters at the same time;
- True RMS AC voltage and AC current measure;
- 0.1uV resolution,easy to use, parameters can be setted easily;
- Support dual display, Chinese and English menu;
- Built in help system, convenient access to information;
- 13 kinds of measure functions:DC Voltage, AC Voltage, DC current, AC current, 2 line resistance, 4 line resistance, capacitance, diode, connectivity, frequency, period, Arbitrary sensor, temperature, current range can be 10A;
- 4.3 inch 64K LCD;
- Safety standards is CAT I 1000 V,CAT II 600 V;
- Support standard SCPI Remote control command,upper computer software,Compatible with the latest mainstream multimeter command set;
- Configration interface: USB Device, USB Host, LAN (HDM3065B) , GPIB (HDM3065H) .
-
Range2/frequency
DCvoltage24hours3
TCAL±1℃90days
TCAL±5℃1year
TCAL±5℃2years
TCAL±5℃temperature coefficient/℃4 100mV 0.0030+0.0030 0.0040+0.0035 0.0050+0.0035 0.0065+0.0035 0.0005+0.0005 1V 0.0020+0.0006 0.0030+0.0007 0.0040+0.0007 0.0055+0.0007 0.0005+0.0001 I0V 0.0015+0.0004 0.0020+0.0005 0.0035+0.0005 0.0050+0.0005 0.0005+0.0001 100V 0.0020+0.0006 0.0035+0.0006 0.0045+0.0006 0.0060+0.0006 0.0005+0.0001 1000V 0.0020+0.0006 0.0035+0.0010 0.0045+0.0010 0.0060+0.0010 0.0005+0.0001 True RMS AC voltage2,5,6
100mV,1V,10V,100V and 750V range5—10Hz 0.35+0.02 0.35+0.03 0.35+0.03 0.35+0.03 0.035+0.003 10Hz—20kHz 0.04+0.02 0.05+0.03 0.06+0.03 0.07+0.03 0.005+0.003 20—50kHz 0.10+0.04 0.11+0.05 0.12+0.05 0.13+0.05 0.011+0.005 50-100kHz 0.55+0.08 0.60+0.08 0.60+0.08 0.60+0.08 0.060+0.008 100—300kHz 4.00+0.50 4.00+0.50 4.00+0.50 4.00+0.50 0.200+0.020 Resistance7 Testing current 100Ω 1mA 0.0030+0.0030 0.008+0.004 0.010+0.004 0.012+0.004 0.0006+0.0005 1kΩ 1mA 0.0020+0.0005 0.008+0.001 0.010?0.001 0.012+0.001 0.0006+0.0001 10kΩ 100μA 0.0020+0.0005 0.008+0.001 0.010+0.001 0.012+0.001 0.0006+0.0001 100kΩ 10μA 0.0020+0.0005 0.008+0.001 0.010+0.001 0.012+0.001 0.0006+0.0001 1MΩ 5μA 0.002+0.001 0.008+0.001 0.010+0.001 0.012+0.001 0.0010+0.0002 10MΩ 500nA 0.015+0.001 0.020+0.001 0.040+0.001 0.060+0.001 0.0030+0.0004 100MΩ 500nA-
10MΩ0.300+0.010 0.800+0.010 0.800+0.010 0.800+0.010 0.1500+0.0002 DCcurrent potential drop of internal resistance 100μA <0.11V 0.010+0.020 0.040+0.025 0.050+0.025 0.060+0.025 0.0020+0.0030 1mA <0.11V 0.007+0.006 0.030+0.006 0.050+0.006 0.060?0.006 0.0020+0.0005 10mA <0.05V 0.007+0.020 0.030+0.020 0.050+0.020 0.060+0.020 0.0020+0.0020 100mA <0.5V 0.010+0.004 0.030+0.005 0.050+0.005 0.060+0.005 0.0020+0.0005 1A <0.7V 0.050+0.006 0.080+0.010 0.100+0.010 0.120+0.010 0.0050+0.0010 3A <2.0V 0.180+0.020 0.200+0.020 0.200+0.020 0.230+0.020 0.0050+0.0020 10A8 <0.5V 0.050+0.010 0.120+0.010 0.120+0.010 0.150+0.010 0.0050+0.0010 Capacitance15 1.0000nF 0.50+0.50 0.50+0.50 0.50+0.50 0.50+0.50 0.05+0.05 10.000nF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01 100.00nF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01 1.0000μF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01 10.000μF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01 100.00μF 0.40+0.10 0.40+0.10 0.40+0.10 0.40+0.10 0.05+0.01 range2/frequency 24hours3
TCAL±1℃90days
TCAL±5℃1year
TCAL±5℃2years
TCAL±5℃temperature coefficient/℃4 True RMS AC current2,6,9 potentia drop of internal resistance 100μA,1mA,10mA and 100mA range <0.011,<0.11, <0.05,<0.5V 3Hz-5kHz 0.10+0.04 0.10+0.04 0.10+0.04 0.10+0.04 0.015+0.006 5-10kHz
(typicalvalue)0.10+0.04 0.10+0.04 0.10+0.04 0.10+0.04 0.030+0.006 1Arange <0.7V 3Hz-5kHz 0.10+0.04 0.10+0.04 0.10+0.04 0.10+0.04 0.015+0.006 5-10kHz(typicalvalue) 0.10+0.04 0.10+0.04 0.10+0.04 0.10+0.04 0.030+0.006 3Arange <2.0V 3Hz-5kHz 0.23+0.04 0.23+0.04 0.23+0.04 0.23+0.04 0.015+0.006 5-10kHz
(typicalvalue)0.23+0.04 0.23+0.04 0.23+0.04 0.23+0.04 0.030+0.006 10Arange8 <0.5V 3Hz-5kHz 0.15+0.04 0.15+0.04 0.15+0.04 0.15+0.04 0.015+0.006 5-10kHz(typicalvalue) 0.15+0.04 0.15+0.04 0.15+0.04 0.15+0.04 0.030+0.006 Connectivity 1kΩ 0.002+0.030 0.008+0.030 0.010+0.030 0.012+0.030 0.0010+0.0020 DiodeTesting10 5V 0.002+0.030 0.008+0.030 0.010+0.030 0.012+0.030 0.0010+0.0020 DCrate(typicalvalue) (Normalize precision input)+(Normalize reference accuracy) Temperature11 PT100 (DIN/IEC751) Theprobe accuracy+0.05℃ 5kΩ thermistor Theprobe accuracy+0.1℃ Frequency:Technical Indicator±(%reading)12.13
100mV,1V,10,100V and 750 V range143-10Hz 0.1 0.1 0.1 0.1 0.1 10-100Hz 0.03 0.03 0.03 0.03 0.035 100Hz-1kHz 0 0.008 0.01 0.01 0.015 1-300kHz 0.002 0.006 0.01 0.01 0.015 Square wave15 0.001 0.006 0.01 0.01 0.015 Extra Gate timeerror ± (%reading)13 Frequency 1second 0.1second 0.01second 3-40Hz 0 0.2 0.2 40-100Hz 0 0.06 0.2 100Hz-1kHz 0 0.02 0.2 1-300kHz 0 0.004 0.03 Square wave15 0 0 0
