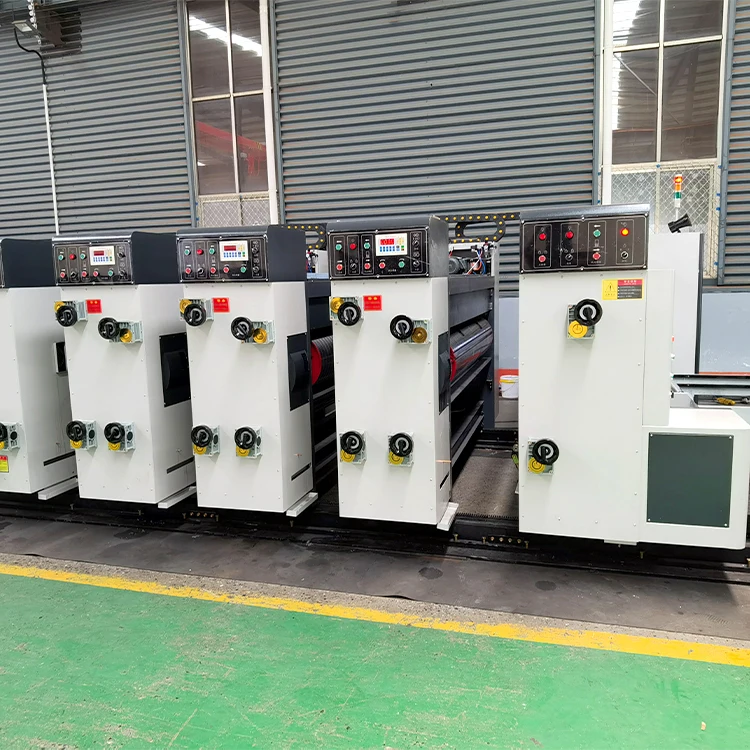

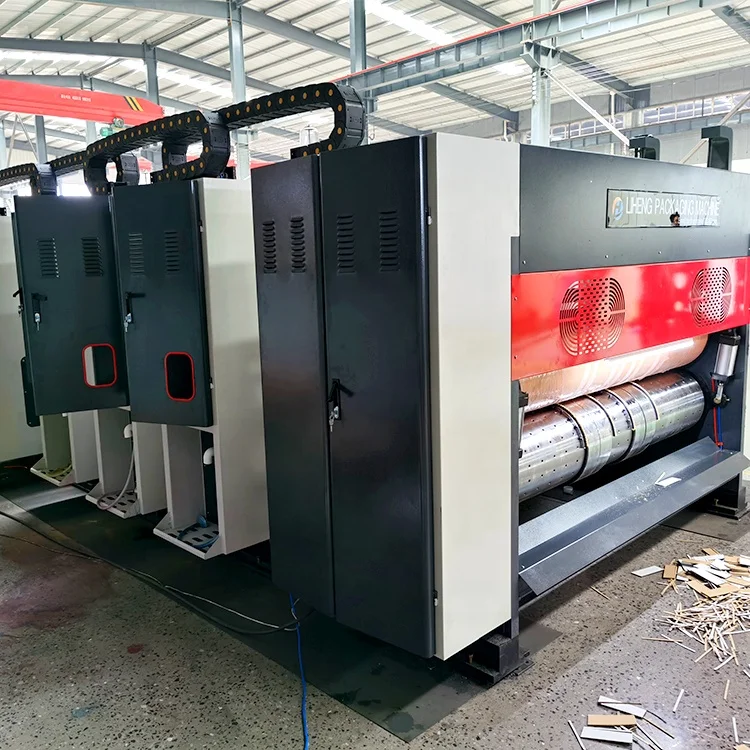

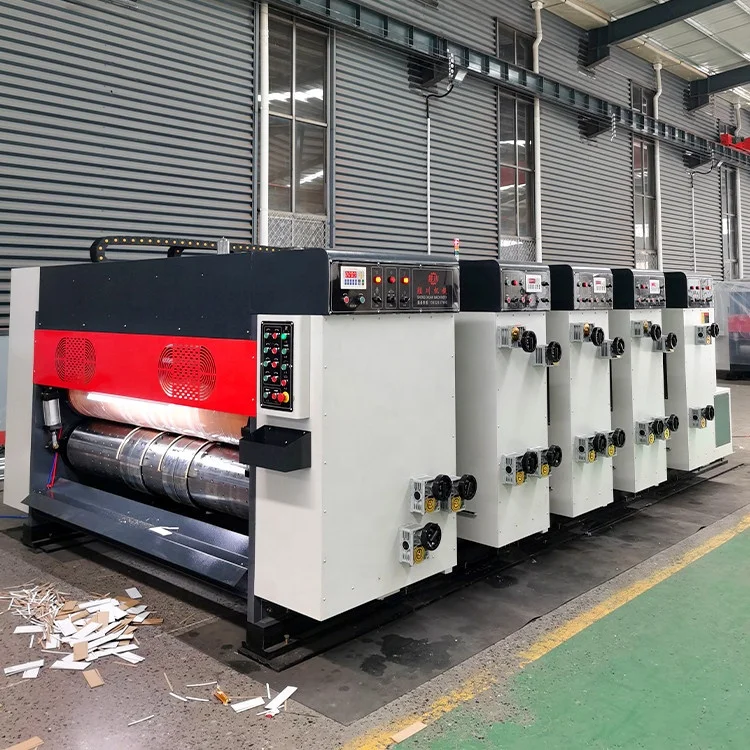

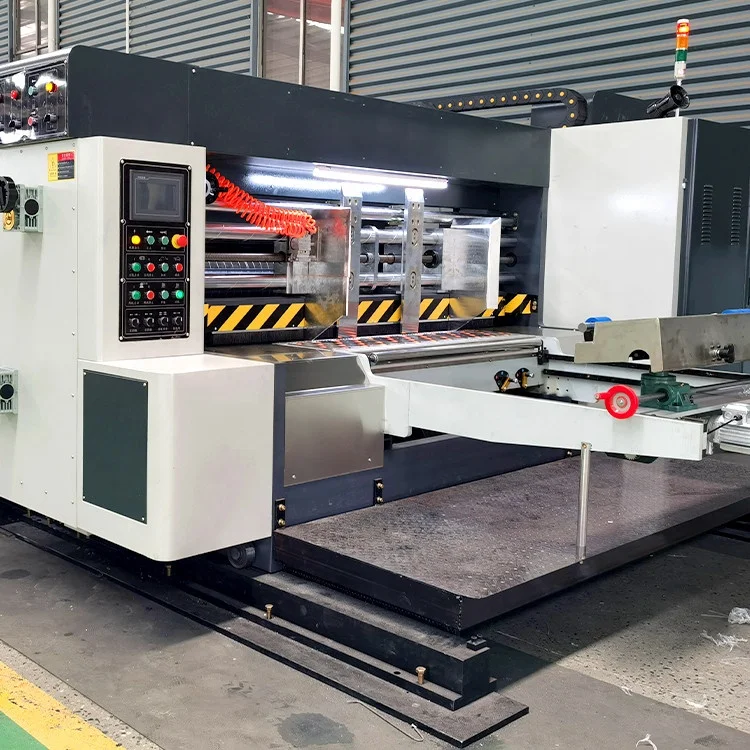

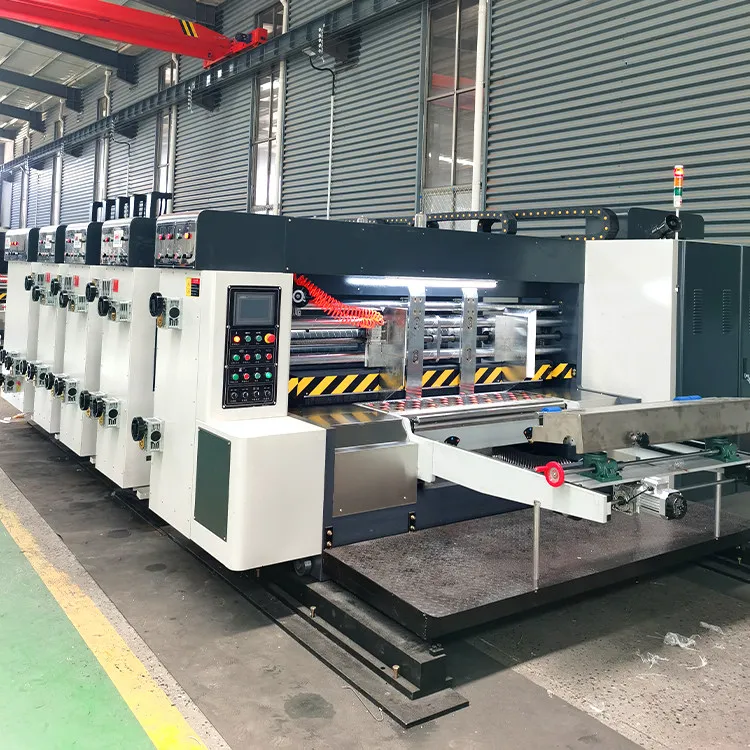

Automatic flexo ink carton 4 colors printing slotting machine
- Category: >>>
- Supplier: Dongguang Luyuan Carton Machinery Manufacture Co. Ltd
Share on (62492376066):
Product Overview
Description
Full automatic flexo ink carton box printing slotting die-cutting machine
Product Description
1.Feeding Unit:
1.The lead edge feeder reduces the paperboard plug a lot.
2.The fan helps for feeding paper, ensure the curved feeding, the air volume can be adjusted according to the paper size, make sure the pull of vacuum for paper, improve the feeding precision.
3.The side wallboard is electrical adjusting, the front and back are manual adjusting.
4.The feeding wheel is made of polyurethane, with big friction and long service life.
5.It is used for three,five layer corrugated board, include B type paperboard.
6 The feeding counter,set and show the produce number.
2.The fan helps for feeding paper, ensure the curved feeding, the air volume can be adjusted according to the paper size, make sure the pull of vacuum for paper, improve the feeding precision.
3.The side wallboard is electrical adjusting, the front and back are manual adjusting.
4.The feeding wheel is made of polyurethane, with big friction and long service life.
5.It is used for three,five layer corrugated board, include B type paperboard.
6 The feeding counter,set and show the produce number.

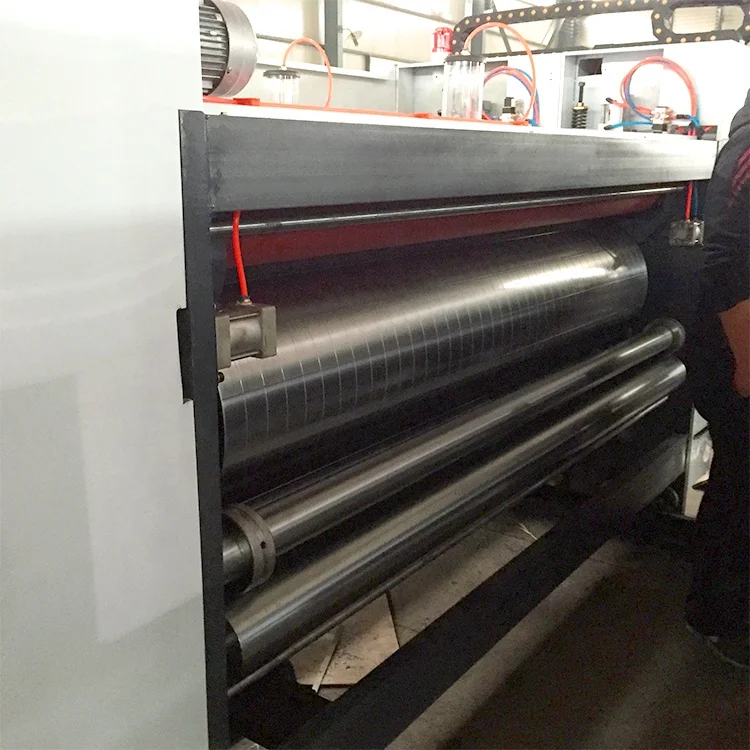

2.Printing Unit：
1.The printing roller surface is hard chromium plating and polished, make it work stable.
2.The uniforming roller is coated with abrasive rubber, the mid-high is parabola type for compensating the forced deformation, improve the ink transmission. The rubber is Nitrile rubber, hardness above 60 degrees, good effect for supplying ink after special polished. The rubber roller is driven by motor when the machine stop, machine stop and continuous supplying ink, auto uniform ink.
3.The anilox roller is from famous domestic brand,the rollers are made by mature technology, the cylinder is less 0.016mm,radial circle run out is less than 0.1mm, with 25 times the magnifier for the overlapping curve, margin, and the micro hardness of HV900- 1050. So it is good at store,uniforming and transmission ink, it is the best choice for printer. (The anilox roller mesh is depends on customer)
2.The uniforming roller is coated with abrasive rubber, the mid-high is parabola type for compensating the forced deformation, improve the ink transmission. The rubber is Nitrile rubber, hardness above 60 degrees, good effect for supplying ink after special polished. The rubber roller is driven by motor when the machine stop, machine stop and continuous supplying ink, auto uniform ink.
3.The anilox roller is from famous domestic brand,the rollers are made by mature technology, the cylinder is less 0.016mm,radial circle run out is less than 0.1mm, with 25 times the magnifier for the overlapping curve, margin, and the micro hardness of HV900- 1050. So it is good at store,uniforming and transmission ink, it is the best choice for printer. (The anilox roller mesh is depends on customer)
4.The electrical phase adjustment device, make the machine adjusted longitude 360°when work or stop, saving change time.
5.The pneumatic diaphragm pump circulating supply ink, operation and maintenance easy.
6.Use pneumatic lifting plate, auto even ink,stop machine continuous supplying ink, avoid the ink drying when machine stop, reduce the disadvantageous factor for printing effect.
7.The printing roller equipped with hanging function, saving time for change plate.

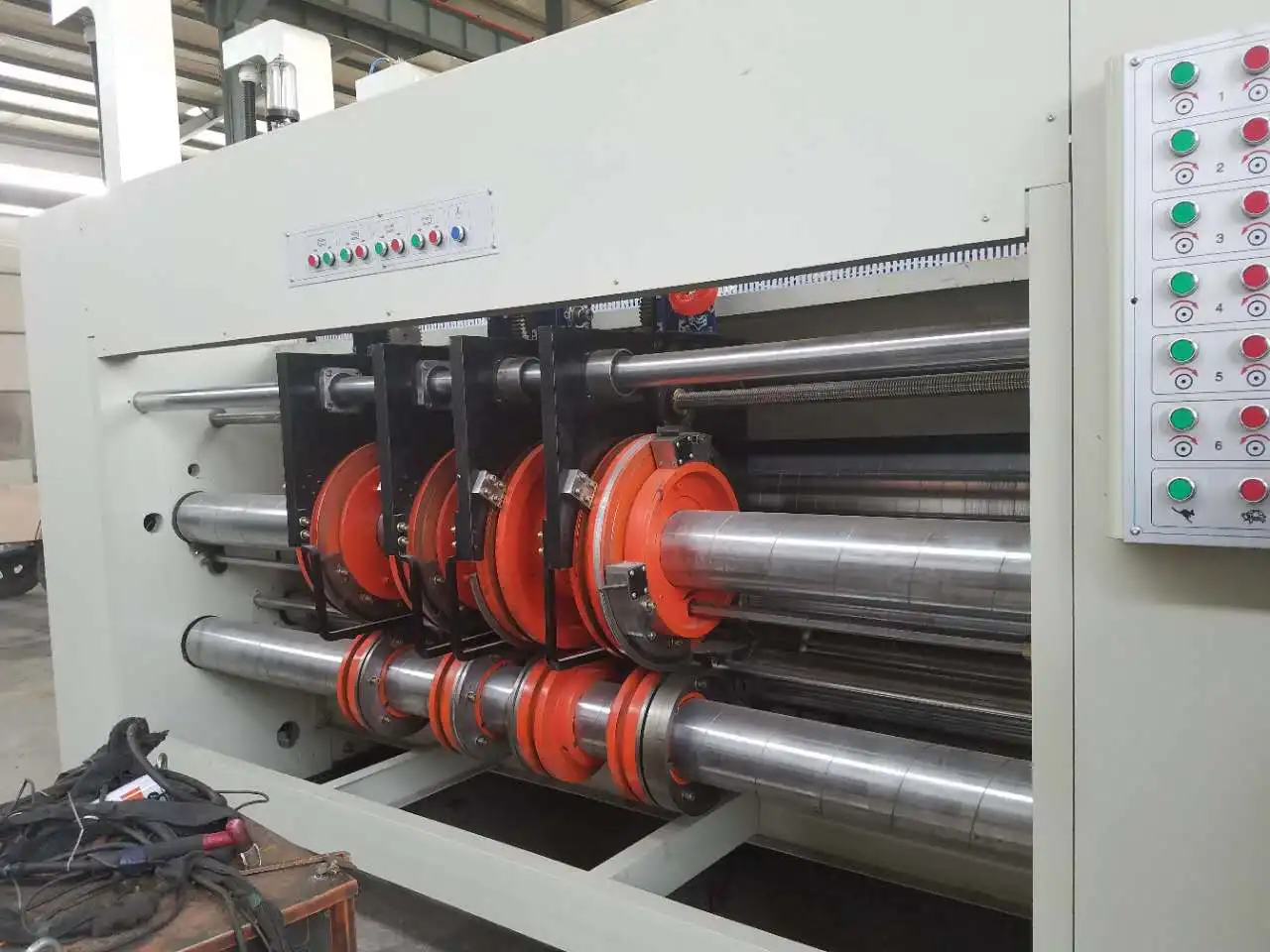

3.Slotting Unit：
1.Pressing line wheel
1 Adopt seamless steel tube, after two times grinding machining, surface of the roller is chromed, move steadily.
2 The pressing line wheel gap adopts manual adjustment, the adjusting range is 0-11mm.
2.The slotting knife lateral shift adjustment structure
1 Adopt seamless steel tube, after two times grinding machining, surface of the roller is chromed, move steadily.
2 The width of slotting knife is 7.0mm.
3 The slotting knife adopt alloy steel. It also has gone through heat treatment and grinding, the knife sharp is saw tooth. Both the rigidity and toughness are very good.
4 The repair edge knife adopt alloy steel and has gone through heat treatment and grinding, the knife is sharp and high precise.
5 The slotting knife seat gap adopts manual adjustment, the adjusting range is 0-11mm.
6 Two slotting knives adopt manual synchronous adjustment. (the box height)
1 Adopt seamless steel tube, after two times grinding machining, surface of the roller is chromed, move steadily.
2 The pressing line wheel gap adopts manual adjustment, the adjusting range is 0-11mm.
2.The slotting knife lateral shift adjustment structure
1 Adopt seamless steel tube, after two times grinding machining, surface of the roller is chromed, move steadily.
2 The width of slotting knife is 7.0mm.
3 The slotting knife adopt alloy steel. It also has gone through heat treatment and grinding, the knife sharp is saw tooth. Both the rigidity and toughness are very good.
4 The repair edge knife adopt alloy steel and has gone through heat treatment and grinding, the knife is sharp and high precise.
5 The slotting knife seat gap adopts manual adjustment, the adjusting range is 0-11mm.
6 Two slotting knives adopt manual synchronous adjustment. (the box height)
4.Die Cutting Unit：
1.Cutter die roller (down roller)
1.Cast iron material surface grinding,hard chromium plating, balance correction,increased running stability.
2.Cutter die fixing screw hole spacing ,axial 100mm, radial direction 20 divide from the middle,Adapt cutter die hight 25.4mm
3.Wood template thickness ： 16mm (3 layer cardboard use)
13mm(5 layer cardboard use)
2.Rubber pad roller (top roller)
1.Quick change type rubber pad, wear-resisting,long life.
2.Cast iron material surface grinding,hard chromium plating.
3.Balance correction，increased running stability.
4.Electric type adjustment and cutter die roller clearance,Adjustment range 0-16mm.
5.Rubber pad thickness 9mm,width 250mm
6.Mechanical type transverse 40mm move device (can adjustment move speed).
1.Cast iron material surface grinding,hard chromium plating, balance correction,increased running stability.
2.Cutter die fixing screw hole spacing ,axial 100mm, radial direction 20 divide from the middle,Adapt cutter die hight 25.4mm
3.Wood template thickness ： 16mm (3 layer cardboard use)
13mm(5 layer cardboard use)
2.Rubber pad roller (top roller)
1.Quick change type rubber pad, wear-resisting,long life.
2.Cast iron material surface grinding,hard chromium plating.
3.Balance correction，increased running stability.
4.Electric type adjustment and cutter die roller clearance,Adjustment range 0-16mm.
5.Rubber pad thickness 9mm,width 250mm
6.Mechanical type transverse 40mm move device (can adjustment move speed).
Machine model | LY-M |
Printing thickness | 2-12mm |
Max speed | 150pcs/min |
Printing precision | ±0.75mm |
Printing plate thickness | 6mm |
Roller axial adjustment | ± 2.5 mm |

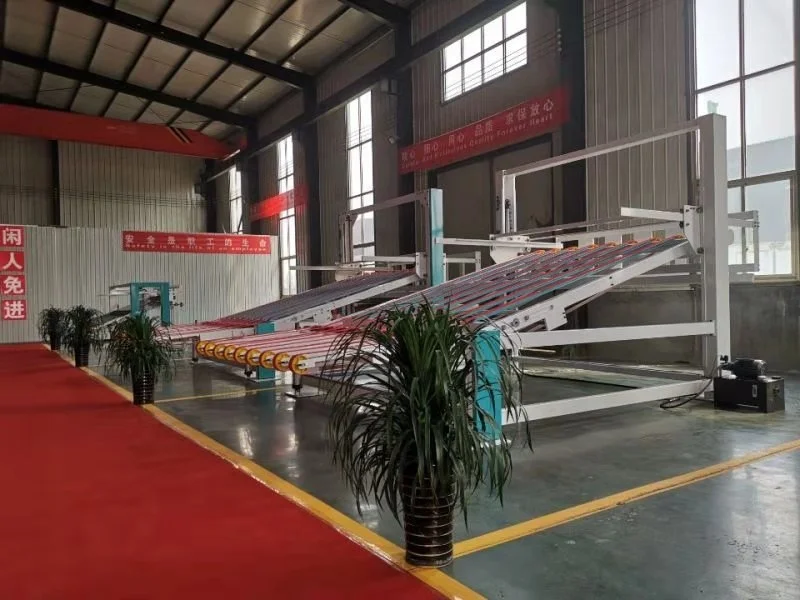

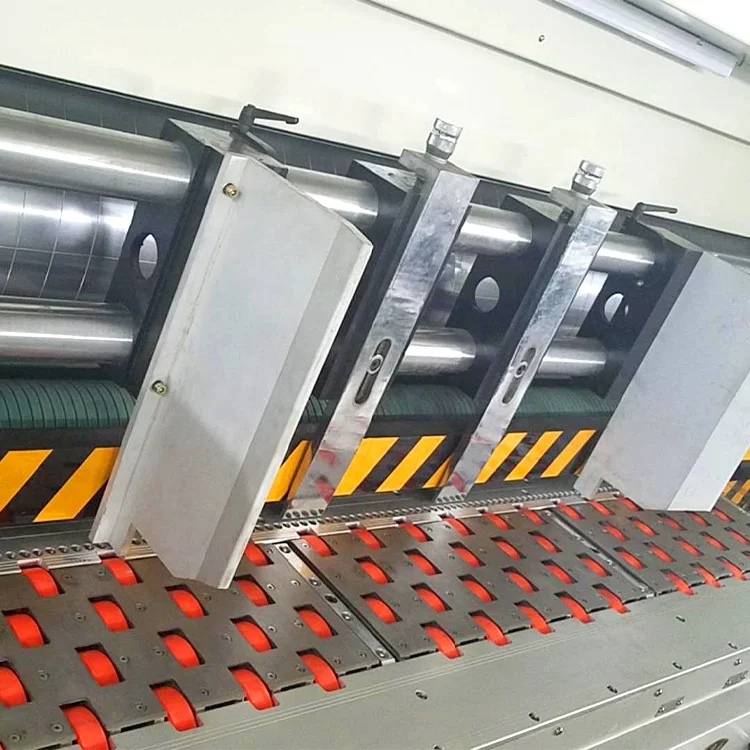

5.Stacker machine

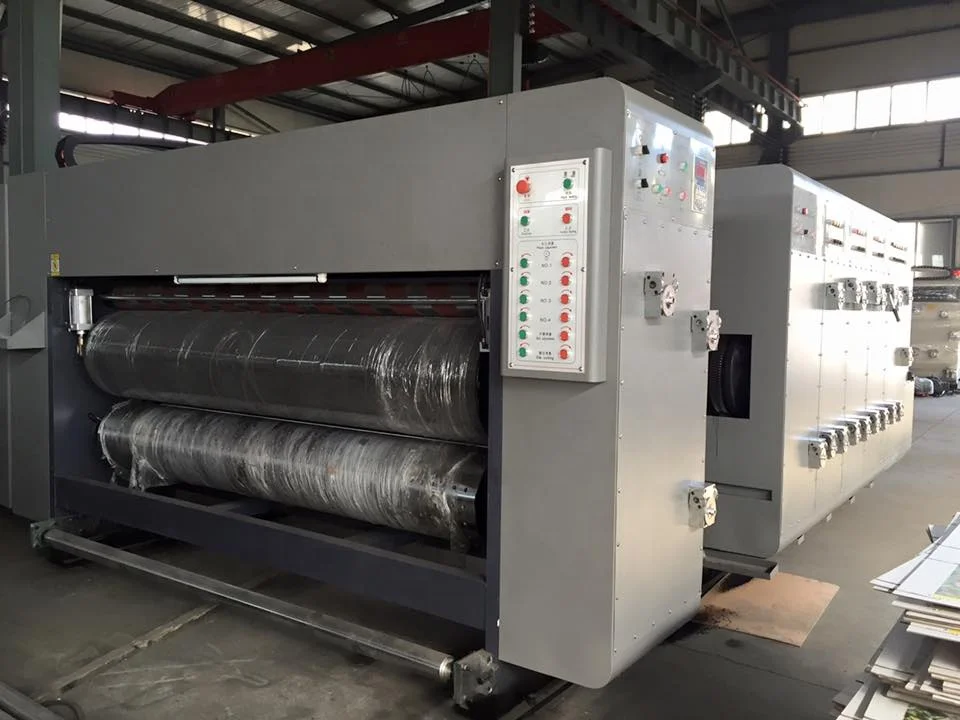

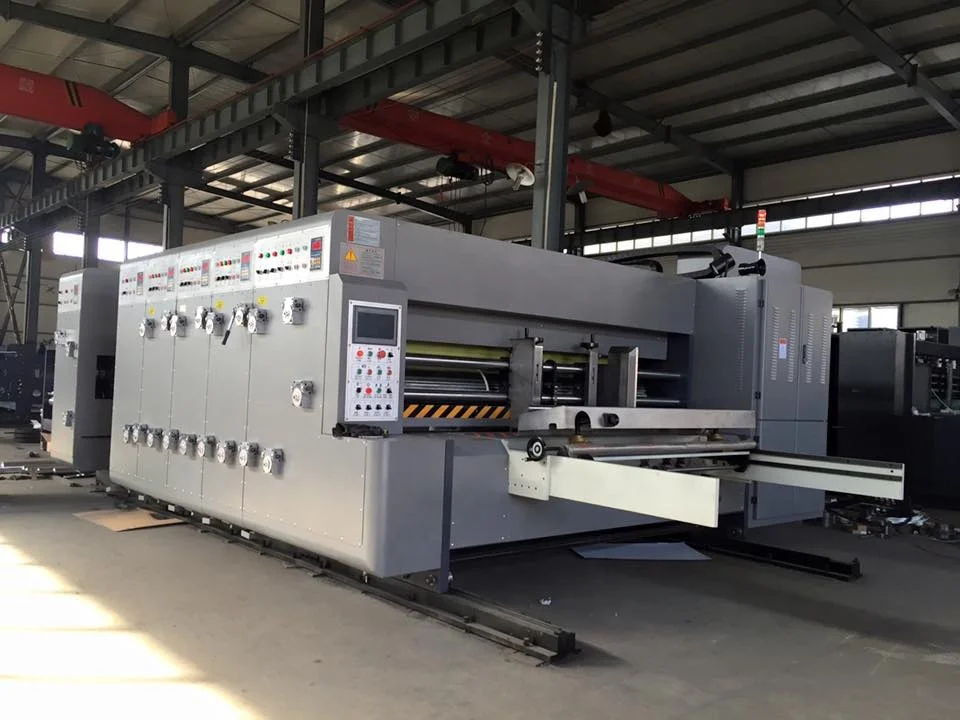

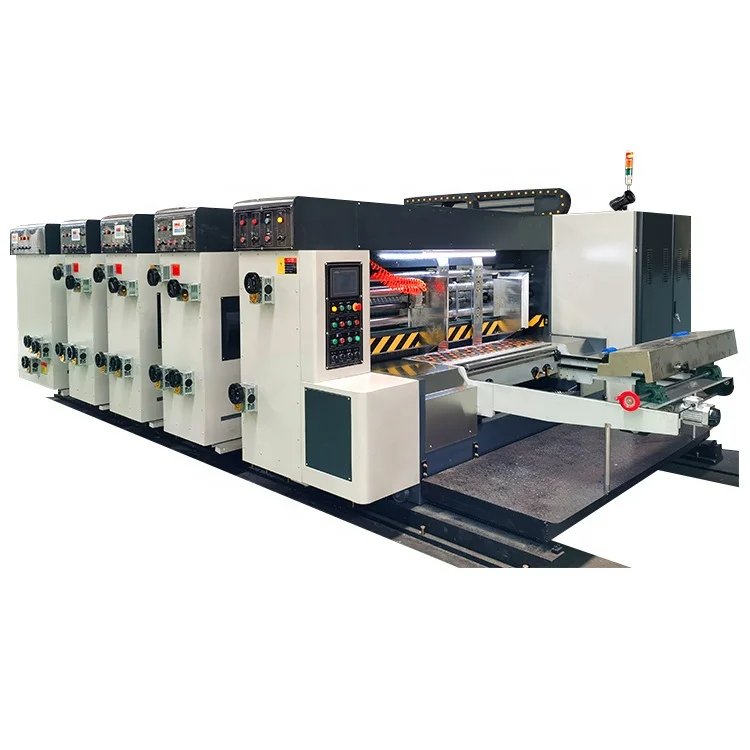

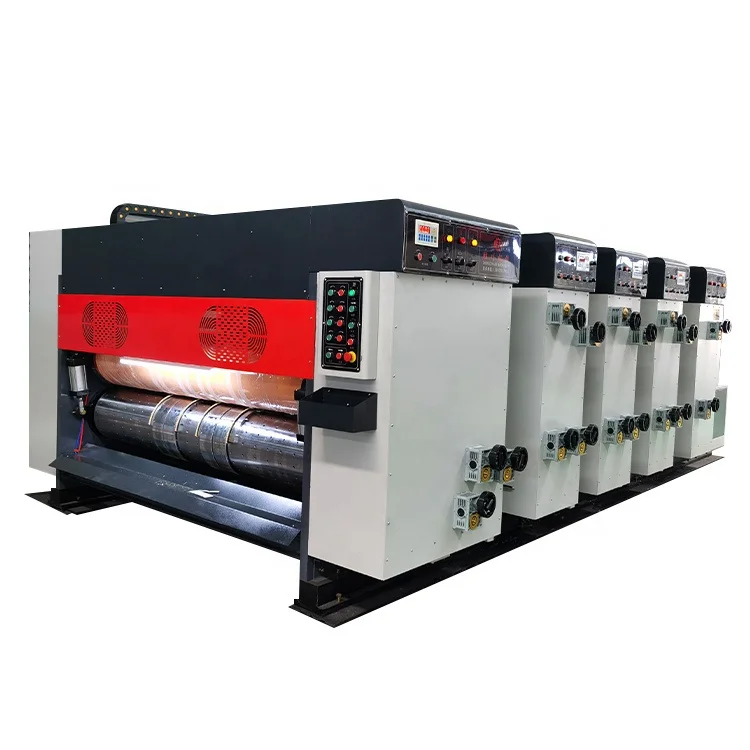

Machine photos
Our services
1. We need to test the machine working condition before delivery to customer country.
2. If you need our engineers install and teach you how to operate machine, we also can send our engineers to your country, but need you bear all fee: tickets, food, hotel
and salary.
and salary.
3. Our machine has two year warranty, during this period, if problems caused by our machine quality, we will change all parts for you by free fee. If any questions, send me email by 24 hours, we also help you solve these problems.

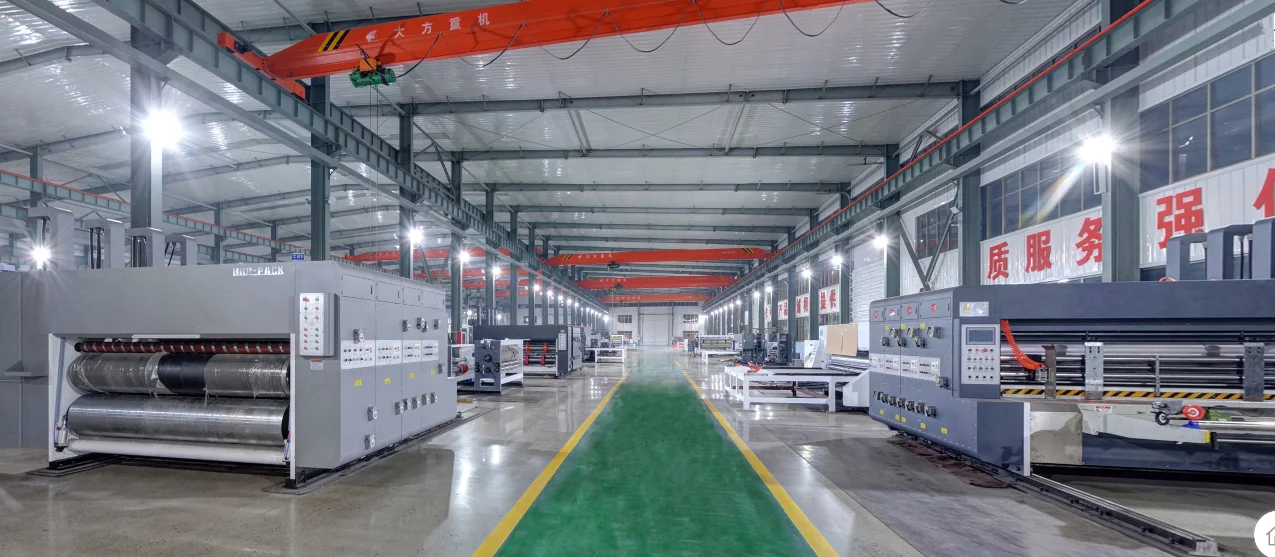

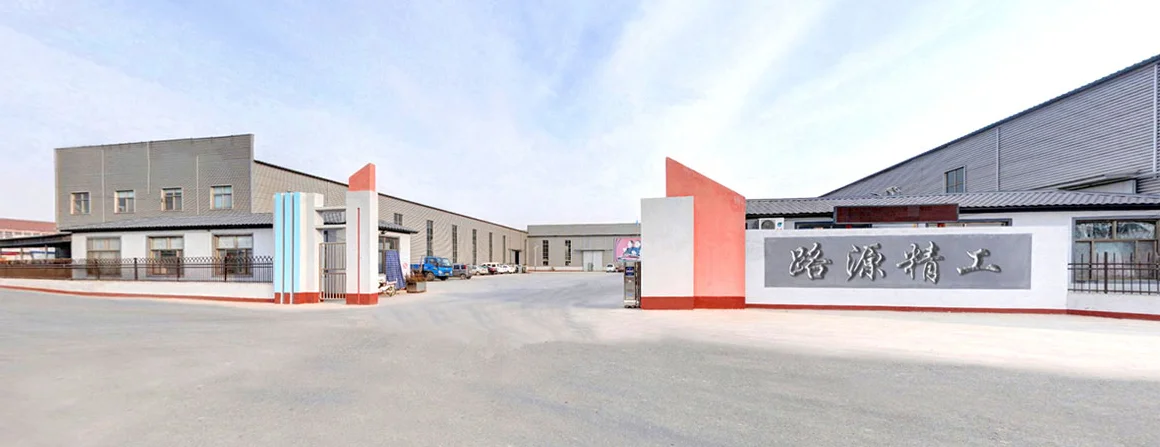

Our company
Dongguang Luyuan Carton Machine Manufacture Ltd. is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of paper board production line, automatic flexo ink printing slotting die cutting machine, automatic flexo ink printing slotting machine, automatic flexo ink printing die cutting machine, semi-auto flexo ink printing slotting machine, semi-auto water ink printing die cutting machine ,slicing cardboard and pressing line machine, rotary die cutting machine, slotting machine, carton stapler, case gluing machine, impressing machine and other relevant packaging machinery. I plant to the revitalization of China's packaging industry as own duty, sincerely cooperate with the masses of users. In the future, wewill be quality products and perfect after-sales service to meet customers needs.
Welcome all new and old customer visit us...
Customer Photos
Machine Delivery
