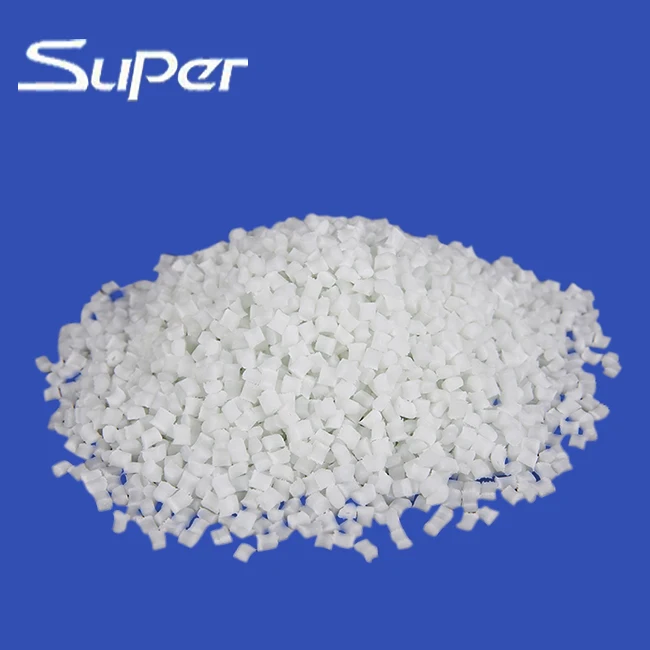

Resist Plastic Filled 35% Glass Fiber Reinforced Virgin Nylon 6 Pa6 Gf35

Product Overview

Description

SUPER ™ S W10 NC

Polyamide 66, Injection Moulding Grade, General Purpose Series PA Resins

PRODUCTION PROPERTIES:

SUPER ™ S W10 NC is a general purpose nylon 66 resin which is designed principally for injection molding application. This resin offters a well balanced combination of engineering properties characterized by high strength, rigidity, good toughness, high melt point, good surface lubicity and resistance to many chemicals, solvents, gasoline, and machine and motor oils, improved injection processing properties. High flow,  excellent filling qualities for long parts or thin wall parts, easy mold release, easy machine feed.

TYPICAL APPLICATIONS/ END USES:

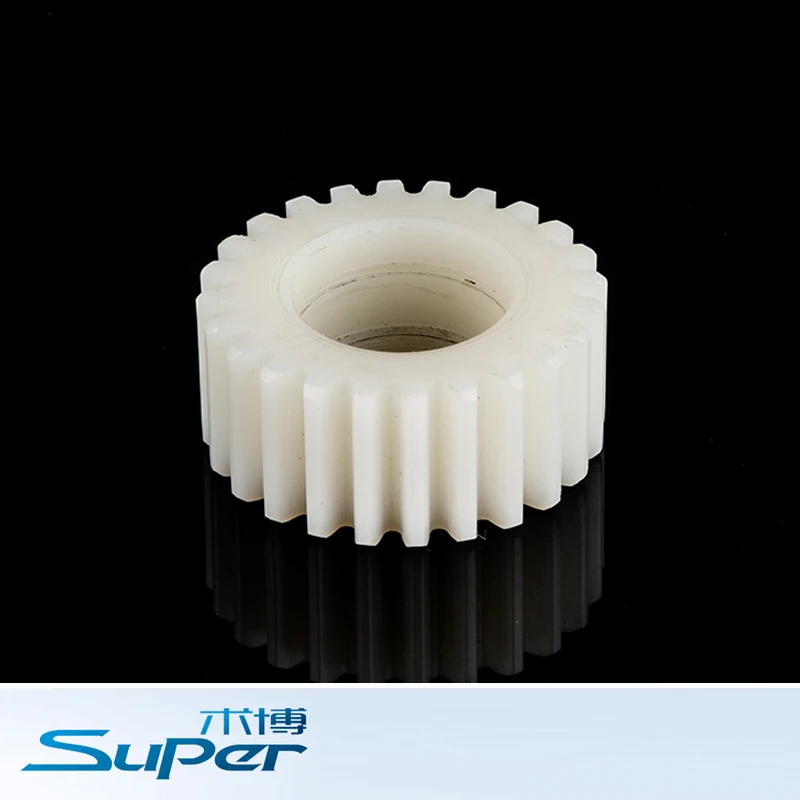

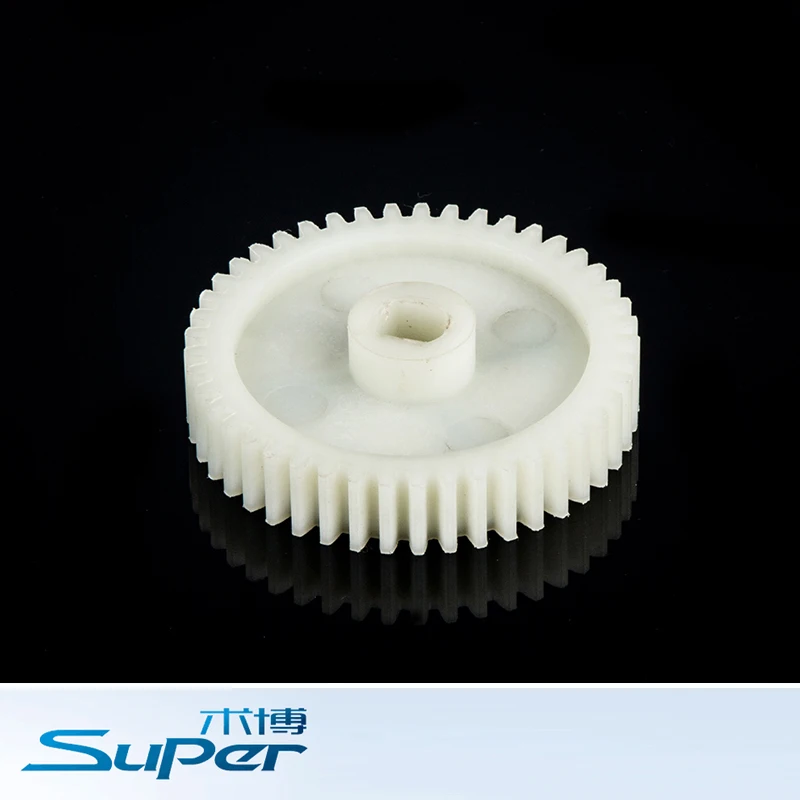

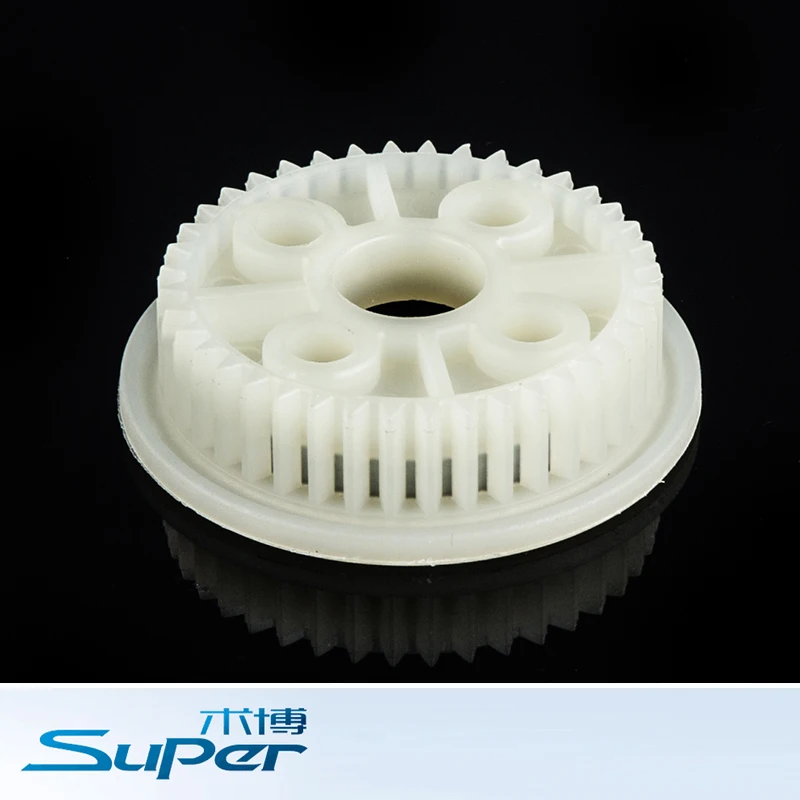

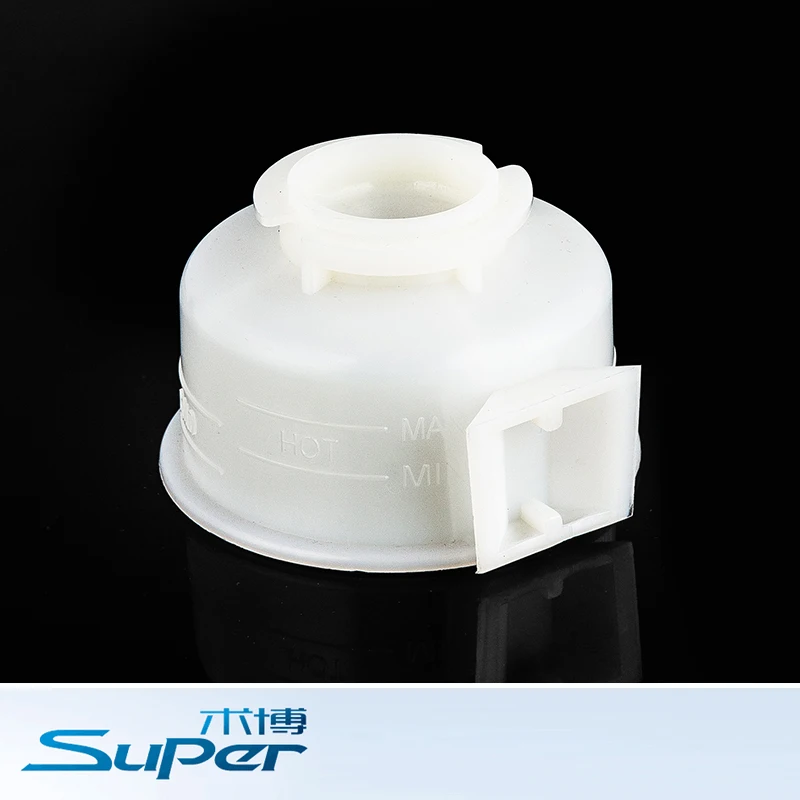

This grade is particularly suitable for the moulding of long parts with thin wall sections, such as: electrical wire ties, terminal blocks, bearings, business control cams, electrical connectors, housings, switch components and general industrial parts.

PROCESSING GUIDELINES:

MATERIAL HANDLING:

PA (nylon) materials must be properly dried in order to provide parts with optimum strength and toughness. Nylon materials are hygroscopic and will become degraded by excessive moisture during the injection molding process. Product is supplied in moisture-protected containers and drying prior to molding is not required. If drying becomes necessary, a dehumidifying or desiccant dryer operating at 80 °C (176 °F) is recommended. Drying time is dependent on moisture level, but 4-6 hours is generally sufficient, but final moisture content must be less than 0.2%.

TYPICAL PROFILE:

Melt Temperature: 250-270 °C
Mold Temperature: 70-90 °C but temperatures of as low as 45 °C and as high as 105 °C can be used where applicable;
Injection Pressure: 60-90MPa.

FILL RATE:

Fast fill rates are recommended to ensure uniform melt delivery to the cavity and prevent premature freezing. Surface appearance is directly affected by injection rate.

NOTE:

Although all statements and information in this publication are believed to be accurate and reliable, they are presented gratis and for guidance only,  and risks and liability for results obtained by use of the products or application of the suggestions described are assumed by the user. No warranties of any kind, either express or implied , including warranties of merchantability or fitness for a particular purpose, are made regarding products described or designs, data or information set forth.

PRODUCTION APPLICATION:
