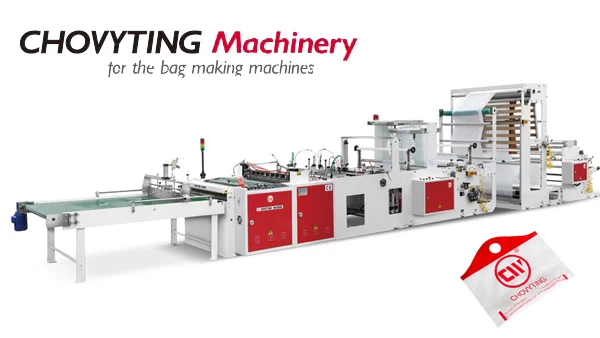

Brief Introduction:The machine frame is made of prefabricated flame cut sheet 12mm thick to ensure the machine rigidity, less machine vibration under high-speed running. Feeding motor, automatic control, save labor adjusted, stability in operation professional technician is not necessary. Any different type of the bag with several use as option, easy to replace. Simple and short machanical structure ensure the high output of machine.
Standard components including PE side weld bar, easy change double weld bar, bottom weld bar and PP weld bar can be optional.

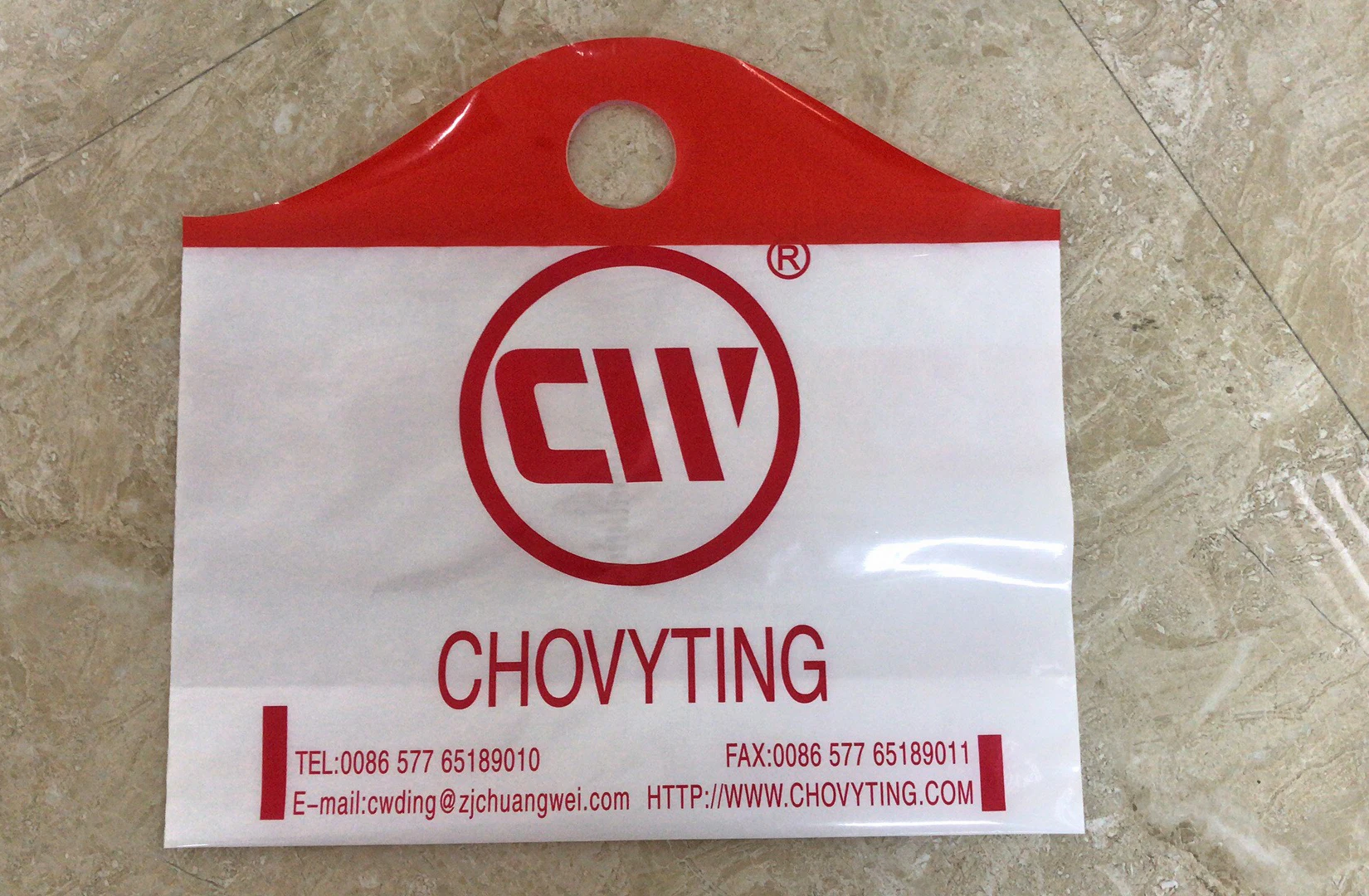

Usage of the bagWide opening for easy loading
Front side free (folded front) for easy opening
Flat bottom gusset keeps items secure and allows bag to stand on its own
Integrated 2 1/4'' handles for ease in carryingVariety of sizes and footprints available for all of your foodservice needs
Beautiful Stock Print and folded front for easy opening!
Details Images:

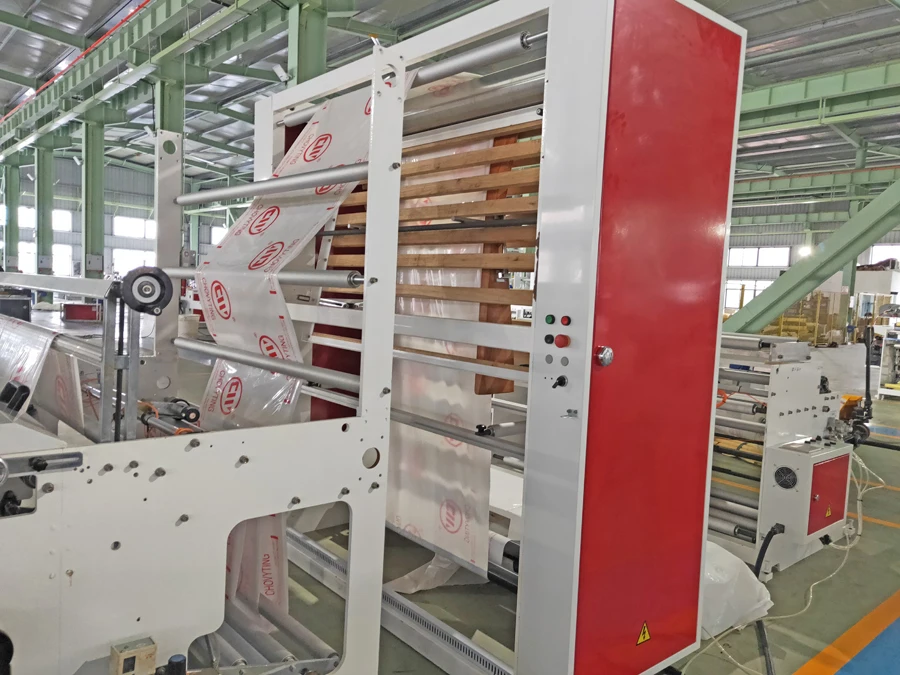

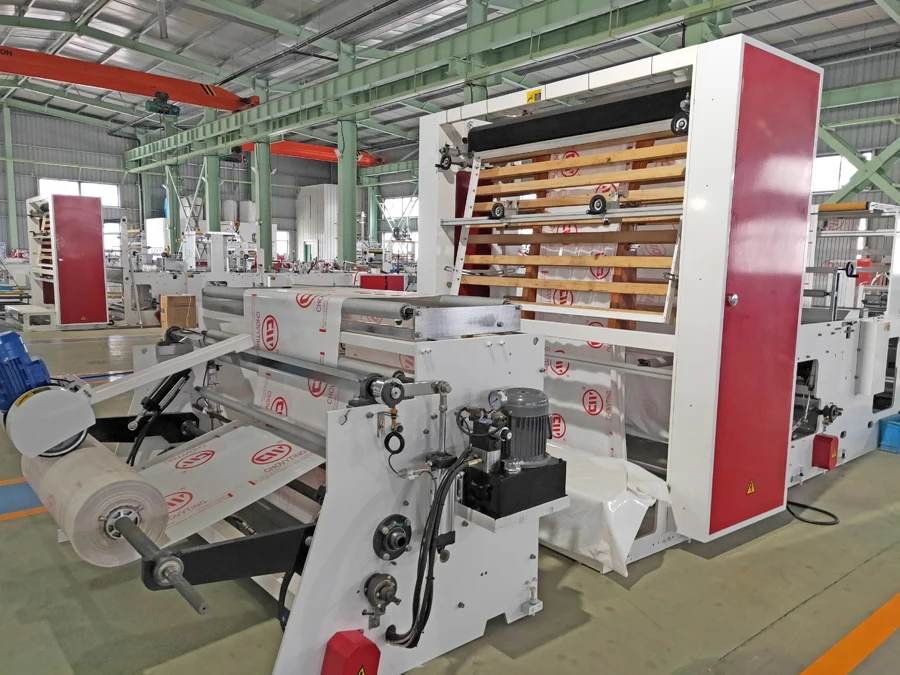

Auto Unwinding Part
with automatic pneumatic loading-up
and EPC correction system
Post Gusset inline device
helps to gusset the Tube film inline

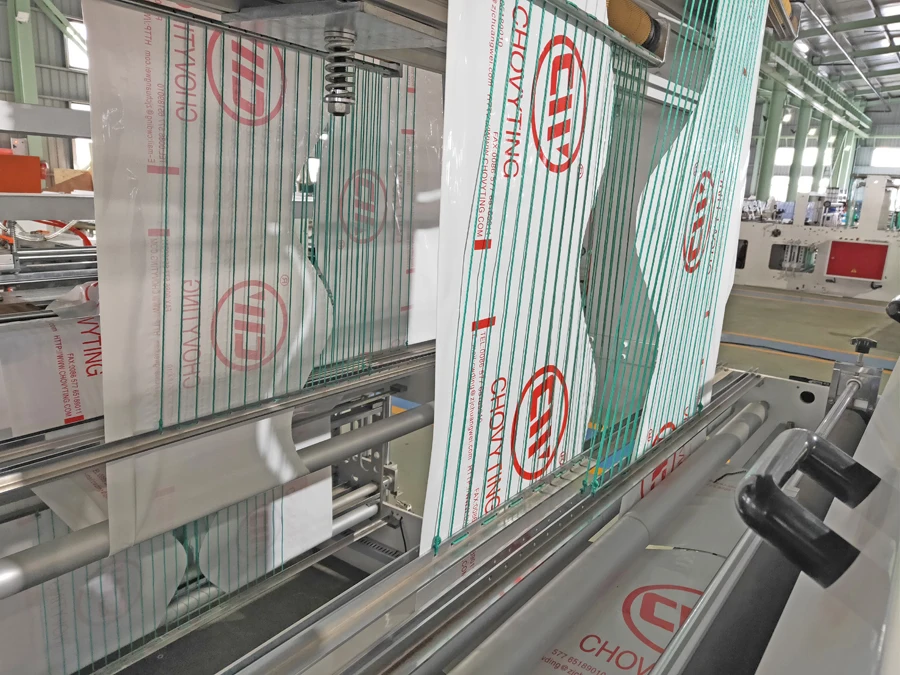

Special S cutting system
controlled with precise programmarred
cutting system, the S shape cutting for double line shopping bags without any wastes

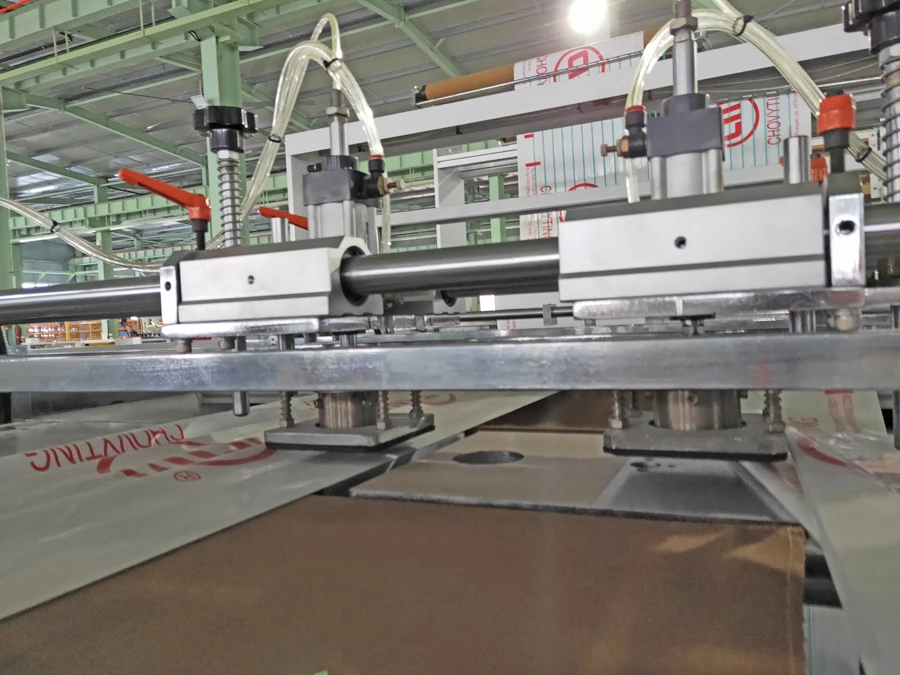

Round handle punchs and bag open
specially design hole punchs collocating with machine in neat punching, meanwhile top bag mouth openning device can be added as optional
Technical Parameter :
Model
CW-1000SW
Bag type
Sine wave bag
Side seal bag
Unwind width
1300mm tube film
Unwind dia.
φ900mm (max.)
Bag width
250-750mm
100-750mm
Bag length
250-450mm
250-500mm
Sine wave slit height
50-200mm
Bottom gusset
30-150mm
Film thickness
HDPE 0.025-0.05mm
LDPE 0.035-0.08mm
Production speed
100pcs*2/min
130pcs*2/min
Line speed
60m/min
Total power
约 12.2kw
Machine dimension
8500x2500x2050mm
Machine weight
3700kg
Air compressor
6HP

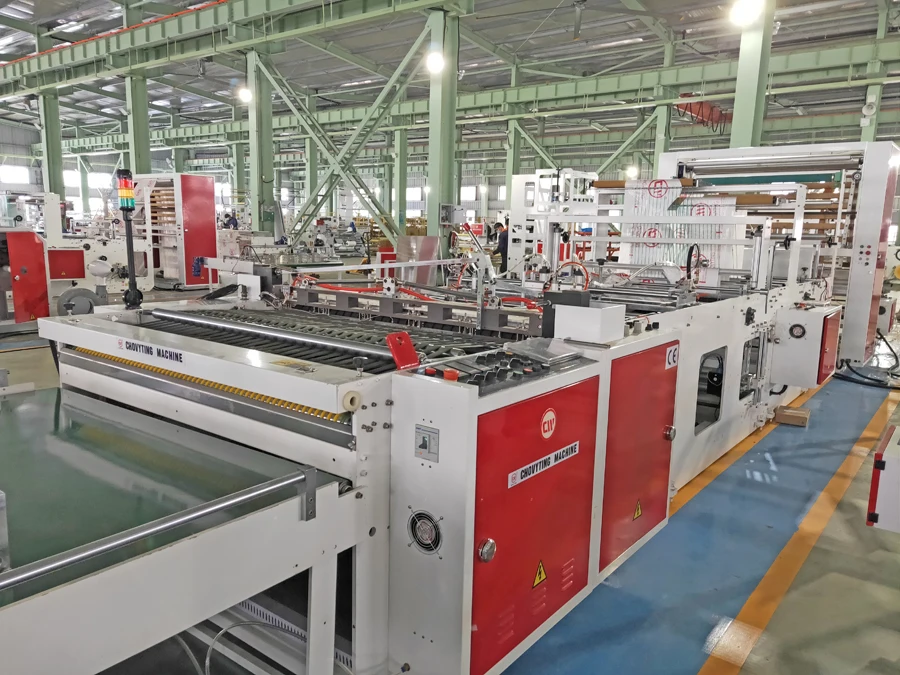

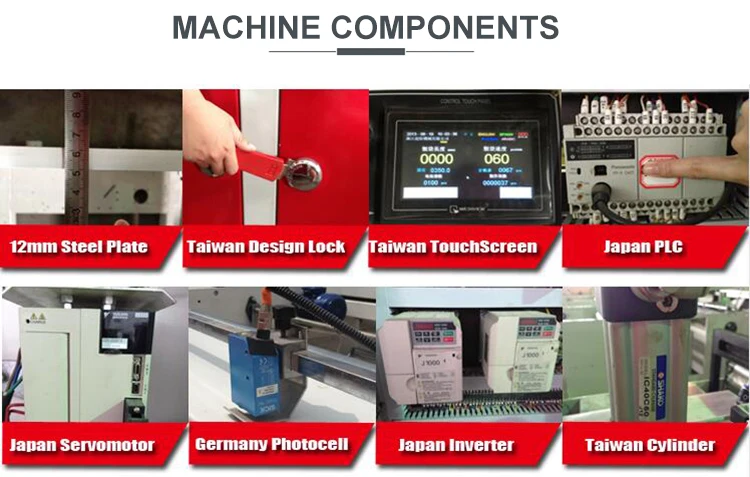

Machine Components
Packing & Loading
About Us
Certifications
Exhibition

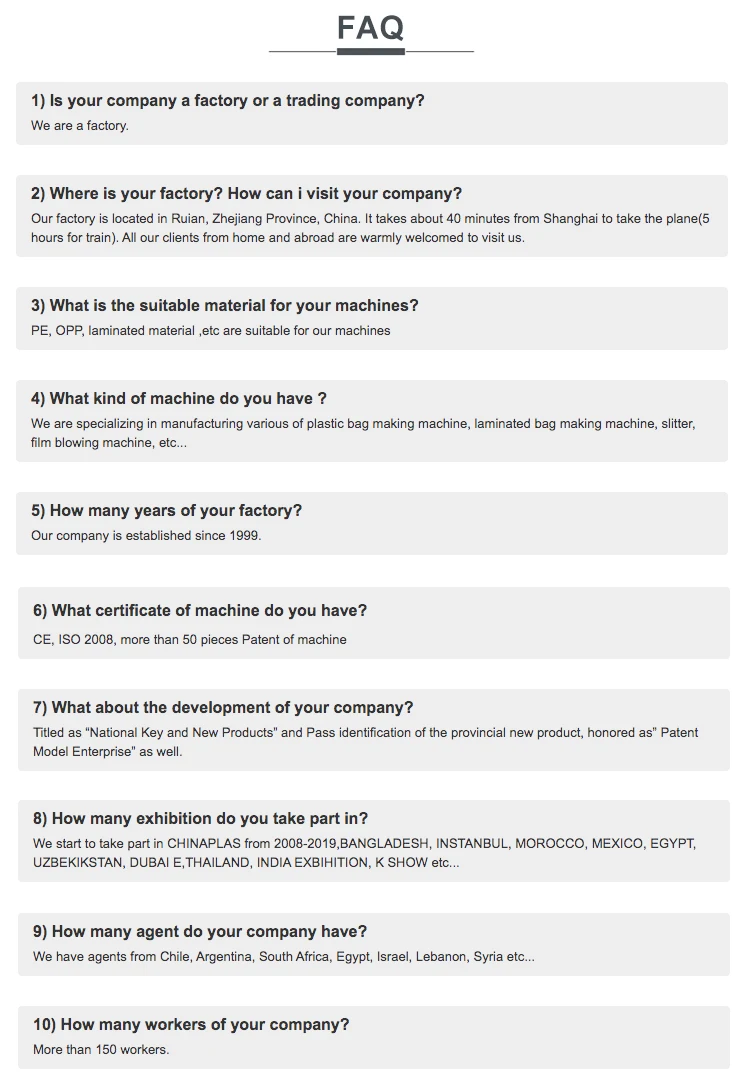

FAQ
