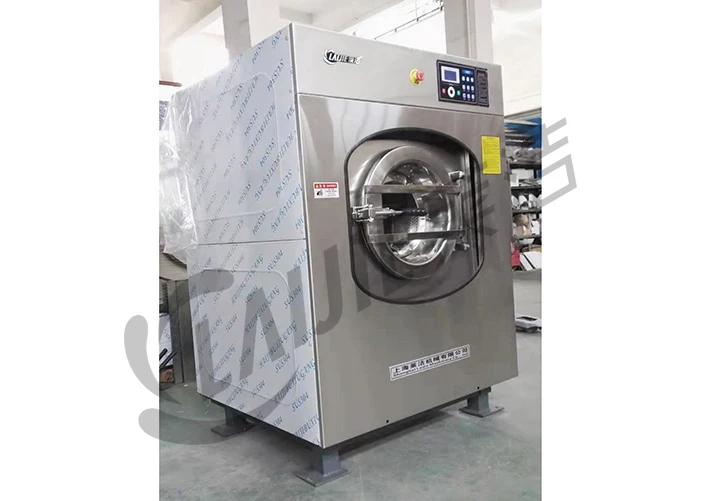

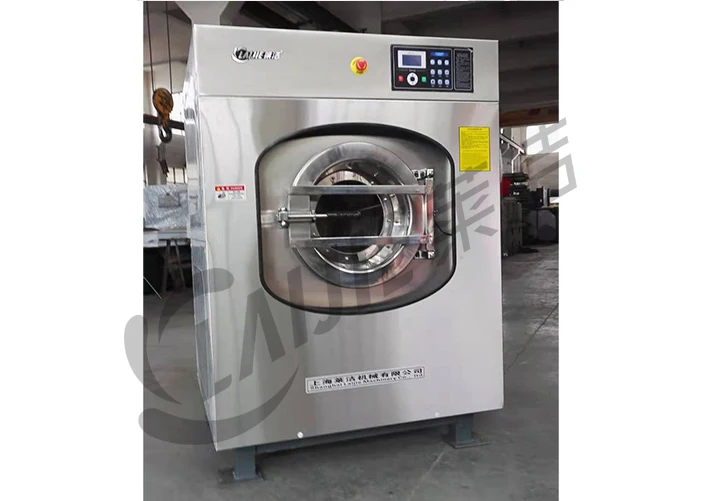

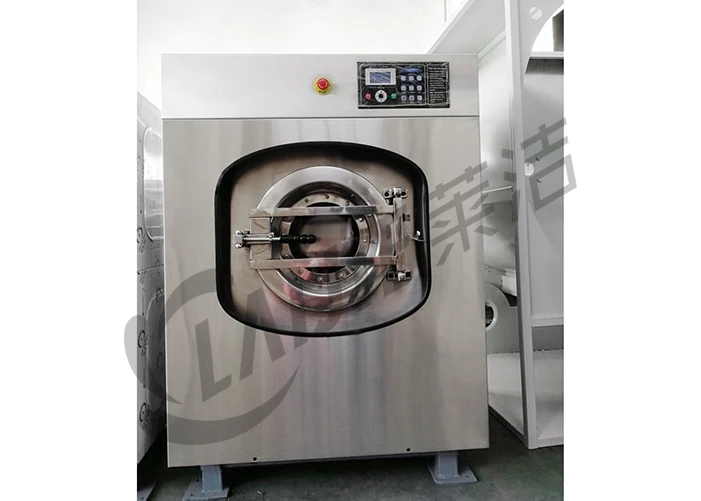

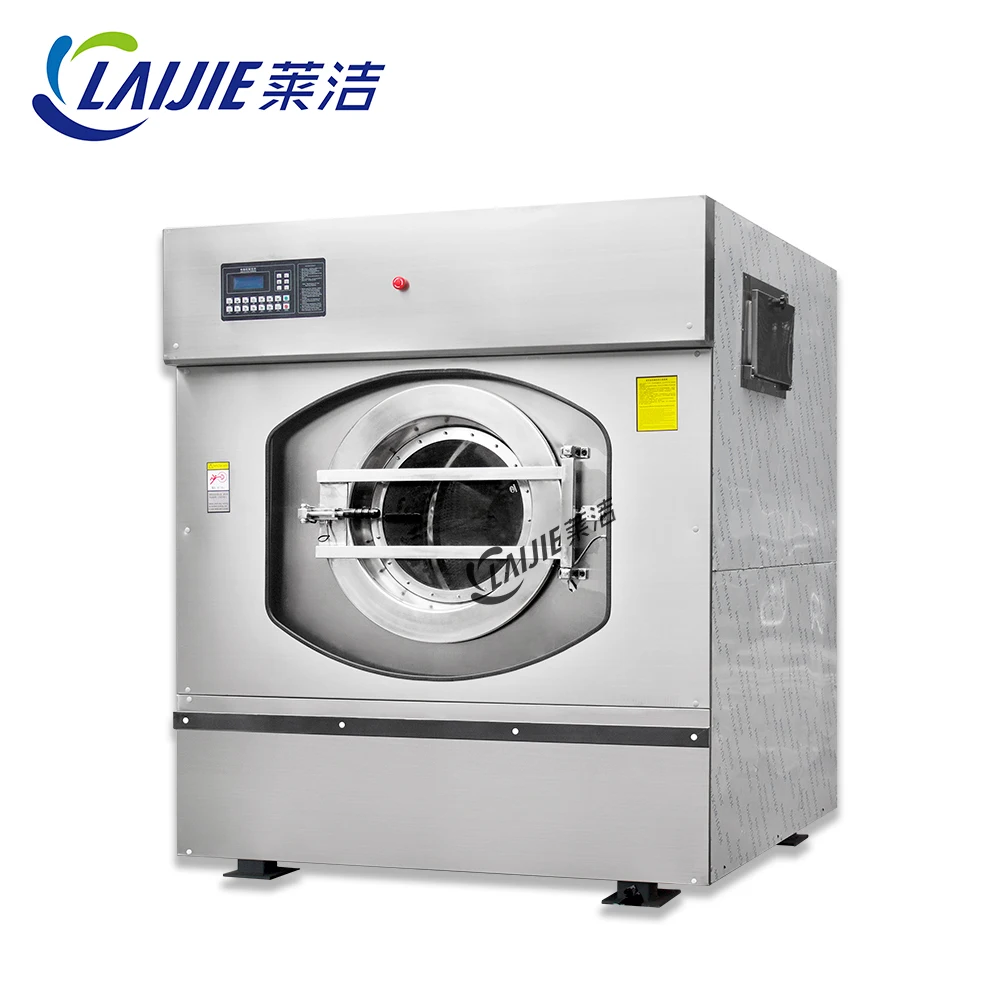

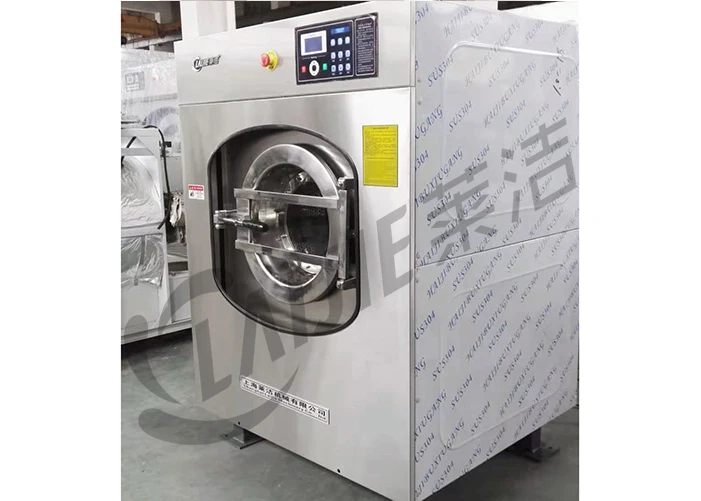

XGQ series Full Suspension Auto Industrial Washing Machine Washer Extractor
- Category: >>>
- Supplier: Shanghai Laijie Machinery Co. Ltd.
Share on (62492652248):
Product Overview
Description
Product Description
XGQ series Full Suspension Auto Industrial Washing Machine Washer Extractor
1. Fully automatic, microcomputer-controller,freely programmable,30 possible programs , operator could set flexible.
2. High quality stainless steel, good appearance, long life.
3. Full suspension shock structure,low shake, low noise,combination of shock absorbance and springs for maximum absorption, need no excessive foundations.
6. High quality inverted system, easily realize washing and extracting frequency step less adjusting.
7, Multiple sealing system, oil sealing , water sealing, stainless steel sealing.
8, Built-out bearing lubrication, simple operation, convenient maintenance.
9, Safety door interlock system, reduce fatigue, misuse and the risk.
2. High quality stainless steel, good appearance, long life.
3. Full suspension shock structure,low shake, low noise,combination of shock absorbance and springs for maximum absorption, need no excessive foundations.
4. Imported bearing, precise and durable.
5. Fixed screws support for long-distance transportation, avoid shaking damage during transit.6. High quality inverted system, easily realize washing and extracting frequency step less adjusting.
7, Multiple sealing system, oil sealing , water sealing, stainless steel sealing.
8, Built-out bearing lubrication, simple operation, convenient maintenance.
9, Safety door interlock system, reduce fatigue, misuse and the risk.
Model | Unit | XGQ-30 | XGQ-50 | XGQ-70 | XGQ-100 |
Rated Capacity | kg | 30 | 50 | 70 | 100 |
Drum Diameter | mm | 902 | 1080 | 1200 | 1240 |
Drum Depth | mm | 500 | 600 | 626 | 840 |
Washing | rpm | 36 | 36 | 34 | 32 |
Low Extract | rpm | 375 | 345 | 325 | 325 |
High Extract | rpm | 760 | 700 | 660 | 660 |
G-Force | G | 300 | 300 | 300 | 300 |
Power Supply | V/P/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
Motor power | kw | 4 | 5.5 | 7.5 | 7.5 |
Weight | kg | 1500 | 2200 | 2500 | 2900 |
Width | mm | 1470 | 1625 | 1820 | 1825 |
Depth | mm | 1520 | 1720 | 1880 | 2100 |
Height | mm | 1900 | 2030 | 2300 | 2300 |
Steam Pressure* | Mpa | 0.2-0.6 | 0.2-0.6 | 0.2-0.6 | 0.2-0.6 |
Electric Heating Power* | kw | 20 | 20 | 20 | 20 |
Details of washer
Strong spring
Full suspension shock structure,low shake, low noise,combination of shock absorbance and springs for maximum absorption, need no excessive foundations
KH3006A computer controller
Functions:
It has manual and automatic functions.
It has 30 sets of automatic programs.
The automatic program has the function of jumping.
Manual intervention is allowed when running automatically
Intelligent Processing of Dehydration and Overshock
Provide password protection function
Support Chinese and English
Soap Cups
Three and five soap cups for choice .
High quality motor
High quality motor on top of machine away from moisture and heat of drain pit underneath proven last longer than motor at the bottom.
SUS 304 drum
SUS304 drum , corrosion-resistant
6 mm mesh hole , do not hurt clothes
Left and right gently pat by rib-lift ,like hand wash
6 mm mesh hole , do not hurt clothes
Left and right gently pat by rib-lift ,like hand wash
