The ZCT800ML-S215 wireless inclinometer is a high accuracy tilt sensor developed by Shanghai Zhichuan. Based on LoRa wireless transmitting technology, the inclinometer is capable of detecting ±15° tilt. It features an embedded RTC, wireless wake-up and a low power consumption sleep mode. It is suitable for safety monitoring in industrial production and construction applications.
II. Special Features
Dual axis inclinometer, +-15°measuring range.
Power supply DC3~15Vol, battery supply is available.
High accuracy of +-0.005° and resolution of 0.001°.
Wireless Lora protocol , support self network .
Low consumption with battery work for 1 year based on inquiry of each 1 hour.
Long transmission distance of 5Km.

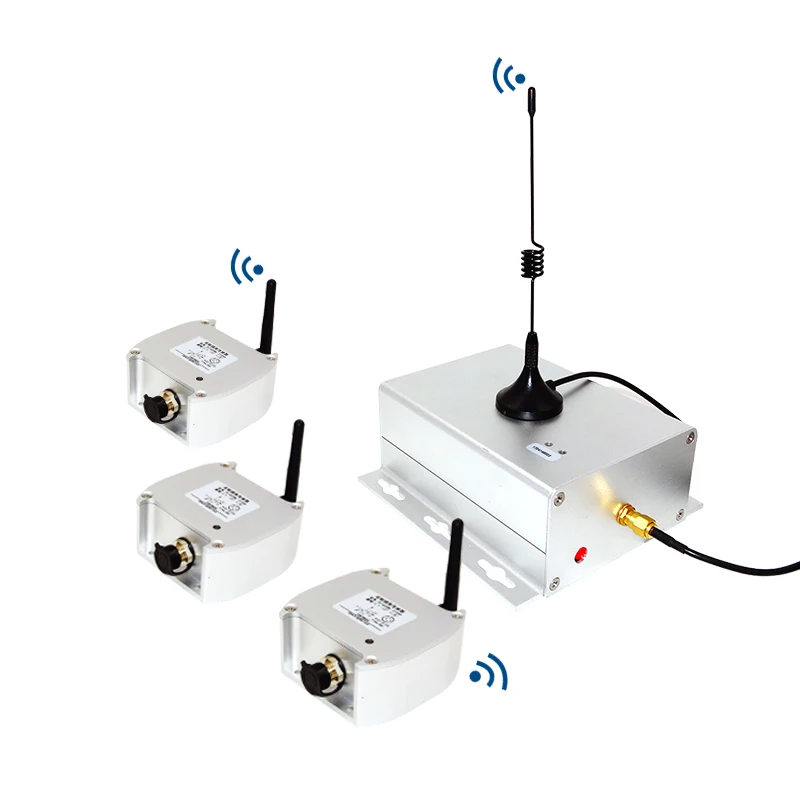

One gateway can connect up to 247 wireless LoRa inclinometers

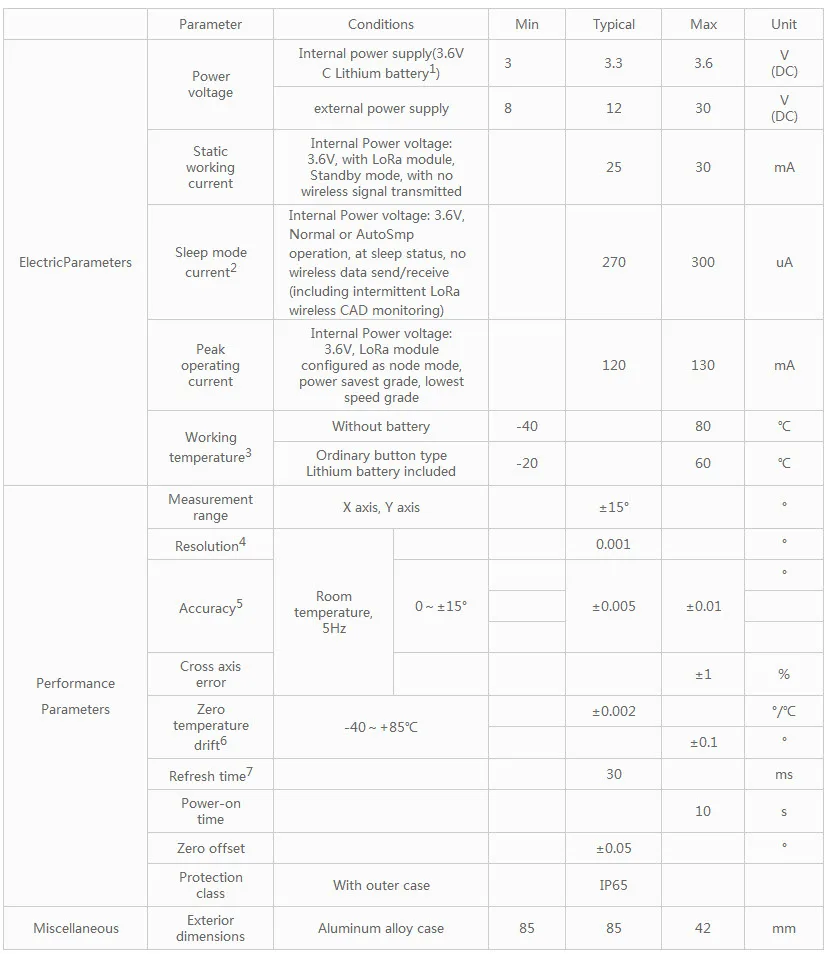

Product Paramenters

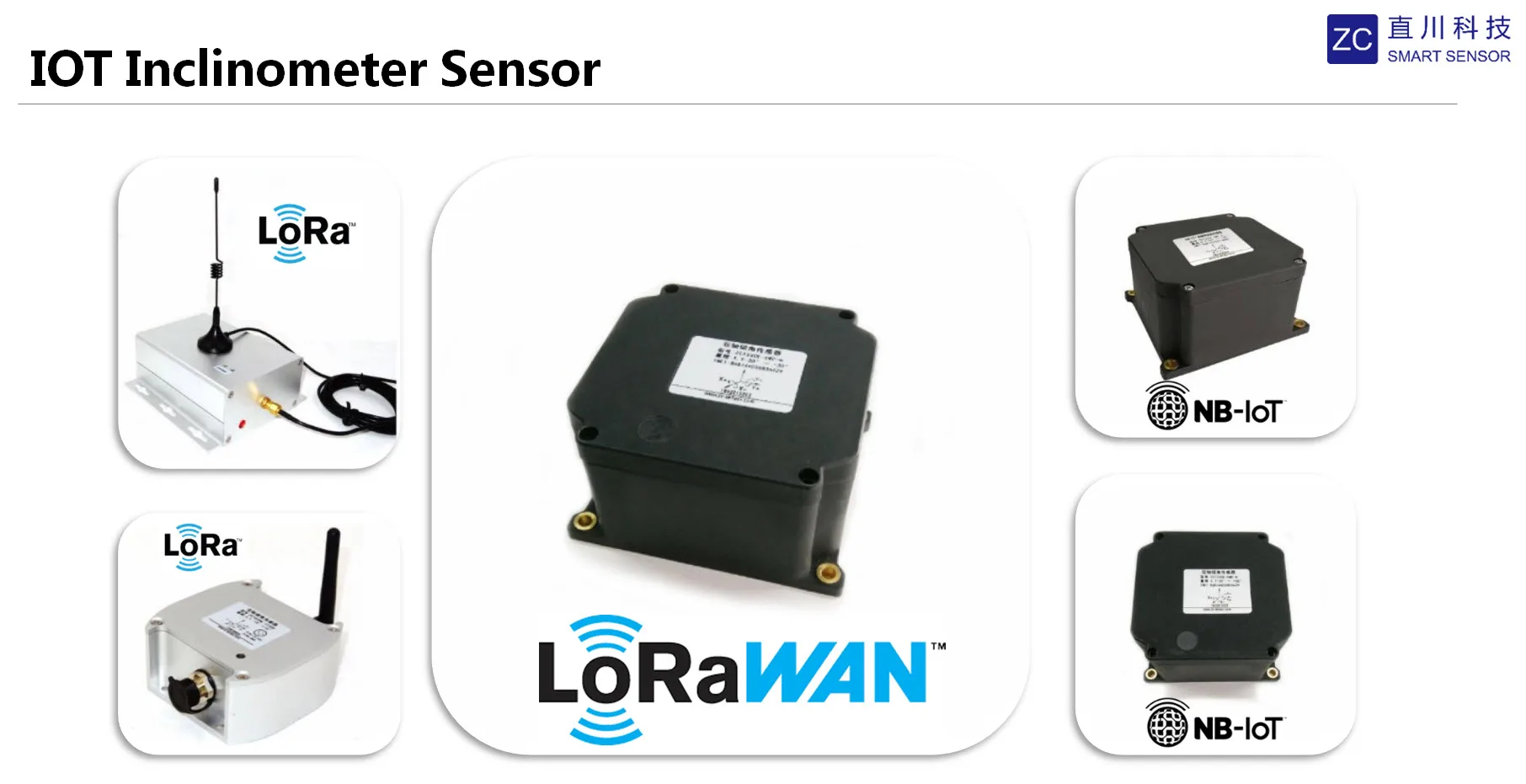

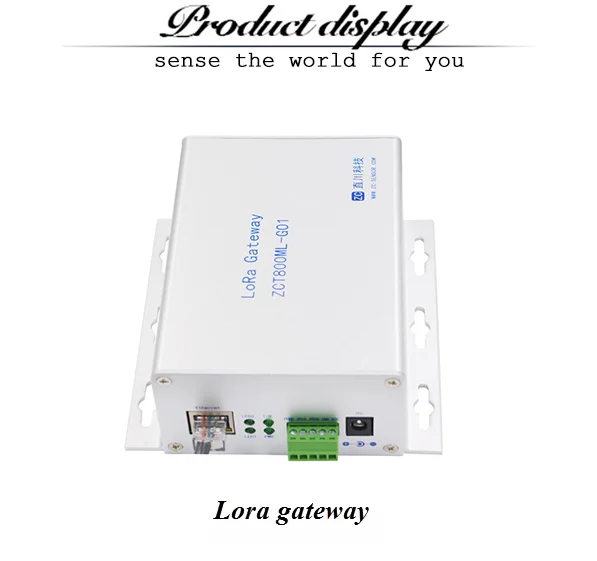

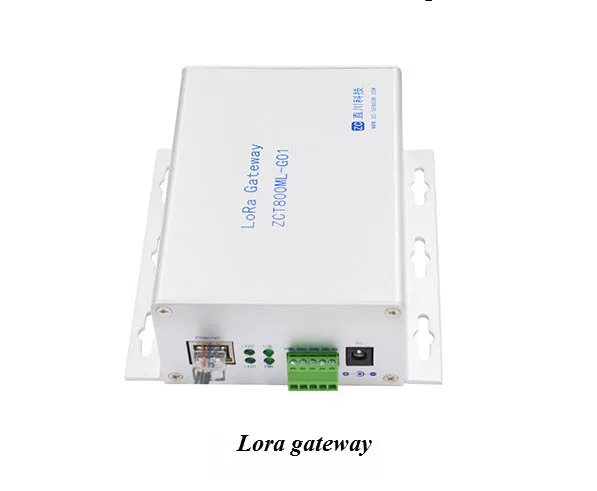

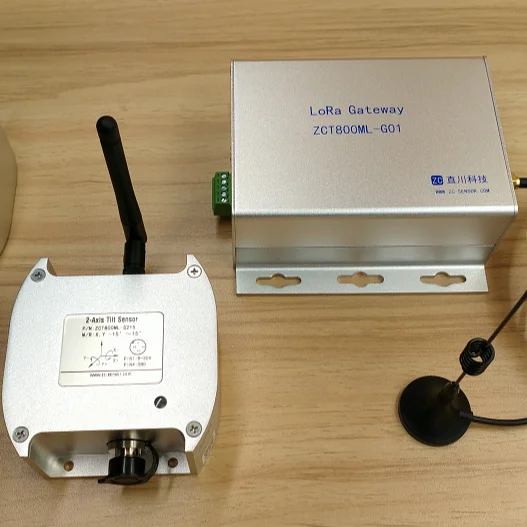

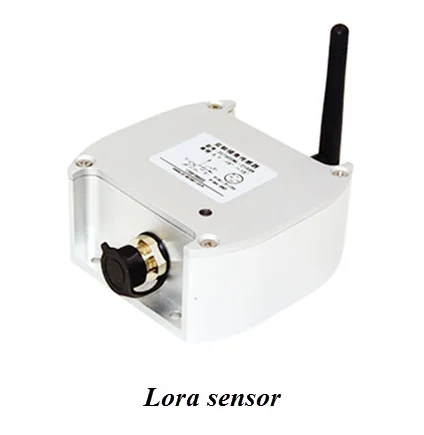

Detailed Images
1: ZC LoRa Inclination Sensor Joins European A2A Smart City Deployment Plan
2: The devlopment of A2A Smart City uses the ZC LoRa inclination sensors

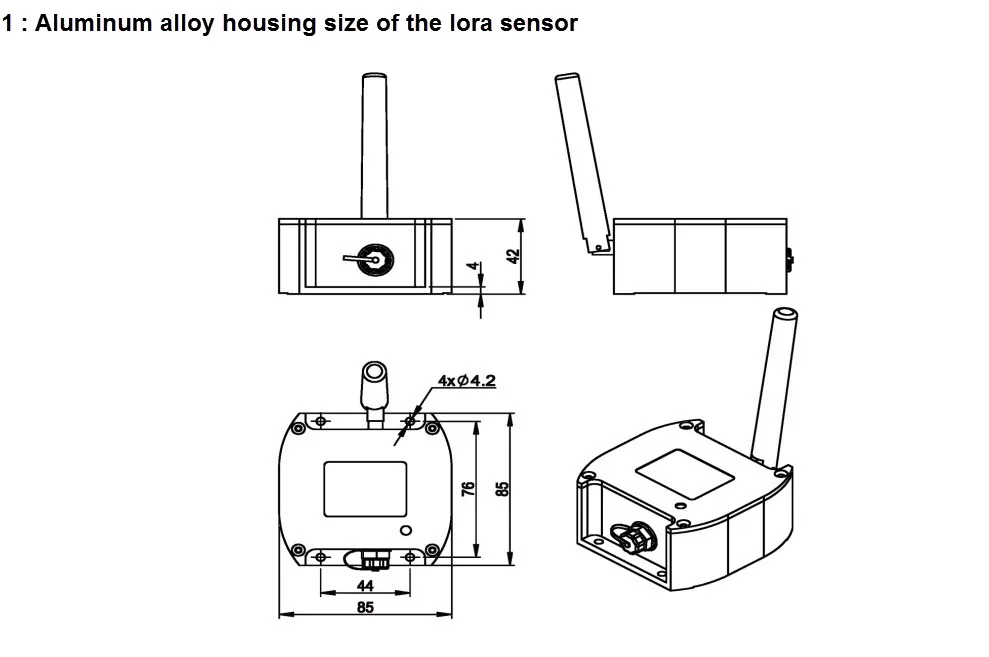

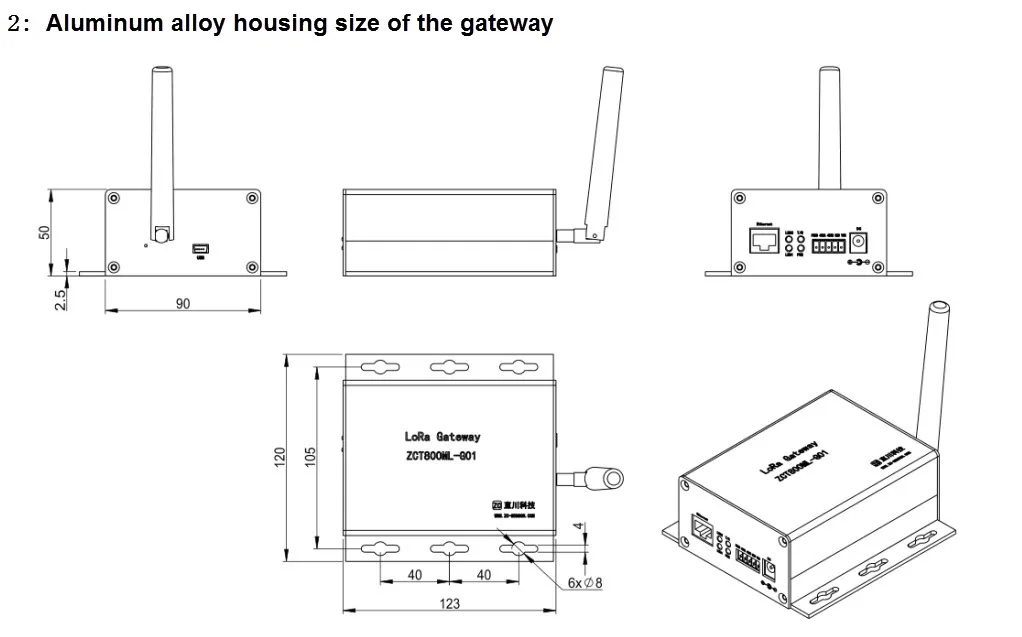

Exterior Measurements:
Applications
The key applications of IoT sensors are:
* Wireless tilt monitoring of ancient buildings * Tilt monitoring of dam/ bridges * Tilt monitoring of light poles and billboards for Smart Cities * Tilt monitoring of manhole covers * Shelf safety monitoring

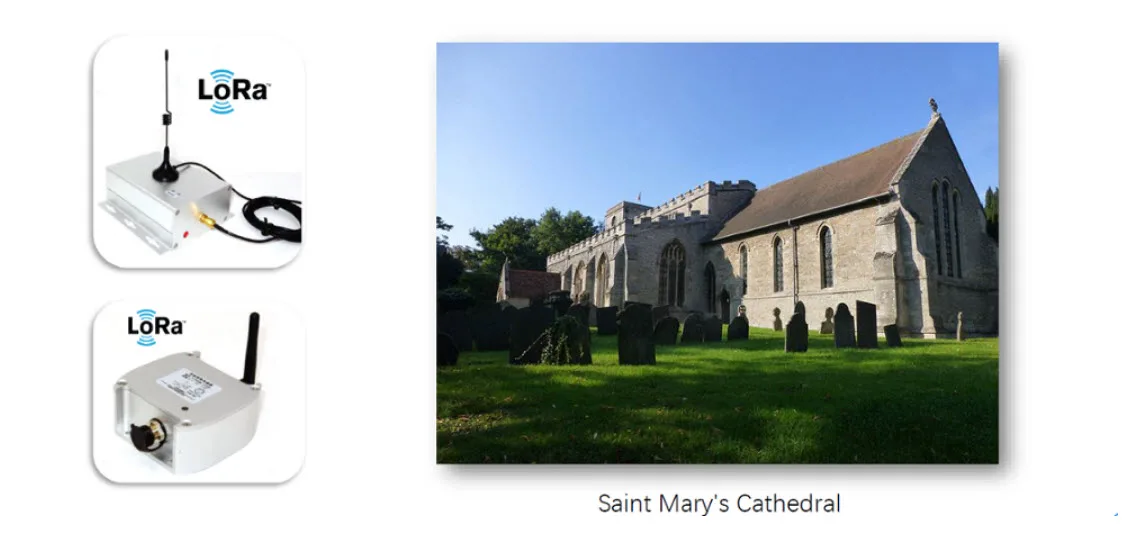

1. Use of LoRa Inclinometer Sensor ZCT800ML-S215 for Ancient Building Saint Mary's Cathedral Mornitoring

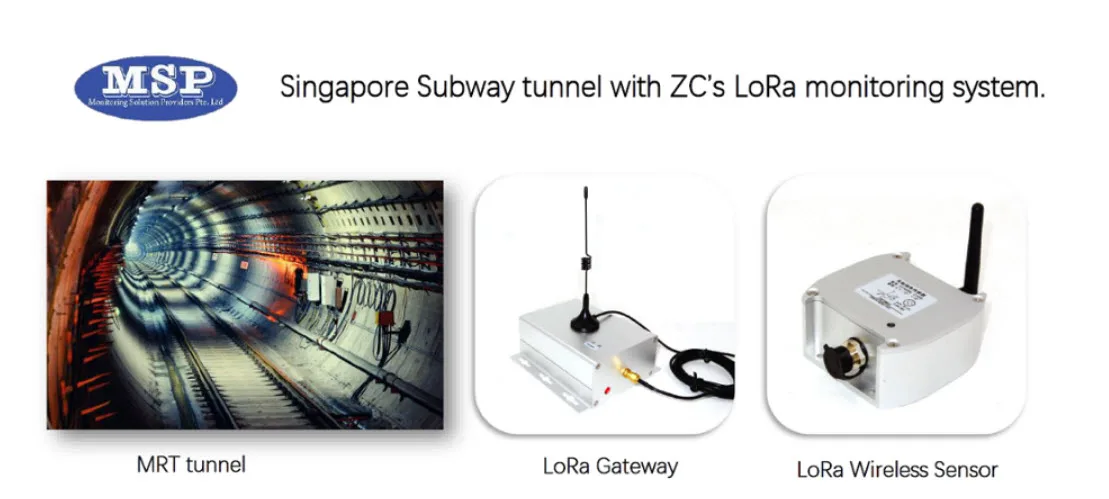

2. Use for Subway Monitoring in Singapore

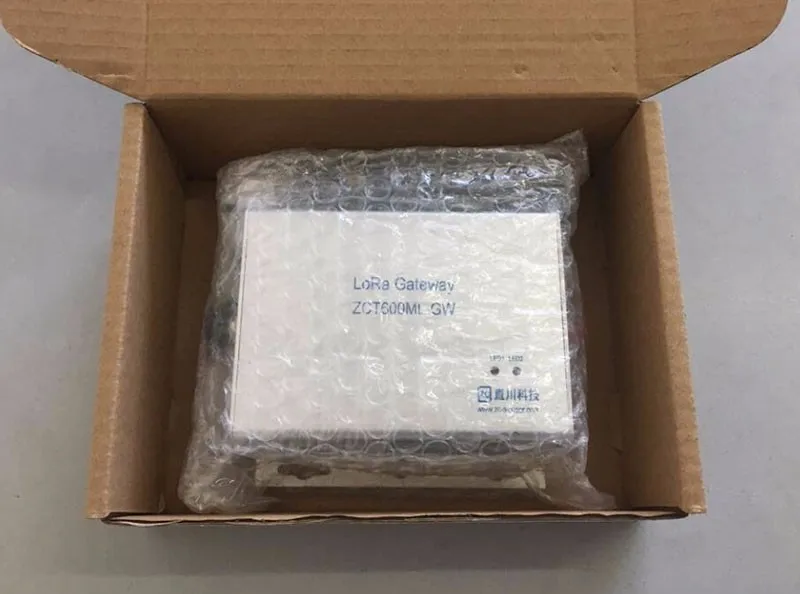

Packing & Delivery

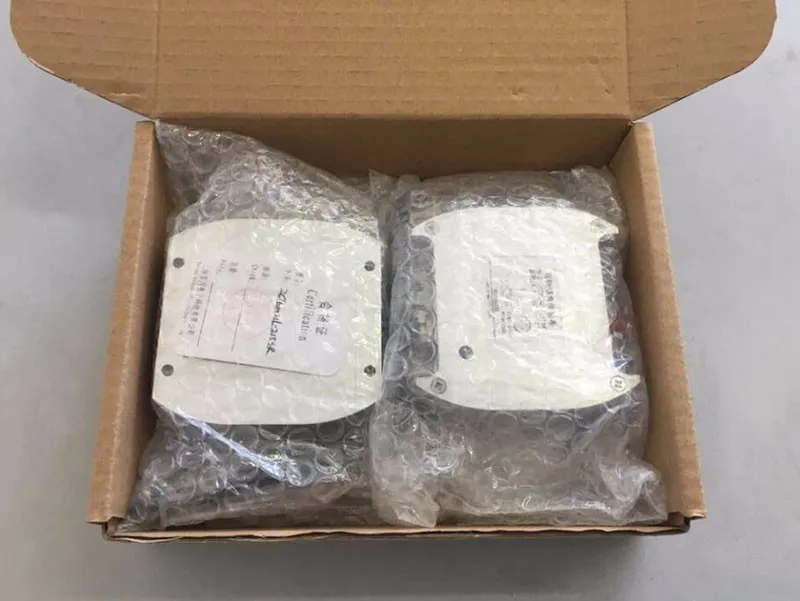

Each sensor is packed by a bubble bag, then put each two sensors into a 3-layer catron box., Finally, all sensors are packed by a big carton box with buffer sponge.
Our Certificates
About Us
Shanghai Zhichuan(ZC) Electronic Tech Co., Ltd was established in 2002. Our company always endeavors in designing and manufacturing more accurate, sensitive and reliable inclinometers, providing detailed and comprehensive solutions and service to our customers, assisting in improving their production efficiency and taking challenges in fierce market competition.
As a leader in the tilt measuring and inclinometer fields in China. We have our own factory, professional technical team and experienced sales engineers. Our inclinometers and tilt sensors have been widely used for Geotechnical Monitoring, Solar Tracking System, Tip-over Monitoring, TMS Intelligent Tower and Building Monitoring System. Our sales engineers can offer customers best solution according to their applicaitons. If you have any question, just feel free to send us a message below or write to us at contact(at)zc-sensor.com.
