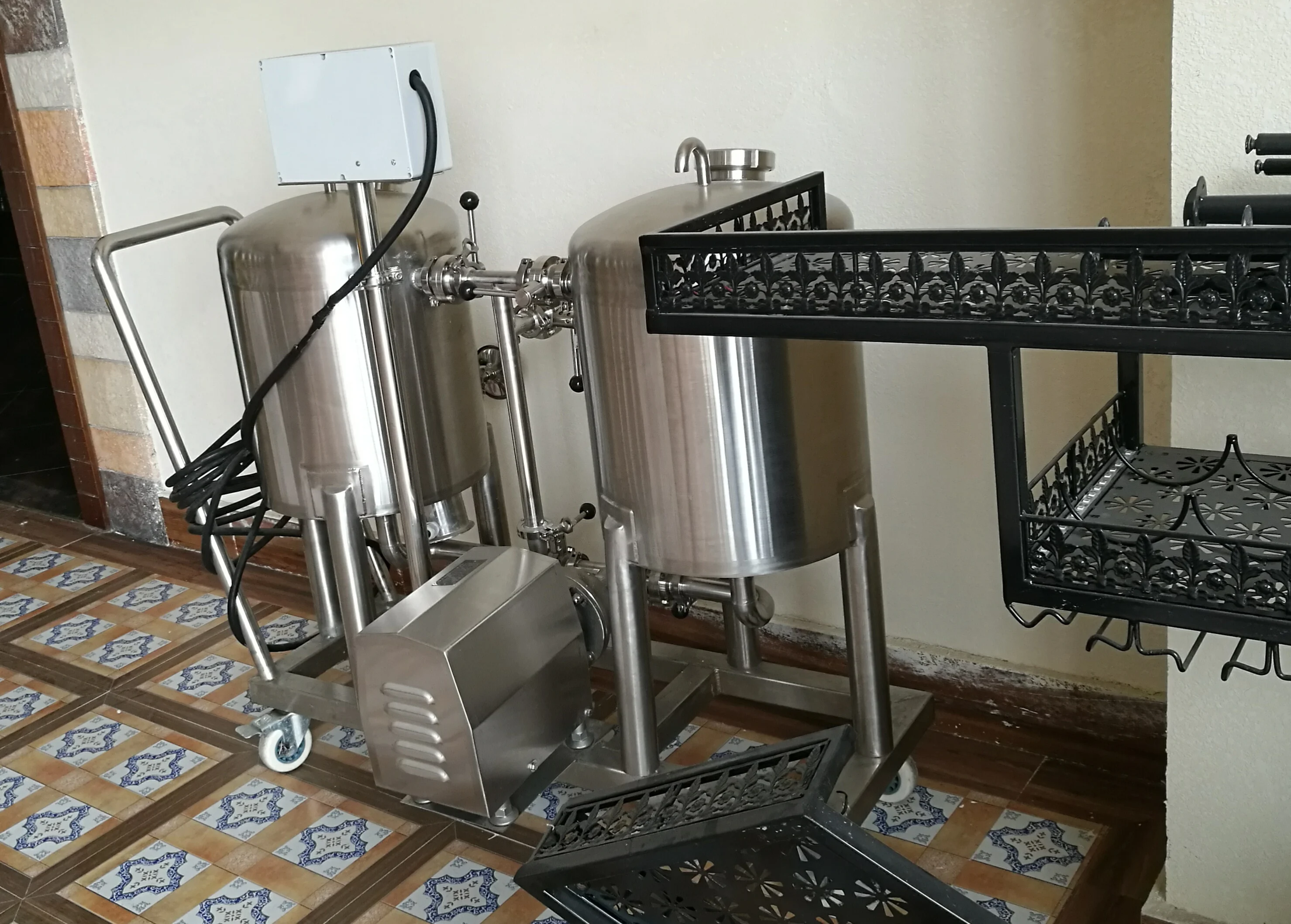

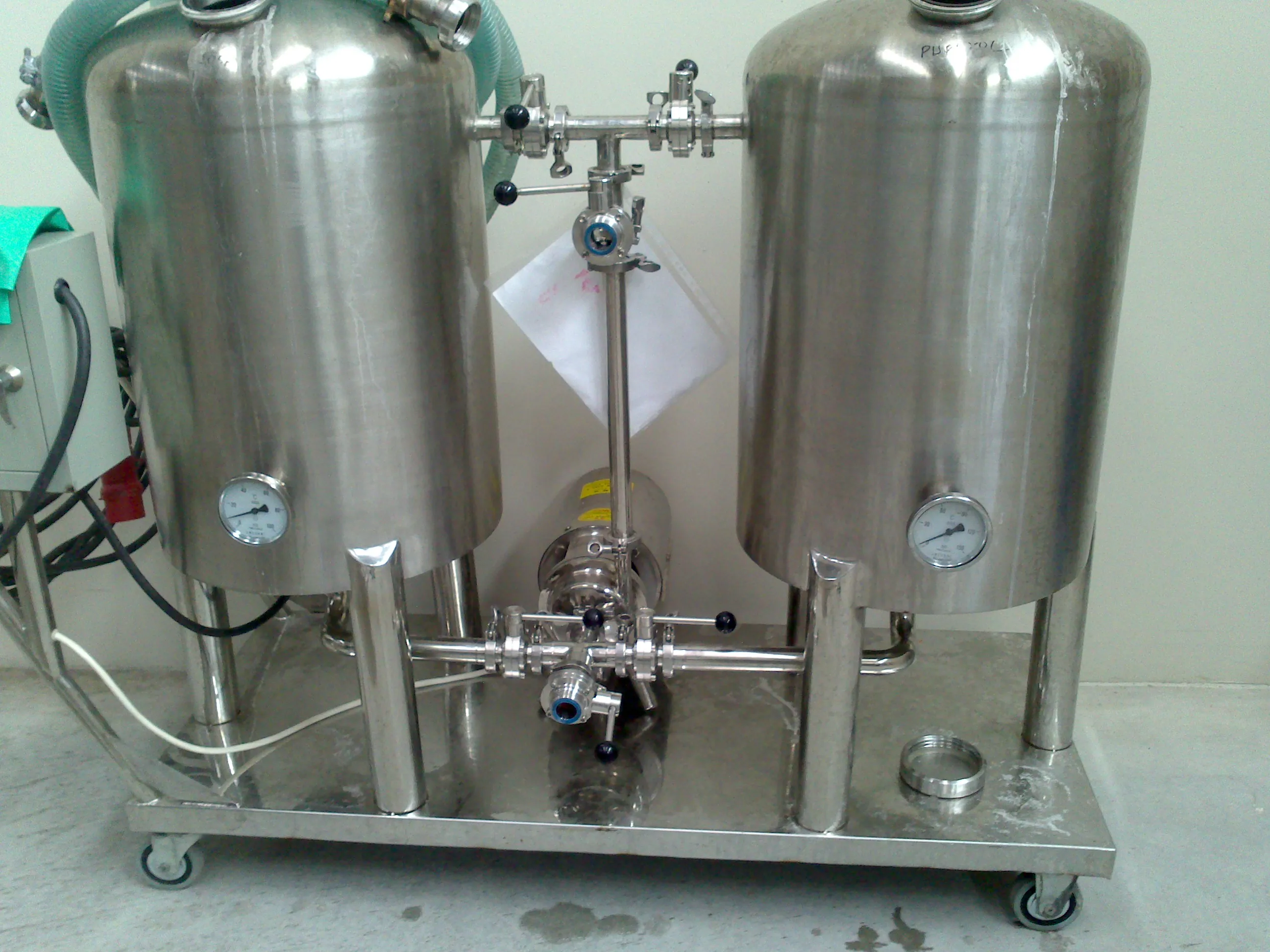

CIP cleaning system for brewery plant, CIP station

Sterilize Tank

100L

1 piece

Stainless Steel 304

1. Outsize Dimension: 500×1120;

2. Total volume: 120L, Effective volume:100L;

3. Inner Body Thickness:1.5mm;

4. Inner & Outer Plate Surface protection welding line Belt Sander Polished

5.with valves and accessories

Alkali liquor Tank

100L

1 piece

Stainless Steel 304

1. Outsize Dimension: 500×1120,

2. Total volume: 120L, Effective volume:100L;

3. Inner Body Thickness:1.5mm;

4. Inner & Outer Plate Surface protection welding line Belt Sander Polished,

5. Heat power:2kw

6. With valves and accessories

CIP trolley

1300×600

1

Stainless steel

Matched

Washing pump

flow rate 3 m³/h, pump lift 18m

1

Stainless steel

Pipeline

Valves

38/32

1

06Cr19Ni10

Sanitation grade

Control Box

200×75×120

1

Spurted plastic

Wired hose

32 L=1.5m

1 set

Foodhose

  With joint and fittings
