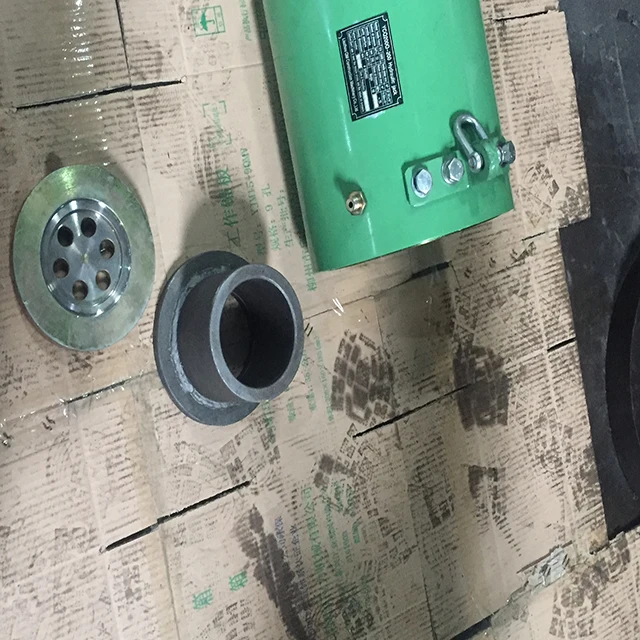

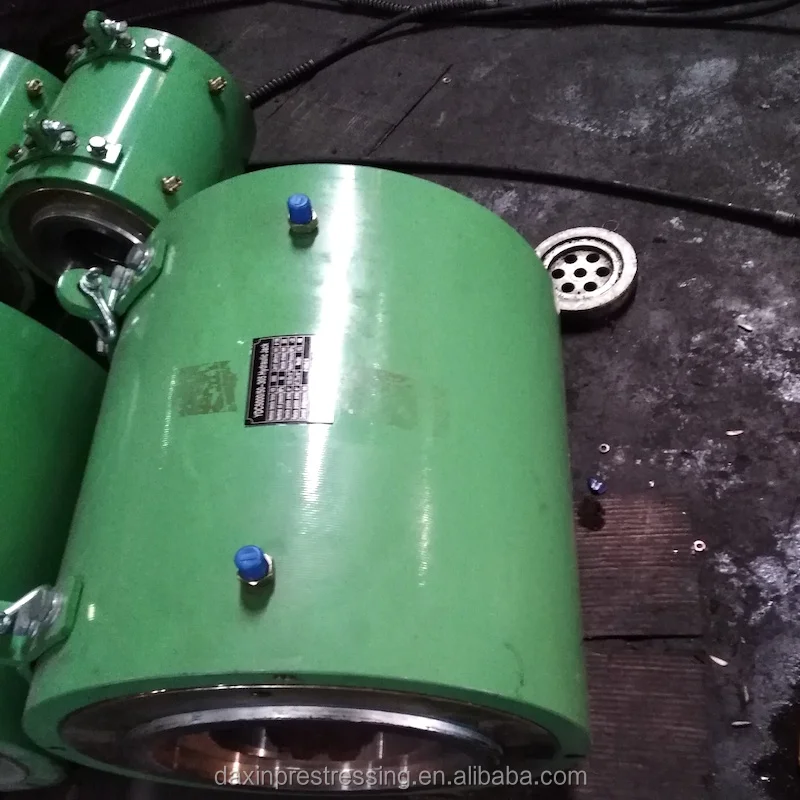

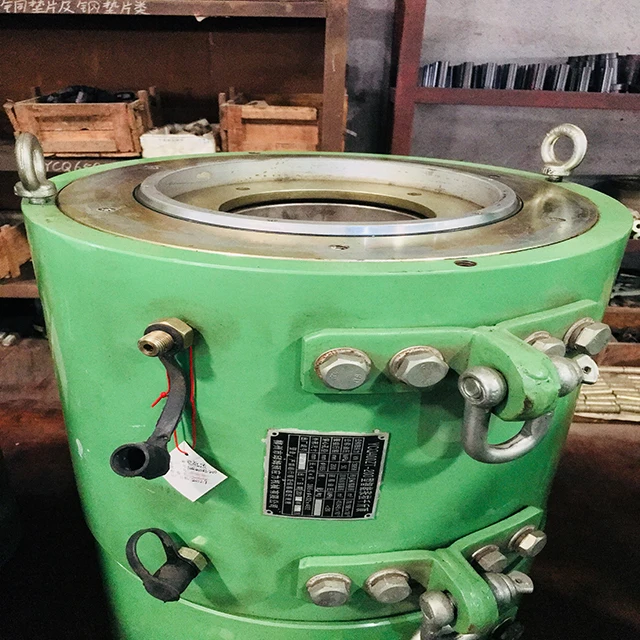

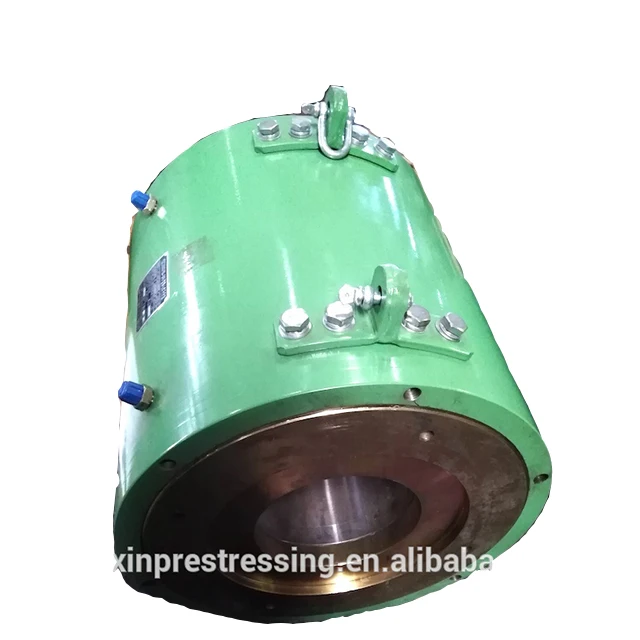

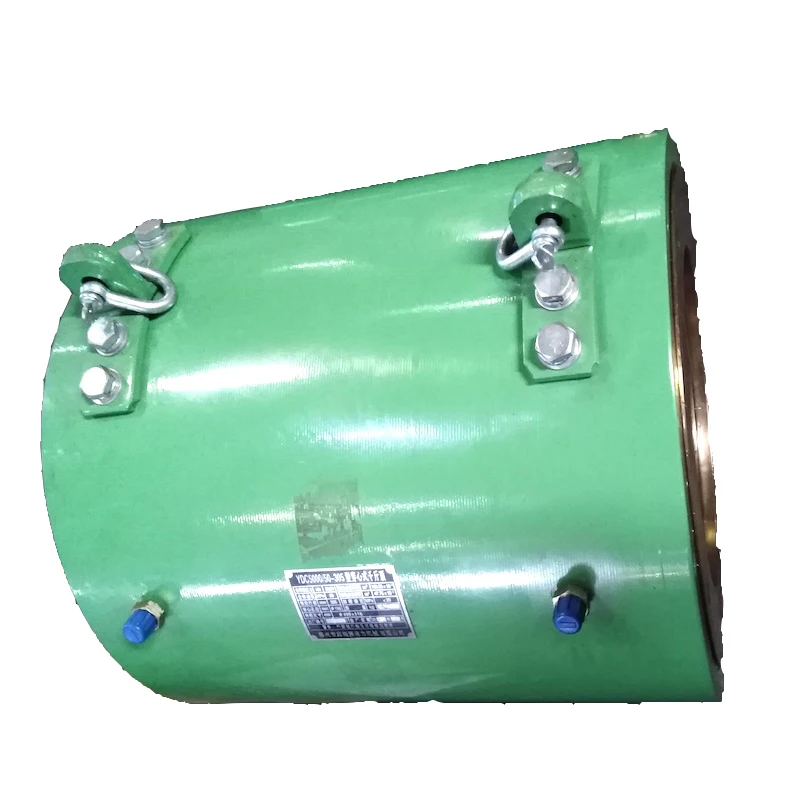

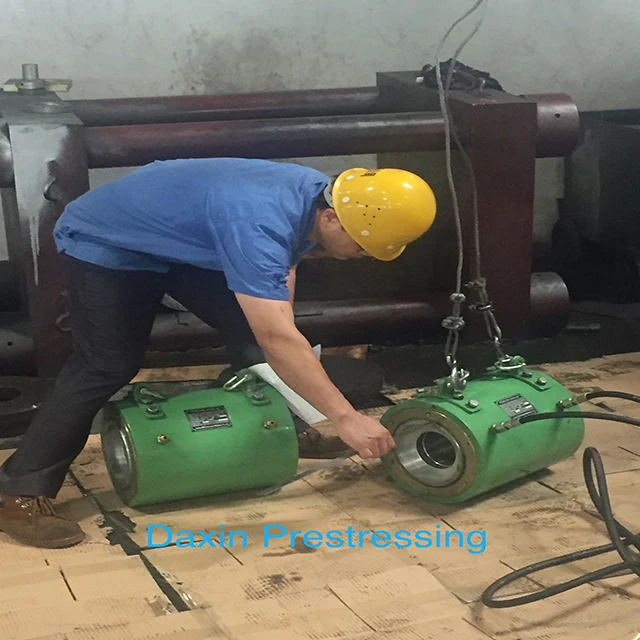

Main Hydraulic Jack YCQ300Q Multi Strand Jack 300 ton Hydraulic Jack
- Category: >>>
- Supplier: Daxin Prestressing Technique Co. Ltd.
Share on (62492729424):
Product Overview
Description
Product Description
Tension can also be self-locking anchor and anchor top pressure. Required to
anchor top pressure,install in the jack of the top pressure control,and install FL in the oil pump on the way shunt valve.
anchor top pressure,install in the jack of the top pressure control,and install FL in the oil pump on the way shunt valve.
YCQQ series of light jack is a universal strong prestress feedthrough jack ,through the use of new sealing technology, computing and design, optimization design, successgully developed a new type of light jack, which is replacement of a series jack products TCQ, also have a small size, light weight, good sealing performance, high reliability,easy operation and so on, YCQQ series equipped with the ZB4-500-type oil pump electric pump is mainly used for the series is mainly used for anchorage jack the tension
anchor, when configured with fidderent accessories can tension head bolt,cold cast anchor and other anchorage respectively.
anchor, when configured with fidderent accessories can tension head bolt,cold cast anchor and other anchorage respectively.

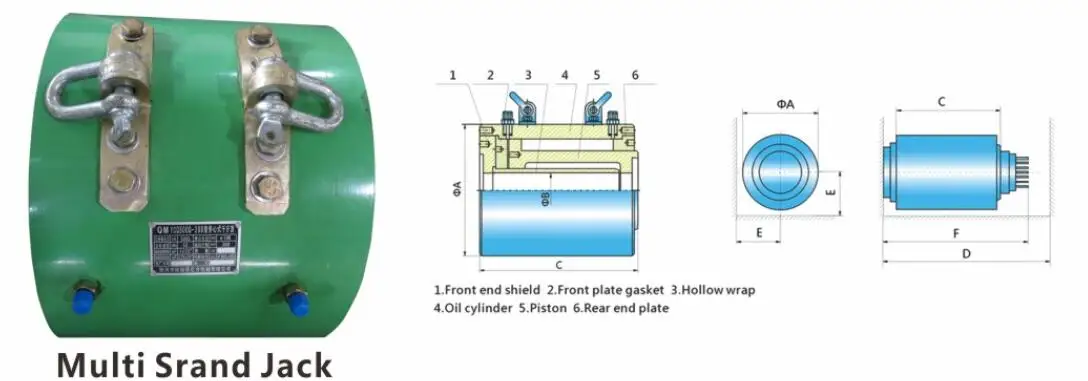

Detailed Images
Project | Unit | YCQ250Q | YCQ300Q | YCQ350Q | YCQ400Q | YCQ500Q |
Nom.Pressure | MPa | 54 | 52 | 52 | 50 | 50 |
Tension Pisiton Area | ㎡ | 46.122x10-3 | 57.727x10-3 | 67.859x10-3 | 79.168x10-3 | 100.53x10-3 |
Nom.Force | kN | 2490 | 3000 | 3528 | 3958 | 5000 |
Retuen Pressure Area | ㎡ | 25.780x10-3 | 31.337x10-3 | 34.626x10-3 | 45.945x10-3 | 47.75x10-3 |
Stroke | mm | 200 | 200 | 200 | 200 | 200 |
Cavity Aperture ΦB | mm | Φ131 | Φ145 | Φ165 | Φ165 | Φ196 |
Weight | kg | 145 | 170 | 230 | 240 | 390 |
Overal Size ΦAXC | mm | Φ340x342 | Φ376x342 | Φ412x357 | Φ432x362 | Φ500x392 |
Min. Service Space | mm | 1300 | 1300 | 1350 | 1350 | 1800 |
Min. Service Space | mm | 230 | 250 | 300 | 300 | 350 |
Stand Precutting Length | mm | 630 | 630 | 700 | 700 | 800 |

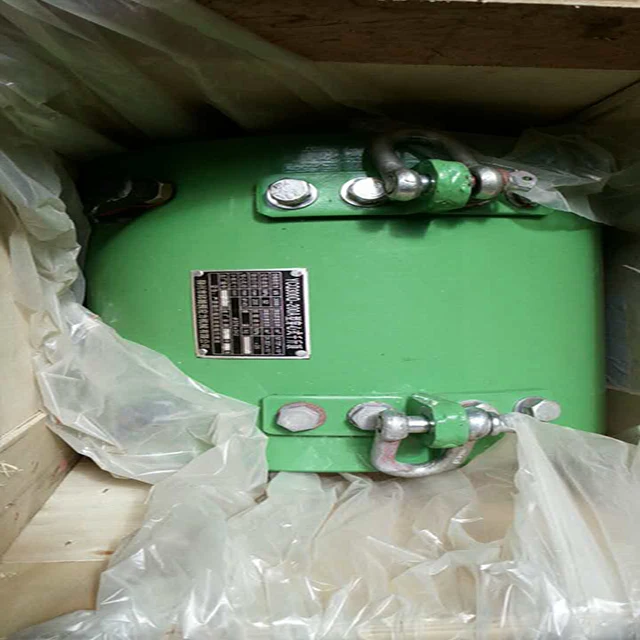

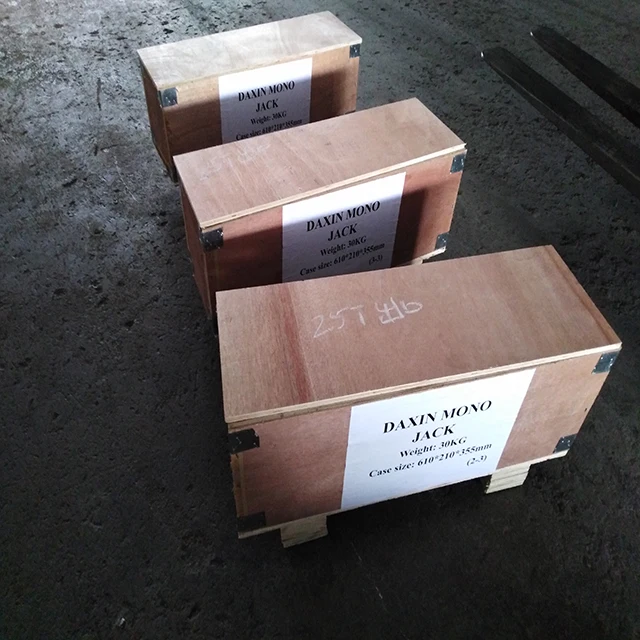

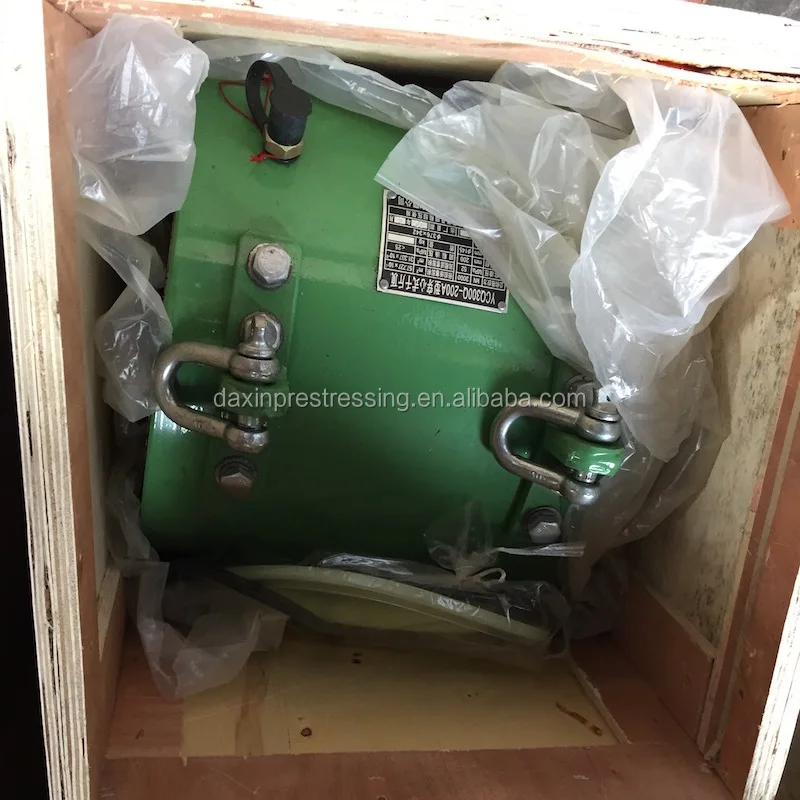

Packing & Delivery
Certifications
Customers

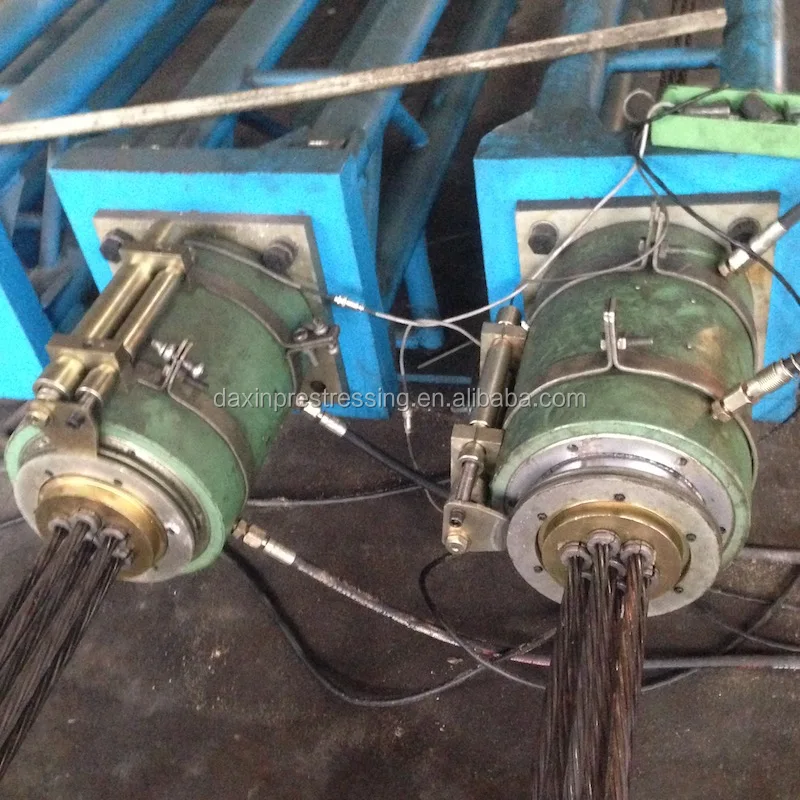

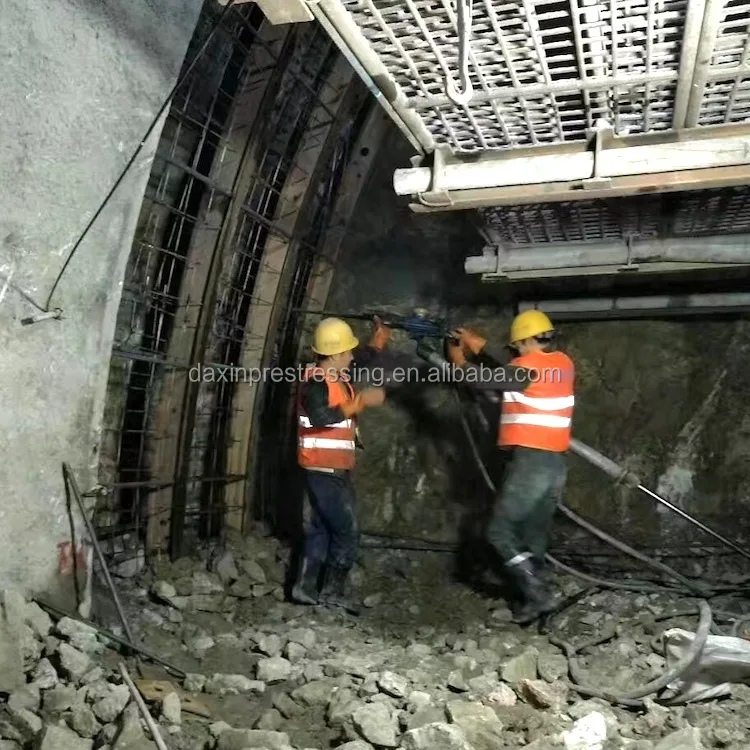

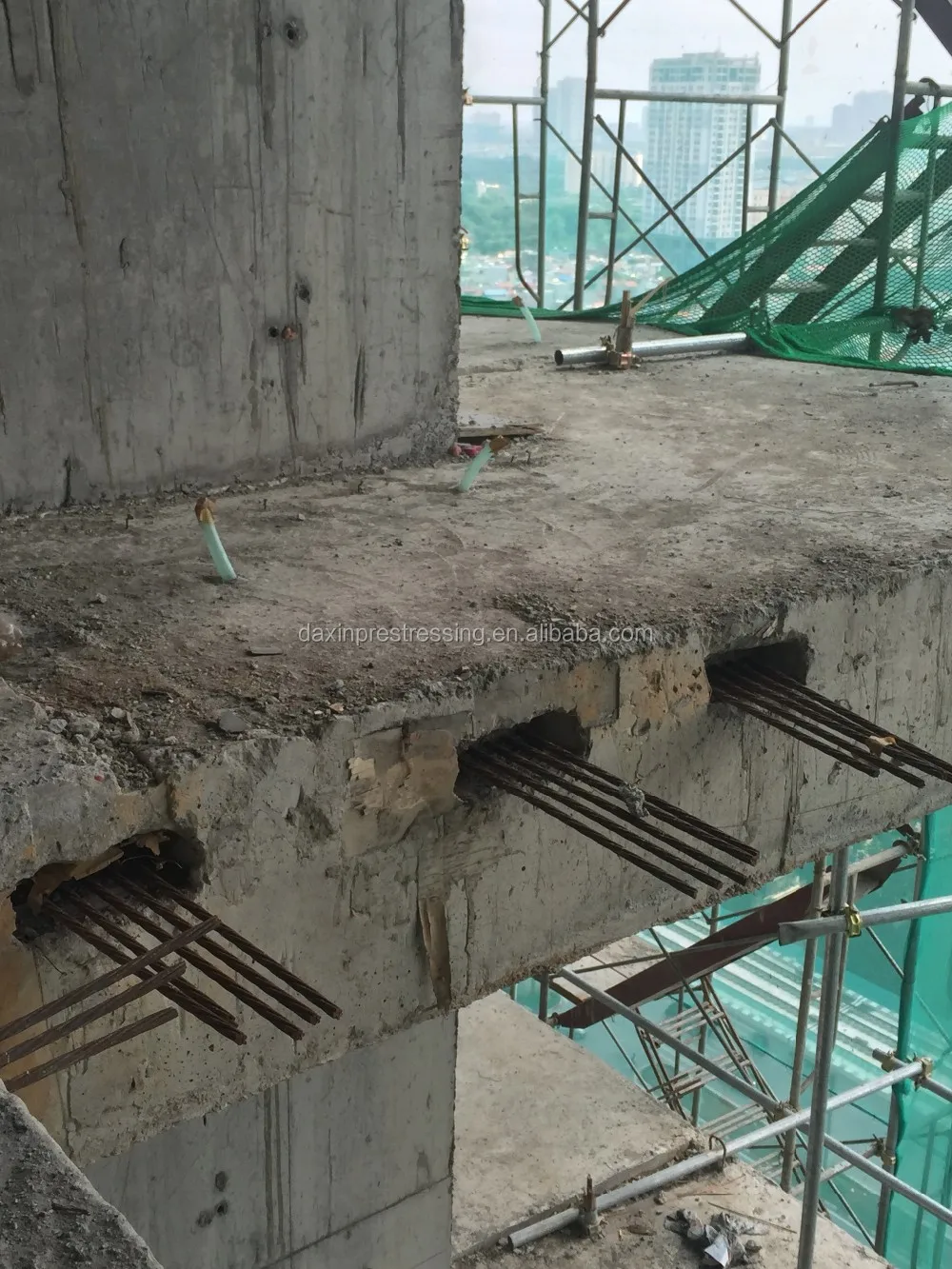

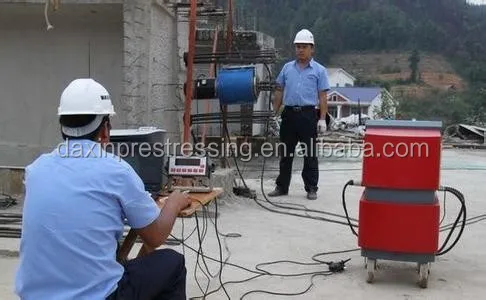

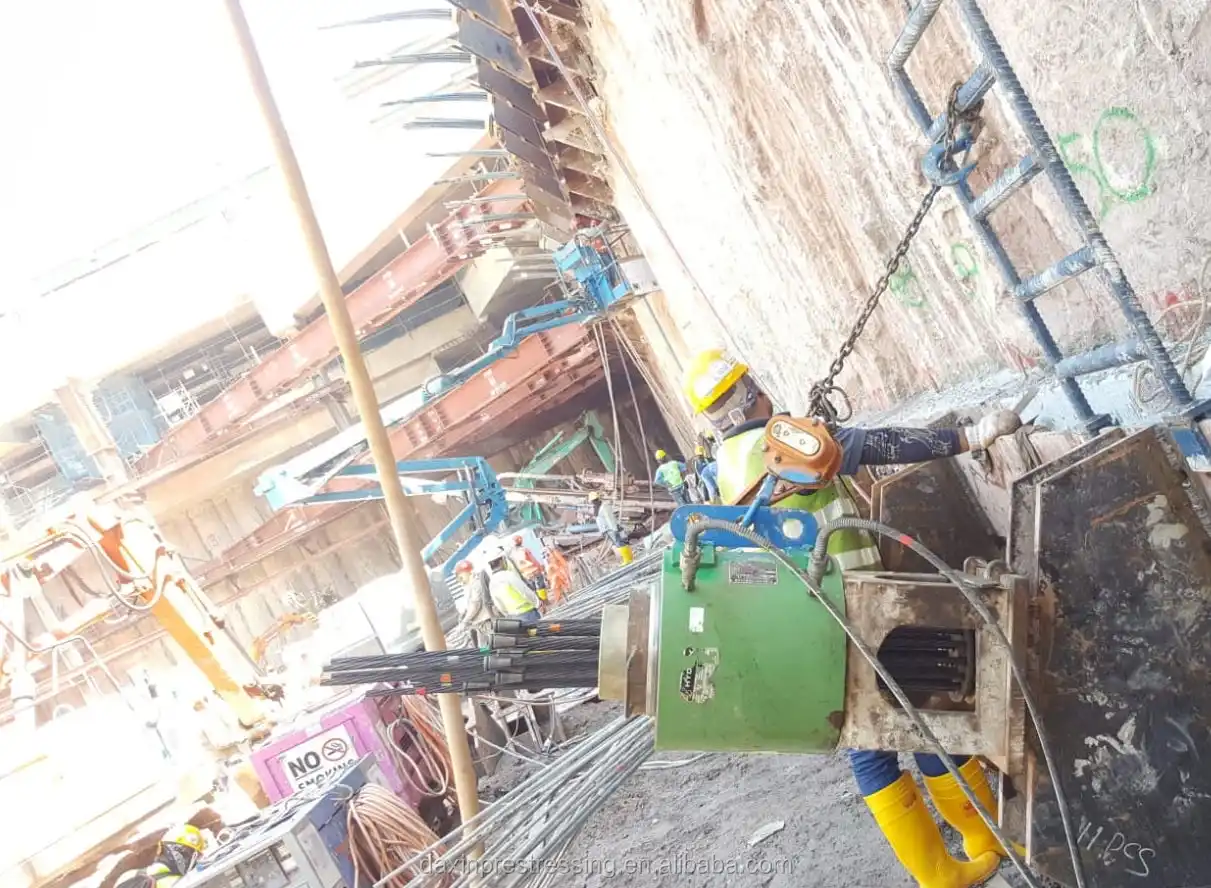

Projects
FAQ.
Q: Are there calibration certificate of the jack?
A: Our Jack are calibrated by China authority, is Chinese standard.
Q: How can I get the anchorage?
A: If you need the anchorage, please offer us your drawing to confirm. IF you dont have drawing, we can show you ours.
Q: What is your term of delivery?
A: We accept EXW, FOB Shenzhen, FOB Guangzhou, CIF, DDU.
Q: What about the lead time for the mass production?
A: We often arrange our product within 7 working days. Sometimes it depends on your order quantity and the season you placesd..
A: Our Jack are calibrated by China authority, is Chinese standard.
Q: How can I get the anchorage?
A: If you need the anchorage, please offer us your drawing to confirm. IF you dont have drawing, we can show you ours.
Q: What is your term of delivery?
A: We accept EXW, FOB Shenzhen, FOB Guangzhou, CIF, DDU.
Q: What about the lead time for the mass production?
A: We often arrange our product within 7 working days. Sometimes it depends on your order quantity and the season you placesd..
