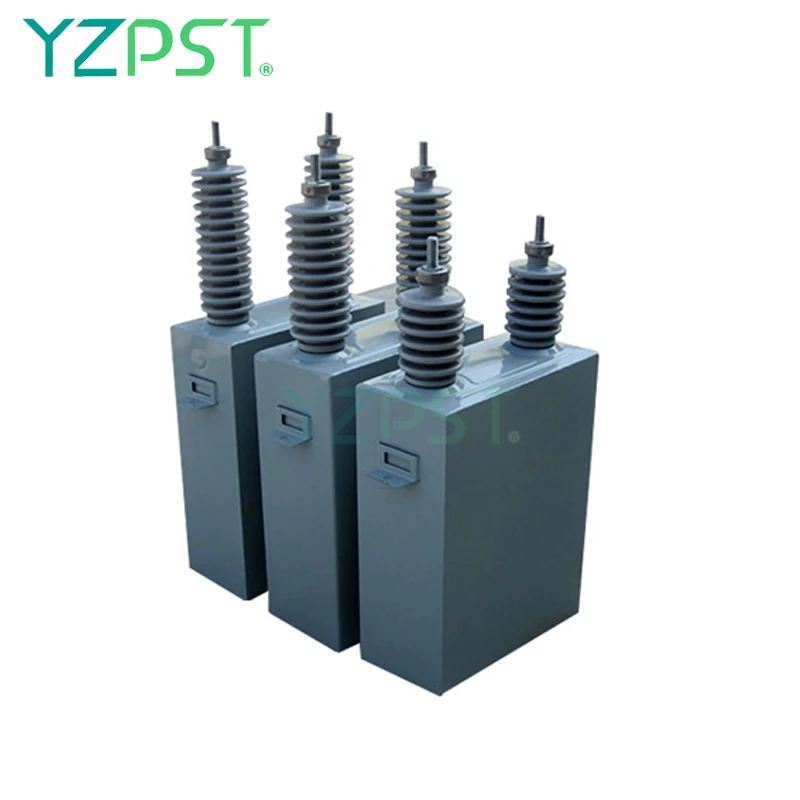

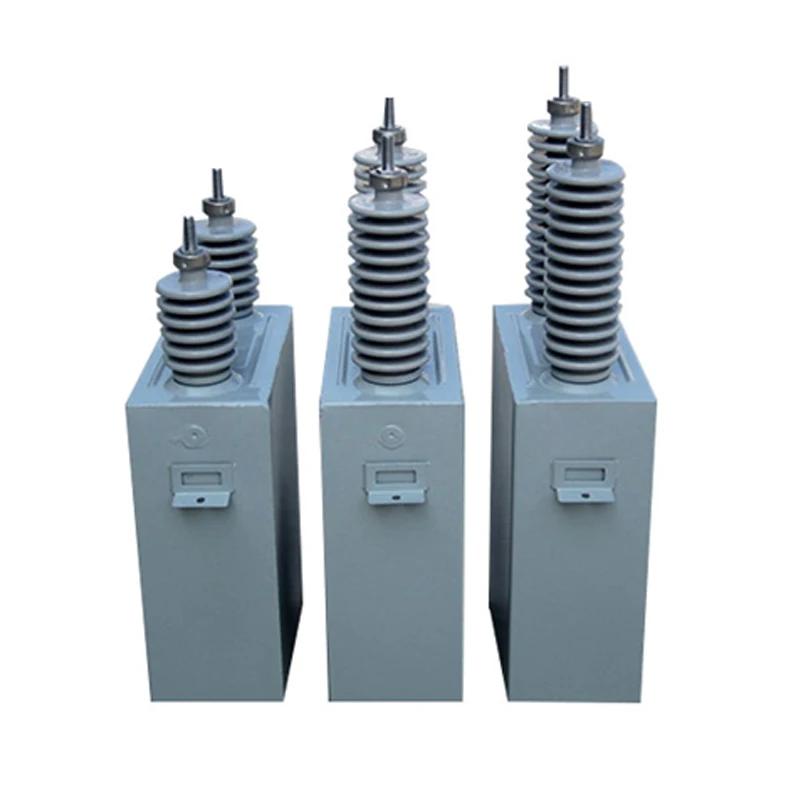

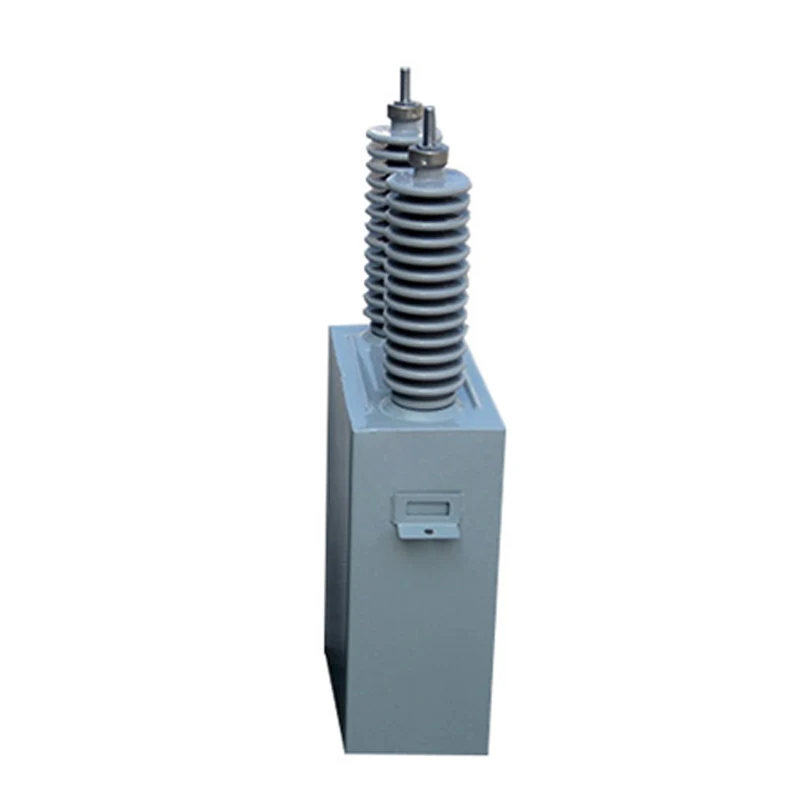

YZPST BFM11 500 1W Safty high voltage shunt capacitor 39.5uf

BFM series high voltage parallel capacitor
YZPST-BFM11-500-1W

High voltage shunt capacitors are mainly used in 50HZ or 60HZ AC power systems to improve power factor, product performance load GB3983.2-89 "High Voltage Shunt Capacitor" and international standard IE60671-1

Function and Application:

That applies to more than special used to improve the voltage of 1000 v, 50 hz ac capacitor unit of the
power factor of power system and capacitor Banks

The technology unique point:

The whole film oil-immersed structure NO PCB
• Whether can be customized using built-in fuse
• Built-in discharge resistance
Conditions of use/technical parameters/product standards
Temperature range: -50℃~+55 ℃
Rated voltage UN: 1~ 14KV
Rated frequency FN: 50Hz
QN the rated capacity: 50 ~500Kar
Maximum current IN: ≤100A
Product standards:IEC60871-1(2005)
GB/T11024.1-2010
