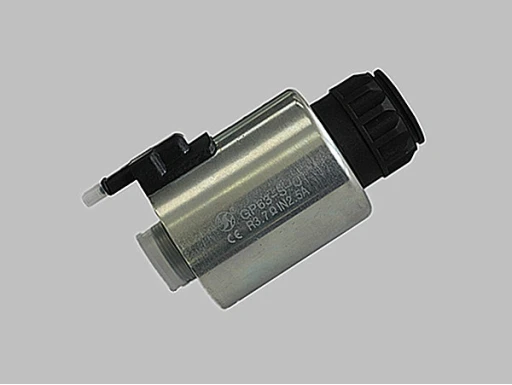

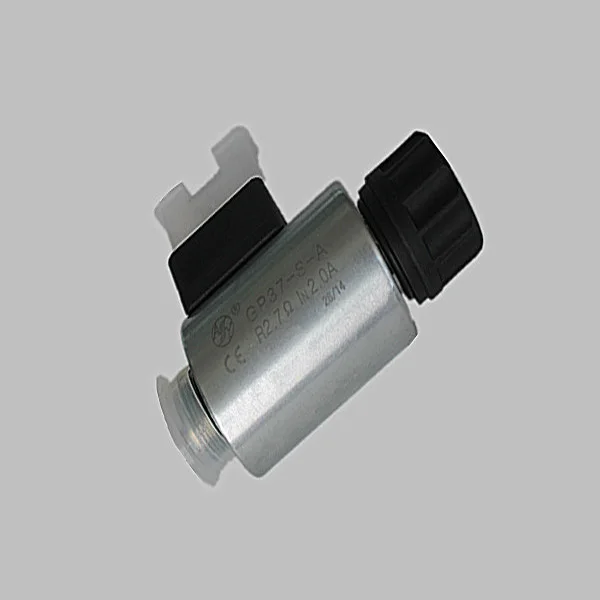

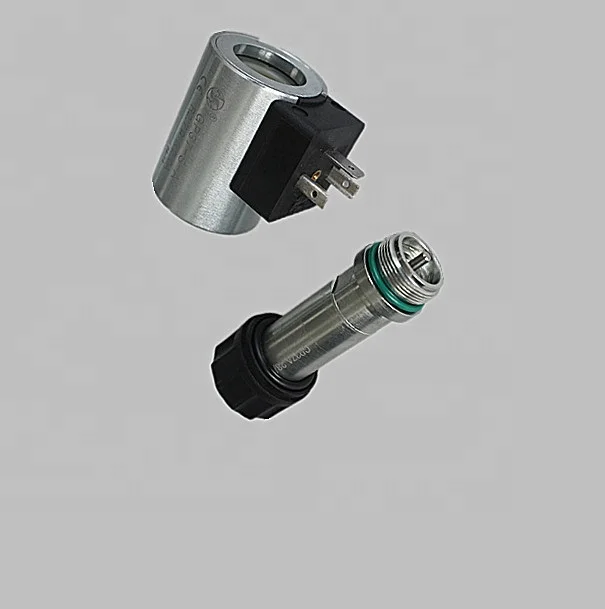

Threaded Proportional Solenoid Proportional Solenoid GV45 4 A hydraulic coil
- Category: >>>
- Supplier: Wuhan Emanway Import And Export Co. Ltd.
Share on (62493317075):
Product Overview
Description
Proportional solenoid GV45-4-A:
Features
- This series of products is an electromechanical conversion device. In the range of rated stroke and rated current, its output force is proportional to the input signal. Used in conjunction with a proportional control amplifier to accurately control the spool position of an electro-hydraulic proportional valve. It has the advantages of small size, linear working balance and high repeat accuracy. It is often used as the power component of controlled proportional flow valve and proportional directional valve in engineering machinery.
 |
 |
 |
Product Overviews
Key Parameters
|
Code |
GV45 -4-A |
|
Rated Current (A) |
0.8 |
|
Room Temperature Resistance 20℃ (Ω) |
19.5 |
|
Rated Force (N) |
90 |
|
Rated Stroke (mm) |
1.7 |
|
Total Stroke (mm) |
1.7 |
|
Force Lag Characteristic (%) |
≤3 |
|
Current Lag Characteristic (%) |
≤3 |
|
Repeat Accuracy (%) |
≤1 |
|
Static Oil Pressure (MPa) |
21 |
|
Degree Of Enclosure |
IP65 |
Steady Stroke-Force Curve
Externality & Installation Dimensions
Product Code: GV45-4-A
