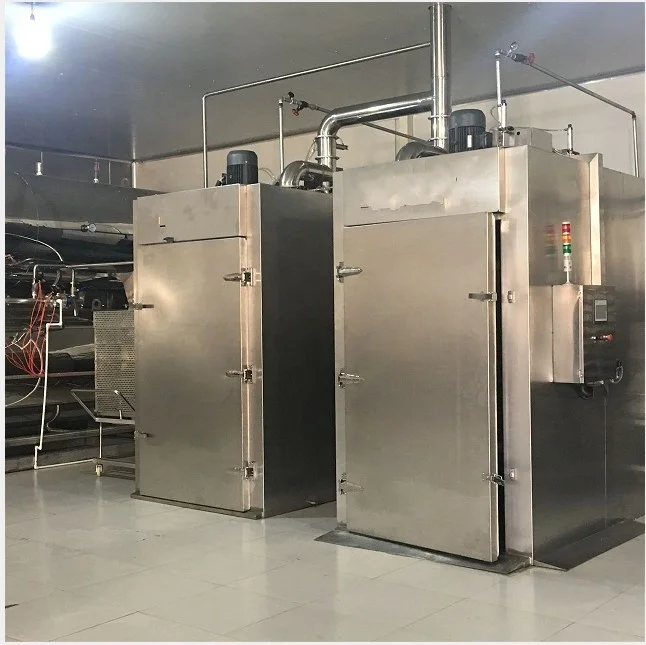

Sausage/Bacon/Chicken/Meat function of smoke house
- Category: >>>
- Supplier: Zhucheng Ruihe Food Machinery Co. Ltd.
Share on (62493401137):
Product Overview
Description
Products Description
Technology Parameters:
Model | RHYX-250 |
Dimension | 1400*1850*2850mm |
Production Capacity | 250kg |
Power | Electric:43KW Steam:7KW |
HP Steam Pressure | 0.3-0.8Mpa |
LP Steam Pressure | 0.05-0.1Mpa |
HP Temperature | 120°C |
LP Temperature | 100°C |
Trolley Size | 1020*1040*1800mm |
Weight | 1120kg |
Features:
1. All computer automatic control program, can display humidity, temperature curve. In the optional recorder can be displayed when the implementation of the components of the operation of monitoring charts and the operation of the process of working table.
2. Import Japan SMC Pilot steam valve to control steam flow, precise temperature control, reliable operation, the entire tank temperature is less than 1 ° C
3. After 3000 leaves per minute dynamic balance check, the maximum wind speed of up to 25 meters per second, effectively guarantee the product up and down in the baking process, left and right temperature.
4. Smoke generating device using wood grain generator, smoke stable, fast color, and clean the smoke into the box clean.
5. According to customer needs after the implementation of the smoked box to open the door and can achieve the front and rear door interlock.
2. Import Japan SMC Pilot steam valve to control steam flow, precise temperature control, reliable operation, the entire tank temperature is less than 1 ° C
3. After 3000 leaves per minute dynamic balance check, the maximum wind speed of up to 25 meters per second, effectively guarantee the product up and down in the baking process, left and right temperature.
4. Smoke generating device using wood grain generator, smoke stable, fast color, and clean the smoke into the box clean.
5. According to customer needs after the implementation of the smoked box to open the door and can achieve the front and rear door interlock.

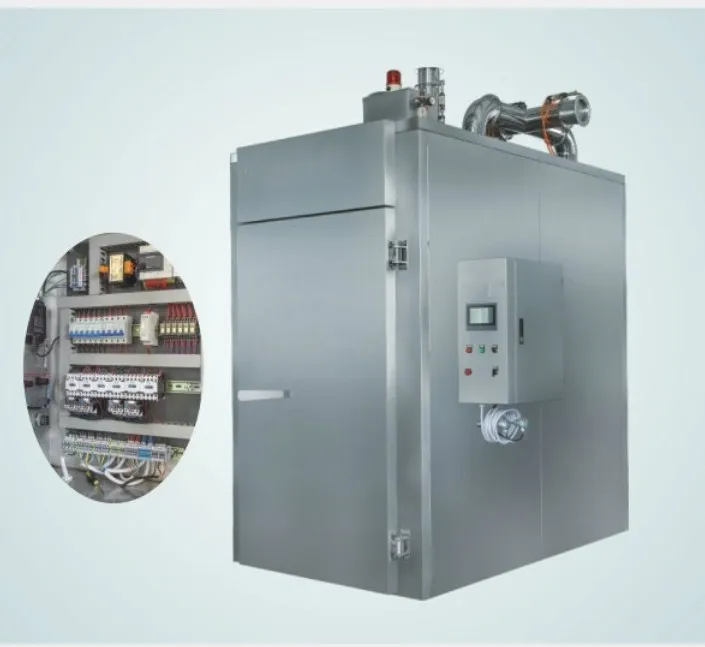

Smoke oven with cooking, drying, humidification drying, baking, smoke, exhaust, cleaning and other functions. The main framework of sandwich are filled with imported high temperature resistant high quality aluminum silicate felt, the heat insulation effect enhancement, good sealing performance, energy saving and high efficiency. The program mable controller and a relay, electromagnetic valve and other key electrical components are imported products.

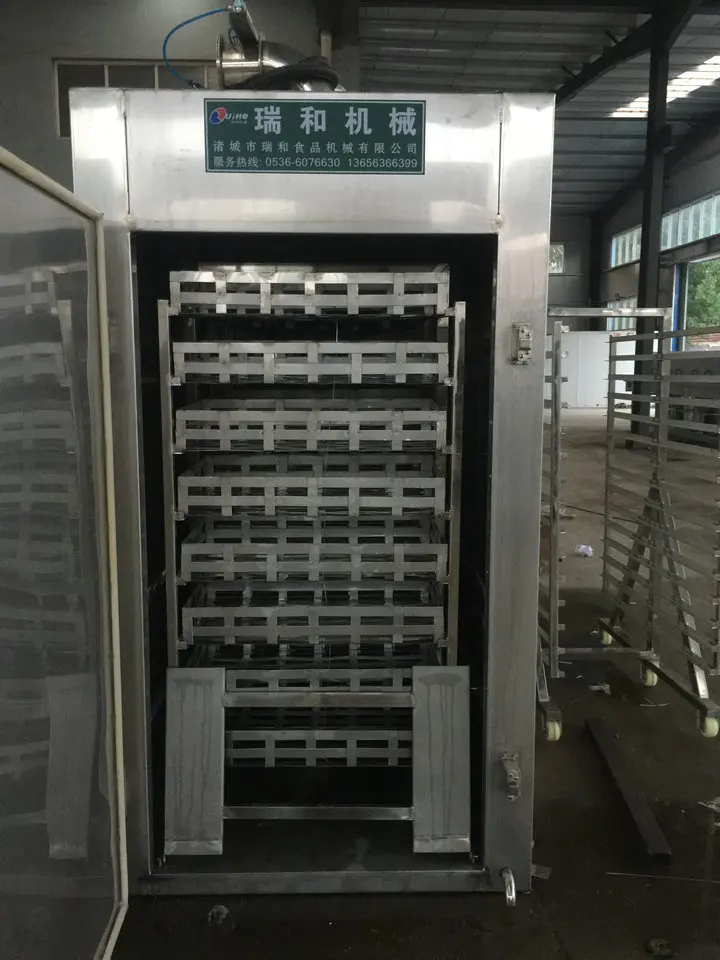

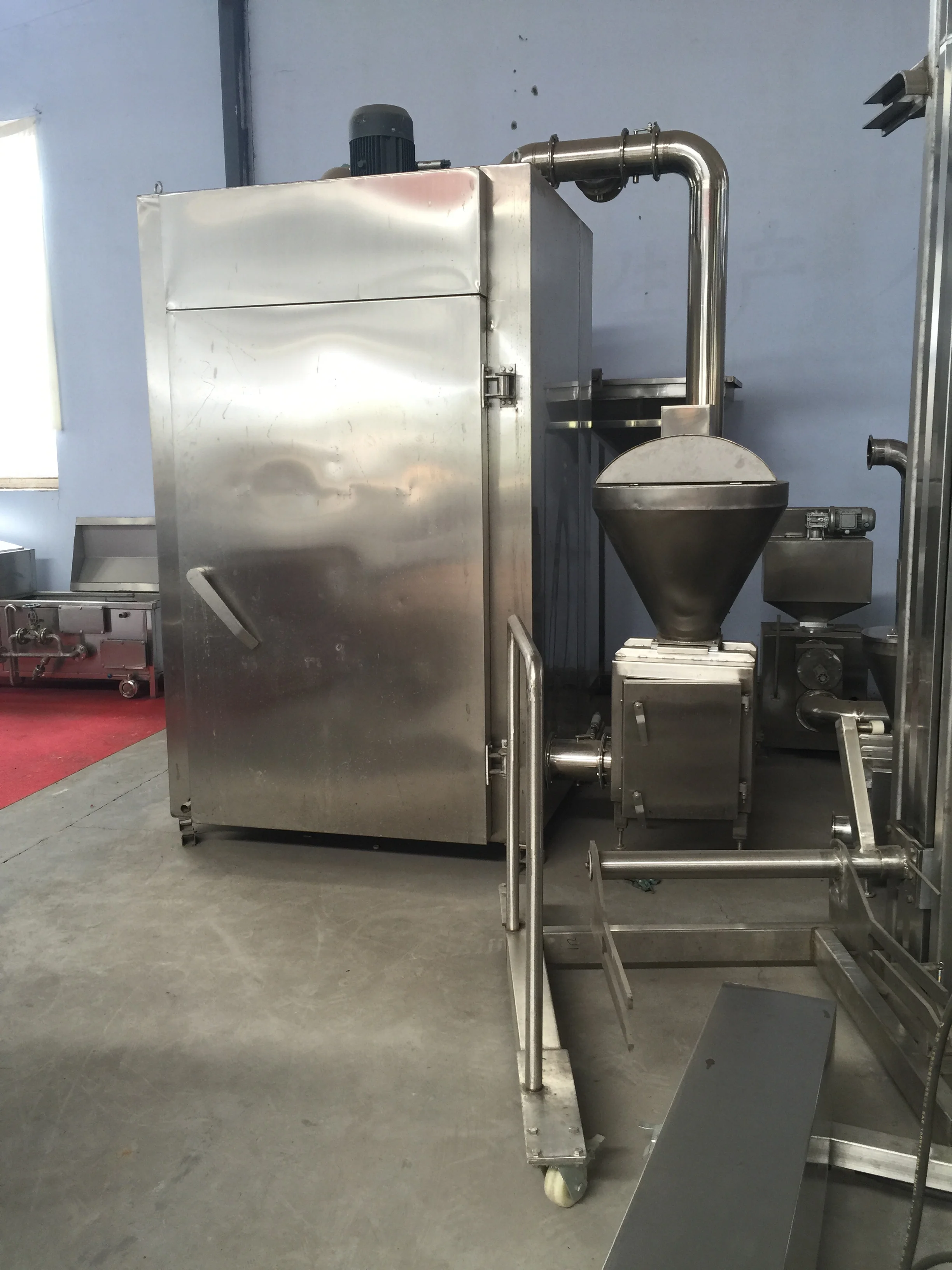

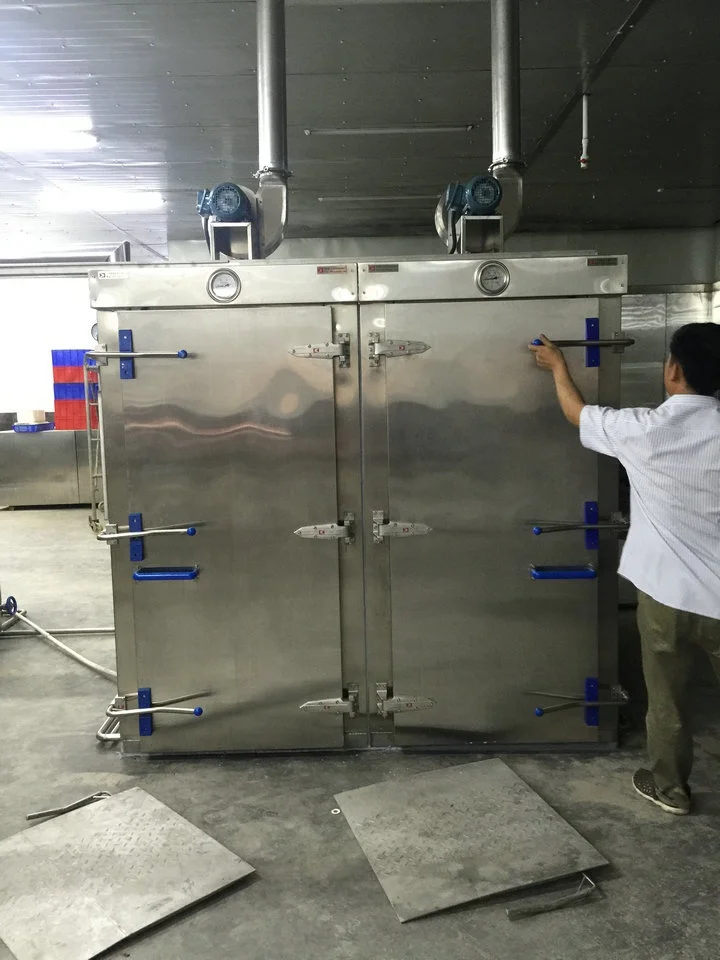

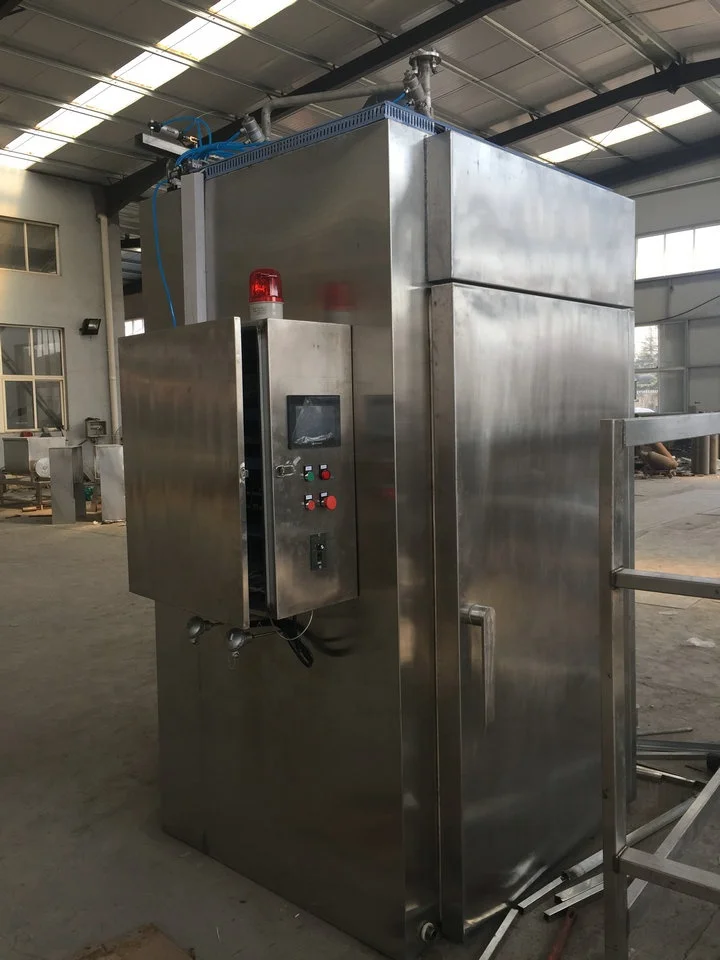

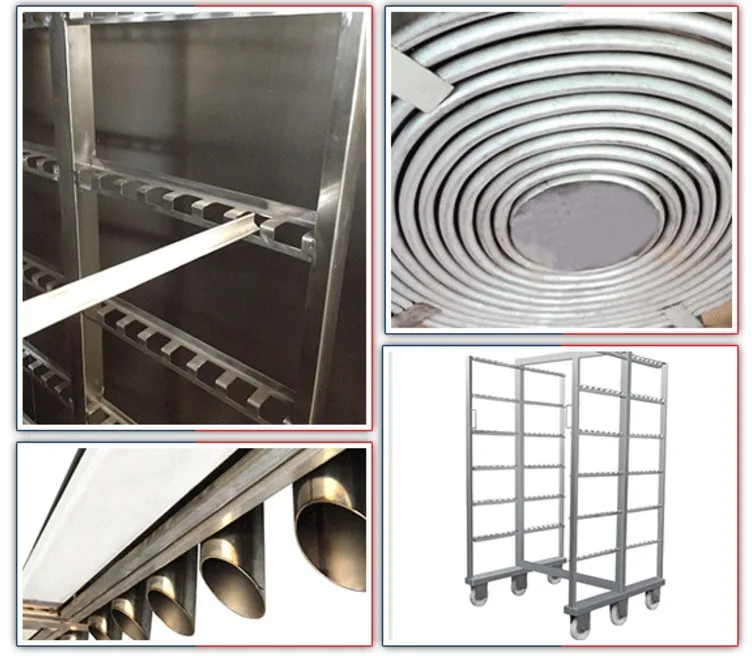

Production Pictures
Application:
Our Services
Product packaging
Certifications

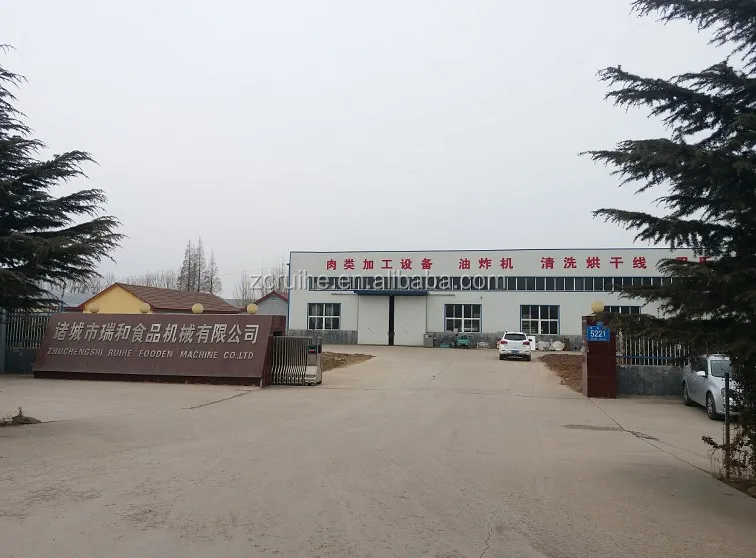

Company Profile

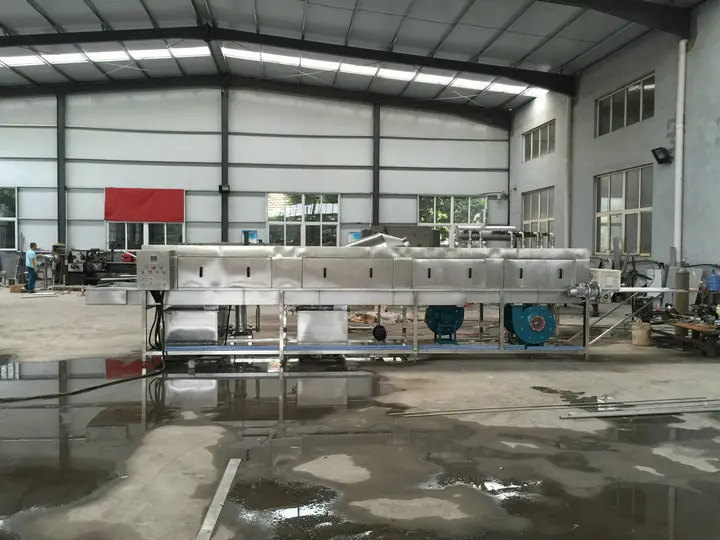

Zhucheng Ruihe Food Machinery Co., Ltd. is a professional manufacturer specializing in food processing machine. As a modern new type enterprise, Ruihe is integrated with the ability of designing, manufacturing and installation, equipped with advanced process and facilities. Our main equipment include smoking oven,vacuum roll rub machine,meat bowl chopper, fruit and vegetable wahing and drying line and frying production line and so on.
FAQ
1. What is the voltage/phase for this machine?
220V 50Hz/single phase ,380V 50Hz/three phase , 110V 60Hz/single phase also can made as
the clients’ requirement.
2. What is the Mode of transportation?
LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air
3. How long can we get the goods?
we usually delivery in 10-20 working days after deposit.
4. How long is the guarantee?
we promise guarantee as one year for non-human damage factor.
5. How should I do if meet some trouble while using?
we can supply English manual book and also take a video for showing how to resolve the problems. or dispatch our worker to your
factory.
6. How about the payment term?
40% by T/T with the order, 60% by T/T before shipment.
