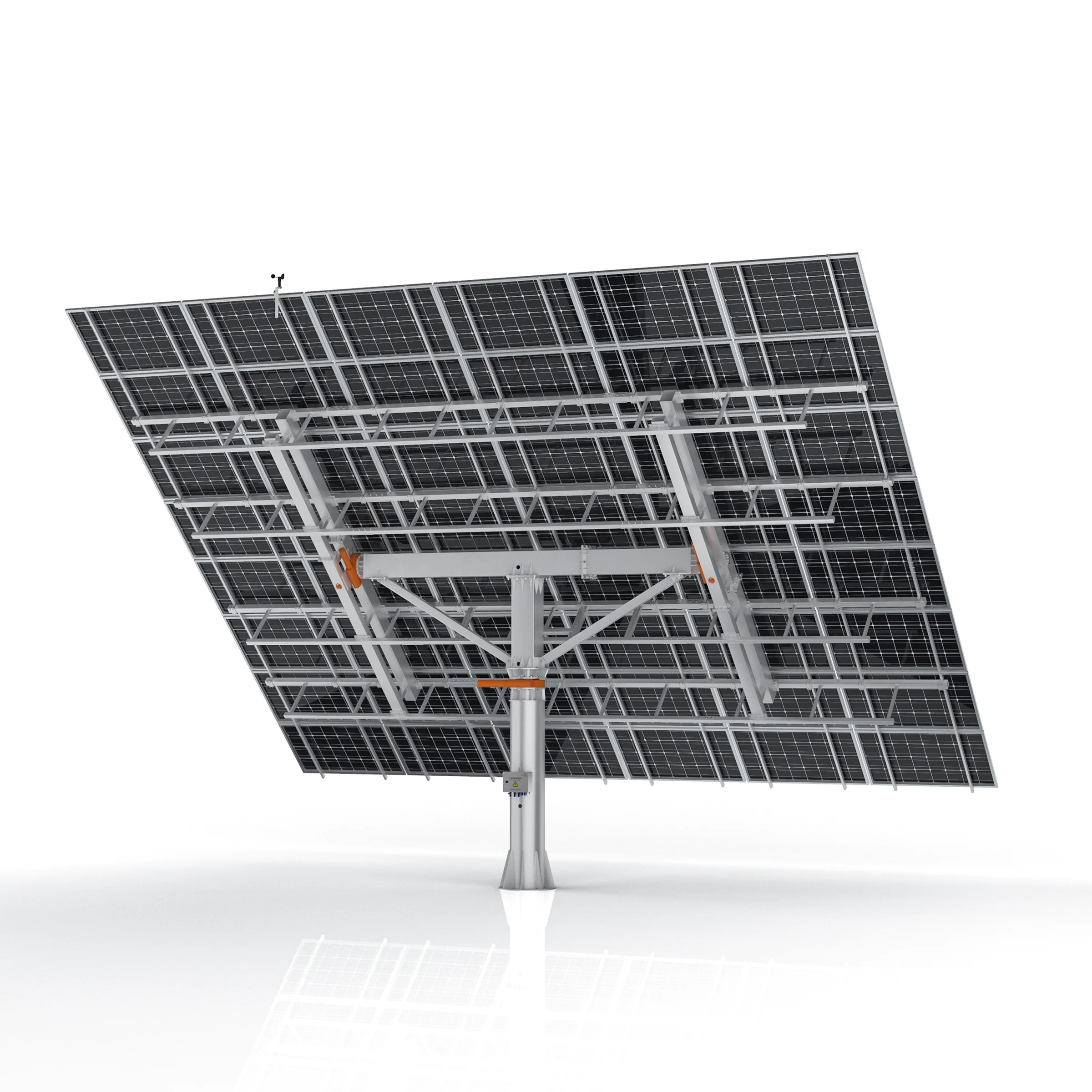

18kw solar tracker dual axis solar tracking system sun tracker sun tracking system solar panel tracker for 48 unit solar panels
- Category: Solar Tracker >>>
- Supplier: Shandong Huayue New Energy Co. Ltd.
Share on (62493530543):
Product Overview
Description
Product Description

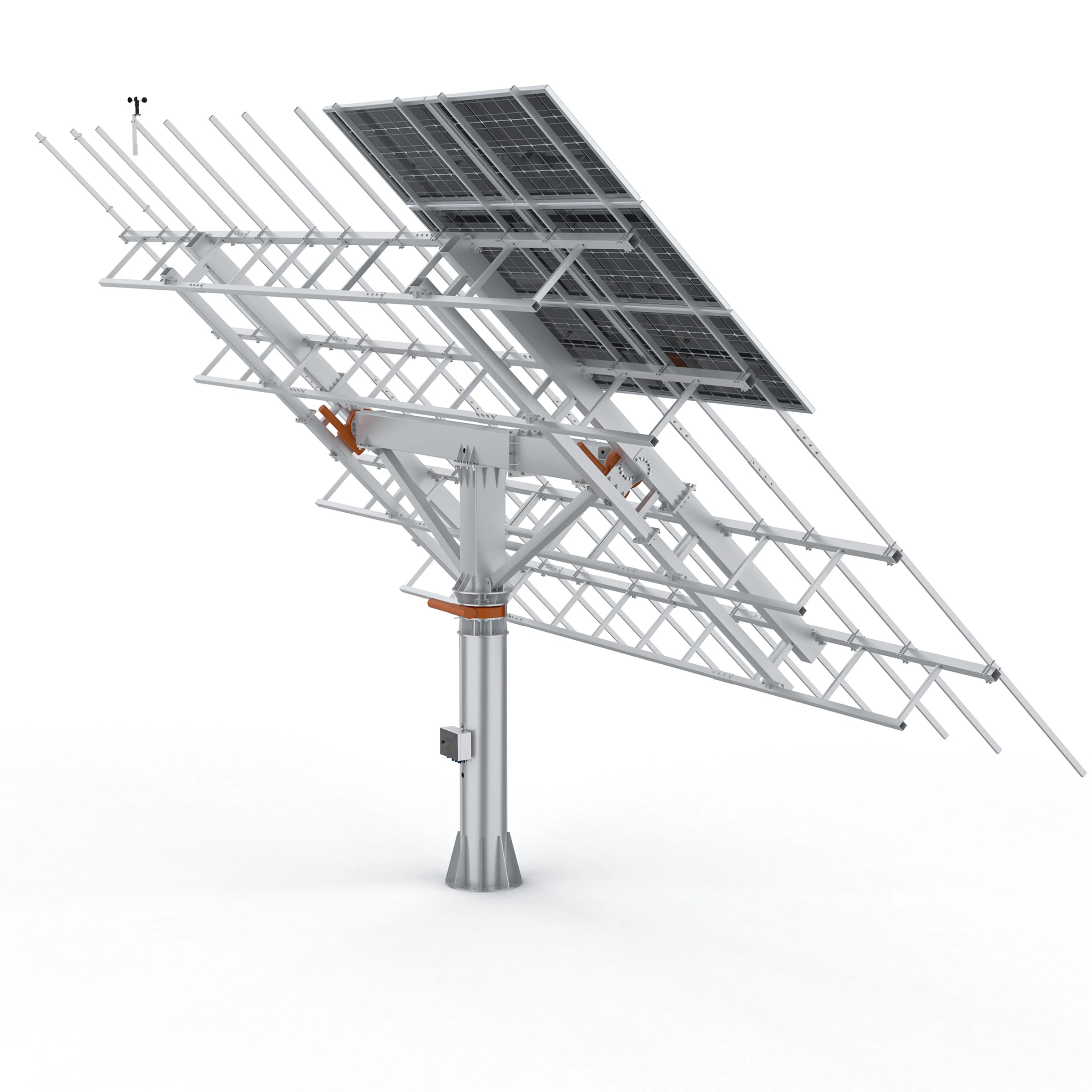

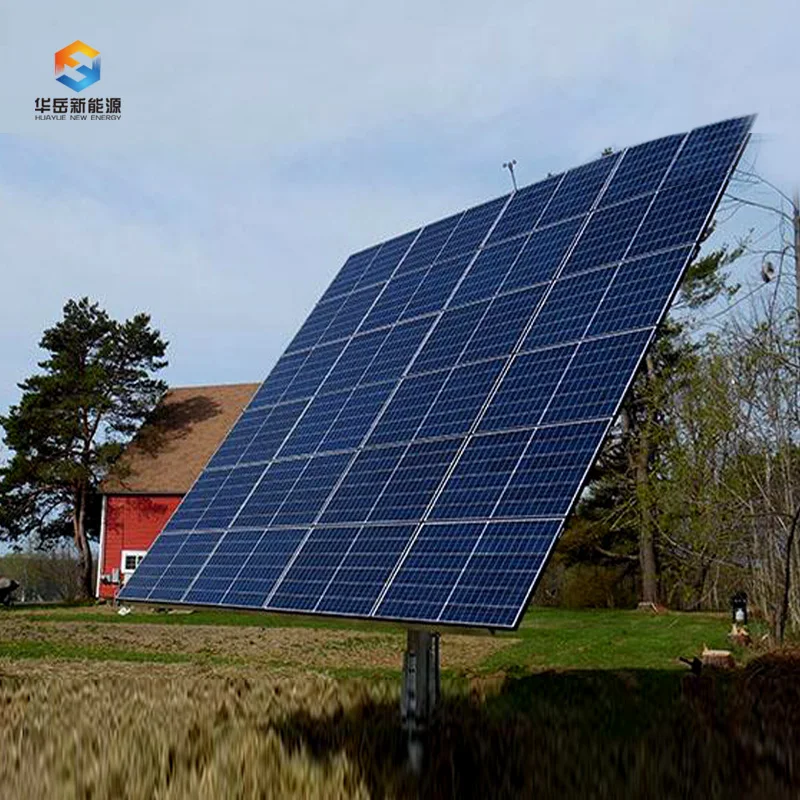

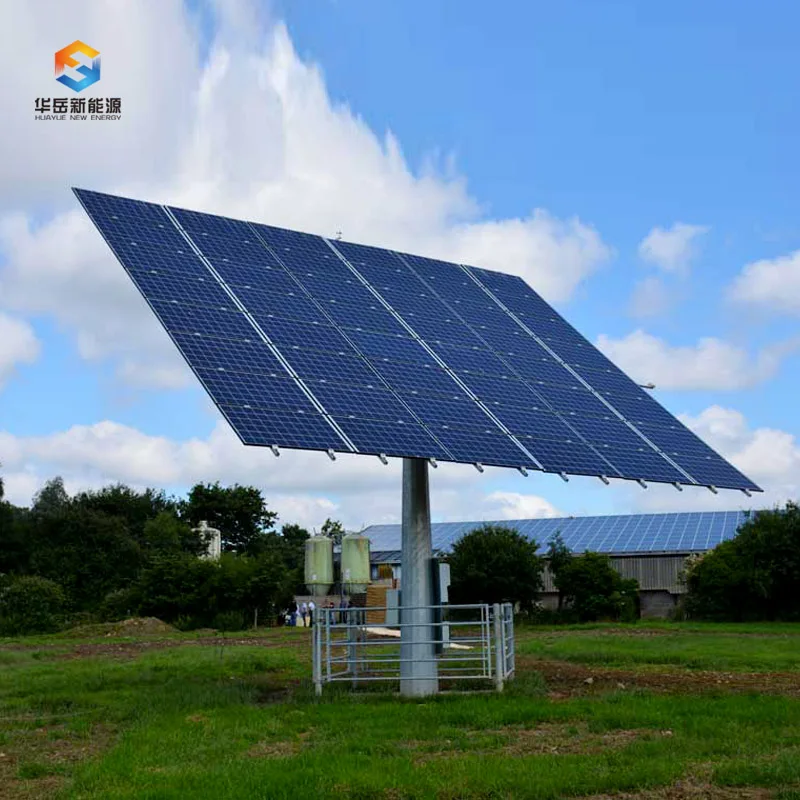

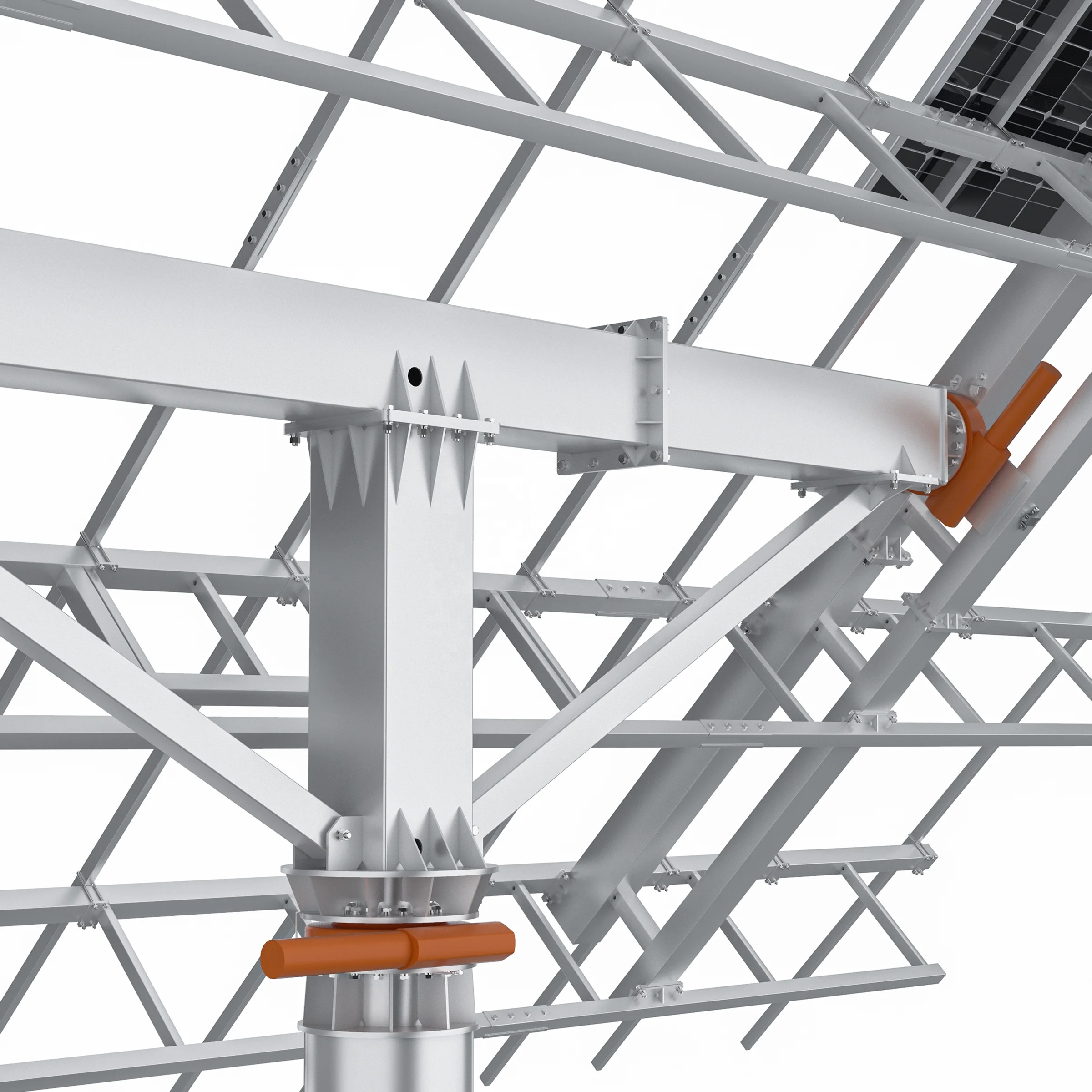

18KW solar tracker dual axis solar tracking system sun tracker sun tracking system
The control unit adopts tilt Angle sensor feedback + closed-loop control system, which has higher tracking accuracy and higher reliability.
Power generation can be increased by about 35-50% compared with the fixed type;
The bracket is compatible with all the market panel specifications, better design versatility;
With wireless group control function, cost is more economical;
With strong wind protection and automatic snow removal function, the system is more safe and stable;
Rain water cleaning mode, intelligent control, independent use of rain water cleaning components, reduce the operation and maintenance costs;
With no shadow tracking function, greatly extend the light time, improve the system power generation;
The operating power of the system is small, and the system's daily self-consumption is less than 1.5kwh.
Strong terrain adaptability, slope, hill, mountain can be installed;
Software and hardware support lifelong upgrade service, so that your products always apply the latest generation of technology;
Power generation can be increased by about 35-50% compared with the fixed type;
The bracket is compatible with all the market panel specifications, better design versatility;
With wireless group control function, cost is more economical;
With strong wind protection and automatic snow removal function, the system is more safe and stable;
Rain water cleaning mode, intelligent control, independent use of rain water cleaning components, reduce the operation and maintenance costs;
With no shadow tracking function, greatly extend the light time, improve the system power generation;
The operating power of the system is small, and the system's daily self-consumption is less than 1.5kwh.
Strong terrain adaptability, slope, hill, mountain can be installed;
Software and hardware support lifelong upgrade service, so that your products always apply the latest generation of technology;
Dual axis solar tracker track system axis pv system solar tracking system | ||||||

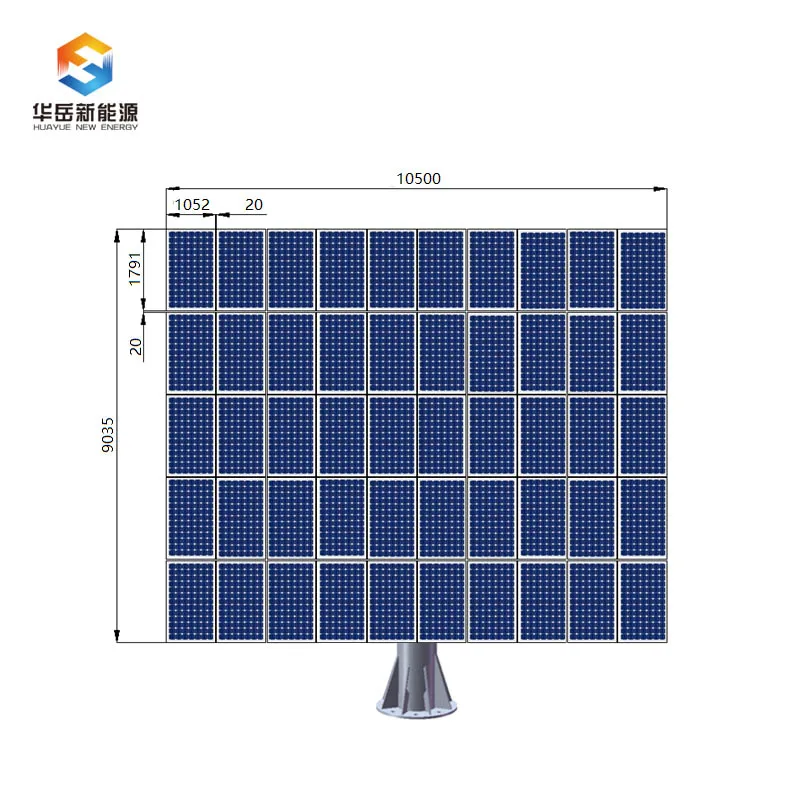

Module Size: | ≤1791*1052mm | Module number | 48p | |||
Scope of rack | 85㎡ | Control Mode | Closed loop time control | |||
Weight | ≈2000KG | Communication Methods | LoRa wireless communication or RS485 | |||
Tracking Accuracy | ≤1° | Power Supply | AC: 110V / 220V | |||
Driving Power | 450W | Power supply Mode | Self-Powered or External Power Source | |||
High angular Tranking | 0°～60° | Power consumption Every | ≤1.25kWh | |||
Bracket Material: | Hot Galvanizing | Azimuth tranking Range | -120°~ +120° | |||
Limit of Wind | 27~37m/s | Normal working Wind | 17 m/s | |||
Tracker type | singlechip | Night to return model | Yes | |||
backtracking algorithm | yes | IP Grade | IP66 | |||
Wind speed sensor | yes | Main material | Q235B / Q355B | |||
Galvanized thickness | 65um | Foundation type | Concrete foundation/spiral ground pile/steel pile ramming type | |||
Mechanical design Life | ＞25 years | Working Temperature | Normal-30℃～+70℃ Customizable -50℃～+85℃ | |||
Authentication | CE ISO9001 | Actuating Device | Rotary drive/Linear drive | |||
Examples of Project
GanSu Project
NingXia Project
XinYu Project
LinYi Project
Certifications
About Us
Shandong Huayue New Energy Co., Ltd.
Shandong Huayue New Energy Co., Ltd. is located in Tai'an City, Shandong Province, China. It is a supplier specializing in the design, development and production of solar tracking brackets. We are user-centered, adhering to the concept of continuous innovation in design and operation, committed to providing innovative technology and cost-effective solutions to create value for customers, providing economic and safe solutions and quality products for global solar photovoltaic power plants.

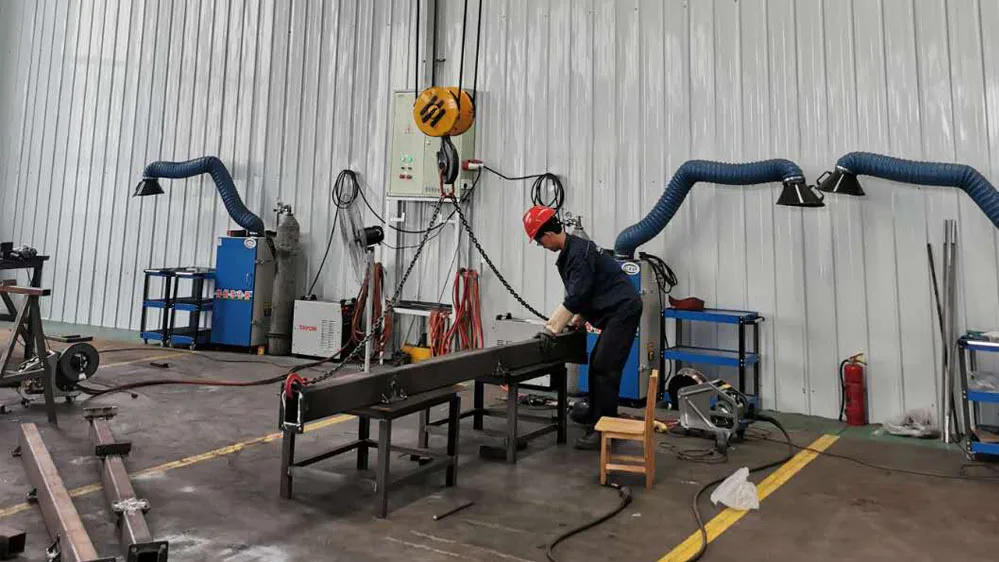

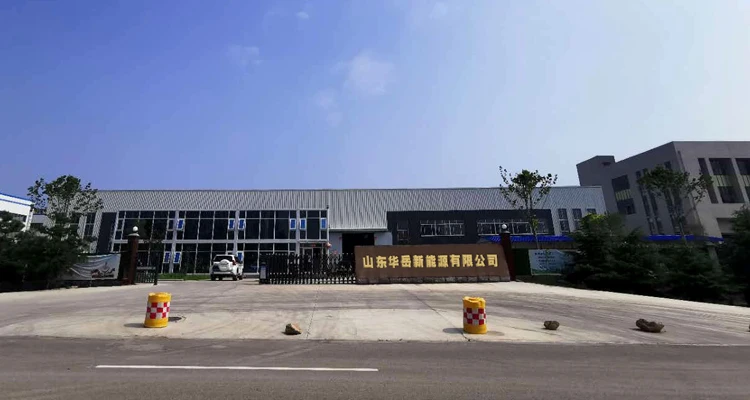

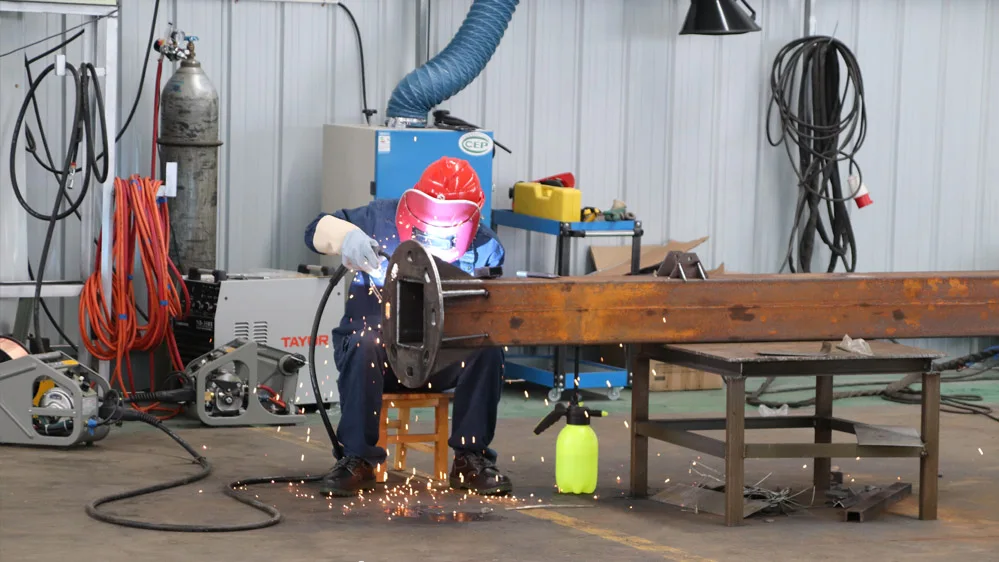

Factory Photos

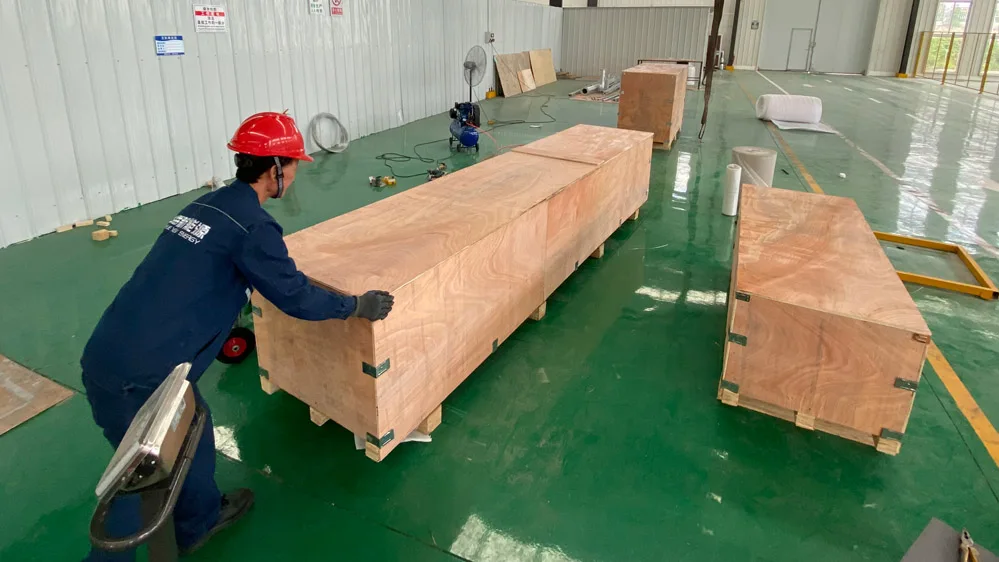

Packaging&Delivery
FAQ
Q: HOW LONG IS YOUR DELIVERY TIME?
A: Generally solar tracker is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is
according to quantity.
Q: Does any country support T/T,L/C,D/A,D/P,Western Union,Money Gram?
A: Our payments vary according to different countries and regions.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below ...
A: Generally solar tracker is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is
according to quantity.
Q: Does any country support T/T,L/C,D/A,D/P,Western Union,Money Gram?
A: Our payments vary according to different countries and regions.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below ...
