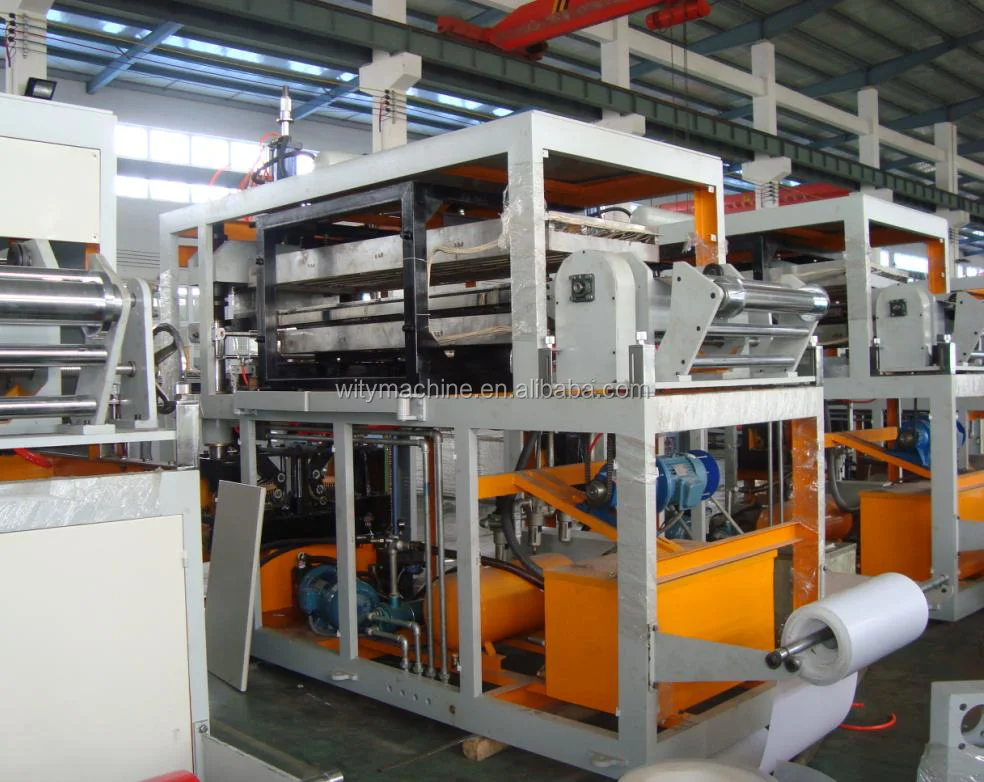

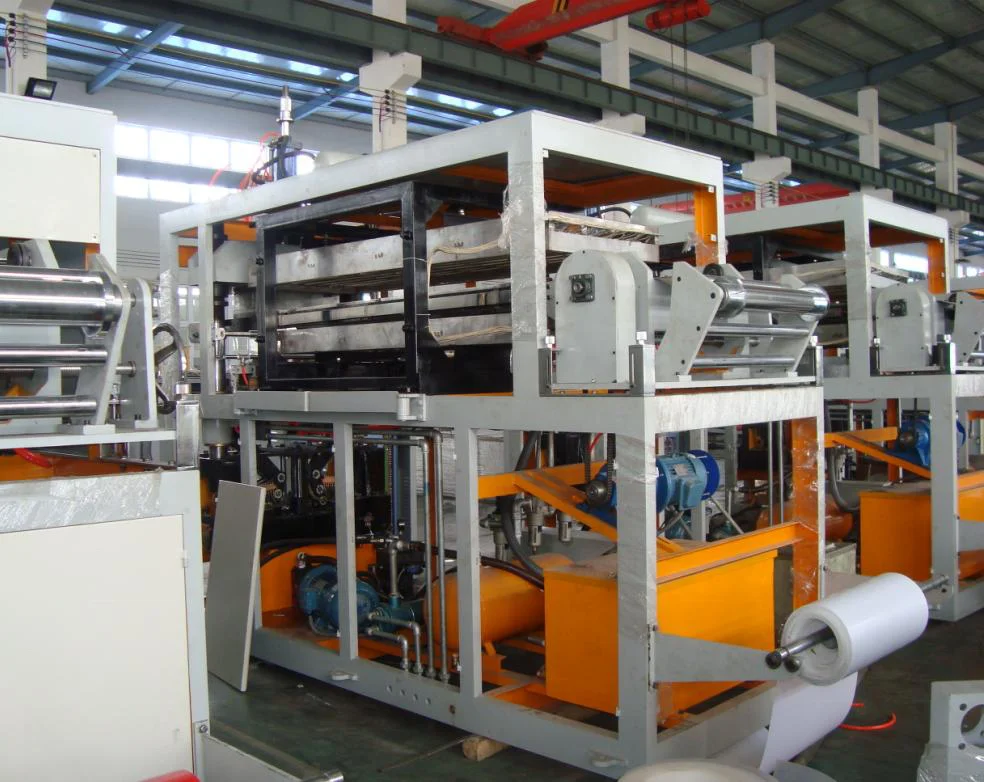

Plastic Cup Thermoforming Machine
- Category: Plastic Thermoforming Machines >>>
- Supplier: Ruian Wity Machinery Co. Ltd.
Share on (62493869414):
Product Overview
Description
The machine is mainly used for producing disposable plastic vessels, such as te cup, milk cup, jelly cup, instant noodles bowl and other plastic products, etc.
It is operates with man-interface, which can works all by itself. It combines the material feeding, heating, drawing, forming, cutting into one process.
Features
It is used for forming PP.PS.HIPS.PVC.and PET plastic sheets, which can be widely used to produce all kinds of plastic boxes, containers and other plastic wares, such as ice-cream cups, milk cups chocolate package boxes, candy boxes and fast-food boxes etc.
Main technical specification
sheet width | 500-660mm |
Sheet thickness range | 0.3 - 1.5mm |
Max. Forming Area | 640×240mm |
Max. Forming Depth | 120mm |
Max. sheet roll diameter | 700mm |
Compressed air | 0.7mpa |
Heating power | 64Kw |
Main motor power | 7.5Kw |
Sheet feeding motor power | 2.2Kw |
Winding motor power | 0.55Kw |
Normal capacity | 25-30strokes／min |
Power supply | 380v/3phase/50hz |
Machine size(L×W×H) | 3700×l500×2700mm |
Machine weight | 4200kg |
Details Images

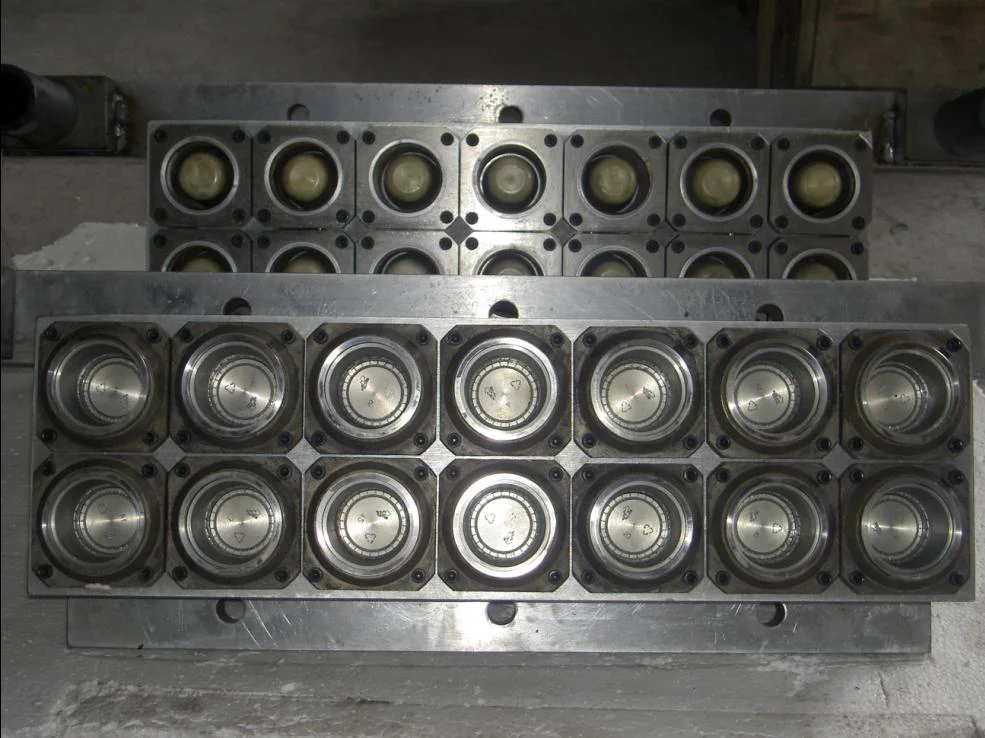

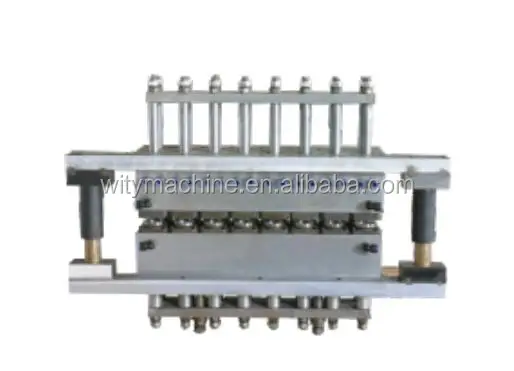

Forming Mould

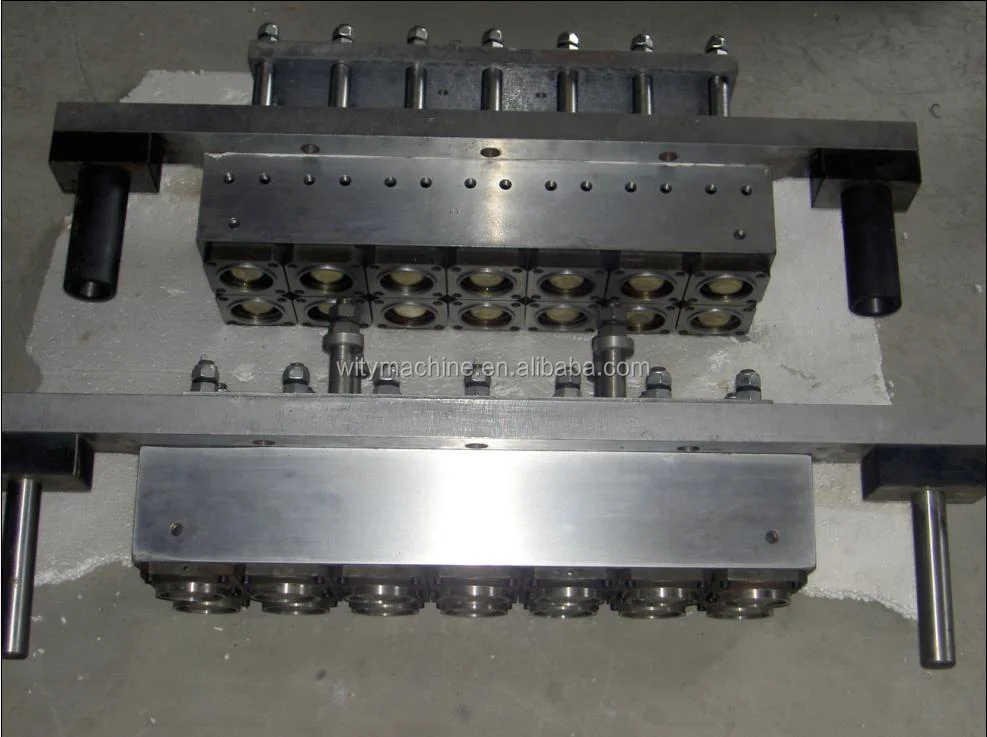

Forming Mould

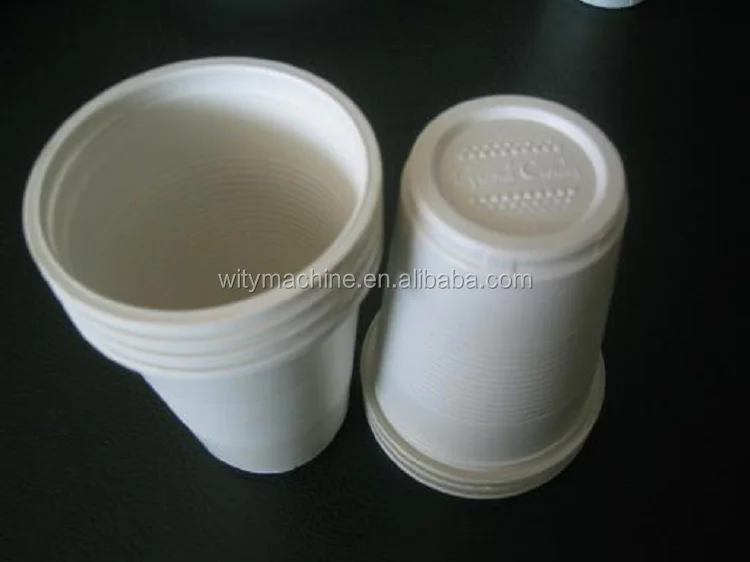

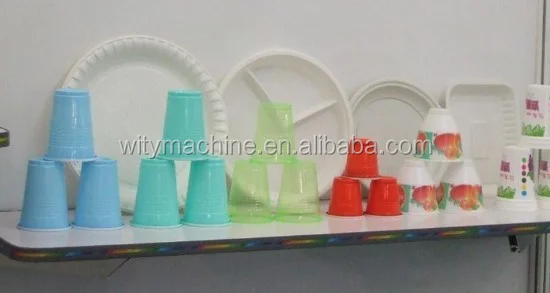

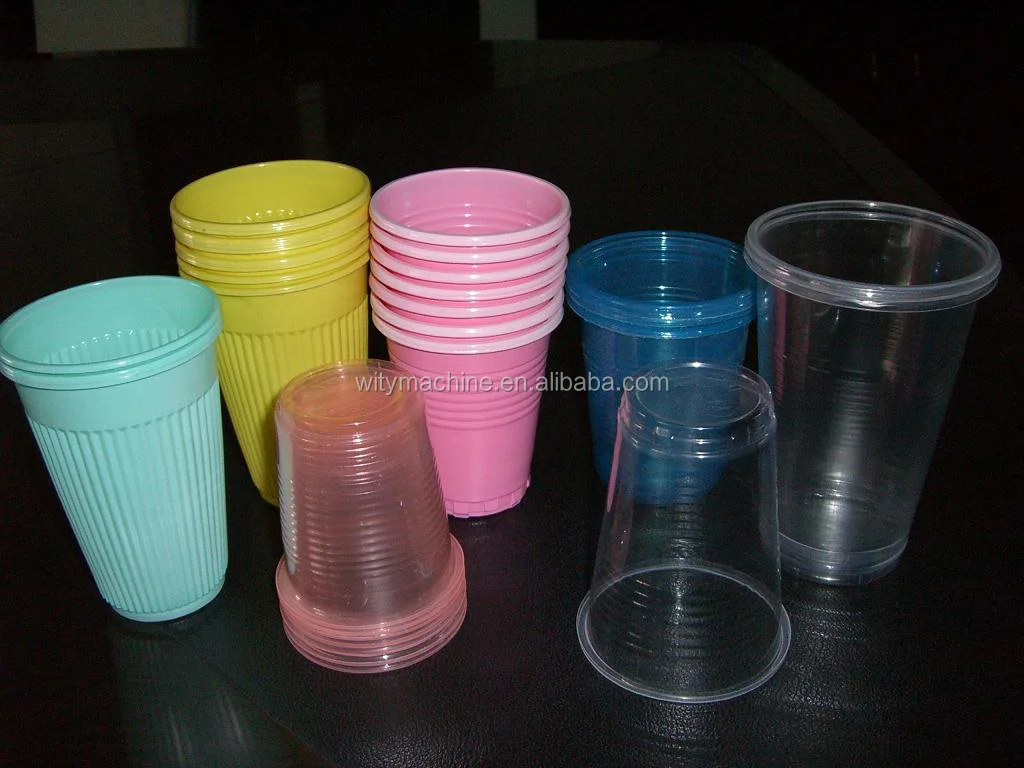

Samples

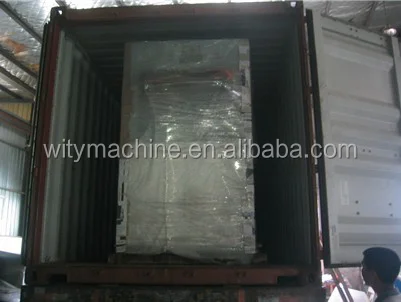

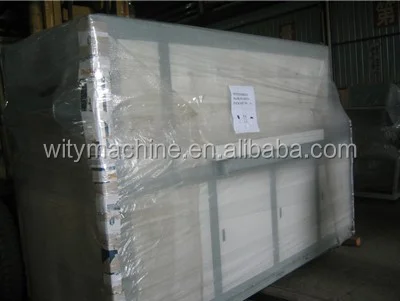

Package&Shipment
